VP1656 Quick Menu

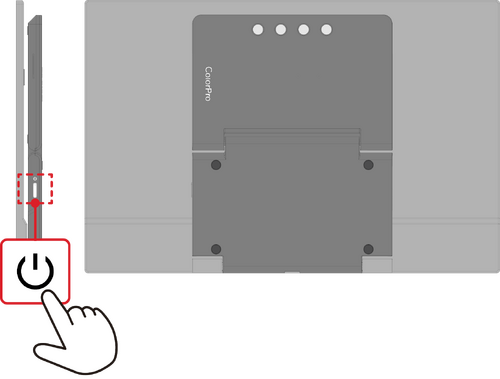

Turning the Device On/Off

1. Connect to a power source in one of the available configurations. For more information, see Connecting Power and Devices.
2. Press the Power Button to turn on the monitor.
3. To turn the monitor off, press the Power Button again.

Note: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect from the power outlet.

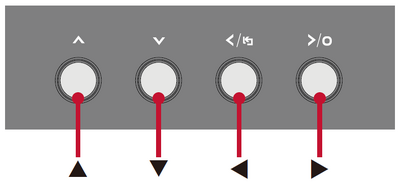

Using the Control Panel Keys

Use the control panel keys to access the Startup Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

Startup Menu

Press the ▲/▼/► key to activate the Startup Menu.

Note: Follow the key guide that appears on the screen to select the option or make adjustments.

Main Menu

Enter the On-Screen Display (OSD) Menu.

Color Mode

Select one of the preset standard color settings.

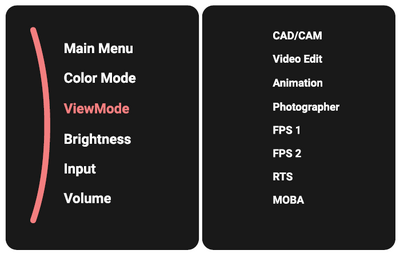

ViewMode

Select one of the preset display settings.

Brightness

Adjust the brightness level.

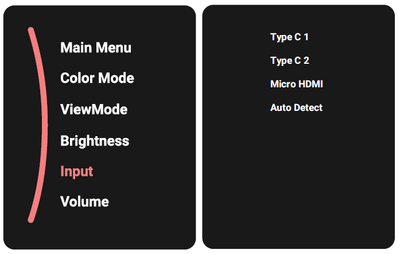

Input

Select the input source.

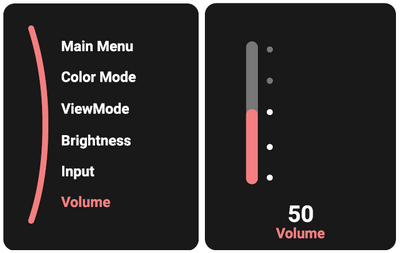

Volume

Adjust the volume settings.

Note: Press the ◄ Key to return to the previous menu.
