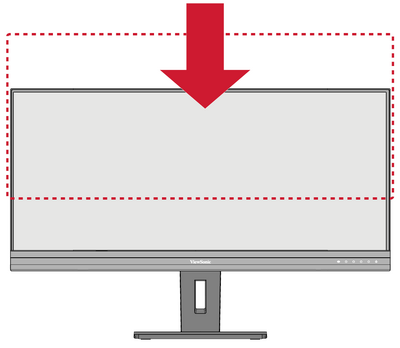

Height Adjustment

Lower or raise the monitor to the desired height (0 to 110 mm).

NOTE: When adjusting, press down firmly along the adjustment track.

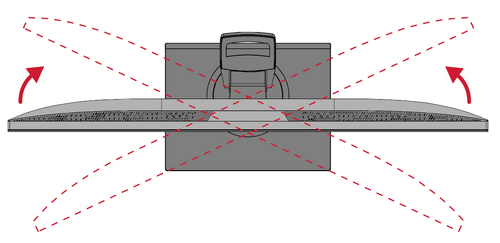

Swivel Angle Adjustment

Swivel the monitor to the left or right for the desired viewing angle (±60˚).

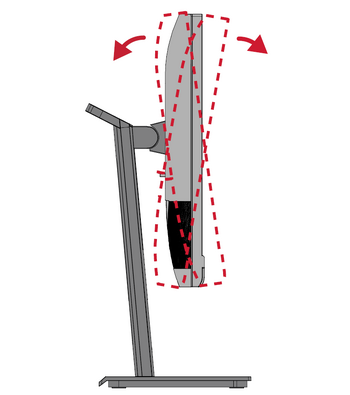

Tilt the monitor forwards or backwards to the desired viewing angle (-5° to 40°).

NOTE: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.
