VG2757V-2K Quick Menu

    From ViewSonic User Guide Database

    Turning the Monitor On/Off

    Turning the Monitor On/Off
    1. Plug the power cord into a power outlet.
    2. Press the Power button to turn on the monitor.
    3. To turn the monitor off, press the Power button again.
    4. Note: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

    Using the Webcam

    If Connected by DisplayPort or HDMI

    To activate the webcam, ensure the monitor is also connected to your computer via the USB Upstream port.

    Connect the monitor by Type C

    If Connected by USB Type C

    The webcam will already be activated and ready for use.

    Uncovering and Covering the Webcam (Privacy Mode)

    Uncover Cover
    To pop-up and uncover the webcam, press the top of the webcam. To cover the webcam, press the top of the webcam.
    Uncover the Webcam

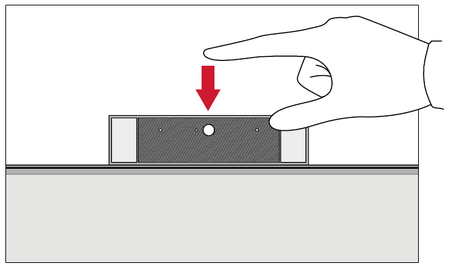

    Cover the Webcam

    Using the Monitor Camera for Windows Hello

    You can use Windows Hello facial recognition to sign-in with the camera on the monitor.
    Please refer to Windows’ official website for Windows Hello settings: Learn about Windows Hello and set it up.

    Tilting the Webcam

    When the webcam is uncovered, tilt it forwards or backwards to adjust the viewing angle (-5° to 5°).

    Tilting the Webcam

    Using the Control Panel Keys

    Use the control panel keys to adjust the ViewMode and LED Fill Light, mute the Speaker and Microphone, and navigate the On-Screen Display (OSD) Menu.

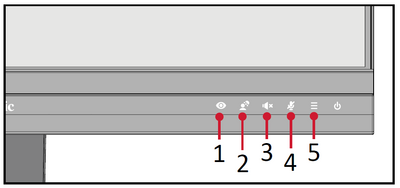

    Control Panel Keys

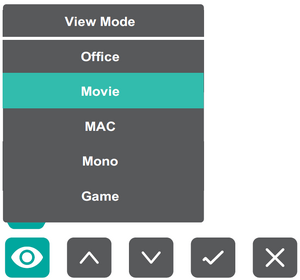

    ViewMode

    Press the 1 key to select one of the preset color settings.

    ViewMode

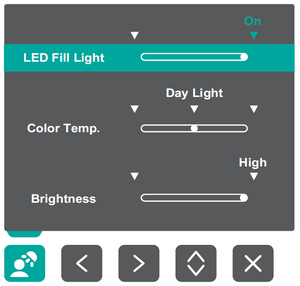

    LED Fill Light

    Press the 2 key to turn on the LED lights.

    LED Fill Light

    Speaker Mute

    Press the 3 key to mute/unmute the Speaker.

    Microphone Mute

    Press the 4 key to mute/unmute the Microphone.

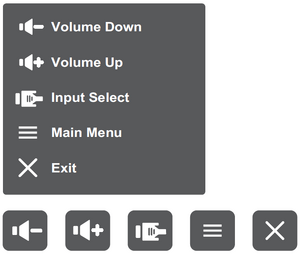

    Main Settings

    Press the 5 key to decrease/increase the Volume level, adjust the LED Fill Light, and enter the On-Screen Display (OSD) Menu.

    Main Settings
