General Operation

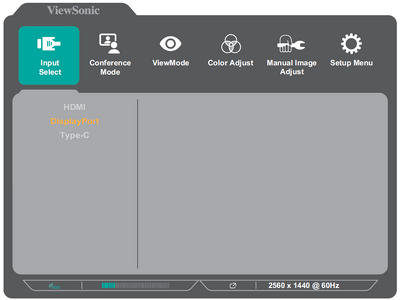

  1. Press the 5 key to display the Main Settings menu, then press the 4 key to enter the OSD Menu.

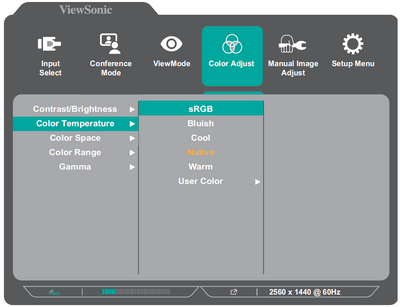

  2. On-Screen Display (OSD) Menu
  3. Press the 1 or 2 key to select the main menu. Then press the 3 key to enter the selected menu.

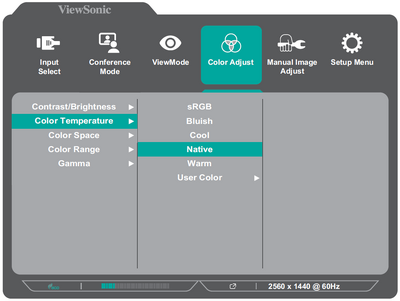

  4. On-Screen Display (OSD) Menu
  5. Press the 1 or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.

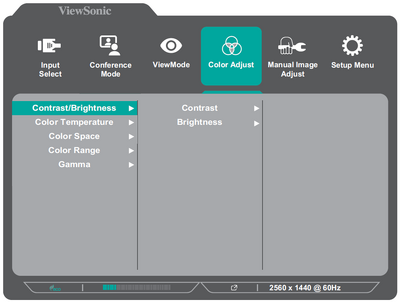

  6. On-Screen Display (OSD) Menu
  7. Press the 1 or 2 key to adjust/select the setting. Then press the 3 key to confirm.
  8. On-Screen Display (OSD) Menu

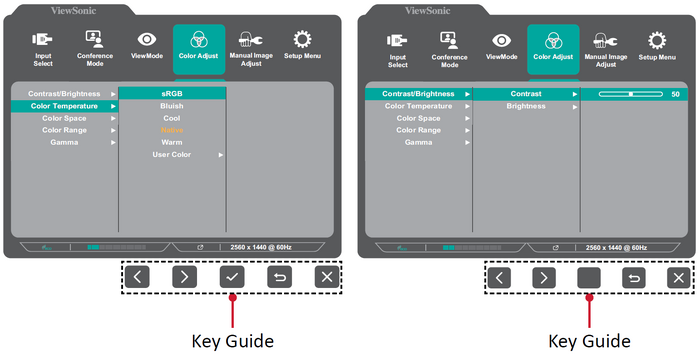

    Note: Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the screen to select the option or make adjustments.
    On-Screen Display (OSD) Menu
  9. Press the 4 key to return to the previous menu.
