VG2756-2K On-Screen Display Menu Options

From ViewSonic User Guide Database
Jump to navigation Jump to search
Backtotop.svg

Input Select

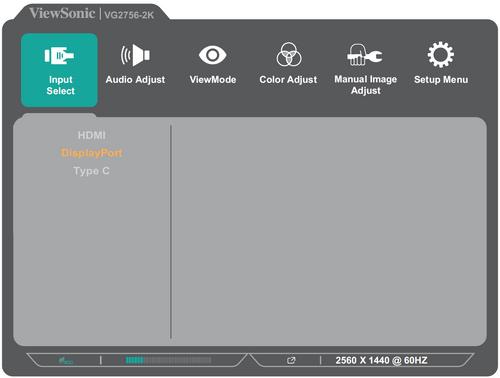

VG2756-2K Main Menu.png

Audio Adjust

Menu Option Description
Volume Adjust the volume level.
Mute Enable this option to temporarily turn off the sound.

ViewMode

Menu Option Description
Off Disable the function.
Office Select this option for office applications.
Movie Select this option for watching movies.
MAC Select this option when connecting to Mac computers.
Mono Select this option for monochrome.
Game Select this option for playing games.

Color Adjust

Menu Option Description
Contrast/Brightness Contrast

Adjust the degree of difference between the lightest and darkest parts of the picture and change the amount of black and white in the image.

Brightness

Adjust the background black levels of the screen image.

Color Temperature Select the color temperature setting.
  • Bluish: Set the color temperature to 9300K.
  • Cool: Set the color temperature to 7500K.
  • Native: Default color temperature. Recommended for regular use.
  • Warm: Set the color temperature to 5000K.
  • User Color: Adjust red, green, and blue values as desired.
Color Space Allows users to choose which color space they would like to use for monitor color output.
  • Auto: Automatically recognizes the color format and black and white levels.
  • RGB: The input signal color format is RGB.
  • YUV: The input signal color format is YUV.
Color Range The monitor can detect the input signal color range automatically. You can manually change the color range options to fit the correct color range if the colors are not displayed correctly.
  • Auto: Automatically recognizes the color format and black and white levels.
  • Full Range: Black and white levels are full.
  • Limited Range: Black and white levels are limited.
Gamma Manually adjust the brightness level of the monitor’s grayscale levels.

Manual Image Adjust

Menu Option Description
Auto Image Adjust Automatically adjust the screen image position.
Horizontal Size Stretch or shorten the screen on its horizontal axis.
H./V. Position Adjust the screen horizontally and/or vertically.
Fine Tune Improve distorted image quality from an analog signal.
Sharpness Adjust the picture quality.
Aspect Ratio Select the aspect ratio of the monitor.
Overscan Automatically enlarge the original picture horizontally and vertically to an equal aspect ratio that fills the screen.
Blue Light Filter Adjusts the filter that blocks high-energy blue light for a more comfortable viewing experience.
NOTE: Some options are only available for analog input signals.

Setup Menu

Menu Option Description
Language Select Select an available language for the OSD Menu.
Resolution Notice Enable this option to allow the system to inform users that the current viewing resolution is not the correct native resolution.
Information Display the monitor information.
OSD Timeout Set the length of time the OSD Menu remains on screen.
OSD Background Show/Hide the OSD background when the OSD Menu appears on the screen.
OSD Pivot Set the OSD Menu orientation.
  • 0°: Sets the OSD Menu without a pivot.
  • +90°: Sets the OSD Menu with a +90° pivot.
  • -90°: Sets the OSD Menu with a -90° pivot.
Power Indicator Set the Power Indicator On or Off. If the setting is set to On, the power indicator lights blue when the device is turned on.
Auto Power Off Enable this option to allow the monitor to automatically turn off after a certain amount of time.
Sleep Set the amount of idle time before the monitor enters Sleep mode.
ECO Mode Choose between various modes, based on power consumption.
DisplayPort 1.2 MST Enable/Disable DisplayPort 1.2 MST support.
DDC/CI Enable this option to allow the monitor control via the graphics card.
Auto Detect Automatically detect the input signal.
All Recall Resets all settings to their default values.
