VG245 Connecting Power and Devices

    From ViewSonic User Guide Database

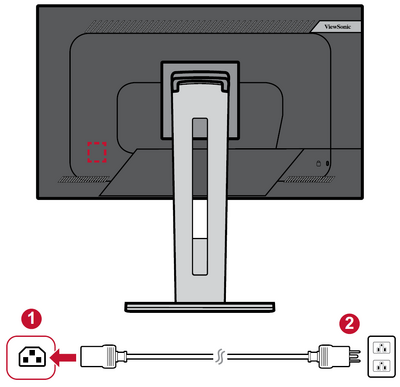

    Connecting to Power

    VG245 Connecting to Power.png
    1. Connect the power cord to the AC IN jack at the rear of the device.
    2. Plug the power cord plug into a power outlet.

    Connecting External Devices

    HDMI Connection

    Connect one end of an HDMI cable to the HDMI port of your monitor. Then connect the other end of the cable to the HDMI port of your computer.

    NOTE: The monitor is equipped with one HDMI 1.4 port.
    VG245 VG275 Connect HDMI.png

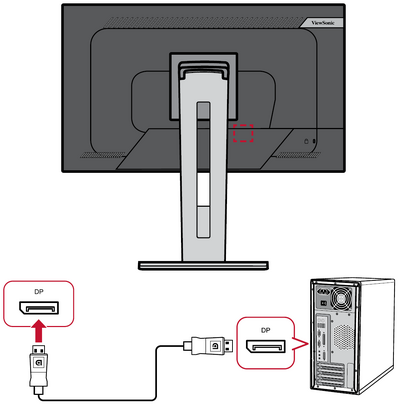

    DisplayPort Connection

    Connect one end of a DisplayPort cable to the DisplayPort port. Then connect the other end of the cable to the DisplayPort or mini DP port of your computer.

    NOTE: To connect the monitor to the Thunderbolt port (v. 1&2) on your Mac, connect the mini DP end of the “mini DP to DisplayPort cable” to the Thunderbolt output of your Mac. Then connect the other end of the cable to the DisplayPort of the monitor.
    VG245 VG275 Connect DP.png

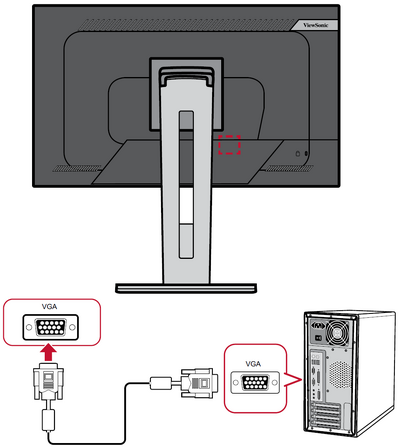

    VGA Connection

    Connect one end of a VGA cable to the VGA port of your monitor. Then connect the other end of the cable to the VGA port of your computer.

    VG245 VG275 Connect VGA.png

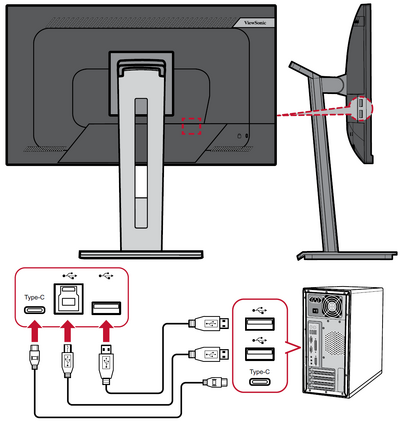

    USB Connection

    Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer.

    VG245 VG275 Connect USB.png
    NOTE: The monitor supports three (3) types of USB ports. When making the connection(s), observe the following guidelines:
    USB Type Quantity Description
    Type A 3 Connection for your Type A peripheral device(s). (e.g., storage device).
    NOTE: To activate the USB Type A port, ensure your computer is also connected to the monitor’s USB Type B port.
    Type B 1 Connect the USB Type B male cable (square with 2 cut corners) to this port, and then connect the other end of the cable to the USB downstream port of your computer.
    Type C 1 Make sure your Type C output device and cable support video signal transmission for video display.
