VG245 Quick Menu

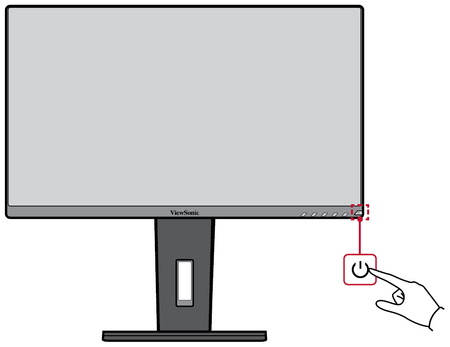

Turning the Device On/Off
- Plug the power cord into a power outlet.
- Press the Power button to turn on the monitor.
- To turn the monitor off, press the Power button again. NOTE: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

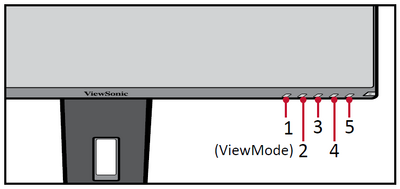

Using the Control Panel Keys
Use the control panel keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

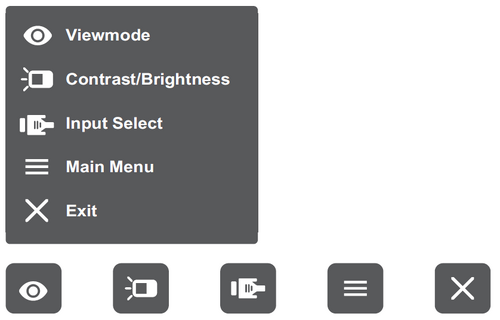

Quick Menu
Press the 2/3/4/5 key to activate the Quick Menu.
- NOTE: Follow the key guide that appears on the screen to select the option or make adjustments.
| Icon | Name | Description |
|---|---|---|
|
ViewMode | Select one of the preset color settings. |
|
Contrast / Brightness | Adjust the contrast or brightness level. |
|
Input Select | Select the input source. |
|
Main Menu | Enter the On-Screen Display (OSD) Menu. |
|
Exit | Exit the Quick Menu. |
