Wall Mounting

Refer to the table below for the standard dimensions for wall mount kits.

For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
Maximum Loading Hole Pattern (W x H) Interface Pad (W x H x D) Pad Hole Screw Specification & Quantity
23.7 kg 200 x 100 mm 235 x 135 x 2 mm Ø 8 mm M6 x 12 mm - 4 pieces
113.6 kg 400 x 200 mm 435 x 235 x 2 mm Ø 8 mm M6 x 12 mm - 4 pieces
  1. Turn off the device and disconnect all cables.
  2. Place the device on a flat, stable surface with the screen facing down.
  3. Unscrew the attached stand and carefully remove it.
  4. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M6 x 12 mm).
  5. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.

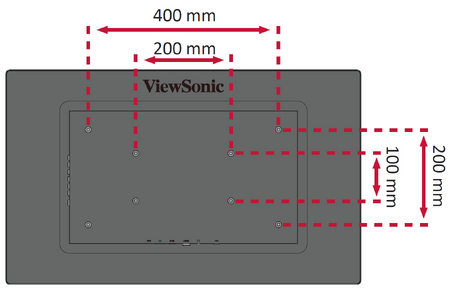

TD3207 Wall Mount.png

Using the Security Slot
