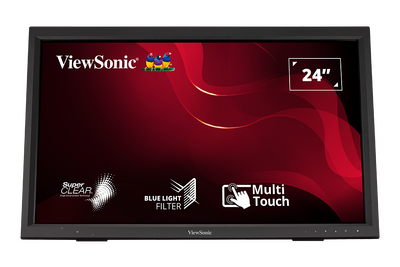

TD2423d Specifications

    From ViewSonic User Guide Database

    Technical Specifications

    Model No. P/N
    VS18588 TD2423d
    Item Category Specifications
    LCD Type a-si, TFT Active Matrix 1920 x 1080 LCD,

    0.2715 mm x 0.2715 mm pixel pitch

    Display Size 60.96 cm, 24" (23.6" viewable)
    Surface Treatment Glossy treatment of the polarizer (Haze 8%, 7H)
    Input Signal Video Sync RGB Analog (75 Ω)
    fh:24-82 Khz, fv:50-75 Hz

    TMDS digital (100 Ω)

    HDMI: fh:24-82 Khz, fv:50-75 Hz
    DisplayPort: fh:24-82 Khz, fv:50-75 Hz
    Compatibility PC up to 1920 x 1080
    Macintosh up to 1920 x 1080
    Recommended 1920 x 1080 @ 60Hz
    Resolution[1] Supported
    • 1920 x 1080 @ 50, 60, 75Hz
    • 1680 x 1050 @ 60Hz
    • 1600 x 1200 @ 60Hz
    • 1600 x 900 @ 60Hz
    • 1440 x 900 @ 60, 75Hz
    • 1400 x 1050 @ 60Hz
    • 1366 x 768 @ 60 Hz
    • 1360 x 768 @ 60Hz
    • 1280 x 1024 @ 60, 75Hz
    • 1280 x 960 @ 50, 60, 75Hz
    • 1280 x 800 @ 50, 60, 75Hz
    • 1280 x 768 @ 50, 60, 75Hz
    • 1280 x 720 @ 50, 60Hz
    • 1152 x 900 @ 66Hz
    • 1152 x 870 @ 75Hz
    • 1152 x 864 @ 60, 75Hz
    • 1024 x 768 @ 50, 60, 70, 72, 75Hz
    • 1024 x 600 @ 60Hz
    • 832 x 624 @ 75Hz
    • 848 x 480 @ 60Hz
    • 800 x 600 @ 56, 60, 72, 75Hz
    • 800 x 480 @ 60Hz
    • 720 x 576 @ 50Hz
    • 720 x 480 @ 60Hz
    • 720 x 400 @ 70Hz
    • 640 x 480 @ 50, 60, 67, 72, 75Hz
    • 640 x 400 @ 60, 70Hz
    • 640 x 350 @ 70Hz
    Power Adapter[2] Input Voltage AC 100-240V, 50/60Hz (auto switch)
    Display Area Full Scan (H x V) 521.28 x 293.22 mm (20.52” x 11.54”)
    Operating Conditons Temperature 0° C to 40° C (32° F to 104° F)
    Humidity 20% to 90% (non-condensing)
    Altitude 16,404 feet (4.9 km)
    Storage Conditions Temperature -20° C to 60° C (-4° F to 140° F)
    Humidity 5% to 90% (non-condensing)
    Altitude 40, 000 feet (12.1 km)
    Dimensions Physical

    (W x H x D)

    570.92 x 346.98 x 100.99 mm

    (22.47” x 13.77” x 3.96”)

    Weight Physical 5.23 kg (11.53 lbs)
    Power Saving Modes On 14.6W (Typical)
    Off < 0.3W (Max)
    1. Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
    2. Please use the power adapter from ViewSonic® or an authorized source only.
