    General Operation

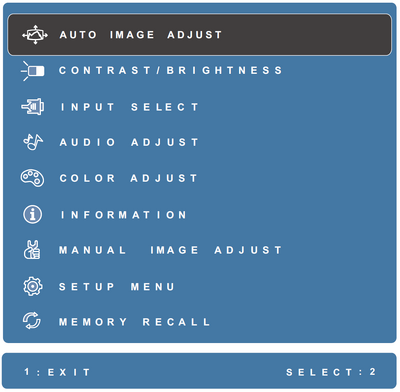

    1. Press the 1 key to display the On-Screen Display (OSD) Menu.
    Display the OSD Menu

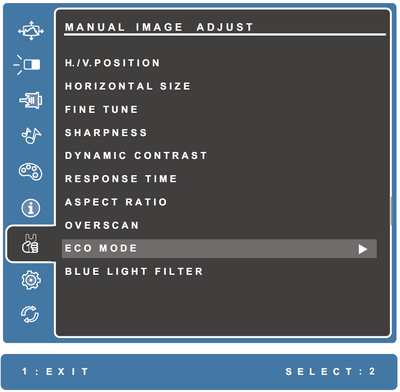

    1. Press the [▲] or [▼] key to select the main menu. Then press the 2 key to enter the selected menu.
    Select a Main Menu

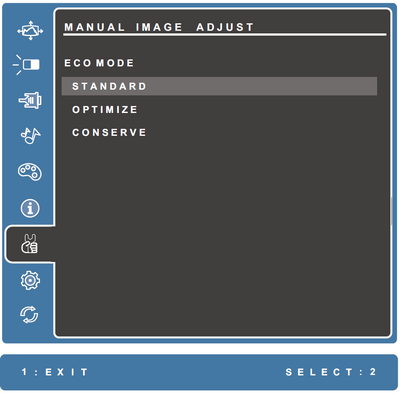

    1. Press the [▲] or [▼] key to select the desired menu option. Then press the 2 key to enter the sub-menu.
    Select an option

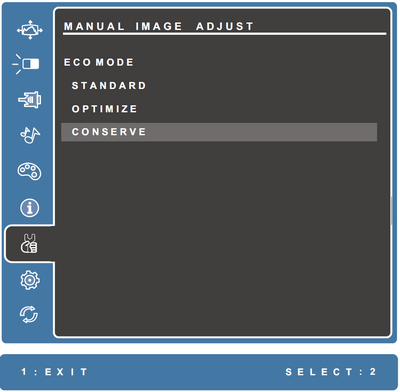

    1. Press the [▲] or [▼] to adjust/select the setting. Then press the 2 key to confirm.
    Adjust/Select the option

    NOTE: Certain menu option adjustments do not require the user to press the 2 key to confirm the selection. Follow the key guide to select the option or make adjustments.
