    Features

    • Short throw lens design allows for a projected 39” screen size from only 1 meter away.
    • Auto V. keystone to correct a distorted image automatically.
    • Excellent audio performance by JBL.
    • Instant on/off and great colors.
    • Swappable color top plates and flexible angle adjustment.
    • Multi-language On-Screen Display (OSD) menus.
    • Embedded battery for easy outdoor projection.
    • User-friendly UI design for easy navigation.
    • LED light source with excellent light source life (30,000 hours).
    • Color modes for every occasion.
    • 8 GB internal storage (Max. 4 GB available for user storage).
    • Bluetooth speaker, Bluetooth out, and Screen Mirroring features.
    NOTE: The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input signal contrast/brightness settings, and projection distance.

    Package Contents

    1. The CR2032 battery is inside the remote control.

    Projector Overview

    Number Item
    1 Vent
    2 Smart Stand
    3 IR Receiver
    4 Focus Ring
    5 DC IN (USB-C Port)
    6 USB Type A Port
    7 Speaker
    8 Lens
    9 Top Plate
    10 Power Switch
    11 LED Indicator
    12 IR Receiver
    13 Lanyard Attachment Point
    14 Power Switch
    15 HDMI Port

    Overview

    Remote Control
    Button Icon Description
    Power M1 mini Plus Icon Power.png Turns the projector On or Off
    Home M1 mini Plus Icon Home.png Access the Home menu
    Up/Down/Left/Right M1 mini Plus Icon Directional.png Navigates and selects the desired menu items and makes adjustments
    OK M1 mini Plus Icon OK.png Confirms the selection
    Settings M1 mini Plus Icon Settings.png Displays the Settings menu
    Return M1 mini Plus Icon Return.png Returns to the previous screen
    Volume Up M1 mini Plus Icon VolumeUp.png Increase the volume level
    Mute M1 mini Plus Icon Mute.png Mute the volume
    Volume Down M1 mini Plus Icon VolumeDown.png Decrease the volume level

    Effective Range

    IR Receiver Location

    To ensure proper function of the remote control follow the steps below:

    1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
    2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)
    NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).

    Replacing the Batteries

    1. Place the remote control facedown and remove the battery tray from the bottom of the remote control by pressing the side tab and pulling it out.
    2. Remove any existing battery (if necessary) and install one CR2032 battery.
    3. Replace the battery tray by aligning it with the base and pushing it back into position.
    NOTE:
    • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
    • Replace only with the same or equivalent type recommended by the battery manufacturer.
    • If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
    • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.

    Choosing a Location - Projector Orientation

    Personal preference and room layout will decide the installation location. Consider the following:

    • Size and position of your screen.
    • Location of a suitable power outlet.
    • Location and distance between the projector and other equipment.
    Location Description
    Front Table The projector is placed near the floor in front of the screen.
    Front Ceiling The projector is suspended upside-down from the ceiling in front of the screen.
    Rear Table[1] The projector is placed near the floor behind the screen.
    Rear Ceiling[1] The projector is suspended upside-down from the ceiling behind the screen.
    1. 1.0 1.1 A rear projection screen is required.

    Projection Dimensions

    Projection Dimensions.png

    NOTE: (e) = Screen | (f) = Center of Lens

    16:9 Image on a 16:9 Screen

    (a) Screen Size (b) Projection Distance (c) Image Height Image Width
    Minimum Maximum
    in. cm in. m in. m in. cm in. mm
    30 76.2 32.16 0.82 32.16 0.82 14.7 37.36 26.15 664
    40 101.6 42.88 1.09 42.88 1.09 19.6 49.81 34.86 886
    50 127 53.6 1.36 53.6 1.36 24.5 62.26 43.58 1107
    60 152.4 64.32 1.63 64.32 1.63 29.4 74.72 52.29 1328
    70 177.8 75.04 1.91 75.04 1.91 34.3 87.17 61.01 1550
    80 203.2 85.76 2.18 85.76 2.18 39.2 99.62 69.73 1771
    90 228.6 96.48 2.45 96.48 2.45 44.1 112.07 78.44 1992
    100 254 107.2 2.72 107.2 2.72 49 124.53 87.16 2214
    There is a 3% tolerance among these numbers due to optical component variations. It is recommended to physically test the projection size and distance before permanently installing the projector.

    Top Plate Removal/Installation

    The M1 mini Plus comes with different color top plates.

    M1 mini Plus Top Plate Removal.png

    To change the top plate:

    1. Remove the top plate by carefully prying up one corner and lifting the top plate off (as shown above).
    2. To install a top plate, line up the circular hole and prongs located under the top plate with the spacing and holes of the projector. Gently press the top plate into place.

    Connecting to Power

    M1 mini Plus Connect Power.png

    Power Adapter

    Connect the power adapter to the USB-C Port on the side of the projector (5V/1.5A).

    NOTE:
    • Charge the projector for 2.5 hours via the power adapter before using it in battery mode for the first time.
    • The DC IN port can accept 5V or 9V charging; however, 9V charging can only work in the Power On mode.

    Battery Power

    The battery level icon will show at the top right of the Home Screen. As the battery’s power level runs low, the screen will show a “low battery message”.

    Battery Usage Time Information

    Charging About 2.5 hours (5V/1.5A)
    Usage Hours 1.4 hours (Normal) / 1.5 hours (ECO)
    Battery Level Indicator (Charging) During Charging: Red LED light is On

    Full Charge: Green LED light is On

    NOTE: Charging time may be longer than 2.5 hours if using less than 5V/1.5A.

    Power Bank Function

    The projector can also act as a power bank for your mobile device.

    M1 mini Plus Power Bank.png

    To charge your mobile device:

    1. Turn off the projector by pushing the Power Switch.
    2. Use the USB Type A port on the projector to connect to a mobile device.
    3. A 5V/1A power charge can be provided to the mobile device.
    NOTE: The Power Bank function can only work when the projector is powered off.

    Connecting to External Devices

    M1 mini Plus External Devices.png

    HDMI Connection

    Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI port (supports HDCP 1.4/HDMI 1.4) of your projector.

    USB Connection

    To enjoy photos, music, and movies, simply plug in a USB flash drive to the USB Type A port.

    Connecting to Bluetooth

    Bluetooth Speaker

    The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback.

    To connect and pair your device:

    1. Go to: Home > Bluetooth.
    2. Use the Left and Right directional buttons on the remote control to select Bluetooth Speaker or Bluetooth Pairing. Then press OK on the remote control.
    3. When the dialogue box appears, select Yes and press OK on the remote control to enter Bluetooth mode.
    4. A sound effect will be audible upon entering pairing mode.
    5. Upon successful connection, another sound effect will be audible.
    NOTE:
    • Once paired, if both the projector and your device are powered On they will automatically connect via Bluetooth.
    • The projector’s name will be labeled as “M1 mini Plus”.

    Bluetooth Out

    Connect the projector to external headphones or speakers that support Bluetooth.

    To connect and pair your device:

    1. Go to: Home > Bluetooth.
    2. Use the Left and Right directional buttons on the remote control to select the Bluetooth Out option.
    3. The projector will search for nearby Bluetooth devices. Select your device from the list and press OK on the remote control.

    Connecting to Networks

    Wi-Fi Connection

    To connect to a Wi-Fi network:

    1. Go to: Home > Setting > Network Settings > Wi-Fi.
    2. Press Left or Right on the remote control to select On.
    3. Available Wi-Fi networks will then be displayed. Select one of the available Wi-Fi networks.
    4. If you connect to a secure Wi-Fi network, you must enter the password when prompted.

    Custom SSID

    1. Go to: Home > Setting > Network Settings > Wi-Fi.
    2. Press Left or Right on the remote control to select On.
    3. From the available Wi-Fi networks list select Others and press OK on the remote control.
    4. Enter the SSID and select the security level.
    5. Enter the password when prompted.

    Wireless Screen Mirroring

    Screen Mirroring provides a 5 GHz Wi-Fi connection for users to mirror the screen on their personal device.

    NOTE: Ensure your device is connected to the same network as the projector.
    Wireless Screen Mirroring Update.png

    For iOS:

    1. Access the drop down control menu.
    2. Select the “Screen Mirroring” icon.
    3. Choose “ViewSonic PJ-XXXX”.

    For Android:

    1. Download and install the “Google Home” application and open it.
    2. Pull-to-refresh the app and wait for 30 seconds.
    3. “ViewSonic PJ-XXXX” will now be visible, select it.
    4. NOTE: Some Android devices support direct “Casting”. If your device does, go to the Casting feature and choose “ViewSonic PJ-XXX” from the list of available devices. You can also scan the FAQ QR code and follow the steps to directly cast your Android device.

    Starting the Projector

    M1 mini Plus Startup.png
    1. Ensure the projector is connected to a power source or that the battery has sufficient charge.
    2. Push the Power Switch to turn on the projector, and press the Power button on the remote control.
    3. Move the Smart Stand to your desired viewing angle.
    M1 mini Plus Smartstand.png
    NOTE: When not in use, please push the Power Switch to Off. If only using the Power button on the remote control to power off, the projector will enter standby mode and the embedded battery will still consume some power.

    First Time Activation

    If the projector is activated for the first time, you will need to select your Preferred Language, Projection Orientation, Network Settings, and Source Input. Follow the on-screen instructions using the OK and Up/Down/Left/Right buttons on the remote control. When the Finish screen appears, this indicates the projector is ready to use.

    Preferred Language

    Select the desired language and press OK to confirm the selection.

    M2 Preferred Language.jpg

    Projection Orientation

    Select the preferred projection orientation and press OK to confirm the selection.

    M2 Projection Orientation.png

    Network Settings

    Select one of the available Wi-Fi options.

    M1 mini Plus WiFi Connection 2.png

    Adjusting the Projector's Height and Projection Angle

    The projector is equipped with one (1) Smart Stand. Adjusting the stand will change the projector’s height and the vertical projection angle. Carefully adjust the stand to fine tune the projected image’s position.

    M1 mini Plus Height Adjust.png
    NOTE:
    • If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image can become trapezoidal. However, the “Auto Vertical Keystone” function will correct the issue automatically.
    • It is not recommended to use the Smart Stand at 90° degrees.

    Adjusting the Focus

    To adjust the image focus of the on-screen image, slowly move the focus ring forwards or backwards.

    M1 mini Plus Focus.png

    Shutting Down the Projector

    1. Push the Power Switch on the projector or press the Power button on the remote control.

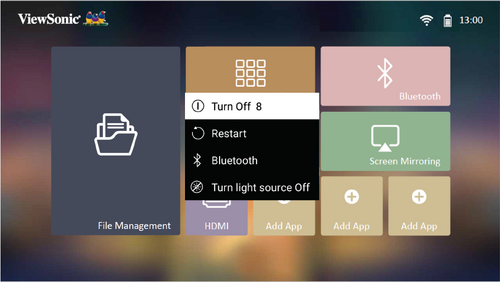

    2. By pressing the Power button on the remote control, the following message will appear:
    3. M1 mini Plus Shut Down.png
    4. Press the Up/Down buttons on the remote control to select Turn Off and press OK on the remote control.
    NOTE: When not in use, please push the Power Switch to Off. If only using the Power button on the remote control to power off, the projector will enter standby mode and the embedded battery will still consume some power.

    Home Screen

    The Home Screen is displayed every time you start the projector. To navigate the Home Screen, simply use the directional buttons on the remote control. You can return to the main Home Screen at any time by pressing the Home button on the remote control, regardless of what page you are on.

    M1 mini Plus Home Screen.png

    File Management

    Easily manage files and folders.

    1. Select: Home > File Management.
    2. Select a device on the source list. Use the direction buttons to select the desired file. Then press OK on the remote control to open the selected file.
    3. Press the Return button to go to a previous a level.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    How to Edit a File

    M1 mini Plus File Management Edit.png
    1. While in File Management, press and hold the OK button for three (3) seconds.
    2. A check box will appear at the front of each file. Use the directional buttons and press OK to select one or more files.
    3. By pressing the Right button, Copy, Paste, Cut, Delete, Select All, and Return boxes will be available for use.
    4. Select your desired action and press OK to execute.
    5. If you are Copying or Cutting, select your destination folder to complete the process.

    How to Use Control Bar Buttons

    The Control Bar buttons will appear on screen if a video, music, or photo file are selected to be opened.

    X10 Control Bar.png

    Tips for using USB
    When using USB for reading and/or storage please keep in mind the following:

    1. Some USB storage devices may not be compatible.
    2. If you use an USB extension cable, the USB device may not recognize the USB.
    3. Only use USB storage devices formatted with Windows FAT32 or NTFS file system.
    4. Larger files will need extra time to load.
    5. Data on USB storage devices may be damaged or lost. Back up important files.

    Supported File Formats

    • Supported Office formats:
    M1 mini Plus Office Formats.png
    • Supported Multimedia formats:
    M1 mini Plus Media Formats.png

    Apps Center

    View, launch, and uninstall Apps.

    1. To view your Apps, select: Home > Apps Center.
    2. Use the directional buttons to select the desired App. Then press OK on the remote control to launch the App.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    Aptoide

    The projector is pre-loaded with the Aptoide store, which allows users to download and install different Apps.

    1. Select: Home > Apps Center > Aptoide.
    2. Use the directional buttons to navigate the menu options. When you find your preferred App, press the OK button to install it.
    NOTE:
    • Users can install third-party Apps by .apk file in File Management. However, some third-party Apps may have compatibility issues.
    • Apps not pre-loaded by ViewSonic may not be compatible or work properly.
    • Some Apps may require a keyboard or mouse.
    • Some Apps may be Region-Specific.

    To Uninstall Apps

    1. Open the Apps Center by selecting: Home > Apps Center.
    2. Use the directional buttons to select the desired App.
    3. Press and hold OK on the remote control for three (3) seconds.
    4. Select OK to uninstall the App.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    How to Access Netflix

    Bluetooth

    The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback. For more information, see Connecting to Bluetooth

    Setting

    Under Setting you can adjust Network, Basic, and Advanced Settings, Date & Time, Firmware Update, and view Information.

    Network Settings

    1. Select: Home > Setting > Network Settings.
    2. View and adjust your Wi-Fi and network settings.

    Basic Settings

    1. Select: Home > Setting > Basic Settings.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
    3. To return to a previous menu press the Return button.

    Date & Time

    Adjust Date, Time, Time Zone, and Time Format.

    NOTE: The time is displayed in the top-right corner after connecting to the Internet.
    1. Select: Home > Setting > Date & Time.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.

    Firmware Upgrade

    Users can update the firmware by internet or USB, and check the version number.

    NOTE: Do not unplug the power cord, USB, or disconnect from the Internet during the upgrading process.
    1. Before entering the Firmware Upgrade menu, ensure the projector is connected to the Internet.
    2. To enter the menu, select: Home > Setting > Firmware Upgrade.

    Firmware Update Online

    1. Go to: Home > Setting > Firmware Upgrade > Software Update Online.
    2. Select Enter by pressing OK on the remote control.
    3. The system will check the ViewSonic website (OTA) and display the below dialog message if there is new Firmware.
    4. After selecting Yes, a progress bar will appear as the update process begins.
    5. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
    6. After updating the Firmware, it will take a few minutes to restart the projector.

    Firmware Update by USB

    1. Download the latest version from the ViewSonic website and copy the file to a USB device.
    2. Plug the USB into the projector, then go to: Home > Setting > Firmware Upgrade > Software Update By USB.
    3. Select Enter by pressing OK on the remote control.
    4. The system will detect the Firmware version and display a dialog message.
    5. After selecting Yes, a progress bar will appear as the update process begins.
    6. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
    7. After updating the Firmware, it will take a few minutes to restart the projector.

    Advanced Settings

    1. Select: Home > Setting > Advanced Settings.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
    3. To return to a previous menu press the Return button.

    Information

    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.
    1. Select: Home > Setting > Information.
    2. View system status and information.

    Adding Apps

    Add your favorite Apps to the Home Screen.

    1. From the Home Screen, select Add App and then press OK on the remote control.
    2. Use the directional buttons to select the desired App and press OK.
    3. Now your favorite App will appear on the Home Screen.

    Delete Apps from the Home Screen

    1. From the Home Screen, select the App you want to delete and press and hold OK for three (3) seconds.
    2. The message, “Do you want to Delete this application from My Favorites?” will appear.
    3. Select Yes, and press OK to delete the App.

    Input Source Selected - On-Screen Display (OSD) Menu Tree

    Image Setting

    Sub-menu Menu Option
    Color Mode Brightest
    TV
    Movie
    Gaming
    User 1
    User 2
    Brightness (-/+, 0~100)
    Contrast (-/+, 0~100)
    Color Temp 6500K
    7500K
    9300K
    User
    Red Gain (-/+, 0~199)
    Green Gain (-/+, 0~199)
    Blue Gain (-/+, 0~199)
    Red Offset (-/+, 0~199)
    Green Offset (-/+, 0~199)
    Blue Offset (-/+, 0~199)
    Tint (-/+, 0~100)
    Saturation (-/+, 0~100)
    Sharpness (-/+, 0~100)
    Gamma 1.8
    2.0
    2.2
    2.35
    2.5
    sRGB
    Cubic
    Color Management Primary Color Red
    Green
    Blue
    Cyan
    Magenta
    Yellow
    Hue (-/+, 0~100)
    Saturation (-/+, 0~100)
    Gain (-/+, 0~100)
    Reset Current Color Settings Yes
    Cancel

    Advanced

    Sub-menu Menu Option
    Aspect Ratio Auto
    4:3
    16:9
    HDMI Settings Range Auto
    Full
    Limited
    3D Settings 3D Sync Auto
    Off
    Frame Sequential
    Frame Packing
    Top-Bottom
    Side-by-Side
    3D Sync Invert Disable
    Invert
    JBL Audio Mode Movie
    User
    100Hz
    500Hz
    1500Hz
    5000Hz
    10000Hz
    Audio Volume (-/+, 0~20)
    Mute Off
    On
    Light Source Level Full
    Eco
    Information Source Ex. HDMI
    Resolution Ex. 1920 x 1080 @60Hz
    3D Format Ex. Frame Packing

    Home Screen - On-Screen Display (OSD) Menu Tree

    File Management

    Apps Center

    Bluetooth

    Setting

    Sub-menu Menu Option
    Network Settings Wi-Fi Off
    On SSID:
    Configure IP
    IP Address
    Subnet Mask
    Default Gateway
    DNS Server
    Others
    Date & Time Automatic Date & Time Off
    On
    Date
    Time
    Time Zone
    Time Format 12 Hours
    24 Hours
    Basic Settings Language English
    French
    German
    Italian
    Spanish
    Russian
    繁體中文
    簡體中文
    日本語
    韓語
    Swedish
    Dutch
    Turkish
    Czech
    Portuguese
    Thai
    Polish
    Finnish
    Arabic
    Indonesian
    Hindi
    Vietnam
    Greek
    Projector Projection Front Table
    Front Ceiling
    Rear Table
    Rear Ceiling
    Keystone Manual (-/+, -40~40)
    Auto V Keystone Disable
    Enable
    Advanced Settings Power On Source Home
    HDMI
    Power On/Off Ring Tone Off
    On
    Smart Energy Auto Power Off Disable
    10 minutes
    20 minutes
    30 minutes
    Sleep Timer Disable
    30 minutes
    1 hour
    2 hours
    3 hours
    4 hours
    8 hours
    12 hours
    Power Saving Enable
    Disable
    JBL Audio Mode Movie
    User
    100Hz
    500Hz
    1500Hz
    5000Hz
    10000Hz
    Audio Volume (-/+, 0~20)
    Mute Off
    On
    Light Source Level Full
    Eco
    High Altitude Mode Off
    On
    Reset Settings Yes
    Cancel
    Firmware Upgrade Software Update Online
    Software Update by USB
    OTA Reminder Enable
    Disable
    Software Version
    Information Light Source Hours
    System Version
    Memory Information xx GB of xx GB Used
    Wi-Fi Mac Address
    Serial Number

    Screen Mirroring

    Add App

    Input Source Selected - On-Screen Display (OSD) Menu Options

    Image Setting Menu

    Menu Option Description
    Color Mode The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal.

    Brightest
    Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, i.e. well-lit rooms.

    TV
    Optimized for viewing sports in well-lit environments.

    Gaming
    Designed for playing video games.

    Movie
    Appropriate for colorful movies, video clips from digital cameras, or DVs through the PC input. Best for low-light environments.

    User 1/User 2
    Recalls the customized user settings.

    Brightness The higher the value, the brighter the image. Lower values will result in a darker image.
    Projector Brightness.png
    Contrast Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
    Projector Contrast.png
    Color Temp Select the color temperature setting.
    • 6500K: Maintains normal white coloring.
    • 7500K: A higher, cooler color temperature than 6500K.
    • 9300K: The highest color temperature; makes the image appear the most bluish-white.
    • User Color: Adjust red, green, and blue values as desired.
    Tint The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.
    Saturation Refers to the amount of that color in a video picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
    Sharpness A high value results in a sharper picture; a low value softens the picture.
    Gamma Reflects the relationship between input source and picture brightness.
    Color Management Only in permanent installations with controlled lighting levels such as: boardrooms, lecture halls, or home theaters should Color Management be considered.
    RGB Wheel.png

    Color Management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

    If you have purchased a test disc, which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc., you can project any image from the disc on the screen and enter the Color Management menu to make adjustments.

    Reset Current Color Settings Return current color settings to their default values.

    Advanced Settings Menu

    Menu Option Description
    Aspect Ratio The Aspect Ratio is the ratio of the image width to the image height. With the advent of digital signal processing, digital display devices, like this projector, can dynamically stretch and scale the image output to a different aspect than that of the image input signal.
    NOTE: Only supports HDMI signal input.

    Auto
    Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither 4:3 nor 16:9 and you want to make the most use of the screen without altering the image’s aspect ratio.

    4:3
    Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration.

    16:9
    Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV.

    HDMI Settings Range

    Select a suitable color range according to the color range setting of the connected output device.

    • Full: Sets the color range from 0~255.
    • Limited: Sets the color range from 15~235.
    • Auto: Sets the projector to detect the range of the input signal automatically.
    3D Settings Enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images while wearing 3D glasses.

    3D Format
    Adjust and choose from: Automatic, Off, Frame Sequential, Frame Packing, Top-Bottom, Side-by-Side.

    3D Sync Invert
    Allows for correction if the 3D image depth is inversed.

    JBL Adjust the audio settings.
    Light Source Level Full

    100%

    Eco
    70%

    Information Shows Input Source and Resolution.

    Home Screen - On-Screen Display (OSD) Menu Options

    File Management

    Provides a user interface to manage files and folders.

    M1 mini Plus File Management.png

    Apps Center

    Access and view all the applications you have installed.

    X10 Apps Center.png

    Bluetooth

    Connect your device wirelessly for audio playback.

    M1 mini Plus BT 1.png

    Setting

    Manage various categories such as: Network settings, Basic and Advanced settings, Date & Time, Firmware update, and system Information.

    X10 Settings.png

    Basic Settings

    Menu Option Description
    Language Select your desired language.
    Projector Position Select the preferred projection position.
    Keystone Adjust trapezoidal screen image distortion.

    Auto V Keystone
    Provides a rectangular screen image by automatically adjusting the keystone number when there is a trapezoidal screen image caused by the tilting of the projector.

    • Enable: Automatically adjust the keystone number.
    • Disable: Manually adjust the keystone number.
    NOTE: If Manual is selected, Auto V Keystone will change to Disable automatically.

    Manual
    Keystone can be adjusted manually from -40 to 40.

    Date & Time

    Menu Option Description
    Automatic Date & Time Users can synchronize the date and time automatically after connecting to the Internet.

    On
    Turn on synchronization.

    Off
    Turn off synchronization.

    Time Zone Select your desired location.
    Time Format Select a different display time format.

    12 Hours
    12-hour clock.

    24 Hours
    24-hour clock.

    Advanced Settings

    Menu Option Description
    Power On Source Allows the user to enter the desired source directly after turning on the projector.
    Power On/Off Ring Tone Enable or disable the power on/off ring tone.
    Auto Power On Direct Power On

    Turn on the projector automatically once plugged into an outlet.

    Smart Energy Auto Power Off

    The projector can turn off automatically after a set period of time once no input source is detected.

    Sleep Timer
    Turn off automatically after a set period of time.

    Power Saving
    Lower power consumption if no input source is detected after five (5) minutes.

    NOTE: The power consumption of the LED will be changed to 30% after no signal is detected for five (5) minutes.
    JBL Audio Mode
    • Movie: Default audio mode.
    • User: Allows the user to customize the audio equalizer.
    NOTE: In Custom mode, 100Hz, 500Hz, 1500Hz, 5000Hz, and 10000Hz can be selected.
    M1 mini Plus Audio Mode.jpg

    Audio Volume
    Adjust the volume from 0 to 20.

    Mute
    Mute or unmute the volume.

    Light Source Level Select the suitable power consumption of the LED.

    Full
    100%

    Eco
    70%

    High Altitude Mode It is recommended that you use High Altitude Mode when your environment is between 1,500-3,000 m above sea level, and a temperature between 5°C-25°C.
    M1 mini Plus High Altitude.png
    NOTE: If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.
    Reset Settings Reset the Settings to default.
    NOTE: Language, High Altitude Mode, Projector Position, Network Settings, All installed Apps in the Apps Center, Add App, and Light Source Hours will remain unchanged.
    Reset to Factory Default Factory reset.
    NOTE: Light Source Hours will remain unchanged.

    Screen Mirroring

    Mirror your personal device’s screen through the projector.

    Wireless Screen Mirroring Update.png

    Add App

    Select your favorite Apps and add them to the Home Screen.

    M1 mini Plus Add App.png

    Technical Specifications

    M1 Mini Plus.png
    Model No. P/N
    VS18107 M1 mini Plus
    Item Category Specifications
    Projector Type 0.2” WVGA, LED
    Display Size 24”~100”
    Brightness 120 LED Lumens
    Throw Distance 0.64-2.66 m (39” @ 1m)
    Lens F=1.7, f=7.5 mm
    Optical Zoom Fixed
    Lamp Type RGB LED
    Light Source Life

    (Normal)

    up to 30,000 hours
    Display Color 1.07 Billion Colors
    Keystone -/+ 40 (Vertical)
    Battery Capacity 5000 mAh, 3.7V
    Input Signal HDMI fh: 15h~102KHz, fv:23~120Hz
    Resolution Native 854 x 480
    Support VGA (640 x 480) to Full HD (1920 x 1080)
    Input HDMI 1 (HDMI 1.4, HDCP 1.4)
    Audio In Bluetooth 4.0
    USB Type-C 1 (Power input - 5V/4A)
    USB Type-A 1 (USB 2.0 Reader; share with power)
    Wi-Fi 1 (5G)
    Output Audio Out Bluetooth 4.0
    Speaker 2W Cube x 1
    USB Type-A (Power) 1 (USB 2.0, 5V/1A; share with USB reader)
    Power Adapter[1] Input Voltage AC 100-240V, 50/60 Hz (auto switch)
    Operating Conditions Temperature 0°C to 40°C (32°F to 104°F)
    Humidity 0% to 90% (non-condensing)
    Dimensions Physical

    (W x H x D)

    110 x 104 x 27 mm

    (4.3” x 4.1” x 1.06”)

    Local Storage Total: 8 GB Available: 4 GB
    Weight Physical 0.3 kg (0.67 lbs)
    Power Consumption On 16W (Typical)
    Off < 0.5W (Standby)

    < 0.006W (Power Off)

    1. Please use the power adapter from ViewSonic® or an authorized source only.

    Projector Dimensions

    110 mm (W) x 104 mm (H) x 27 mm(D)

    Timing Charts

    HDMI Video Timing

    Timing Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Dot Clock Frequency (MHz)
    480i 720(1440) x 480 15.73 59.94 27
    480p 720 x 480 31.47 59.94 27
    576i 720(1440) x 576 15.63 50 27
    576p 720 x 576 31.25 50 27
    720/50p 1280 x 720 37.5 50 74.25
    720/60p 1280 x 720 45 60 74.25
    1080/50i 1920 x 1080 28.13 50 74.25
    1080/60i 1920 x 1080 33.75 60 74.25
    1080/24p 1920 x 1080 27 24 74.25
    1080/25p 1920 x 1080 28.13 25 74.25
    1080/30p 1920 x 1080 33.75 30 74.25
    1080/50p 1920 x 1080 56.25 50 148.5
    1080/60p 1920 x 1080 67.5 60 148.5

    HDMI Support PC Timing

    Resolution Refresh Rate (Hz) Horizontal Frequency (kHz) Dot Clock Frequency (MHz)
    640 x 480 59.94 31.469 25.175
    72.809 37.861 31.5
    75 37.5 31.5
    720 x 400 70.087 31.469 28.3221
    800 x 600 56.250 35.156 36
    60.317 37.879 40
    72.188 48.077 50
    75 46.875 49.5
    1024 x 768 60.004 48.363 65
    70.069 56.476 75
    75.029 60.023 78.75
    1152 x 864 75 67.5 108
    1280 x 768 59.87 47.776 79.5
    74.893 60.289 102.25
    1280 x 800 59.81 49.702 83.5
    74.934 62.795 106.5
    1280 x 960 60 60 108
    1280 x 1024 60.02 63.981 108
    75.025 79.976 135
    1360 x 768 60.015 47.712 85.5
    1400 x 1050 59.978 65.317 121.75
    1440 x 900 59.887 55.935 106.5
    60 55.469 88.75
    74.984 70.635 136.75
    1600 x 1200 60 75 162
    1680 x 1050 59.883 64.674 119
    59.954 65.29 146.25

    3D Support Timing

    HDMI 3D (BlueRay 3D with info frame)
    Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz) Support
    Frame Packing
    1080p 1920 x 1080 16:9 23.98/24 Yes
    720p 1280 x 720 16:9 50/59.94/60 Yes
    Side by Side
    1080i 1920 x 1080 16:9 50/59.94/60 Yes
    Top and Bottom
    1080p 1920 x 1080 16:9 23.98/24 Yes
    720p 1280 x 720 16:9 50/59.94/60 Yes
    3D (HDMI) Manual Setting
    Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz) Support
    SVGA 800 x 600 4:3 60*/120** Yes
    XGA 1024 x 768 4:3 60*/120** Yes
    HD 1280 x 720 16:9 60*/120** Yes
    WXGA 1280 x 800 16:9 60*/120** Yes
    HDTV(1080p) 1920 x 1080 16:9 60 Yes
    Video Signal
    SDTV(480i)*** 720 x 480 4:3/16:9 60 No
    NOTE:
    • [ * ] 60Hz signals are supported for side by side, top and bottom, and frame sequential.
    • [ ** ] 120Hz signals are supported for frame sequential only.
    • [ *** ] Video signal (SDTV 480i) is supported for frame sequential only.

    LED Indicators

    Light Description
    Green Power On
    Red Stand-by Mode
    Red Projector Charging
    Green Battery is Fully Charged

    Compliance Information

    This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

    FCC Compliant Statement

    This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

    These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

    • Reorient or relocate the receiving antenna.
    • Increase the separation between the equipment and receiver.
    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
    • Consult the dealer or an experienced radio/TV technician for help.
    Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

    FCC Radiation Exposure Statement

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator & your body.

    Validity of using the module certification:
    In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid and the FCC ID of the module cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.

    Custom design antennas may be used, however the OEM installer must following the FCC 15.21 requirements and verify if new FCC approval will be necessary.

    CE Conformity for European Countries


    The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

    The following information is only for EU-member states:

    WEEE Logo.gif

    The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

    Declaration of RoHS2 Compliance

    This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

    Substance Proposed Maximum Concentration Actual Concentration
    Lead (Pb) 0.1% < 0.1%
    Mercury (Hg) 0.1% < 0.1%
    Cadmium (Cd) 0.01% < 0.01%
    Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
    Polybrominated biphenyls (PBB) 0.1% < 0.1%
    Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
    Bis (2-Ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
    Benzyl butyl phthalate (BBP) 0.1% < 0.1%
    Dibutyl phthalate (DBP) 0.1% < 0.1%
    Diisobutyl phthalate (DIBP) 0.1% < 0.1%

    Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

    • Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
    • Short length (500 mm): maximum 3.5 mg per lamp.
    • Medium length (>500 mm and 1,500m): maximum 5 mg per lamp.
    • Long length (> 1,500 mm): maximum 13 mg per lamp.
    • Lead in glass of cathode ray tubes.
    • Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
    • Lead as an alloying element in aluminum containing up to 0.4% lead by weight.
    • Copper alloy containing up to 4% lead by weight.
    • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
    • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

    Indian Restriction of Hazardous Substances

    Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

    Product Disposal at End of Product Life

    ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

    USA & Canada
    https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program

    Europe
    http://www.viewsoniceurope.com/eu/support/call-desk/

    Taiwan
    https://recycle.epa.gov.tw/

    Copyright Information

    Copyright© ViewSonic® Corporation, 2020. All rights reserved.

    Macintosh and Power Macintosh are registered trademarks of Apple Inc.

    Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

    ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

    VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

    ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

    As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

    Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

    In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

    No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

    Customer Service Contact Information

    For technical support or product service, see the table below or contact your reseller.

    You will need the product's serial number

    Asia Pacific & Africa

    Country / Region Website
    Australia https://viewsonic.com/au/
    Bangladesh https://www.viewsonic.com/bd/
    中囯(China) https://www.viewsonic.com.cn
    香港 (繁體中文) https://www.viewsonic.com/hk/
    Hong Kong (English) https://www.viewsonic.com/hk-en/
    India https://www.viewsonic.com/in/
    Indonesia https://www.viewsonic.com/id/
    Israel https://www.viewsonic.com/il/
    日本 (Japan) https://www.viewsonic.com/jp/
    Korea https://www.viewsonic.com/kr/
    Malaysia https://www.viewsonic.com/my/
    Middle East https://www.viewsonic.com/me/
    Myanmar https://www.viewsonic.com/mm/
    Nepal https://www.viewsonic.com/np/
    New Zealand https://www.viewsonic.com/nz/
    Pakistan https://www.viewsonic.com/pk/
    Philippines https://www.viewsonic.com/ph/
    Singapore https://www.viewsonic.com/sg/
    臺灣 (Taiwan) https://www.viewsonic.com/tw/
    ประเทศไทย (Thailand) https://www.viewsonic.com/th/
    Việt Nam https://www.viewsonic.com/vn/
    South Africa & Mauritius https://www.viewsonic.com/za/

    Americas

    Country / Region Website
    United States https://www.viewsonic.com/us/
    Canada https://www.viewsonic.com/us/
    Latin America https://www.viewsonic.com/la/

    Europe

    Country / Region Website
    Europe https://www.viewsonic.com/eu/
    France https://www.viewsonic.com/fr/
    Deutschland https://www.viewsonic.com/de/
    Қазақстан https://www.viewsonic.com/kz/
    Россия https://www.viewsonic.com/ru/
    España https://www.viewsonic.com/es/
    Türkiye https://www.viewsonic.com/tr/
    Україна https://www.viewsonic.com/ua/
    United Kingdom https://www.viewsonic.com/uk/


    Limited Warranty

    ViewSonic® Projector

    What the warranty covers:

    ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

    Limited Three (3) year General Warranty:

    Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase.

    Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information.

    Limited One (1) year Heavy Usage Warranty:

    Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

    Who the warranty protects:

    This warranty is valid only for the first consumer purchaser.

    What the warranty does not cover:

    • Any product on which the serial number has been defaced, modified, or removed.
    • Damage, deterioration, or malfunction resulting from:
      • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
      • Operation outside of product specifications.
      • Operation of the product for other than the normal intended use or not under normal conditions.
      • Repair or attempted repair by anyone not authorized by ViewSonic®.
      • Any damage of the product due to shipment.
      • Removal or installation of the product.
      • Causes external to the product, such as electric power fluctuations or failure.
      • Use of supplies or parts not meeting ViewSonic’s specifications.
      • Normal wear and tear.
      • Any other cause which does not relate to a product defect.
    • Removal, installation, and set-up service charges.

    How to get service:

    1. For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Support” page). You will need to provide your product’s serial number.
    2. To obtain warranted service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
    3. Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®.
    4. For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®.

    Limitation of implied warranties:

    There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

    Exclusion of damages:

    ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

    1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
    2. Any other damages, whether incidental, consequential or otherwise.
    3. Any claim against the customer by any other party.

    Effect of state law:

    This warranty gives you specific legal rights, and you may also have other rights which vary from local authority. Some local governments do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

    Sales outside the U.S.A. and Canada:

    For warranty information and service on ViewSonic® products sold outside of the U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer. The warranty period for this product in mainland China (Hong Kong, Macao, and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found at: ViewSonic EU under “Support/Warranty Information”.

    Mexico Limited Warranty

    ViewSonic® Projector

    What the warranty covers:

    ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

    How long the warranty is effective:

    3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase.

    Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only.

    All accessory lamps purchased separately are warranted for 90 days.

    Who the warranty protects:

    This warranty is valid only for the first consumer purchaser.

    What the warranty excludes and does not cover:

    • Any product on which the serial number has been defaced, modified or removed.
    • Damage, deterioration, or malfunction resulting from:
      • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
      • Any damage of the product due to shipment.
      • Causes external to the product, such as electrical power fluctuations or failure.
      • Use of supplies or parts not meeting ViewSonic®’s specifications.
      • Normal wear and tear.
      • Any other cause which does not relate to a product defect.
    • Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.
    • Removal, installation, insurance, and set-up service charges.

    How to get service:

    For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the attached “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

    • For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.
    • To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
    • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center.
    • Round trip transportation costs for in-warranty products will be paid by ViewSonic®.

    Limitation of implied warranties:

    There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

    Exclusion of damages:

    ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

    • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
    • Any other damages, whether incidental, consequential or otherwise.
    • Any claim against the customer by any other party.
    • Repair or attempted repair by anyone not authorized by ViewSonic®.
    Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

    Name, address, of manufacturer and importers:
    México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
    Col. San Fernando Huixquilucan, Estado de México
    Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

    NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

    Hermosillo:
    Distribuciones y Servicios Computacionales SA de CV.
    Calle Juarez 284 local 2
    Col. Bugambilias C.P: 83140
    Tel: 01-66-22-14-9005
    E-Mail: disc2@hmo.megared.net.mx

    Villahermosa:
    Compumantenimietnos Garantizados, S.A. de C.V.
    AV. GREGORIO MENDEZ #1504
    COL, FLORIDA C.P. 86040
    Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09
    E-Mail: compumantenimientos@prodigy.net.mx

    Puebla, Pue. (Matriz):
    RENTA Y DATOS, S.A. DE C.V. Domicilio:
    29 SUR 721 COL. LA PAZ
    72160 PUEBLA, PUE.
    Tel: 01(52).222.891.55.77 CON 10 LINEAS
    E-Mail: datos@puebla.megared.net.mx

    Veracruz, Ver.:
    CONEXION Y DESARROLLO, S.A DE C.V. Av.
    Americas # 419
    ENTRE PINZÓN Y ALVARADO
    Fracc. Reforma C.P. 91919
    Tel: 01-22-91-00-31-67
    E-Mail: gacosta@qplus.com.mx

    Chihuahua:
    Soluciones Globales en Computación
    C. Magisterio # 3321 Col. Magisterial
    Chihuahua, Chih.
    Tel: 4136954
    E-Mail: Cefeo@soluglobales.com

    Cuernavaca:
    Compusupport de Cuernavaca SA de CV
    Francisco Leyva # 178 Col. Miguel Hidalgo
    C.P. 62040, Cuernavaca Morelos
    Tel: 01 777 3180579 / 01 777 3124014
    E-Mail: aquevedo@compusupportcva.com

    Distrito Federal:
    QPLUS, S.A. de C.V.
    Av. Coyoacán 931
    Col. Del Valle 03100, México, D.F.
    Tel: 01(52)55-50-00-27-35
    E-Mail : gacosta@qplus.com.mx

    Guadalajara, Jal.:
    SERVICRECE, S.A. de C.V.
    Av. Niños Héroes # 2281
    Col. Arcos Sur, Sector Juárez
    44170, Guadalajara, Jalisco
    Tel: 01(52)33-36-15-15-43
    E-Mail: mmiranda@servicrece.com

    Guerrero Acapulco:
    GS Computación (Grupo Sesicomp)
    Progreso #6-A, Colo Centro
    39300 Acapulco, Guerrero
    Tel: 744-48-32627

    Monterrey:
    Global Product Services
    Mar Caribe # 1987, Esquina con Golfo Pérsico
    Fracc. Bernardo Reyes, CP 64280
    Monterrey N.L. México
    Tel: 8129-5103
    E-Mail: aydeem@gps1.com.mx

    MERIDA:
    ELECTROSER
    Av Reforma No. 403Gx39 y 41
    Mérida, Yucatán, México CP97000
    Tel: (52) 999-925-1916
    E-Mail: rrrb@sureste.com

    Oaxaca, Oax.:
    CENTRO DE DISTRIBUCION Y
    SERVICIO, S.A. de C.V.
    Murguía # 708 P.A., Col. Centro, 68000, Oaxaca
    Tel: 01(52)95-15-15-22-22
    Fax: 01(52)95-15-13-67-00
    E-Mail. gpotai2001@hotmail.com

    Tijuana:
    STD
    Av Ferrocarril Sonora #3780 L-C
    Col 20 de Noviembr
    Tijuana, Mexico

    FOR USA SUPPORT:
    ViewSonic® Corporation
    381 Brea Canyon Road, Walnut, CA. 91789 USA
    Tel: 800-688-6688
    http://www.viewsonic.com

    Using the Projector Safely

    Please read the following Safety Precautions before you start using the projector.

    • Keep this user guide in a safe place for later reference.
    • Read all warnings and follow all instructions.
    • Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.
    • Place the projector in a well-ventilated area. Do not place anything on the projector that prevents heat dissipation.
    • Do not place the projector on an uneven or unstable surface. The projector may fall over, causing personal injury or projector malfunction.
    • Do not use if the projector is tilted at an angle of more than 10° degrees left or right, nor at an angle of more than 15° degrees forwards or backwards.
    • Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.
    • Always open the lens shutter or remove the lens cap when the projector lamp is on.
    • Do not block the projection lens with any objects when the projector is under operation as this could cause objects to become heated and deformed or even cause a fire.
    • The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.
    • Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the rated life could cause them to break on rare occasions.
    • Never replace the lamp assembly or any electronic component unless the projector is unplugged.
    • Do not attempt to disassemble the projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.
    • When moving the projector, be careful not to drop or bump the projector on anything.
    • Do not place any heavy objects on the projector or connection cables.
    • Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing personal injury or projector malfunction.
    • Avoid exposing the projector to direct sunlight or other sources of sustained heat. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the projector to dangerous levels.
    • Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply and call your local service center to have the projector serviced.
    • When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal operation and not a defect.
    • Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide and third blade are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet.
    • When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.
    • Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the projector.
    • In some countries, the voltage is NOT stable. This projector is designed to operate safely within a voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector, or uninterruptable power supply (UPS).
    • If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector.
    • Use only attachments/accessories specified by the manufacturer.
    • Disconnect the power cord from the AC outlet if the projector is not being used for a long period of time.
    • Refer all servicing to qualified service personnel.
    RG2 Warning.png
    CAUTION: Possibly hazardous optical radiation is emitted from this product. As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015

    Glossary of Terms

    NOTE: Some terms may not be applicable to your device.

    Aspect Ratio

    Refers to the ratio of the image width to the image height.

    Brightest Mode

    Maximizes the brightness of the projected image. This mode is ideal for environments where extra-high brightness is required, such as using the projector in well lit rooms.

    Brightness

    Adjusts background black levels of the screen image.

    CEC (Consumer Electronics Control)

    Synchronizes power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the projector’s power will be turned on automatically.

    Color

    Adjusts the color saturation.

    Color Temperature

    Allows users to select specific color temperature settings to further customize their viewing experience.

    Contrast

    Adjusts the difference between the image background (black level) and the foreground (white level).

    Focus

    Manually improve the clarity of the projected image.

    Gamma

    Allows the user to manually select the greyscale curve of the projector.

    HDMI

    Audio/Video interface used to transmit video and audio via a single cable.

    HDMI Range

    Allows the user to select HDMI greyscale range between 0~255 (full range) , 16~240 (limited range) or Auto by the signal type detected.

    HDR (High-Dynamic Range)

    Keeps the brightness level and enhances details on the dark level.

    High Altitude Mode

    Optional mode for users who live in an environment between 1,500 m and 3,000 m above sea level, and the temperature is between 5° C and 25° C. Activating it will improve projector cooling and performance.

    Information

    Displays the timing mode (video signal input), the projector model number, the serial number, and the ViewSonic® website URL.

    Input Select

    Toggles between the various input options that are available for the projector.

    Keystone

    The distortion of an image caused by projecting it onto an angled surface.

    Light Source Level

    Use Normal or Eco mode to adjust the brightness level and power consumption.

    Movie Mode

    A Picture Mode appropriate for playing colorful movies, video clips from digital cameras, or DVs through the PC input. Best for a low light environment.

    Sharpness

    Adjusts the picture quality of the monitor.

    Troubleshooting Common Problems

    Why doesn't the projector turn on?

    Solution 1 Ensure the power cord is properly attached to the projector and to the power outlet.

    Solution 2 If the cooling process has not completed, please wait until it has finished then try to turn on the projector again.

    Solution 3 If the above does not work, try another power outlet or another electrical device with the same power outlet.

    Solution 4 Check that the battery has remaining power, or needs external power.

    Why is there no picture?

    Solution 1 Ensure the video source cable is connected properly, and that the video source is turned on.

    Solution 2 If the input source is not selected automatically, select the correct source with the Source key on either the projector or the remote control.

    What should I do if the image is blurry?

    Solution 1 Adjusting the Focus Ring will help correctly focus the projection lens.

    Solution 2 Ensure the projector and screen are aligned properly. If necessary, adjust the height of the projector as well as the projection angle and direction.

    Why is the remote control not working?

    Solution 1 Ensure there are no obstacles between the remote control and projector; and that they are within 8 m (26 ft) of each other.

    Solution 2 The batteries may be out of power, please check and replace if necessary.

    What should I do if the projector freezes or doesn't respond?

    Solution Using a paper clip, carefully insert it into the Reset button at the rear of the projector to reset the device.

    Maintaining the Projector

    General Precautions

    • Make sure the projector is turned off and the power cable is unplugged from the power outlet.
    • Never remove any parts from the projector. Contact ViewSonic® or a reseller when any part of the projector needs replacing.
    • Never spray or pour any liquid directly onto the case.
    • Handle the projector with care, as a darker-colored projector, if scuffed, may show marks more clearly than a lighter-colored projector.

    Cleaning the Lens

    • Use a canister of compressed air to remove dust.
    • If the lens is still not clean, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the surface.
    CAUTION: Never rub the lens with abrasive materials.

    Cleaning the Case

    • Use a soft, lint-free, dry cloth to remove dirt or dust.
    • If the case is still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.
    CAUTION: Never use wax, alcohol, benzene, thinner, or other chemical detergents.

    Storing the Projector

    If you intend to store the projector for an extended period of time:

    • Ensure the temperature and humidity of the storage area are within the recommend range.
    • Retract the adjuster foot completely.
    • Remove the batteries from the remote control.
    • Pack the projector in its original packaging or equivalent.

    Disclaimer

    • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector.
    • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
