IFP6533 Embedded Player

ViewBoard Input Source Settings

The ViewBoard input source is the default source that is active when turning on your ViewBoard. Press MENU on the remote control or tap the setting icon next to the input source in the On-Screen Display (OSD) Menu’s Input Settings to enter the Settings menu.

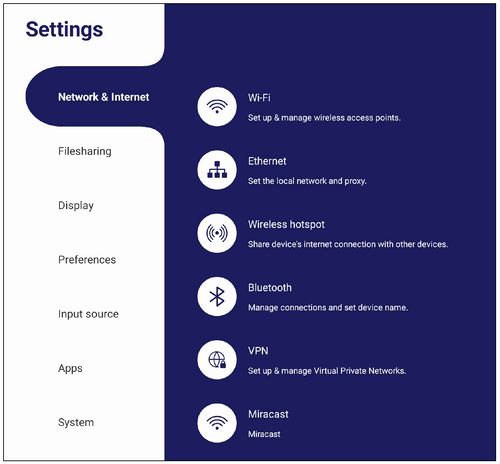

Network & Internet

Check current network connection status, set up and manage Wi-Fi, Ethernet, Bluetooth, and VPN, and establish a Wireless hotspot.

NOTE:

Wi-Fi, Wireless hotspot and Bluetooth settings will appear when VB-WIFI-004(optional) has been installed.
Ethernet will disable automatically when Wi-Fi is enabled. Wi-Fi will disable automatically when Ethernet is enabled. Wi-Fi will disable when Wireless hotspot is enabled.
The device cannot connect to the Internet when Wireless hotspot is enabled.

Wi-Fi

Setup and manage wireless access points.

Tap the toggle button to turn Wi-Fi On or Off.
Once On, you can: Add a Network, view Saved Networks, Refresh the network list, or view Advanced settings.
In Advanced settings, you can toggle Network notifications On or Off and view Network card info.

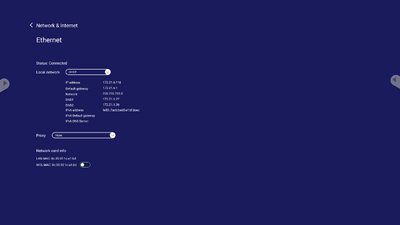

Ethernet

Set the local network and proxy.

Tap the drop down menu to connect/disconnect the Ethernet.
You can adjust Local network and Proxy settings as well.

Wireless Hotspot

Set and share your internet connection with other devices.

Tap the toggle button to turn Wireless hotspot On or Off.

Tap Set up to set the Network name, Security, and Password.

Bluetooth

Manage connections, set the device name and discoverability.

Tap the toggle button to turn Bluetooth On or Off. Once On, users can select a listed device to pair and connect to, rename their device, remove a device, or receive files.
Tap Received files to show all received files.

VPN

Setup and manage Virtual Private Networks.

To create a VPN profile:

Go to: Settings > Network & Internet > VPN and tap Add VPN.
Key in the Name.
Select the VPN Type.
Choose to enable/disable PPP encryption (MPPE) and/or show Advanced options.

Miracast

Enable/disable Miracast. Miracast allows for wireless sharing of multimedia and screens of connected devices.

File Sharing

SAMBA

The SAMBA Service provides file sharing via LAN. When the SAMBA Service is enabled, the user can explore the ViewBoard file system with a PC or mobile equipment.

Go to: Settings > File Sharing > SAMBA.
Tap the toggle button to enable the SAMBA Service, then set a password if needed.
Ensure the ViewBoard and client equipment are connected to the same network.
Log in to the ViewBoard with the client equipment. Input the ViewBoard’s IP address.
Key in the user name and password, then select OK (if necessary).
After a successful log in, the ViewBoard files will be available.

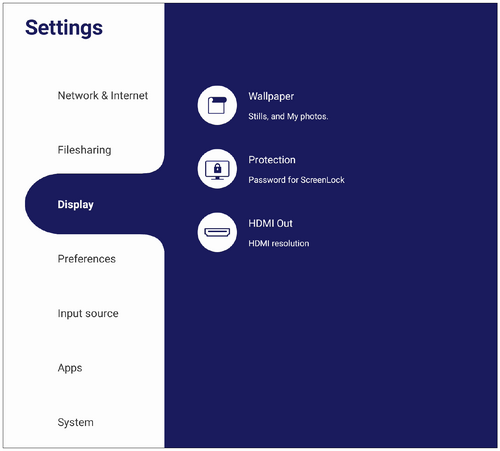

Display

Adjust the Wallpaper, Theme, Display ID, Protection, and HDMI Out settings.

Wallpaper

Users can change their wallpaper with default images (both still and live), or use their own by tapping My Photo and selecting the image file.

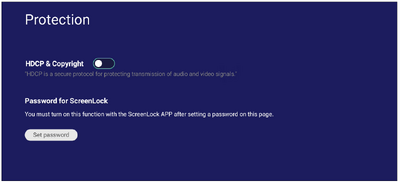

Protection

Toggle HDCP & Copyright On/Off, and set a Password for Screen Lock.

To set up a password for screen lock, tap Set Password and enter the desired password.

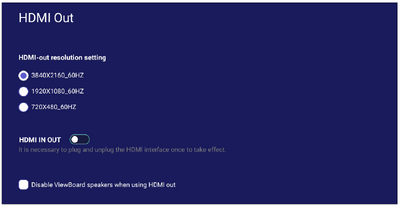

HDMI Out

Adjust the HDMI Out Resolution setting, enable video output, and mute/unmute the display speaker when connected via HDMI Out.

NOTE: The disable ViewBoard speakers option box is unchecked by default.

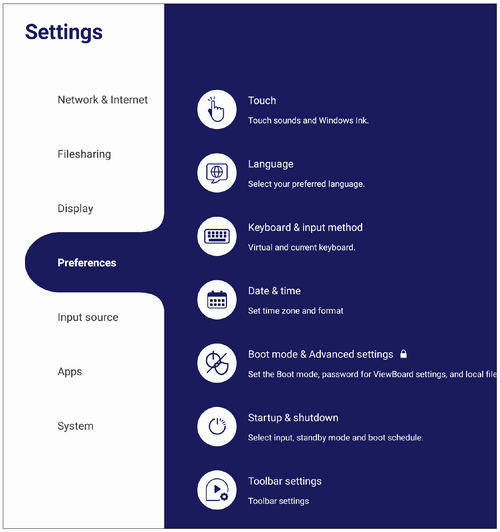

Preferences

View and adjust Touch, Language, Keyboard & Input, Date & Time, Boot Mode & Advanced, Start up & Shut down, and Toolbar settings.

Touch

Adjust Touch Settings and toggle Touch Sounds and Windows Ink On/Off.

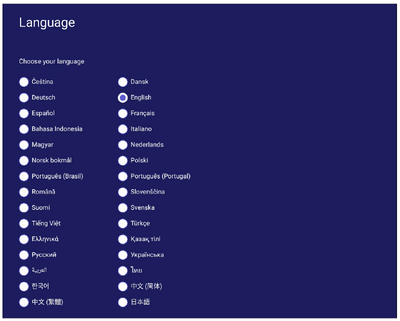

Language

Adjust and choose the preferred language from the available languages.

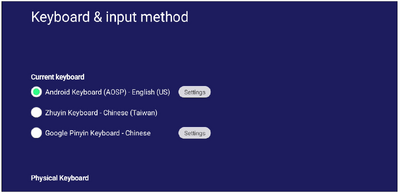

Keyboard & Input Method

Enable/disable the visual keyboard and/or change the default input method.

Tap on Settings to adjust the advanced keyboard settings.

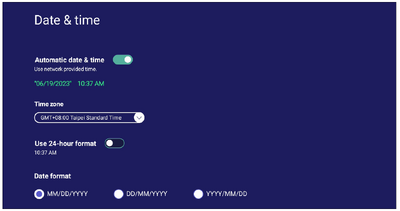

Date & Time

Set the system time and format.

Item	Description
Automatic Date & Time	When enabled, the ViewBoard will automatically synchronize the date and time via the Internet.
Time Zone	Select the appropriate time zone.
Time Format	Choose from 12-hour or 24-hour time format. Simply toggle 24-hour format On/Off.
Date Format	Select from the available date formats.

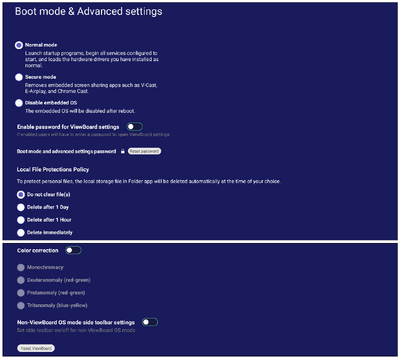

Boot Mode

Adjust the preferred boot up mode and set/reset a password.

Item	Description
Normal Mode	The embedded screen sharing Apps will run normally.
Secured Mode	The embedded screen sharing Apps will be removed.
Disable Embedded OS	The system will automatically reboot, and then the Embedded/ViewBoard OS will not appear.
ViewBoard Settings Access Password	Toggle to lock/unlock the ViewBoard Settings.
Password for Protection	Modify the Boot mode and ViewBoard Settings entry password.
Local File Protection Policy	Choose how long to keep local storage files in the Folder application.
Color Correction	Color correct the ViewBoard display screen.
Non-ViewBoard OS Mode Side Toolbar Setting	Enable the side toolbar for non-ViewBoard OS.
Reset ViewBoard	Reset the ViewBoard to its factory default settings.

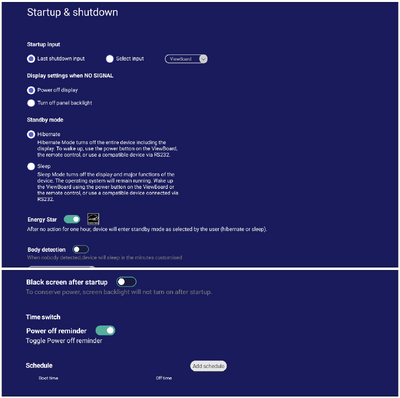

Startup & Shutdown

Set the Startup Input, Standby Mode, EnergyStar Mode, Black Screen After Startup, Power off Reminder timer and Schedule settings.

Item	Description
Startup Input	Adjust the Startup Input preference.
Display Setting when No Signal	Decide what happens to the display when there is no signal for HDMI, PC, or VGA sources.
Standby Mode	Decide what happens when you press the Power button while the ViewBoard is ON.
Energy Star	Enable to automatically initiate Sleep Mode when the screen is idle for one hour.
Body Detection	If no body is detected, the display will enter sleep mode based on the minutes set.
Black Screen After Startup	When enabled, the ViewBoard will turn off the backlight automatically after booting up.
Time Switch Power Off Reminder	When enabled, the ViewBoard will turn off without any reminder after the scheduled off time.
Schedule	Schedule a Boot and Shut off time.

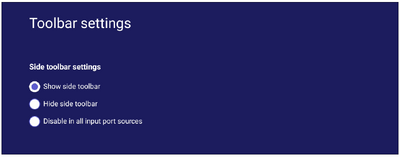

Toolbar Setting

Adjust the Side toolbar setting.

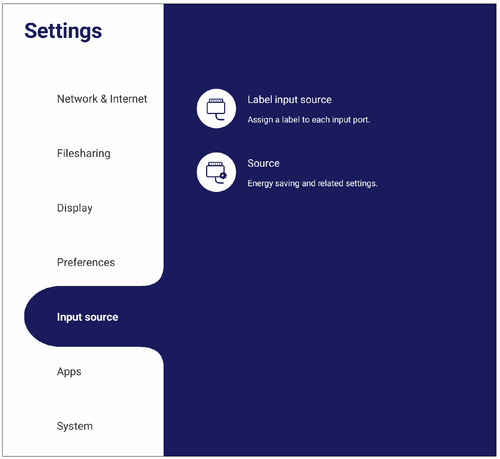

Input Source

Adjust the input source names and settings, as well as the side tool bar settings.

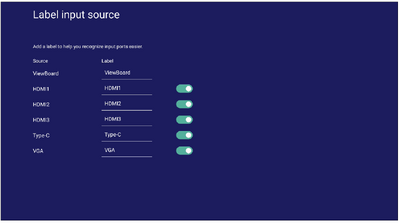

Label Input Source

Set labels for each input source that will be easily recognized when displayed.

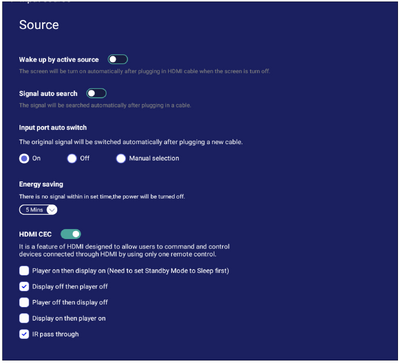

Source

Toggle Wake up by active source, Signal auto search, and HDMI CEC and select Input port auto switch.

Item	Description
Wake up by Active Source	The screen will turn on automatically after plugging in an HDMI cable when the screen is off.
Signal Auto Search	When enabled, if the current source does not have a signal, the ViewBoard will automatically search for an input source.
Input Port Auto Switch	The original signal will automatically switch to a new cable after it’s plugged in.
Energy Saving	Set a time period to power off if no signal is detected.
HDMI CEC	Enable/disable HDMI CEC functions.

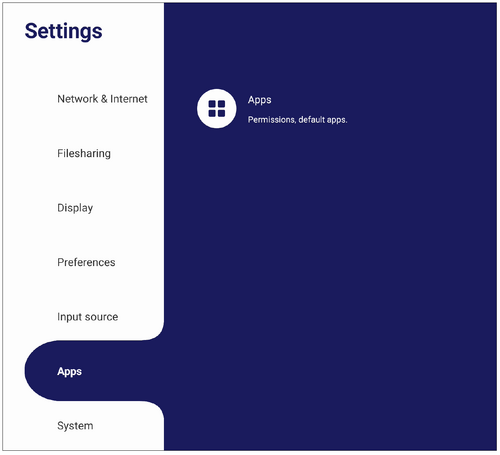

Apps

The user can view application information and force stop, uninstall, move to USB storage, clear data, clear cache, and clear defaults.

NOTE:

Pre-loaded apps cannot be uninstalled.
Not all apps support the move to USB storage feature.
Not all apps support Clear Defaults.

Apps

View any running or installed applications. Tap on them for more detailed information and options.

By tapping on a running application, you can see more information, stop, or report the application.
Selecting All, Download, or USB Storage will list all installed applications.
Tapping on any application will display further information and options.

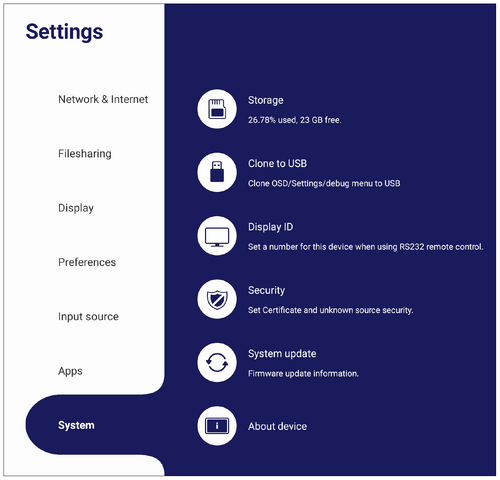

System

View and adjust Storage, Clone to USB, Display ID, Security, System Update, and About device settings.

Storage

Users can check the storage status of their ViewBoard.

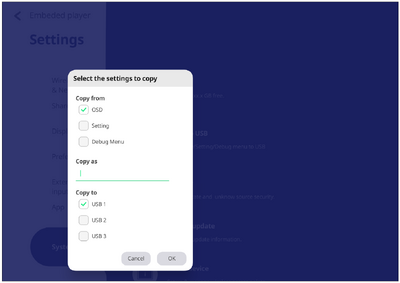

Clone to USB

Copy settings to an external USB drive.

Display ID

Assign a number to remote control the display by RS-232/LAN.

To assign or change the Display ID, tap Change and input a number.

NOTE: The Display ID is for RS-232 users, and the range is 01~99.

Security

Review Certificate, Trusted Credential storage, and Unknown sources install settings.

Tap on Install certificate from storage to add additional certificates.
Selecting Clear Credentials will remove all manually installed credentials.

NOTE: Pre-loaded credentials cannot be cleared.

Under Trusted Credentials view and edit all trusted and installed CA certificates.
Tapping on a credential will provide more detailed information.
Allow the installation of applications from unknown sources by selecting the box under Unknown source security.

NOTE: Apps from unknown sources may not be compatible or work properly.

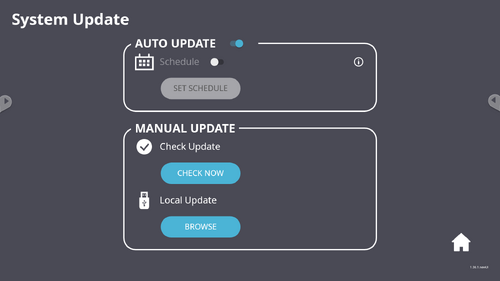

System Update

The ViewBoard automatically searches for software updates whenever connected to the Internet (OTA). With just one click, users can update their version of ViewBoard software.

Item	Description
Auto Update	When the display is off, the system will automatically check for a new version. If a new version is found, the system will automatically update. After the update is complete, the system will turn off.
Schedule	Set the update time.
Manual Update	Update the software manually.

About Device

Display Embedded Player information, Legal information, and Asset Tagging.

By selecting Edit, the asset information can be adjusted.
Tap on Legal information to check open source licenses.
