Hardware Settings

Connect the monitor to the local area network or serial port. You may then use the computer to implement vController to remotely control the monitor.

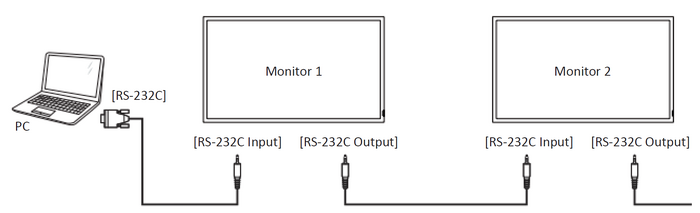

RS232C Connections

Software Installation

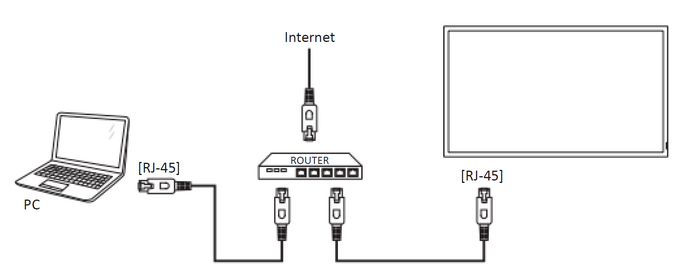

Use the Ethernet cable to connect to this display via the router. Press the MENU button to display the OSD menu and set the monitor network settings.



Introduction

vController 2.0 integrates RS-232 and LAN command for displays and projectors.

Start Up

Display or Projector selection provides RS-232 or LAN communication connection, display identity code, switching the machine on and off, and the input signal settings.

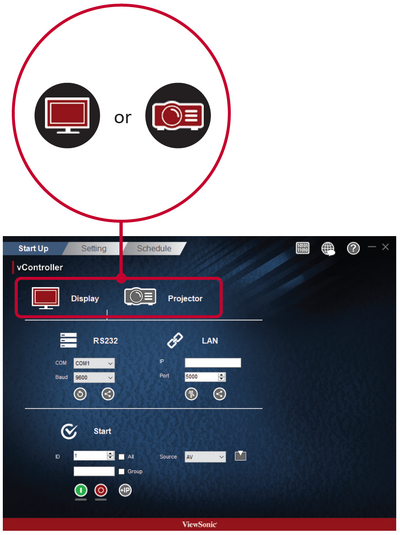

Select Device

Press the Display Icon to control a display or the Projector Icon to control a projector.

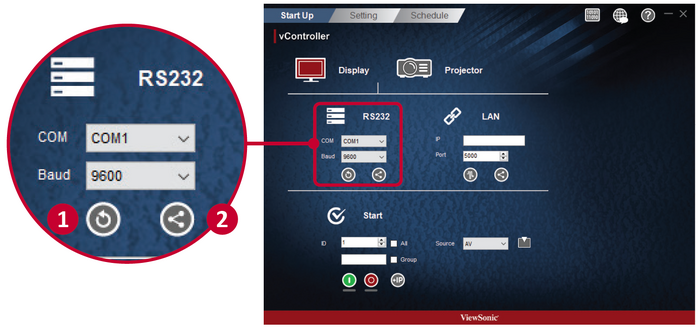

RS-232 Settings

  1. Press the Return Button to search for the RS-232 connection ports and then select a corresponding hardware connection port.
  • Default baud rate is 9600.
  1. Press the Share Button to connect to the RS-232. When the RS-232 has been successfully connected, the button will turn green.

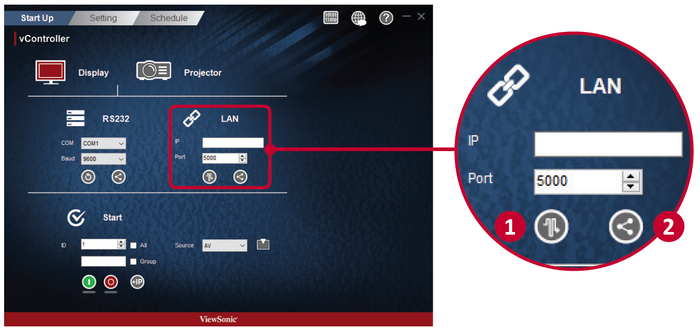

Network Settings

  1. Enter the IP address of the monitor in the IP address field.
  2. When the network settings interface is opened, press the Ping Button to check if the connection is successful.
    • Default port number is 5000.
  3. Press the Share Button to connect to the network. When the network connection has been successful, the button will turn green.

Start

Display Start Interface Projector Start Interface

Display Identification Number (ID)

Create ID numbers when connecting to displays via RS-232C. A unique ID should be created for each display. Check All when connecting to multiple displays.

NOTE: Only displays support ID numbers. Projectors do not support ID numbers.

ID Group

  1. Check Group.
  2. Enter ID numbers in the text field.

On/Off Buttons

Press the On ButtonOn Button to turn on the display.
Press the Off ButtonOff Button to turn off the display.
Icon Description
Display has turned on successfully.
Display has failed to turn on / display's status is unknown.
Display has turned off successfully.
Display has failed to turn off / display's status is unknown.

Source Menu

  1. Select video source with the pull-down menu
  2. Press the Source Button to switch the input signal.

IP Group

  1. Press the IP Button to set the IP group.
  2. Enter the IP address of the display or projector in the IP address field.
Icon Description
Add IP address into group.
Remove IP address from group.
Move up the focus IP address.
Move down the focus IP address.
Enable all IP address.
Disable all IP address.
Close IP group windows.

Setting

Setting / Getting Buttons

Setting Button

Press to the Setting Button to set the RS-232 or LAN commands.

Icon Description
Command was successfully read.
Command was not set / command is not supported.
Command is still processing.

Getting Button

Press to the Getting Button to read the RS-232 or LAN commands.

Icon Description
Command was successfully read.
Command was not set / command is not supported.
Command is still processing.

Monitor Setting

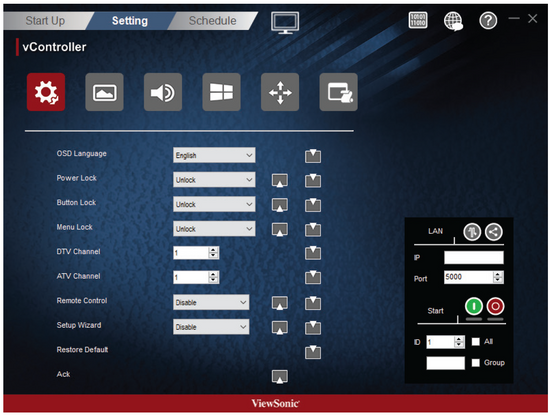

Setup

Item Function Description Commands Supported Devices Supported
OSD Language Select the language for the OSD interface. Write All devices
Power Lock Button used to activate or de-activate the power source. Write/Read All devices
Button Lock Button used to activate or de-activate the control panel buttons. Write/Read All devices
Menu Lock Button used to activate or de-activate the main menu buttons. Write/Read All devices
DTV Channel Select the digital TV channel. Write TV types
ATV Channel Select the analog TV channel Write TV types
Remote Control Choose whether to switch the remote control on/off or select the IR pass through mode. When the IR pass through mode has been activated, the name of the button would be displayed in the RC display frame when the remote control is pressed. Write/Read All devices
Set-Up Wizard Choose whether to switch the set-up wizard on/off (only for TV devices) Write/Read TV types
Restore Default Return all settings to the default factory settings Write All devices
Ack Tests the communication connections Write All devices

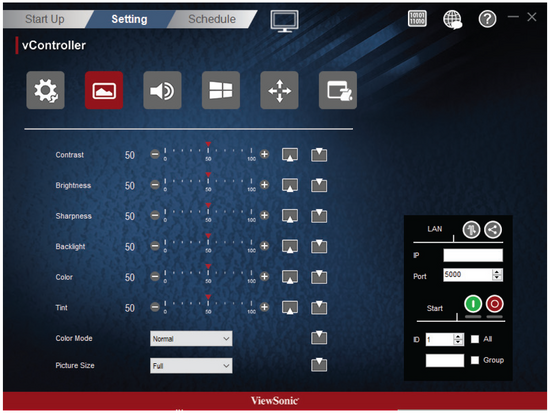

Item Function Description Commands Supported Devices Supported
Contrast Adjust contrast to improve display quality.The black portions of the image would be blacker, while the white portions would be whiter. Write/Read All devices
Brightness Adjust brightness of the image displayed. Write/Read All devices
Sharpness Adjust and improve the image sharpness. Write/Read All devices
Backlight Adjust the panel backlights Write/Read All devices
Color Increase or decrease the color strength of the image. Write/Read All devices
Tint Increase or decrease the tint of the image. Increasing tint will make the image greener, while decreasing tint will make the image appear more purple. Write/Read All devices
Color Mode Select the warmth of the color used for the image. Low-warmth images would appear slightly red, while high-warmth images would appear slightly blue. Write All devices
Picture Size Select picture size. Write All devices

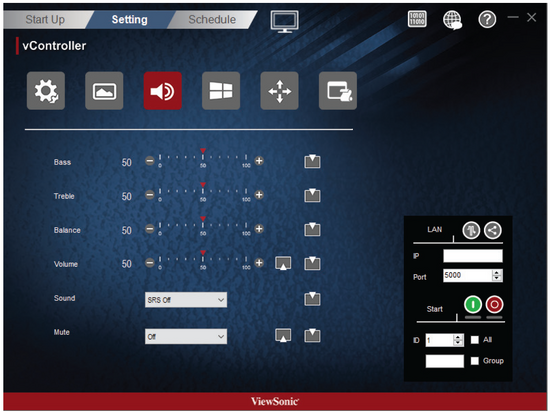

Audio

Item Function Description Commands Supported Devices Supported
Sound Switch the SRS effects on or off. Write All devices
Bass Increase or decrease the bass volume. Write All devices
Treble Increase or decrease the treble volume. Write All devices
Balance Adjust the balance of the left and right channels. Write All devices
Volume Increase or decrease the monitor volume. Write/Read All devices
Mute Mute or unmute the monitor speakers. Write/Read All devices

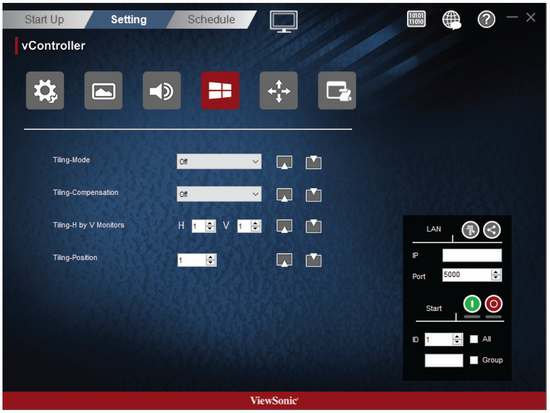

Tiling

This function allows users to establish a large array of displays (TV walls). This function requires daisy chain connections. The maximum number of displays to be arranged horizontally/vertically would depend on the specifications of the displays used.

Item Function Description Commands Supported Devices Supported
Tiling-Mode Swith on / off Tiling-Mode. Write/Read TV wall type (CDX)
Tiling-Compensation Turn on / off the tiling-compensation function. When switched on, the monitors would adjust the image to compensate for the width of the border frames and provide an accurate and precise display of the images. Write/Read TV wall type (CDX)
Tiling-H by V Monitors Select the number of monitors in the horizontal / vertical directions. Write/Read TV wall type (CDX)
Tiling Position Designate the position of the monitor in the monitor tiling matrix. Write/Read TV wall type (CDX)

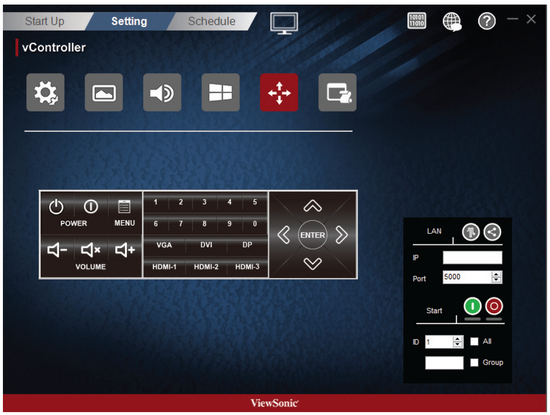

KeyPad

Item Function Description Commands Supported Devices Supported

Power On Button
Press this button to power on device. Write All devices

Power Off Button
Press this button to power off device. Write All devices

Menu Button
Press this button to access the OSD menu. Write All devices

Volume Down Button
Press this button to decrease the audio output level. Write All devices

Volume Up Button
Press this button to increase the audio output level. Write All devices

Mute Button
Press this button to turn the mute function on / off. Write All devices

Source Switch Buttons
Press these buttons to select the input source. Write All devices

0 - 9 Buttons
Select the desired number by pressing the 0 - 9 buttons Write All devices

Arrow Buttons and Enter Button
Use to Arrow Buttons to adjust the selected item in the OSD interface. Press the ENTER Button to confirm the action. Write All devices

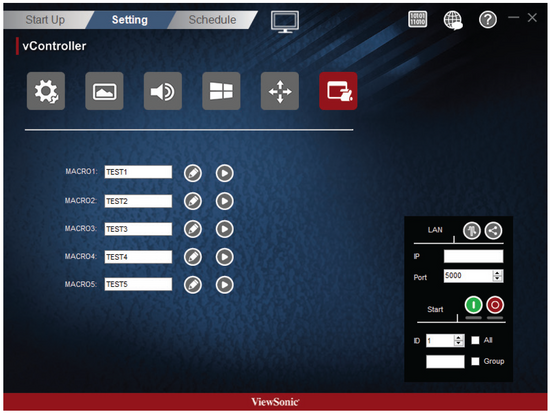

Macro

The user can define three (3) components:

  1. Group Name
  2. Edit Macro Group Commands
  3. Run Macro Group Commands


Group Name
Key in the group name here.

Edit Macro Group Commands

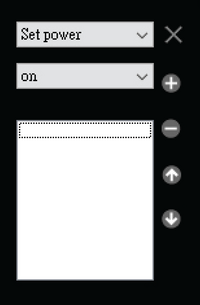

Press the Edit Icon to add commands to the Macro Group Commands.
Item Description
Select command.
Select command data.
Add command to group.
Remove command from group.
Move up the command focus.
Move down the command focus.
Enable all IP addresses.
Close macro edit.

Run Macro Group Commands

Press the Play Icon to run the Macro Group Commands.

Projector Setting

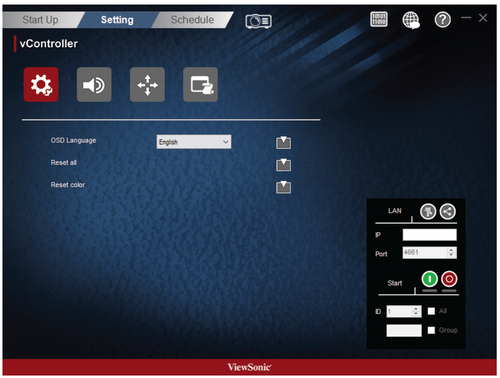

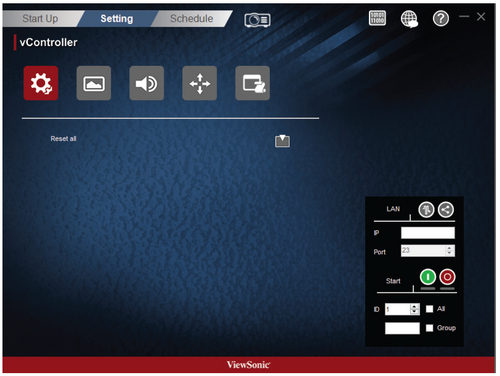

Setup

Pro 9 Series Not Selected Pro 9 Series Selected
Item Function Description Commands Supported Devices Supported
OSD Language Select the language for the OSD interface. Write Supports Non-Pro 9 Series model.
Reset All Return all settings to the default factory settings. Write All devices
Reset Color Reset the color settings to their default values. Write Supports Non-Pro 9 Series model.

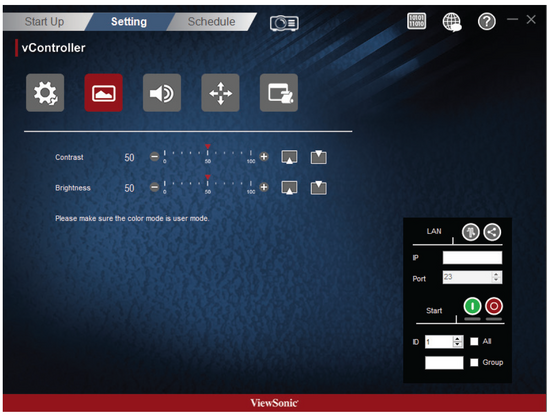

Item Function Description Commands Supported Devices Supported
Contrast Adjust contrast to improve display quality.The black portions of the image would be blacker, while the white portions would be whiter. Write/Read Supports Pro 9 Series only
Brightness Adjust brightness of the image displayed. Write/Read Supports Pro 9 Series only

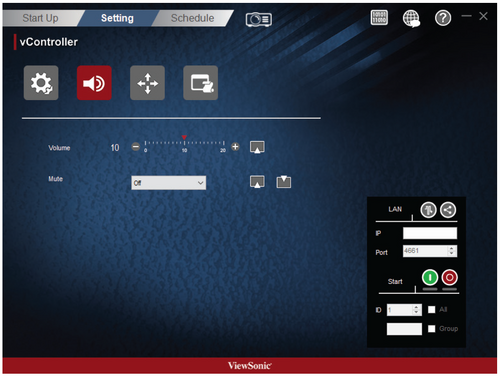

Audio

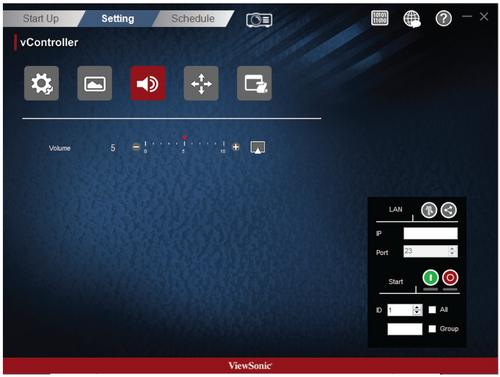

Pro 9 Series Not Selected Pro 9 Series Selected
Item Function Description Commands Supported Devices Supported
Volume Increase or decrease the projector volume. Write/Read All devices
Mute Mute or unmute the projector speakers. Supports Non-Pro 9 Series All devices

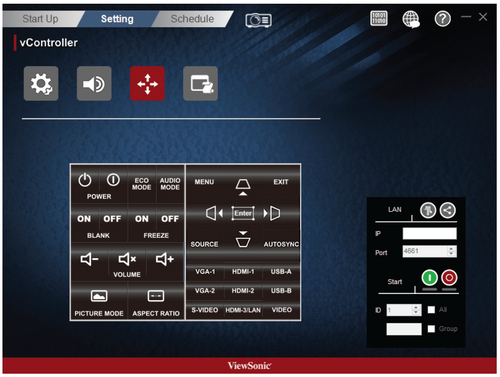

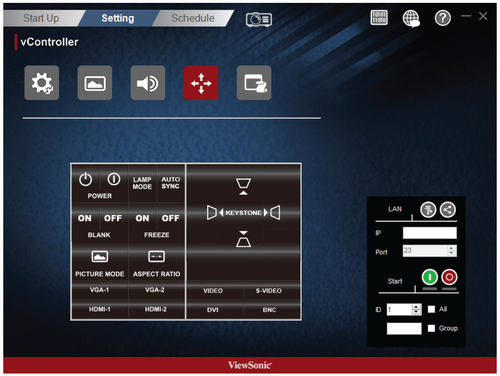

KeyPad

Pro 9 Series Not Selected Pro 9 Series Selected
Item Function Description Commands Supported Devices Supported

Power On Button
Press this button to power on device. Write All devices

Power Off Button
Press this button to power off device. Write All devices

ECO Mode Button
Write All devices

Lamp Mode Button
Cycle between ECO, Normal, and Dynamic ECO. Write Supports Pro 9 Series only

Audio Mode Button
Write All devices

Blank On/Off Button
Write All devices

Freeze On/Off Button
Write All devices

Volume Down Button
Press this button to decrease the audio output level. Write Supports Non-Pro 9 Series

Volume Up Button
Press this button to increase the audio output level. Write Supports Non-Pro 9 Series

Mute Button
Press this button to turn the mute function on / off. Write Supports Non-Pro 9 Series

Picture Mode Button
Write All devices

Aspect Ratio Button
Write All devices

Arrow Buttons and Enter Button
  • Move the selection row up/down/left/right or adjust the selected item in the OSD interface.
  • ENTER button confirms the action.
Write Supports Non-Pro 9 Series

Source Switch Button
Select the input source. Write Supports Non-Pro 9 Series

Keystone Button
Adjust the keystone values. Write Supports Non-Pro 9 Series

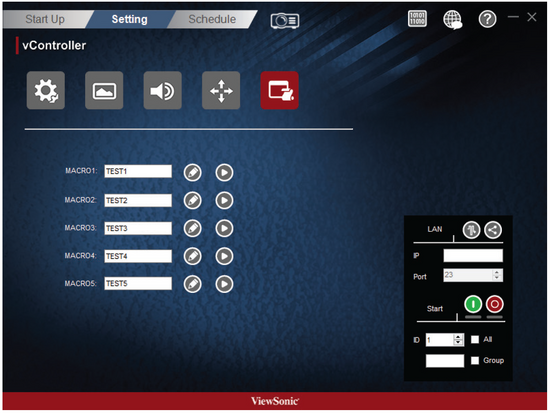

Macro

The user can define three (3) components:

  1. Group Name
  2. Edit Macro Group Commands
  3. Run Macro Group Commands


Group Name
Key in the group name here.

Edit Macro Group Commands

Press the Edit Icon to add commands to the Macro Group Commands.
Item Description
Select command.
Select command data.
Add command to group.
Remove command from group.
Move up the command focus.
Move down the command focus.
Enable all IP addresses.
Close macro edit.

Run Macro Group Commands

Press the Play Icon to run the Macro Group Commands.

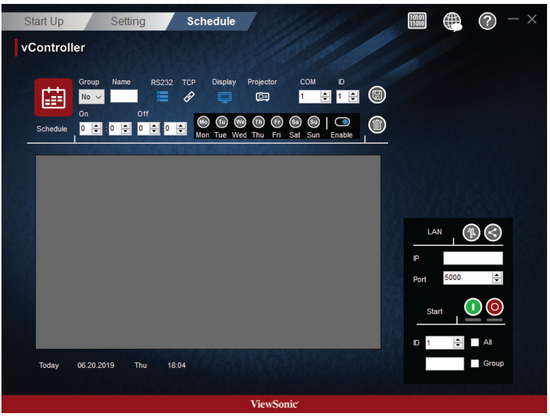

Schedule

Pre-set schedules can be used to determine when the displays are to be switched on/off. Be reminded that in order for this function to work, the vController software must be kept running.

Item Description
Group Group On or Off schedule. Select from Group A to H or No group.
Name Type a schedule name.
Protocol Select RS-232 or LAN.
Device Select Display or Projector.
COM Set the RS-232 COM port.
ID Select the Display ID.
On Set the time to switch on the display (hours, minutes).
Off Set the time to switch off the display (hours, minutes).
A week Press to select the days of the week.
Enable Enable or disable this schedule.
Save The schedule will only come into use after pressing the button to store the schedule.
Delete Delete the schedule.

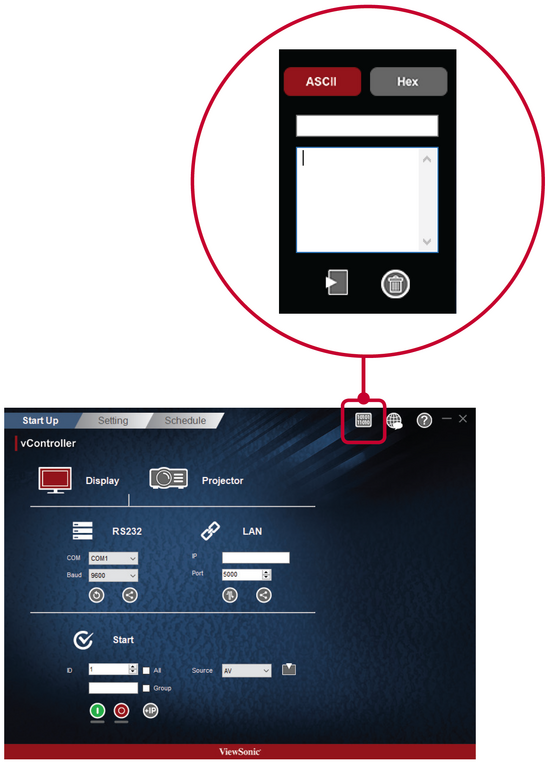

Command Mode

Press to enter Command Mode. The figure below shows the Command Mode interface. Perform the following steps:

  • Select ASCII or Hex, and then manually enter the Command.
