VB-STND-009 Specifications
Introduction
Initial Setup
Specifications
Regulatory and Service Information

Technical Specifications

Item Description
Swivel 360°
Height Adjustment Range 1317/1437 mm
(51.85”/56.57”)
Wall Mount Bracket up to 1000 x 600 mm (max. 105” display)
Caster 4"
Wall Mount Loading 120 kg max
(265 lbs)
Plate Loading 15 kg max
(33.1 lbs)
Dimensions
(W x H x D) 		1155 x 1570~1762 x 704 mm
(45.5” x 61.8”~69.4” x 27.7”)
Weight 24.65 kg
(54.35 lbs)

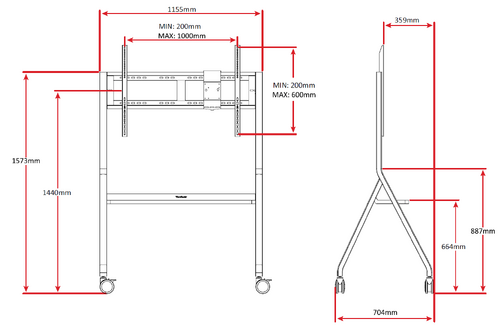

Product Dimensions

Product Dimensions
