    Introduction
    Initial Setup
    Specifications
    Regulatory and Service Information

    Package Contents

    Please take a moment to check if all the necessary items are included in the package. If anything is missing or damaged, please contact your dealer immediately.

    Letter Item Description Quantity
    A
    Package Contents
    		 Left Trestle 1
    B
    Package Contents
    		 Right Trestle 1
    C
    Package Contents
    		 Storage Tray 1
    D
    Package Contents
    		 Wall Plate 1
    E
    Package Contents
    		 Wall Bracket 2
    F
    Package Contents
    		 4 inch Caster 4
    G
    Package Contents
    		 M8x16 mm Screw 6
    H
    Package Contents
    		 M6x12 mm Screw 4
    I
    Package Contents
    		 24x12.5.1.5 mm Washer 4
    J
    Package Contents
    		 20xØ12.5x3.1 mm Spring Washer 4
    K
    Package Contents
    		 4 mm Inner Hex Wrench 1
    L
    Package Contents
    		 5 mm Inner Hex Wrench 1
    Display Assembly Parts
    a
    Package Contents
    		 M4x12 mm Screw 4
    b
    Package Contents
    		 M6x25 mm Screw 4
    c
    Package Contents
    		 M8x35 mm Screw 4
    d
    Package Contents
    		 Ø18x8.5x10 mm Spacer 4
    e
    Package Contents
    		 Ø18x9x2.5 mm Spacer 8
    f
    Package Contents
    		 M5 Washer 4
    g
    Package Contents
    		 M6 Washer 4

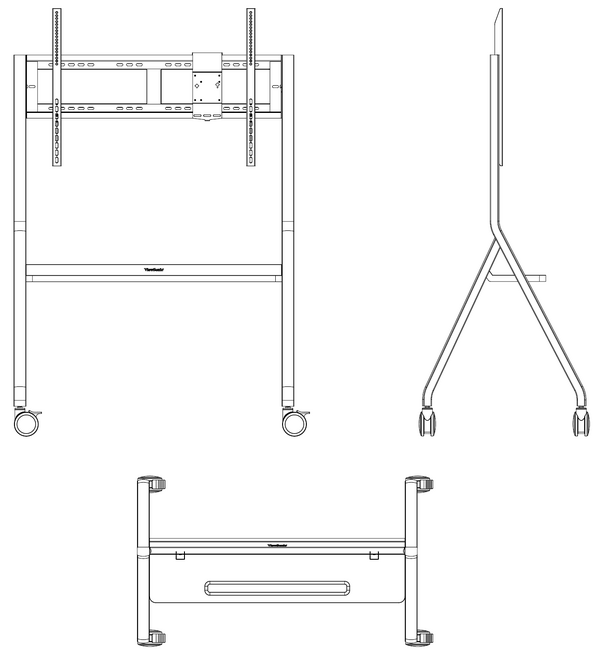

    Product Overview

    Product Overview
