ID0730 Using the Driver

Installing the Driver

It is not necessary to download any drivers or software to use the Digital Writing Pad. However, if you would like more features such as pen pressure, please download and install our ViewSonic Pen Manager. To download and install:

1. Uninstall and remove any drivers of other graphic tablets/monitors installed on your computer.
2. Disable any anti-virus software and firewall temporarily, and ensure you are installing the driver as an Administrator.
3. Download and install the driver from: https://pendisplay.viewsonic.com
4. After a successful installation, please restart the computer then plug in the Digital Writing Pad.
5. The System Tray will now show the “ViewSonic Pen Manager” icon.

Using the Driver

Pen

Adjust settings related to the pen and how it functions.

• Adjust the Tip Feel of the pen - Soft to Firm.

NOTE: Tip Feel alters how much actual pressure it takes to achieve maximum pressure.

• Soft - requires less actual pressure to see a difference in pen pressure levels.
• Firm - more force is needed to see changes in pen pressure.

• Test the Pressure Sensitivity.

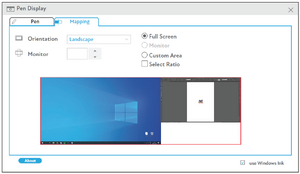

Mapping

Adjust the screen settings for the handwriting screen.

• Choose the preferred screen Orientation.
• Select the Pen Display screen.

Connecting the Pen Display

1. Turn the device over so the bottom side is facing up.

2. Plug the USB Type A end of the USB cable into the USB Port on the device.

3. Connect the Main USB A cable to the computer. The Secondary USB A cable can be connected to a fully powered USB port on the computer.
