Adjusting the Viewing Angle
Height Adjustment
Lower or raise the monitor to the desired height (0 to 100 mm).
Note: When adjusting, press down firmly along the adjustment track holding the monitor with both hands on the side.
Screen Orientation Adjustment (Pivot)
-
Adjust the monitor height to the highest position. Then tilt the monitor backwards to the full tilt position.
-
Rotate the monitor 90° clockwise or counterclockwise from landscape to portrait orientation.
Note:- When adjusting, make sure to hold both sides of your monitor firmly with both hands
- To rotate the screen image, manually change the system’s display orientation settings.
Swivel Adjustment
Swivel the monitor to the left or right for the desired viewing angle (15˚).
Tilt Angle Adjustment

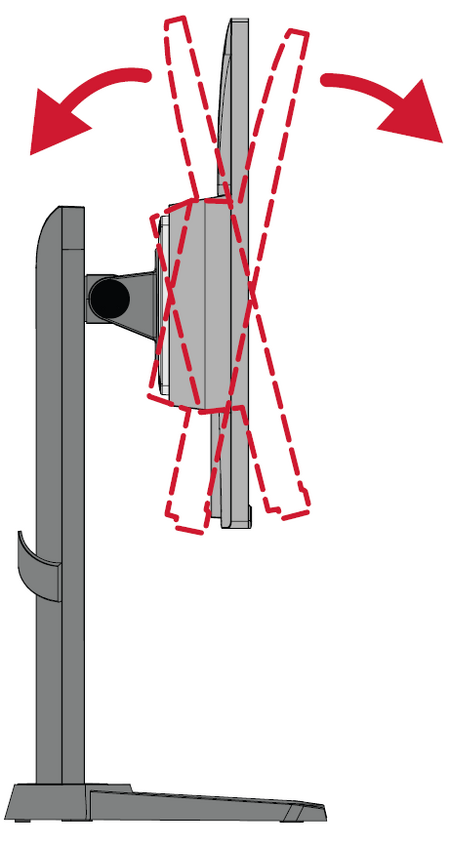

Tilt the monitor forwards or backwards to the desired viewing angle (-5˚ to 17˚).
Note: When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand.
