Adjusting the Viewing Angle

Height Adjustment

Lower or raise the monitor to the desired height (0 to 100 mm).

Adjusting the VX2528J's height
Note: When adjusting, press down firmly along the adjustment track holding the monitor with both hands on the side.

Screen Orientation Adjustment (Pivot)

  1. Adjust the monitor height to the highest position. Then tilt the monitor backwards to the full tilt position.

    Pivoting the VX2528J screen

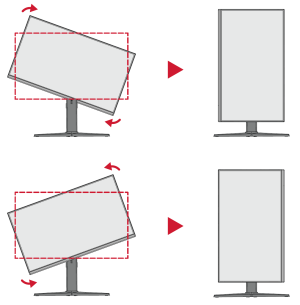

  2. Rotate the monitor 90° clockwise or counterclockwise from landscape to portrait orientation.

    Pivoting the VX2528J screen
    Note:
    • When adjusting, make sure to hold both sides of your monitor firmly with both hands
    • To rotate the screen image, manually change the system’s display orientation settings.


Tilt Angle Adjustment

Tilt the monitor backwards to the desired viewing angle via the attached stand (-5˚ to 22˚).

Angle Adjustment
NOTE: When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand.
