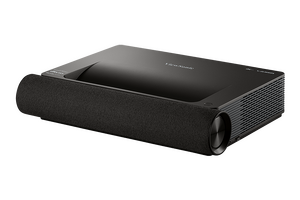

X2000B-4K

    From ViewSonic User Guide Database

    Print

    Features

    • Ultra short throw lens for excellent home projection. Project a 100” screen from 0.234 meters (Back I/O side to wall).
    • 32 GB internal storage (Max. 26 GB available for user storage).
    • Various Color modes for different projection purposes.
    • Multi-language On-Screen Display (OSD) menus.

    Package Contents

    • X2000B-4K Projector

      X2000B-4K Projector

    • Remote Control

      Remote Control

    • Quick Start Guide

      Quick Start Guide

    • Power Cord

      Power Cord

    • Batteries

      Batteries

    • Distance Card

      Distance Card

    NOTE: The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more information.

    Projector Overview

    Front

    X2000L-4K Overview Front.png

    Rear

    X2000L-4K Overview Rear.png

    Sides

    X2000L-4K Overview Side.png

    Top

    X2000L-4K Overview Top.png

    I/O Ports

    X2000L-4K IO Ports.png
    Number Port Description
    1 USB (5V/1.5A Out) USB 2.0 Type A port (USB Reader - FAT32/NTFS)[1]
    2 AC IN AC IN socket
    3 USB (5V/1.5A Out) USB 2.0 Type A port (USB Reader - FAT32/NTFS)[1]
    4 HDMI 1 [2] HDMI Port [3]
    5 HDMI 2[2] [4] HDMI Port[3]
    6 AUDIO OUT (3.5 mm jack) Audio signal output socket
    7 AV IN (3.5 mm jack) Audio/Video signal input socket
    8 LAN RJ45 LAN port
    1. ↑ 1.0 1.1 USB reader supports FAT32/NTFS format.
    2. ↑ 2.0 2.1 Supports HDMI 2.0/HDCP 2.2
    3. ↑ 3.0 3.1 iPhone/iPad users will need to buy an additional adapter. To avoid compatibility issues, please use Apple authorized accessories.
    4. ↑ Supports HDMI ARC.

    Overview

    Remote Control
    Number Button Description
    1 Power Turns the projector On or Off.
    2 Source Displays the input source selection bar.
    3 Focus Automatically focus the image.
    4 Bluetooth Launch Bluetooth search.
    5 OK Confirms the selection.
    6 Up / Down / Left / Right Navigates and selects the desired menu items and make adjustments.
    7 Setting Displays the Setting menu.
    8 Return Returns to the previous screen.
    9 Home Access the Home screen.
    10 Volume Increase/Decrease the volume level.
    11 Forwards / Backwards Move content forwards/backwards.
    12 Mute Mute/Unmute.
    13 Play / Pause Play/Pause content.

    Bluetooth Remote Control Settings

    Note: Pair the remote control with the projector following the illustrations from the setup wizard if the projector is activated for the first time.

    To pair the remote control:

    1. Press and hold the Setting and Return buttons until the indicator on the remote control flashes blue.
    2. If the pairing is successful, a pop-up message will appear on the screen.

    Effective Range

    IR Receiver Location

    To ensure proper function of the remote control follow the steps below:

    1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
    2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)
    NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).

    Replacing the Batteries

    1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across.
    2. Remove any existing batteries (if necessary) and install two AAA batteries.
    NOTE: Observe the battery’s polarities as indicated.
    1. Replace the battery cover by aligning it with the base and pushing it back into position.
    NOTE:
    • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
    • Replace only with the same or equivalent type recommended by the battery manufacturer.
    • If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
    • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.

    Choosing a Location - Projector Orientation

    Personal preference and room layout will decide the installation location. Consider the following:

    • Size and position of your screen.
    • Location of a suitable power outlet.
    • Location and distance between the projector and other equipment.
    • Front Table

      Front Table

    • Front Ceiling

      Front Ceiling

    • Rear Table

      Rear Table

    • Rear Ceiling

      Rear Ceiling

    Location Description
    Front Table The projector is placed near the floor in front of the screen.
    Front Ceiling The projector is suspended upside-down from the ceiling in front of the screen.
    Rear Table[1] The projector is placed near the floor behind the screen.
    Rear Ceiling[1] The projector is suspended upside-down from the ceiling behind the screen.
    1. ↑ 1.0 1.1 A rear projection screen is required.

    Projection Dimensions

    X2000L-4K Projection Dimensions.png
    NOTE:
    • (e) = Screen | (f) = Center of Lens
    • The distance from the center of the lens to the rear of the projector is 25.34 cm (9.98”).

    16:9 Image on a 16:9 Screen

    (a) Screen Size (b) Projection Distance (c) Image Height (d) Vertical Offset
    in. mm in. mm in. mm in. mm
    65 1651 3.23 82 31.85 809 6.38 162
    70 1778 4.24 108 34.32 872 6.85 174
    80 2032 6.27 137 39.22 996 7.83 199
    90 2286 8.30 211 44.12 1121 8.82 224
    100 2540 10.33 234 49.03 1245 9.80 249
    120 3048 14.39 332 58.83 1494 11.77 299
    130 3302 16.43 417 64.73 1619 12.76 324
    150 3810 20.48 520 73.54 1868 14.72 374
    These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.


    Allow at least 50 cm (20”) of clearance around the projector for proper ventilation and to prevent overheating.

    Mounting the Projector

    NOTE: If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate.
    1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.
    2. Ensure the screws used to attach the mount to the projector meet the following specifications:
    • Screw type: M4 x 12
    • Maximum Screw Length: 12 mm

    X2000L-4K Mount.png

    CAUTION
    • Avoid installing the projector near a heat source or air conditioner.
    • Keep at least a 10 cm (3.9 in.) gap between the ceiling and the bottom of the projector.

    Connecting to Power

    Connecting to Power
    1. Connect the power cord to the AC IN jack at the rear of the projector.
    2. Plug the power cord into a power outlet.
    NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit. If a fault should occur during operation of the projector, use the disconnect device to switch off the power supply, or disconnect the power plug.

    Connecting to External Devices

    HDMI Connection

    X2000L-4K HDMI Connect.png

    Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1/2 port (each support HDMI 2.0/HDCP 2.2) of your projector.

    NOTE:
    • iPhone/iPad users will need to use an additional adapter.
    • The HDMI 2 port supports HDMI ARC.

    AV IN Connection

    X2000L-4K AV IN Connect.png

    Connect one end of an Audio Video Component cable to the port of your device. Then connect the other end of the cable to the AV IN port of your projector.

    Audio Connection

    X2000L-4K Audio Connect.png

    You can connect to various external sound delivery devices via the Audio Out and HDMI 2 ports.

    To play music with Audio Out:

    • Select Settings > Advanced Setting > harman/kardon > HDMI 2
    • Select Settings > Advanced Setting > harman/kardon > Coaxial
    • Select Settings > Advanced Setting > harman/kardon > Headphone
    NOTE: An audio adapter is needed for the Coaxial setting.

    USB and Network Connection

    X2000L-4K USB Net Connect.png

    Just like any PC, it is easy to connect various USB devices, dongles, and networking devices.

    USB Type-A Connection
    Connect a keyboard, a mouse, dongles, storage devices, etc. to the projector’s USB Type-A port.

    Network Connection
    Plug the network cable into the LAN port, or use the available wireless connection.


    Connecting to Networks

    Wi-Fi Connection

    • Step 2 - Select Enable

      Step 2 - Select Enable

    • Step 3 - Select Wi-Fi network

      Step 3 - Select Wi-Fi network

    • Step 4 - Enter password

      Step 4 - Enter password

    To connect to a Wi-Fi network:

    1. Go to: Home > Settings > Network Settings > Wi-Fi
    2. Press Left or Right on the remote control to select Enable.
    3. Available Wi-Fi networks will then be displayed. Select one of the available Wi-Fi networks.
    4. If you connect to a secure Wi-Fi network, you must enter the password when prompted.

    Custom SSID

    1. Go to: Home > Settings > Network Settings > Wi-Fi
    2. Press Left or Right on the remote control to select Enable.
    3. From the available Wi-Fi networks list select Others and press OK on the remote control.
    4. Enter the SSID and select the security level.
    5. Enter the password when prompted.
    NOTE: It is recommended to let the system configure the network settings automatically by choosing Automatic for Configure IP.
    • Step 4 - Select Others

      Step 4 - Select Others

    • Step 5 - Enter SSID

      Step 5 - Enter SSID

    • Step 6 - Enter Password

      Step 6 - Enter Password

    Wired LAN Connection

    You can easily connect to wired Internet networks and customize the connection as well.

    1. Plug the RJ45 cable into the LAN port of the projector, then ensure the other end is plugged into your wired Internet source.
    2. Go to: Home > Settings > Network Settings > Wired LAN
    3. You can Configure the IP automatically or manually. Choosing Manual will allow access to IP Address, Subnet Mask, Default Gateway, and DNS Server.
    NOTE: It is recommended to let the system configure the network settings automatically by choosing Automatic for Configure IP.

    Bluetooth Connection

    Bluetooth Speaker

    • Step 2 - Select Bluetooth Speaker or Bluetooth Pairing

      Step 2 - Select Bluetooth Speaker or Bluetooth Pairing

    • Step 3 - Select Yes

      Step 3 - Select Yes

    The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback.

    To connect and pair your device:

    1. Go to: Home > Bluetooth.
    2. Use the Left and Right directional buttons on the remote control to select Bluetooth Speaker or Bluetooth Pairing. Then press OK on the remote control.
    3. When the below dialogue box appears, select Yes and press OK on the remote control to enter Bluetooth mode.
    4. A sound effect will be audible upon entering pairing mode.
    5. Upon successful connection, another sound effect will be audible.
    NOTE:
    • Once paired, if both the projector and your device are powered on they will automatically connect via Bluetooth.
    • The projector’s name will be labeled as “X1000-4K”.
    • Only the Power and Return buttons can exit Bluetooth mode.

    Bluetooth Out

    • Step 2 - Bluetooth Out

      Step 2 - Bluetooth Out

    • Step 3 - Select Bluetooth Out

      Step 3 - Select Bluetooth Out

    Connect the projector to external headphones or speakers that support Bluetooth.

    To connect and pair your device:

    1. Go to: Home > Bluetooth.
    2. Use the Left and Right directional buttons on the remote control to select the Bluetooth Out option.
    3. The projector will search for nearby Bluetooth devices. Select your device from the list and press OK on the remote control.

    Wireless Screen Mirroring

    Screen Mirroring provides a 5 GHz Wi-Fi connection for users to mirror the screen on their personal device.

    Note: Ensure your device is connected to the same network as the projector.
    Wireless Screen Mirroring Update.png

    For iOS:

    1. Access the drop down control menu.
    2. Select the “Screen Mirroring” icon.
    3. Choose “ViewSonic PJ-XXXX”.

    For Android:

    1. Download and install the “Google Home” application and open it.
    2. Pull-to-refresh the app and wait for 30 seconds.
    3. “ViewSonic PJ-XXXX” will now be visible, select it.
      4. Note: Some Android devices support direct “Casting”. If your device does, go to the Casting feature and choose “ViewSonic PJ-XXX” from the list of available devices. You can also scan the FAQ QR code and follow the steps to directly cast your Android device.

    Starting the Projector

    1. Ensure the projector’s power cord is properly connected to a power outlet.
    2. Press the Power button to turn on the projector.
    NOTE: The Status LED will change from a solid light to off during startup.

    First Time Activation

    If the projector is activated for the first time, you will need to select your Preferred Language, Projection Orientation, Network Settings, and Source Input. Follow the on-screen instructions using the OK and Up/Down/Left/Right buttons on the remote control. When the Finish screen appears, this indicates the projector is ready to use.

    Image Focus

    Select the Focus button and press Right or Left to adjust the image until it is clear.

    X1000 Image Focus.png

    Projection Orientation

    Select the preferred projection orientation and press OK to confirm the selection.

    X100 Projection Orientation.png

    Preferred Language

    Select the desired language and press OK to confirm the selection.

    X100 Preferred Language.jpg

    Network Settings

    Select one of the available options.

    X1000 Network Settings.png

    Source Input

    Quickly access the Source Input menu by pressing the Down button on the remote control when at the Home Screen. Additionally, you can press the Source button on the remote control.

    X2000L-4K Source Input.png

    Selecting an Input Source

    The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

    X2000L-4K Input Source.png

    The projector will automatically search for input sources. If multiple sources are connected, press the Source button on the remote control to select the desired input, or press the Down button when at the Home Screen until the source list is displayed.

    NOTE: Ensure the connected sources are also turned on.

    Adjusting the Projected Image

    Adjusting the Projector's Height and Projection Angle

    The projector is equipped with two (2) adjuster feet. Adjusting the feet will change the projector’s height and the vertical projection angle.

    X2000L-4K Height Adjust.png

    Setting Up the Desired Image Size

    The included Distance Card can be used to determine the desired image size.

    X2000L-4K Distance Adjust.png

    Fine-Tuning the Image Clarity

    You can improve the clarity of the image by pressing the Focus button, then using the Left and Right buttons on the remote control.

    X1000 Clarity Adjust.png

    Shutting Down the Projector

    1. Press the Power button on the projector or remote control and the following message will appear:
      2. X2000L-4K Shutdown.png
    2. Press the Up/Down buttons on the remote control to select Turn Off and press OK on the remote control.
    3. The Status LED will turn solid red once turned off.
    NOTE: When pressing Power on the remote control, you can choose from three (3) options: Turn Off, Restart, and Bluetooth.

    Home Screen

    The Home Screen is displayed every time you start the projector. To navigate the Home Screen, simply use the directional buttons on the remote control. You can return to the main Home Screen at any time by pressing the Home button on the remote control, regardless of what page you are on.

    X1000 Home Screen.png

    File Management

    Easily manage files and folders.

    • Step 1 - Select File Management

      Step 1 - Select File Management

    • Step 2 - Navigate the files

      Step 2 - Navigate the files

    1. Select: Home > File Management.
    2. Select a device on the source list: USB, Local Storage, etc. Use the direction buttons to select the desired file. Then press OK on the remote control to open the selected file.
    3. Press the Return button to go to a previous a level.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    How to Edit a File

    X100 File Management Edit.png
    1. While in File Management, press and hold the OK button for three (3) seconds.
    2. A check box will appear at the front of each file. Use the directional buttons and press OK to select one or more files.
    3. By pressing the Right button, Copy, Paste, Cut, Delete, Select All, and Return boxes will be available for use.
    4. Select your desired action and press OK to execute.
    5. If you are Copying or Cutting, select your destination folder to complete the process.

    How to Use Control Bar Buttons

    The Control Bar buttons will appear on screen if a video, music, or photo file are selected to be opened.

    X100 Control Bar.png

    Tips for using USB
    When using USB for reading and/or storage please keep in mind the following:

    1. Some USB storage devices may not be compatible.
    2. If you use an USB extension cable, the USB device may not recognize the USB.
    3. Only use USB storage devices formatted with Windows FAT32 or NTFS file system.
    4. Larger files will need extra time to load.
    5. Data on USB storage devices may be damaged or lost. Back up important files.

    Supported File Formats

    • Supported Office formats:
    Item Indicators
    Document viewing function doc/docx Able to open and read documents in doc/docx
    xls/xlsx Able to open and read documents in xls/xlsx
    ppt/pptx Able to open and read documents in ppt/pptx
    Pdf Able to open and read documents in pdf
    Supporting Interface Language Supporting Interface 44 languages English, Simplified Chinese, Chinese (TW), Chinese (HK), Spanish (LA), French (EU), PT (EU), PT (BR), German, Russian, Italian, Swedish, Spanish (EU), Korean, Arabic, Farsi, Serbian, Bosnian, Macedonian, Bulgarian, Ukrainian, Greek, Norwegian, Danish, Czech, Hungarian, Slovak, Polish, Romanian, Finnish, Estonian, Latvian, Lithuanian, British English, Slovenian, Croatian, Turkish, Vietnamese, Bahasa Indonesia, Dutch, Malay, Thai, Hindi, Hebrew, Burmese, Catalan.
    • Supported Multimedia formats:
    Extension Codec
    .avi Video Xvid, H.264, H.265
    Audio MP3
    .mp4
    .m4v
    .mov     		Video H.264, H.265/MPEG 4
    .mkv Video H.264, H.265
    .ts
    .trp
    .tp
    .mts
    .m2ts     		Video H.264, H.265, MPEG2
    Audio MP3
    .vob Video MPEG1, MPEG2
    Audio DVD-LPCM
    .mpg Video MPEG1
    • Supported Photo formats:
    Format Type Maximum Resolution
    .jpg/.jpeg Progressive JPEG 7680 x 4320
    Baseline JPEG 7680 x 4320
    .bmp 9600 x 6400
    .png 7680 x 4320
    • Supported External Connected Device formats:
    Device Support Size
    (Max. Size)     		NTFS Format FAT32 Format exFAT
    Read Write Read Write Read Write
    USB Memory Stick 256 GB V N/A V V N/A N/A
    USB HDD 2 TB V N/A V V N/A N/A
    NOTE:
    • Windows 10 built-in format tool only supports FAT32 format up to 32 GB.
    • Firmware upgrade only supports FAT32 format.

    Video - File Management

    Apps Center

    View, launch, and uninstall Apps.

    • Step 1 - Select Apps Center

      Step 1 - Select Apps Center

    • Step 2 - Launch the App

      Step 2 - Launch the App

    1. To view your Apps, select: Home > Apps Center.
    2. Use the directional buttons to select the desired App. Then press OK on the remote control to launch the App.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    To Uninstall Apps

    1. Open the Apps Center by selecting: Home > Apps Center.
    2. Use the directional buttons to select the desired App.
    3. Press and hold OK on the remote control for three (3) seconds.
    4. Select OK to uninstall the App.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    Bluetooth

    The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback. Learn more here.

    X1000 Bluetooth 2.png

    Setting

    Under Setting you can adjust Network, Basic, and Advanced Settings, Date & Time, Firmware Update, and view Information.

    Network Settings

    • Step 1 - Select Network Settings

      Step 1 - Select Network Settings

    1. Select: Home > Setting > Network Settings.
    2. Choose from one of the available options: Wi-Fi or Wired LAN.

    Basic Settings

    • Step 1 - Select Basic Settings

      Step 1 - Select Basic Settings

    • Step 2 - Choose an option

      Step 2 - Choose an option

    1. Select: Home > Setting > Basic Settings.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
    3. To return to a previous menu press the Return button.

    Date & Time

    Adjust Date, Time, Time Zone, and Time Format.

    NOTE: The time is displayed in the top-right corner after connecting to the Internet.
    • Step 1 - Select Date & Time

      Step 1 - Select Date & Time

    • Step 2 - Choose an option

      Step 2 - Choose an option

    1. Select: Home > Setting > Date & Time.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.

    Firmware Upgrade

    Users can update the firmware by internet or USB, and check the version number.

    NOTE: Do not unplug the power cord, USB, or disconnect from the Internet during the upgrading process.
    • Step 1 - Select Firmware Upgrade

      Step 1 - Select Firmware Upgrade

    • Step 2 - Choose an option

      Step 2 - Choose an option

    1. Before entering the Firmware Upgrade menu, ensure the projector is connected to the Internet.
    2. To enter the menu, select: Home > Setting > Firmware Upgrade.

    Firmware Update Online

    1. Go to: Home > Setting > Firmware Upgrade > Software Update Online.
    2. Select Enter by pressing OK on the remote control.
    3. The system will check the ViewSonic website (OTA) and display a dialog message if there is new Firmware.
    4. After selecting Yes, a progress bar will appear as the update process begins.
    5. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
    6. After updating the Firmware, it will take a few minutes to restart the projector.

    Firmware Update by USB with FAT32 Format

    NOTE: NTFS format, read only.
    1. Download the latest version from the ViewSonic website and copy the file to a USB device.
    2. Plug the USB into the projector, then go to: Home > Setting > Firmware Upgrade > Software Update By USB.
    3. Select Enter by pressing OK on the remote control.
    4. The system will detect the Firmware version and display the above dialog message.
    5. After selecting Yes, a progress bar will appear as the update process begins.
    6. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
    7. After updating the Firmware, it will take a few minutes to restart the projector.

    Advanced Settings

    • Step 1 - Select Advanced Settings

      Step 1 - Select Advanced Settings

    • Step 2 - Choose an option

      Step 2 - Choose an option

    1. Select: Home > Setting > Advanced Settings.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
    3. To return to a previous menu press the Return button.

    Information

    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.
    • Step 1 - Select Information

      Step 1 - Select Information

    • Step 2 - View the information

      Step 2 - View the information

    1. Select: Home > Setting > Information.
    2. View system status and information.

    Adding Apps

    Add your favorite Apps to the Home Screen.

    • Step 1 - Select Add App

      Step 1 - Select Add App

    • Step 2 - Navigate the Apps

      Step 2 - Navigate the Apps

    1. From the Home Screen, select Add App and then press OK on the remote control.
    2. Use the directional buttons to select the desired App and press OK.
    3. Now your favorite App will appear on the Home Screen.

    Delete Apps from the Home Screen

    1. From the Home Screen, select the App you want to delete and press and hold OK for three (3) seconds.
    2. The message, “Do you want to Delete this application from My Favorites?” will appear.
    3. Select Yes, and press OK to delete the App.

    Input Source Selected - On-Screen Display (OSD) Menu Tree

    Image Setting

    After your input source is selected, you can adjust the Image Setting and Advanced menus.

    Sub-menu Menu Option
    Color Mode Brightest
    TV
    Movie
    Gaming
    User
    Wall Color Off
    Pink
    Yellow
    Blue
    Brightness (0~50)
    Contrast (0~100)
    Color Temp 6500K
    7500K
    9300K
    User Red Gain (0~199)
    Green Gain (0~199)
    Blue Gain (0~199)
    Red Offset (0~199)
    Green Offset (0~199)
    Blue Offset (0~199)
    Tint (-50~50)
    Saturation (0~100)
    Sharpness (0~50)
    Gamma 1.8
    2.0
    2.2
    2.35
    2.5
    sRGB
    Cubic
    Color Management Primary Color Red
    Green
    Blue
    Cyan
    Magenta
    Yellow
    Hue (-50~50)
    Saturation (0~100)
    Gain (0~100)
    Light Source Level Full
    Standard
    Eco
    Test Pattern OK
    Reset Current Color Settings OK

    Advanced

    Sub-menu Menu Option
    Aspect Ratio Auto
    4:3
    16:9
    16:10
    Native
    HDR Auto
    SDR
    EOTF Low
    Mid
    High
    Frame Interpolation Low
    Mid
    High
    Off
    HDMI Range Auto
    Full
    Limited
    HDMI Version HDMI 2.0
    HDMI 1.4
    3D Settings 3D Sync Auto
    Disable
    Frame Sequential
    Frame Packing
    Top-Bottom
    Side-by-Side
    3D Sync Invert Disable
    Invert
    harman/kardon Audio Mode Movie
    Music
    User 120Hz
    500Hz
    1500Hz
    5000Hz
    10000Hz
    Audio Volume (0~50)
    Mute Enable
    Disable
    Audio Out Internal Speaker
    Headphone
    HDMI ARC
    Coaxial
    Digital Output Format PCM
    RAW
    Keystone 4 Corner Disable
    Enable
    4 Corner Adjustment
    Warping Warping Disable
    Enable
    Warping Adjustment
    Information Source
    Resolution
    3D Format
    HDR/HLG

    Home Screen - On-Screen Display (OSD) Menu Tree

    File Management

    Apps Center

    Bluetooth

    Setting

    Sub-menu Menu Option
    Network Settings Wi-Fi Disable
    Enable SSID:
    Configure IP
    IP Address
    Subnet Mask
    Default Gateway
    DNS Server
    Others
    Wired LAN Configure IP Automatic
    Manual
    IP Address xxx.xxx.xxx.xxx
    Subnet Mask xxx.xxx.xxx.xxx
    Default Gateway xxx.xxx.xxx.xxx
    DNS Server xxx.xxx.xxx.xxx
    Basic Settings Language English
    French
    German
    Italian
    Spanish
    Russian
    繁體中文
    簡體中文
    日本語
    韓語
    Swedish
    Dutch
    Turkish
    Czech
    Portuguese
    Thai
    Polish
    Finnish
    Arabic
    Indonesian
    Hindi
    Vietnam
    Greek
    Projector Projection Front Table
    Front Ceiling
    Rear Table
    Rear Ceiling
    Keystone 4 Corner Disable
    Enable
    4 Corner Adjustment
    Warping Warping Disable
    Enable
    Warping Adjustment
    Focus OK
    Eye Protection Disable
    Enable
    Test Pattern OK
    Date & Time Automatic Date & Time Disable
    Enable
    Date
    Time
    Time Zone
    Time Format 12 hours
    24 hours
    Firmware Upgrade Software Update Online
    Software Update by USB
    OTA Reminder Disable
    Enable
    Software Version
    Advanced Settings Power On Source Disable
    HDMI 1
    HDMI 2
    Power On/Off Ring Tone On
    Off
    Auto Power On Direct Power On Disable
    Enable
    CEC Disable
    Enable
    Smart Energy Auto Power Off Disable
    10 minutes
    20 minutes
    30 minutes
    Sleep Timer Disable
    30 minutes
    1 hour
    2 hours
    3 hours
    4 hours
    8 hours
    12 hours
    Power Saving Enable
    Disable
    harman/kardon Audio Mode Movie
    Music
    User
    Volume (0~50)
    Mute Disable
    Enable
    Audio Out Internal Speaker
    Headphone
    HDMI ARC
    Coaxial
    Digital Output Format PCM
    RAW
    Light Source Level Full
    Standard
    Eco
    High Altitude Mode Disable
    Enable
    Reset Settings OK
    Cancel
    Reset to Factory Default OK
    Cancel
    Information Light Source Hours
    System Version
    Memory Information
    Network Mac Address
    Wi-Fi Mac Address
    Serial Number

    Screen Mirroring

    Add App

    Input Source Selected - On-Screen Display (OSD) Menu Options

    Image Setting Menu

    Menu Option Description
    Color Mode The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal.

    Brightest
    Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, (i.e., well-lit rooms).

    TV
    Optimized for viewing sports in well-lit environments.

    Gaming
    Designed for playing video games.

    Movie
    Appropriate for colorful movies, video clips from digital cameras, or DVs through the PC input. Best for low-light environments.

    User
    Recalls the customized user settings.

    Wall Color Wall Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures if you are projecting onto a colored surface such as a painted wall which may not be white.
    Brightness The higher the value, the brighter the image. Lower values will result in a darker image.
    Projector Brightness.png
    Contrast Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
    Projector Contrast.png
    Color Temp Select the color temperature setting.
    • 6500K: Maintains normal white coloring.
    • 7500K: A higher, cooler color temperature than 6500K.
    • 9300K: The highest color temperature; makes the image appear the most bluish-white.
    • User Color: Adjust red, green, and blue values as desired.
    Tint The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.
    Saturation Refers to the amount of that color in a video picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
    Sharpness A high value results in a sharper picture; a low value softens the picture.
    Gamma Reflects the relationship between input source and picture brightness.
    Color Management Only in permanent installations with controlled lighting levels such as: boardrooms, lecture halls, or home theaters should Color Management be considered.
    RGB Wheel.png

    Color Management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

    If you have purchased a test disc, which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc., you can project any image from the disc on the screen and enter the Color Management menu to make adjustments.

    Light Source Level Select the suitable power consumption of the LED.
    Test Pattern Test the color presentation of the projector.
    Reset Current Color Settings Return current color settings to their default values.

    Advanced Settings Menu

    Menu Option Description
    Aspect Ratio The Aspect Ratio is the ratio of the image width to the image height. With the advent of digital signal processing, digital display devices, like this projector, can dynamically stretch and scale the image output to a different aspect than that of the image input signal.
    NOTE: Only supports HDMI/USB-C (video) signal input.

    Auto
    Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither 4:3 nor 16:9 and you want to make the most use of the screen without altering the image’s aspect ratio.

    4:3
    Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration.

    16:9
    Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV.

    16:10
    Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect.

    Native
    Projects the image as its original resolution and resizes it to fit within the display area. For input signals with lower resolutions, the projected image will be displayed in its original size.

    HDR The projector supports HDR imaging. It can automatically detect the dynamic range of the source from the HDMI 1 & HDMI 2" ports, and optimize settings to reproduce contents under a wide range of light conditions.
    EOTF Automatically adjusts the brightness levels of your image according to the input source. You can also manually select a brightness level to display better picture quality.
    NOTE: This function is not available when SDR is selected in the HDR menu.
    Frame Interpolation Smooths the picture quality of high speed moving objects. This is especially for users who enjoy fast paced sporting events.
    HDMI Range Range

    Select a suitable color range according to the color range setting of the connected output device.

    • Full: Sets the color range from 0~255.
    • Limited: Sets the color range from 15~235.
    • Auto: Sets the projector to detect the range of the input signal automatically.
    HDMI Version Select the preferred HDMI version.
    3D Settings Enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images while wearing 3D glasses.

    3D Sync
    Adjust and choose from: Auto or Off.

    3D Sync Invert
    Allows for correction if the 3D image depth is inversed.

    harmon/kardon Adjust the audio settings.
    Keystone

    4 Corner
    Enable/Disable 4 Corner Adjustment.

    4 Corner Adjustment
    Adjust each corner individually for maximum projection flexibility.

    Warping Configure the geometric distortion of the projector’s images when the images are projected onto screens which have a kind of uneven surface such as a cylinder, a spherical shape, etc.
    NOTE: 4 Corner Adjustment will be disabled if Warping is enabled.
    Information Shows Input Source, Resolution, 3D format, and HDR.

    Home Screen - On-Screen Display (OSD) Menu Options

    File Management

    Provides a user interface to manage files and folders.

    X1000 File Management.png

    Apps Center

    Access and view all the applications you have installed.

    X2000-4K App Center.png

    Bluetooth

    Select the appropriate Bluetooth mode.

    X1000 Bluetooth.png

    Setting

    Manage various categories such as: Network settings, Basic and Advanced settings, Date & Time, Firmware update, and system Information.

    X1000 Settings.png

    Basic Settings

    Menu Option Description
    Language Select your desired language.
    Projector Position Select the preferred projection position.
    Keystone 4 Corner

    Enable/Disable 4 Corner Adjustment.

    4 Corner Adjustment
    Adjust each corner individually for maximum projection flexibility.

    Warping Image adjustment for curved surfaces.
    Focus Adjust the focus of the screen image. Use the Directional buttons on the remote control to adjust the focus.
    Eye Protection To protect eyes from the direct light of the projector, when an object gets close to the lens, a sensor will detect it and automatically turn off the light.
    NOTE: When the Eye Protection feature is activated, press any button on the remote control to cancel it.
    Test Pattern Test the color presentation of the projector and/or adjust the focus of the projected image.

    Date & Time

    Menu Option Description
    Automatic Date & Time Users can synchronize the date and time automatically after connecting to the Internet.

    Enable
    Turn on synchronization.

    Disable
    Turn off synchronization.

    Time Zone Select your desired location.
    Time Format Select a different display time format.

    12 Hours
    12-hour clock.

    24 Hours
    24-hour clock.

    Advanced Settings

    Menu Option Description
    Power On Source Allows the user to enter the desired source directly after turning on the projector.
    Auto Power On CEC

    This projector supports CEC (Consumer Electronics Control) function for synchronized power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected deice is turned on, the projector’s power will be turned on automatically.

    NOTE: Ensure both the projector's and the connected device's CEC function are turned on.
    Smart Energy Auto Power Off

    The projector can turn off automatically after a set period of time once no input source is detected.

    Sleep Timer
    Turn off automatically after a set period of time.

    Power Saving
    Lower power consumption if no input source is detected after five (5) minutes.

    harmon/kardon Audio Mode
    • Movie: Default audio mode.
    • Music: Tuned for music playback.
    • User: Allows the user to customize the audio equalizer.
      NOTE: In Custom mode, 100Hz, 500Hz, 1500Hz, 5000Hz, and 10000Hz can be selected.

    Audio Volume
    Adjust the volume from 0 to 50.

    Mute
    Mute or unmute the volume.

    Audio Out
    Switch between audio sources.

    • Internal: Play sound from the projector.
    • Headphone: Connect the projector with your headphone via 3.5 mm jack.
    • HDMI ARC: Connect a speaker or amplifier to the HDMI 2 ARC port of the projector.
    • Coaxial: Connect an external speaker via a coaxial cable.

    Digital Output Format
    Switch to a different audio file format.

    NOTE:
    • Only available for HDMI ARC.
    • If you use Bluetooth Out function, the projector will automatically connect to the output audio device.
    • If you want you play music from an output device to the internal projector speaker, please forget your Bluetooth speaker first.
    High Altitude Mode It is recommended that you use High Altitude Mode when your environment is between 1,500-3,000 m above sea level, and a temperature between 5°C-25°C.
    X10 High Altitude.png
    NOTE: If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.
    Reset Settings Reset the Settings to default.
    NOTE: Language, High Altitude Mode, Projector Position, Network Settings, All installed Apps in the Apps Center, Add App, Bluetooth, 4 Corner Adjustment, Warping, and Light Source Hours will remain unchanged.
    Reset to Factory Default Factory reset.
    NOTE: Light Source Hours will remain unchanged.

    Screen Mirroring

    Mirror your personal device’s screen through the projector.

    Wireless Screen Mirroring Update.png

    Add App

    Select your favorite Apps and add them to the Home Screen.

    X1000 Add App.png

    Technical Specifications

    Model No. P/N
    VS18991 X2000L-4K
    Item Category Specifications
    Projector Type 0.47" 4K-UHD
    Display Size 65"~150"
    Throw Distance 0.082 m~0.520 m (100” @ 0.234 m)
    Lens F=3.2, f=2.335 mm
    Optical Zoom Fixed
    Lamp Type Laser
    Display Color 1.07 Billion Colors
    Input Signal HDMI fh: 15K~135kHz, fv:23~120Hz
    Resolution Native 3840 x 2160
    Support VGA (640 x 480) to 4K (3840 x 2160)
    Local Storage Total 32 GB
    Available 26 GB
    Input HDMI 2 (HDMI 2.0, HDCP 1.4/2.2)
    AV IN 1
    USB Type A 2 (USB 2.0 Reader)
    RJ45 Input 1
    Wi-Fi Input 1 (5G)
    Output Audio Out (3.5 mm) 1
    Speaker 10W tweeter x 2 + 15W woofer x 2
    USB Type A (Power) 2 (USB 2.0, 5V/1.5A)
    Power Adapter Input Voltage DC IN 100-240V, 50/60 Hz (auto switch)
    Operating Conditions Temperature 0°C to 40°C (32°F to 95°F)
    Humidity 0% to 90% (non-condensing)
    Dimensions Physical
    (W x H x D)     		451 x 100 x 332 mm
    (17.76” x 3.94” x 13.07”)
    Weight Physical 6.8 kg (14.98 lbs)
    Power Consumption On 250W (Typical)
    Off < 0.5W (Standby)


    Timing Chart

    HDMI Video Timing

    Timing Resolution (dots) Refresh Rate (Hz)
    SDTV (480i) 720 x 480 60
    SDTV (480p) 720 x 480 60
    SDTV (576i) 720 x 576 50
    SDTV (576p) 720 x 576 50
    HDTV (720p) 1280 x 720 50/60
    HDTV (1080p) 1920 x 1080 24/25/30/50/60
    HDTV (1080i) 1920 x 1080 50/60
    UHDTV (4K) 3840 x 2160 24/25/30/50/60
    VGA 640 x 480 59/67/72/75/85
    720 x 400 720 x 400 70
    SVGA 800 x 600 56/60/72/75/85/120
    832 x 624 832 x 624 75
    XGA 1024 x 768 60/70/75/85
    1024 x 576 1024 x 576 60
    XGA+ 1152 x 864 75
    1152 x 870 1152 x 870 75
    WXGA 1280 x 768 60/75/85
    WXGA 1280 x 800 60/75/85
    SVGA 1280 x 1024 60/75/85
    1280 x 720 1280 x 720 120
    1280 x 960 1280 x 960 60/85
    HD 1360 x 768 60
    WXGA+ 1440 x 900 60/75/85
    1400 x 1050 1400 x 1050 60
    1600 x 1200 1600 x 1200 60
    WSXGA+ 1680 x 1050 60
    WUXGA 1920 x 1200 60

    HDMI PC Timing

    Resolution Refresh Rate (Hz) Horizontal Frequency (KHz) Dot Clock Frequency (MHz)
    640 x 480 59.940 31.469 25.175
    72.809 37.861 31.500
    75 37.500 31.500
    85.008 43.269 36
    119.518 61.910 52.500
    720 x 400 70.087 31.469 28.3221
    800 x 600 56.250 35.156 36
    60.317 37.879 40
    72.188 48.077 50
    75 46.875 49.500
    85.061 53.674 56.250
    119.854 77.425 83
    1024 x 768 60.004 48.363 65
    70.069 56.476 75
    75.029 60.023 78.750
    84.997 68.667 94.500
    119.804 98.958 137.750
    1152 x 864 75 67.500 108
    1280 x 768 60 47.396 68.25
    59.870 47.776 79.5
    74.893 60.289 102.25
    84.837 68.633 117.50
    1280 x 800 59.810 49.702 83.500
    74.934 62.795 106.500
    84.880 71.554 122.500
    1280 x 1024 60.020 60 108
    75.025 79.976 135
    85.024 91.146 157.500
    1360 x 768 60.015 47.712 85.500
    1366 x 768 60.015 47.712 85.500
    1400 x 1050 59.978 65.317 121.750
    1440 x 900 60 55.469 88.75
    59.887 55.935 106.500
    74.984 70.635 136.75
    84.842 80.430 157
    1600 x 1200 60 75 162
    1680 x 1050 59.883 64.674 119
    59.954 65.290 146.250
    1920 x 1200 59.950 74.038 154
    3840 x 2160 30 67.5 297
    60 135 594

    IR Control Table

    Function Address Code Inverse
    Byte 1 Byte 2 Byte 3 Byte 4
    Up 83 F4 0B F4
    Down 83 F4 0C F3
    Left 83 F4 0E F1
    Right 83 F4 0F F0
    Mute 83 F4 14 EB
    Ok 83 F4 15 EA
    Home 83 F4 16 E9
    Play/Pause 83 F4 1A E5
    Exit 83 F4 28 D7
    Menu/Setting 83 F4 30 CF
    Source 83 F4 40 BF
    Power On/Off 83 F4 17 E8
    Focus 83 F4 92 6D
    Bluetooth 83 F4 A2 5D
    Previous 83 F4 A7 58
    Next 83 F4 A8 57
    Volume + 83 F4 82 7D
    Volume - 83 F4 83 7C

    3D Support Timing

    HDMI 3D (BlueRay 3D with info frame)
    Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz) Support
    Frame Packing
    1080p 1920 x 1080 16:9 23.98/24 Yes
    720p 1280 x 720 16:9 50/59.94/60 Yes
    Side by Side
    1080i 1920 x 1080 16:9 50/59.94/60 Yes
    Top and Bottom
    1080p 1920 x 1080 16:9 23.98/24 Yes
    720p 1280 x 720 16:9 50/59.94/60 Yes
    3D (HDMI) Manual Setting
    Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz) Support
    SVGA 800 x 600 4:3 60*/120* Yes
    XGA 1024 x 768 4:3 60*/120* Yes
    HD 1280 x 720 16:9 60*/120* Yes
    WXGA 1280 x 800 16:9 60*/120* Yes
    HDTV (1080p) 1920 x 1080 16:9 60 Yes
    Note:
    * 60Hz signals are supported for side by side, top and bottom, and frame sequential.
    ** 120Hz signals are supported for frame sequential only.

    Compliance Information

    This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

    FCC Compliant Statement

    This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

    These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

    • Reorient or relocate the receiving antenna.
    • Increase the separation between the equipment and receiver.
    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
    • Consult the dealer or an experienced radio/TV technician for help.
    Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

    FCC Radiation Exposure Statement

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

    This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

    The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

    Industry Canada Statement

    CAN ICES-003(B)/NMB-003(B)

    IC Warning Statement

    This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

    Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’en compromettre le fonctionnement.

    Country Code Statement

    For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.

    Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible.

    IC Radiation Exposure Statement

    StatementThis equipment complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The device for the band 5150-5825 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.

    Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlê. Cet équipement doit être installé et utilize avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. les dispositifs fonctionnant dans la bande 5150-5825 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage.

    Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

    La bande 5150-5250 MHz est réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage pré judiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.

    CE Conformity for European Countries


    The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Ecodesign Directive 2009/125/EC and Radio Equipment Directive 2014/53/EU. (Frequency Range:2400~2483.5 MHz, 5150~5250 MHz) (Max Output Power: under 20 dBm)

    The following information is only for EU-member states:

    WEEE Logo.gif

    The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

    Declaration of RoHS2 Compliance

    This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

    Substance Proposed Maximum Concentration Actual Concentration
    Lead (Pb) 0.1% < 0.1%
    Mercury (Hg) 0.1% < 0.1%
    Cadmium (Cd) 0.01% < 0.01%
    Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
    Polybrominated biphenyls (PBB) 0.1% < 0.1%
    Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
    Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
    Butyl benzyl phthalate (BBP) 0.1% < 0.1%
    Dibutyl phthalate (DBP) 0.1% < 0.1%
    Diisobutyl phthalate (DIBP) 0.1% < 0.1%


    Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

    • Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
    • Short length (500 mm): maximum 3.5 mg per lamp.
    • Medium length (>500 mm and 1,500m): maximum 5 mg per lamp.
    • Long length (> 1,500 mm): maximum 13 mg per lamp.
    • Lead in glass of cathode ray tubes.
    • Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
    • Lead as an alloying element in aluminum containing up to 0.4% lead by weight.
    • Copper alloy containing up to 4% lead by weight.
    • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
    • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

    Indian Restriction of Hazardous Substances

    Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

    Product Disposal at End of Product Life

    ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

    USA & Canada
    https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program

    Europe
    https://www.viewsoniceurope.com/eu/support/call-desk/

    Taiwan
    https://recycle.epa.gov.tw/

    Copyright Information

    Copyright© ViewSonic® Corporation, 2022. All rights reserved.

    Macintosh and Power Macintosh are registered trademarks of Apple Inc.

    Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

    ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

    VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

    ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

    As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

    Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

    In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

    No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

    X2000B-4K_UG_ENG_1c_20240220

    Customer Service Contact Information

    For technical support or product service, see the table below or contact your reseller.

    Note: You will need the product’s serial number, which is located on the rear of the monitor by the I/O ports.

    Asia Pacific & Africa

    Country / Region Website
    Australia https://viewsonic.com/au/
    Bangladesh https://www.viewsonic.com/bd/
    中囯(China) https://www.viewsonic.com.cn
    香港 (繁體中文) https://www.viewsonic.com/hk/
    Hong Kong (English) https://www.viewsonic.com/hk-en/
    India https://www.viewsonic.com/in/
    Indonesia https://www.viewsonic.com/id/
    Israel https://www.viewsonic.com/il/
    日本 (Japan) https://www.viewsonic.com/jp/
    Korea https://www.viewsonic.com/kr/
    Malaysia https://www.viewsonic.com/my/
    Middle East https://www.viewsonic.com/me/
    Myanmar https://www.viewsonic.com/mm/
    Nepal https://www.viewsonic.com/np/
    New Zealand https://www.viewsonic.com/nz/
    Pakistan https://www.viewsonic.com/pk/
    Philippines https://www.viewsonic.com/ph/
    Singapore https://www.viewsonic.com/sg/
    臺灣 (Taiwan) https://www.viewsonic.com/tw/
    ประเทศไทย (Thailand) https://www.viewsonic.com/th/
    Việt Nam https://www.viewsonic.com/vn/
    South Africa & Mauritius https://www.viewsonic.com/za/

    Americas

    Country / Region Website
    United States https://www.viewsonic.com/us/
    Canada https://www.viewsonic.com/us/
    Latin America https://www.viewsonic.com/la/

    Europe

    Country / Region Website
    Europe https://www.viewsonic.com/eu/
    France https://www.viewsonic.com/fr/
    Deutschland https://www.viewsonic.com/de/
    Қазақстан https://www.viewsonic.com/kz/
    Россия https://www.viewsonic.com/ru/
    España https://www.viewsonic.com/es/
    Türkiye https://www.viewsonic.com/tr/
    Україна https://www.viewsonic.com/ua/
    United Kingdom https://www.viewsonic.com/uk/


    Limited Warranty

    ViewSonic® Projector

    What the warranty covers:

    ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

    Limited Three (3) year General Warranty:

    Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase.

    Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information.

    Limited One (1) year Heavy Usage Warranty:

    Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

    Who the warranty protects:

    This warranty is valid only for the first consumer purchaser.

    What the warranty does not cover:

    • Any product on which the serial number has been defaced, modified, or removed.
    • Damage, deterioration, or malfunction resulting from:
      • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
      • Operation outside of product specifications.
      • Operation of the product for other than the normal intended use or not under normal conditions.
      • Repair or attempted repair by anyone not authorized by ViewSonic®.
      • Any damage of the product due to shipment.
      • Removal or installation of the product.
      • Causes external to the product, such as electric power fluctuations or failure.
      • Use of supplies or parts not meeting ViewSonic’s specifications.
      • Normal wear and tear.
      • Any other cause which does not relate to a product defect.
    • Removal, installation, and set-up service charges.

    How to get service:

    1. For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Support” page). You will need to provide your product’s serial number.
    2. To obtain warranted service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
    3. Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®.
    4. For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®.

    Limitation of implied warranties:

    There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

    Exclusion of damages:

    ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

    1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
    2. Any other damages, whether incidental, consequential or otherwise.
    3. Any claim against the customer by any other party.

    Effect of state law:

    This warranty gives you specific legal rights, and you may also have other rights which vary from local authority. Some local governments do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

    Sales outside the U.S.A. and Canada:

    For warranty information and service on ViewSonic® products sold outside of the U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer. The warranty period for this product in mainland China (Hong Kong, Macao, and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found at: ViewSonic EU under “Support/Warranty Information”.

    Mexico Limited Warranty

    ViewSonic® Projector

    What the warranty covers:

    ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

    How long the warranty is effective:

    3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase.

    Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only.

    All accessory lamps purchased separately are warranted for 90 days.

    Who the warranty protects:

    This warranty is valid only for the first consumer purchaser.

    What the warranty excludes and does not cover:

    • Any product on which the serial number has been defaced, modified or removed.
    • Damage, deterioration, or malfunction resulting from:
      • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
      • Any damage of the product due to shipment.
      • Causes external to the product, such as electrical power fluctuations or failure.
      • Use of supplies or parts not meeting ViewSonic®’s specifications.
      • Normal wear and tear.
      • Any other cause which does not relate to a product defect.
    • Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.
    • Removal, installation, insurance, and set-up service charges.

    How to get service:

    For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the attached “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

    • For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.
    • To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
    • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center.
    • Round trip transportation costs for in-warranty products will be paid by ViewSonic®.

    Limitation of implied warranties:

    There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

    Exclusion of damages:

    ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

    • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
    • Any other damages, whether incidental, consequential or otherwise.
    • Any claim against the customer by any other party.
    • Repair or attempted repair by anyone not authorized by ViewSonic®.
    Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

    Name, address, of manufacturer and importers:
    México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
    Col. San Fernando Huixquilucan, Estado de México
    Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

    NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

    Hermosillo:
    Distribuciones y Servicios Computacionales SA de CV.
    Calle Juarez 284 local 2
    Col. Bugambilias C.P: 83140
    Tel: 01-66-22-14-9005
    E-Mail: disc2@hmo.megared.net.mx

    Villahermosa:
    Compumantenimietnos Garantizados, S.A. de C.V.
    AV. GREGORIO MENDEZ #1504
    COL, FLORIDA C.P. 86040
    Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09
    E-Mail: compumantenimientos@prodigy.net.mx

    Puebla, Pue. (Matriz):
    RENTA Y DATOS, S.A. DE C.V. Domicilio:
    29 SUR 721 COL. LA PAZ
    72160 PUEBLA, PUE.
    Tel: 01(52).222.891.55.77 CON 10 LINEAS
    E-Mail: datos@puebla.megared.net.mx

    Veracruz, Ver.:
    CONEXION Y DESARROLLO, S.A DE C.V. Av.
    Americas # 419
    ENTRE PINZÓN Y ALVARADO
    Fracc. Reforma C.P. 91919
    Tel: 01-22-91-00-31-67
    E-Mail: gacosta@qplus.com.mx

    Chihuahua:
    Soluciones Globales en Computación
    C. Magisterio # 3321 Col. Magisterial
    Chihuahua, Chih.
    Tel: 4136954
    E-Mail: Cefeo@soluglobales.com

    Cuernavaca:
    Compusupport de Cuernavaca SA de CV
    Francisco Leyva # 178 Col. Miguel Hidalgo
    C.P. 62040, Cuernavaca Morelos
    Tel: 01 777 3180579 / 01 777 3124014
    E-Mail: aquevedo@compusupportcva.com

    Distrito Federal:
    QPLUS, S.A. de C.V.
    Av. Coyoacán 931
    Col. Del Valle 03100, México, D.F.
    Tel: 01(52)55-50-00-27-35
    E-Mail : gacosta@qplus.com.mx

    Guadalajara, Jal.:
    SERVICRECE, S.A. de C.V.
    Av. Niños Héroes # 2281
    Col. Arcos Sur, Sector Juárez
    44170, Guadalajara, Jalisco
    Tel: 01(52)33-36-15-15-43
    E-Mail: mmiranda@servicrece.com

    Guerrero Acapulco:
    GS Computación (Grupo Sesicomp)
    Progreso #6-A, Colo Centro
    39300 Acapulco, Guerrero
    Tel: 744-48-32627

    Monterrey:
    Global Product Services
    Mar Caribe # 1987, Esquina con Golfo Pérsico
    Fracc. Bernardo Reyes, CP 64280
    Monterrey N.L. México
    Tel: 8129-5103
    E-Mail: aydeem@gps1.com.mx

    MERIDA:
    ELECTROSER
    Av Reforma No. 403Gx39 y 41
    Mérida, Yucatán, México CP97000
    Tel: (52) 999-925-1916
    E-Mail: rrrb@sureste.com

    Oaxaca, Oax.:
    CENTRO DE DISTRIBUCION Y
    SERVICIO, S.A. de C.V.
    Murguía # 708 P.A., Col. Centro, 68000, Oaxaca
    Tel: 01(52)95-15-15-22-22
    Fax: 01(52)95-15-13-67-00
    E-Mail. gpotai2001@hotmail.com

    Tijuana:
    STD
    Av Ferrocarril Sonora #3780 L-C
    Col 20 de Noviembr
    Tijuana, Mexico

    FOR USA SUPPORT:
    ViewSonic® Corporation
    381 Brea Canyon Road, Walnut, CA. 91789 USA
    Tel: 800-688-6688
    http://www.viewsonic.com

    Using the Projector Safely

    Please read the following Safety Precautions before you start using the projector.

    • Keep this user guide in a safe place for later reference.
    • Read all warnings and follow all instructions.
    • Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.
    • Place the projector in a well-ventilated area. Do not place anything on the projector that prevents heat dissipation.
    • Do not place the projector on an uneven or unstable surface. The projector may fall over, causing personal injury or projector malfunction.
    • Do not use if the projector is tilted at an angle of more than 10° degrees left or right, nor at an angle of more than 15° degrees forwards or backwards.
    • Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.
    • Always open the lens shutter or remove the lens cap when the projector lamp is on.
    • Do not block the projection lens with any objects when the projector is under operation as this could cause objects to become heated and deformed or even cause a fire.
    • The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.
    • Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the rated life could cause them to break on rare occasions.
    • Never replace the lamp assembly or any electronic component unless the projector is unplugged.
    • Do not attempt to disassemble the projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.
    • When moving the projector, be careful not to drop or bump the projector on anything.
    • Do not place any heavy objects on the projector or connection cables.
    • Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing personal injury or projector malfunction.
    • Avoid exposing the projector to direct sunlight or other sources of sustained heat. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the projector to dangerous levels.
    • Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply and call your local service center to have the projector serviced.
    • When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal operation and not a defect.
    • Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide and third blade are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet.
    • When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.
    • Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the projector.
    • In some countries, the voltage is NOT stable. This projector is designed to operate safely within a voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector, or uninterruptable power supply (UPS).
    • If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector.
    • Use only attachments/accessories specified by the manufacturer.
    • Disconnect the power cord from the AC outlet if the projector is not being used for a long period of time.
    • Refer all servicing to qualified service personnel.
    RG2 Warning.png
    CAUTION: Possibly hazardous optical radiation is emitted from this product. As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015

    Before Mounting the Projector to the Ceiling

    Please read the following Safety Precautions before you start using the projector:

    • If you intend to mount the projector on the ceiling, it is strongly recommended that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.
    • If you use an inappropriate projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.
    • You can purchase a projector ceiling mount kit from the place you purchased your projector.

    Glossary of Terms

    Note: Some terms may not be applicable to your device.

    Aspect Ratio

    Refers to the ratio of the image width to the image height.

    Brightest Mode

    Maximizes the brightness of the projected image. This mode is ideal for environments where extra-high brightness is required, such as using the projector in well lit rooms.
    Brightness
    Adjusts background black levels of the screen image.

    CEC (Consumer Electronics Control)

    Synchronizes power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the projector’s power will be turned on automatically.
    Color
    Adjusts the color saturation.
    Color Temperature
    Allows users to select specific color temperature settings to further customize their viewing experience.
    Contrast
    Adjusts the difference between the image background (black level) and the foreground (white level).

    Focus

    Manually improve the clarity of the projected image.

    Gamma

    Allows the user to manually select the greyscale curve of the projector.

    HDMI

    Audio/Video interface used to transmit video and audio via a single cable.
    HDMI Range
    Allows the user to select HDMI greyscale range between 0~255 (full range) , 16~240 (limited range) or Auto by the signal type detected.
    HDR (High-Dynamic Range)
    Keeps the brightness level and enhances details on the dark level.
    High Altitude Mode
    Optional mode for users who live in an environment between 1,500 m and 3,000 m above sea level, and the temperature is between 5° C and 25° C. Activating it will improve projector cooling and performance.

    Information

    Displays the timing mode (video signal input), the projector model number, the serial number, and the ViewSonic® website URL.
    Input Select
    Toggles between the various input options that are available for the projector.

    Keystone

    The distortion of an image caused by projecting it onto an angled surface.

    Light Source Level

    Use Normal or Eco mode to adjust the brightness level and power consumption.

    Movie Mode

    A Picture Mode appropriate for playing colorful movies, video clips from digital cameras, or DVs through the PC input. Best for a low light environment.

    Sharpness

    Adjusts the picture quality.

    Troubleshooting Common Problems

    Why doesn't the projector turn on?

    Solution 1 ► Ensure the power cord is properly attached to the projector and to the power outlet.

    Solution 2 ► If the cooling process has not completed, please wait until it has finished then try to turn on the projector again.

    Solution 3 ► If the above does not work, try another power outlet or another electrical device with the same power outlet.

    Solution 4 ► Check that the battery has remaining power, or needs external power.

    Why is there no picture?

    Solution 1 ► Ensure the video source cable is connected properly, and that the video source is turned on.

    Solution 2 ► If the input source is not selected automatically, select the correct source with the Source key on either the projector or the remote control.

    What should I do if the image is blurry?

    Solution 1 ► Adjusting the Focus Ring will help correctly focus the projection lens.

    Solution 2 ► Ensure the projector and screen are aligned properly. If necessary, adjust the height of the projector as well as the projection angle and direction.

    Why is the remote control not working?

    Solution 1 ► Ensure there are no obstacles between the remote control and projector; and that they are within 8 m (26 ft) of each other.

    Solution 2 ► The batteries may be out of power, please check and replace if necessary.

    What should I do if the projector freezes or doesn't respond?

    Solution ► Using a paper clip, carefully insert it into the Reset button at the rear of the projector to reset the device.

    Maintaining the Projector

    General Precautions

    • Make sure the projector is turned off and the power cable is unplugged from the power outlet.
    • Never remove any parts from the projector. Contact ViewSonic® or a reseller when any part of the projector needs replacing.
    • Never spray or pour any liquid directly onto the case.
    • Handle the projector with care, as a darker-colored projector, if scuffed, may show marks more clearly than a lighter-colored projector.

    Cleaning the Lens

    • Use a canister of compressed air to remove dust.
    • If the lens is still not clean, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the surface.
    Important: Never rub the lens with abrasive materials.

    Cleaning the Case

    • Use a soft, lint-free, dry cloth to remove dirt or dust.
    • If the case is still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.
    Important: Never use wax, alcohol, benzene, thinner, or other chemical detergents.

    Storing the Projector

    If you intend to store the projector for an extended period of time:

    • Ensure the temperature and humidity of the storage area are within the recommend range.
    • Retract the adjuster foot completely.
    • Remove the batteries from the remote control.
    • Pack the projector in its original packaging or equivalent.

    Disclaimer

    • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector.
    • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
    Retrieved from "https://manuals.viewsonic.com/index.php?title=X2000B-4K_Full_Guide&oldid=52309"
