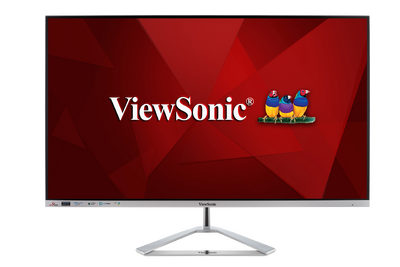

VX3276-2K-mhd Specifications

    From ViewSonic User Guide Database


    Technical Specifications

    Model No. P/N
    VS17550 VX3276-2K-MHD-2
    Item Category Specifications
    LCD Type IPS, Color a-Si TFT Active Matrix 2560 x 1440 LCD;

    0.2727 (H)mm x 0.2727 (V)mm pixel pitch

    Display Size 80 cm, 31.5" real diagonal
    Color Filter RGB vertical stripe
    Glass Surface Anti-Glare (Haze 25%), Hard coating (3H)
    Input Signal Video Sync TMDS digital (100 Ω)
    HDMI 1 & 2 (v. 1.4): fh:15-113 kHz, fv:24-75 Hz
    DisplayPort/MiniDP: fh:24-113 kHz, fv:48-75 Hz
    Compatibility PC up to 2560 x 1440
    Macintosh up to 2560 x 1440
    Recommended 2560 x 1440 @ 60Hz
    Resolution[1] Supported
    • 2560 x 1440 @ 60, 75Hz
    • 2560 x 1080 @ 24, 25, 30, 50, 60Hz
    • 2048 x 1152 @ 60Hz
    • 1920 x 1440 @ 51, 60Hz
    • 1920 x 1200 @ 60, 75Hz
    • 1920 x 1080 @ 24, 25, 30, 50, 60, 75Hz
    • 1680 x 1050 @ 60Hz
    • 1600 x 1200 @ 60Hz
    • 1600 x 900 @ 60Hz
    • 1440 x 900 @ 60, 75Hz
    • 1440 x 576 @ 50Hz
    • 1400 x 1050 @ 60, 75Hz
    • 1366 x 768 @ 60Hz
    • 1360 x 768 @ 60Hz
    • 1280 x 1024 @ 50, 60, 75Hz
    • 1280 x 960 @ 50, 60, 75Hz
    • 1280 x 800 @ 60, 75Hz
    • 1280 x 768 @ 50, 60, 75Hz
    • 1280 x 720 @ 60Hz
    • 1152 x 900 @ 66Hz
    • 1152 x 870 @ 75Hz
    • 1152 x 864 @ 60, 75Hz
    • 1024 x 768 @ 50, 60, 70, 72, 75Hz
    • 1024 x 600 @ 60Hz
    • 848 x 480 @ 60Hz
    • 832 x 624 @ 75Hz
    • 800 x 600 @ 56, 60, 72, 75Hz
    • 720 x 576 @ 50Hz
    • 720 x 480 @ 60Hz
    • 720 x 400 @ 70Hz
    • 640 x 480 @ 50, 60, 66, 72, 75Hz
    • 640 x 400 @ 60, 70Hz
    • 640 x 350 @ 70Hz
    Power Adapter[2] Input Voltage AC 100-240V, 50/60Hz (auto switch)
    Display Area Full Scan (H x V) 698.11 x 392.68 mm

    (27.48” x 15.46”)

    Operating Conditons Temperature 0° C to 40° C (32° F to 104° F)
    Humidity 20% to 90% (non-condensing)
    Altitude 16,404 feet (5 km)
    Storage Conditions Temperature -20° C to 60° C (-4° F to 140° F)
    Humidity 5% to 90% (non-condensing)
    Altitude 40, 000 feet (12.1 km)
    Dimensions Physical

    (W x H x D)

    713 x 504 x 230 mm

    (28.1” x 19.8” x 9.1”)

    Weight Physical 6.2 kg (13.6 lbs)
    Power Saving Modes On 43W (Typical)
    Off ≤ 0.3W
    1. Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
    2. Please use the power adapter from ViewSonic® or an authorized source only.
