    Using the Control Panel Keys

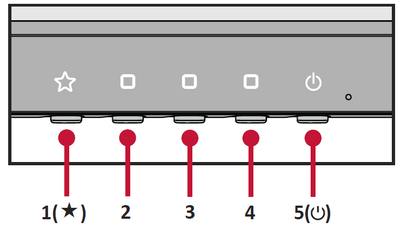

    Use the control panel keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

    VX2407 Control Panel.png

    Quick Menu

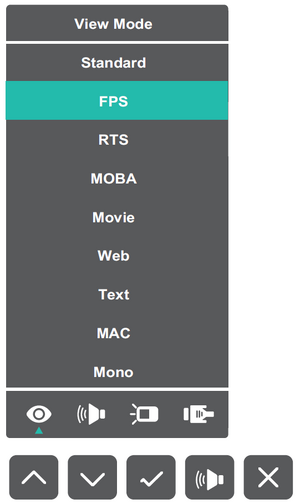

    Press the 1 key to activate the Quick Menu.

    VX2407 Quick Menu.png
    NOTE: Follow the key guide that appears on the screen to select the option or make adjustments.
    Icon Menu Description
    ViewMode ViewMode Select one of the preset color settings.
    Volume Volume Adjust the level, or mute the volume.
    Brightness and Contrast Contrast/Brightness Adjust the contrast or brightness level.
    Input Select Input Select Select the input source.
    Exit Exit Exit the Quick Menu.
