VX2428 Initial Setup

    From ViewSonic User Guide Database

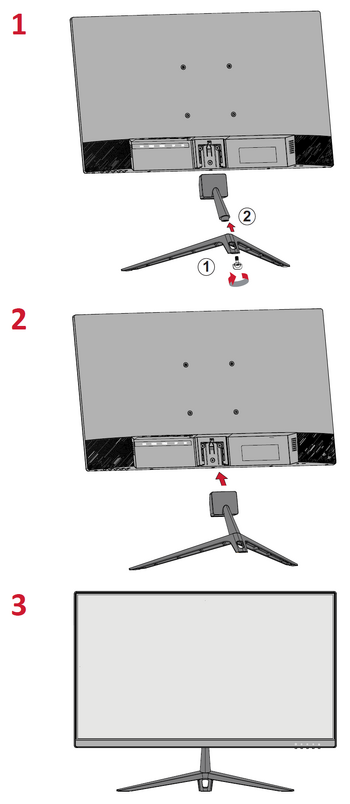

    Installing the Stand

    VX2428 Stand Installation.png


    Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

    Removing the Stand and Mounting the Display

    Refer to the table below for the standard dimensions for mounting kits.

    For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
    VX2428 VESA.png
    Maximum Loading Hole Pattern (W x H) Interface Pad (W x H x D) Pad Hole Screw Specification Quantity
    14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm 4 screws
    1. Turn off the device and disconnect all cables.
    2. Place the device on a flat, stable surface with the screen facing down.

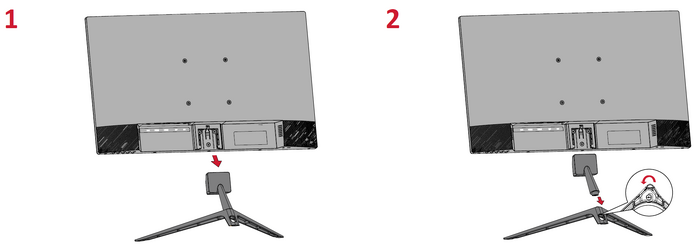

    3. Remove the monitor stand.
    4. VX2428 Stand Remove.png
    5. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).
    6. Follow the instructions that come with the mounting kit to mount the monitor onto the wall.

    Using the Security Slot

    To help prevent the device from being stolen, use a security slot locking device to secure the device to a fixed object.

    Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

    Below is an example of setting up a security slot locking device on a table.

    Using the Security Slot
