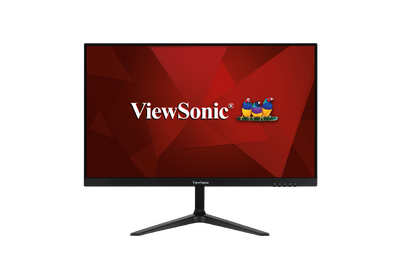

VX2418-P-mhd Specifications

    From ViewSonic User Guide Database


    Technical Specifications

    Model No. P/N
    VS18572 VX2418-P-MHD
    Item Category Specifications
    LCD Type VA, Color a-Si TFT Active Matrix 1920 x 1080 LCD;

    0.2745 (H)mm x 0.2745 (V)mm pixel pitch

    Display Size 61 cm, 23.8"
    Color Filter RGB vertical stripe
    Glass Surface Anti-Glare (Haze 25%), Hard coating (3H)
    Input Signal Video Sync TMDS digital (100 Ω)
    HDMI 1: fh:30-180 kHz, fv:50-144 Hz
    HDMI 2: fh:30-180 kHz, fv:50-144 Hz
    DisplayPort: fh:30-180 Khz, fv:50-165 Hz
    Compatibility PC up to 1920 x 1080
    Macintosh up to 1920 x 1080
    Recommended 1920 x 1080 @ 144Hz
    Resolution[1] Supported
    • 1920 x 1080 @ 50, 60, 120, 144, 165[2]Hz
    • 1680 x 1050 @ 65Hz
    • 1600 x 1200 @ 60Hz
    • 1600 x 900 @ 60Hz
    • 1440 x 900 @ 60, 75Hz
    • 1400 x 1050 @ 60, 75Hz
    • 1366 x 768 @ 60Hz
    • 1360 x 768 @ 60Hz
    • 1280 x 1024 @ 50, 60, 75Hz
    • 1280 x 960 @ 50, 60, 75Hz
    • 1280 x 800 @ 60, 75Hz
    • 1280 x 768 @ 50, 60, 75Hz
    • 1280 x 720 @ 50, 60Hz
    • 1152 x 900 @ 66Hz
    • 1152 x 870 @ 75Hz
    • 1152 x 864 @ 60, 75Hz
    • 1024 x 768 @ 50, 60, 70, 72, 75Hz
    • 848 x 480 @ 60Hz
    • 832 x 624 @ 75Hz
    • 800 x 600 @ 56, 60, 66, 72, 75Hz
    • 720 x 576 @ 50Hz
    • 720 x 480 @ 60Hz
    • 720 x 400 @ 70Hz
    • 640 x 480 @ 50, 60, 66, 72, 75Hz
    • 640 x 400 @ 60, 70Hz
    • 640 x 350 @ 70Hz
    Power Adapter[3] Input Voltage AC 100-240V, 50/60Hz (auto switch)
    Display Area Full Scan (H x V) 527.04 x 296.46 mm

    (20.7” x 11.67”)

    Operating Conditons Temperature 0° C to 40° C (32° F to 104° F)
    Humidity 20% to 90% (non-condensing)
    Altitude 16,404 feet (5 km)
    Storage Conditions Temperature -20° C to 60° C (-4° F to 140° F)
    Humidity 10% to 90% (non-condensing)
    Altitude 40, 000 feet (12.1 km)
    Dimensions Physical

    (W x H x D)

    540 x 428 x 225 mm

    (21.2” x 16.8” x 8.9”)

    Weight Physical 3.8 kg (8.3 lbs)
    Power Saving Modes On 30W (Typical)
    Off < 0.5W
    1. Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
    2. DisplayPort only
    3. Please use the power adapter from ViewSonic® or an authorized source only.
