VP16-OLED Adjusting the Viewing Angle

Screen Orientation Adjustment (Monitor Pivot)

1. Extend the monitor’s stand to the longest position.

2. Rotate the monitor 90° clockwise or counter clockwise from landscape to portrait orientation.

NOTE:

• To rotate the screen image, manually change the system’s display orientation settings.
• When adjusting, make sure to hold both sides of your monitor firmly with both hands.

Tilt Angle Adjustment

The monitor has a double-hinged stand that allows for several viewing angles (20˚ to 60˚).

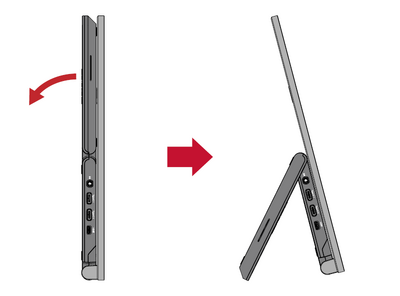

• Tilt Option 1

• Tilt Option 2

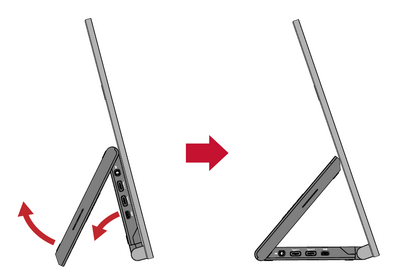

• Tilt Option 3

NOTE: When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand.
