VG3419C Adjusting the Viewing Angle

Height Adjustment

Lower or raise the monitor to the desired height (0 to 150 mm).

NOTE: When adjusting, press down firmly along the adjustment track.

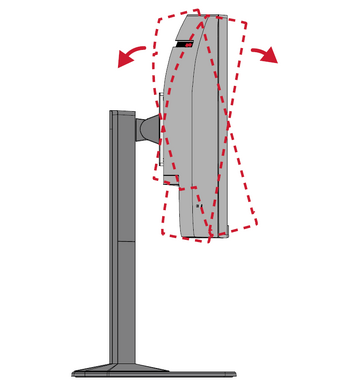

Tilt Angle Adjustment

Tilt the monitor forwards or backwards to the desired viewing angle (-3.5° to 23°).

NOTE: When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand.
