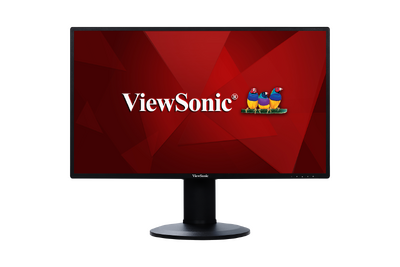

VG3219-2K Specifications

Technical Specifications

Model No.	P/N
VS18503	VG3219-2K

Item	Category	Specifications
LCD	Type	IPS, a-Si TFT Active Matrix 2560 x 1440 LCD; 0.272 (H)mm x 0.272 (V)mm pixel pitch
	Display Size	80 cm, 31.5" real diagonal
	Color Filter	RGB vertical stripe
	Glass Surface	Anti-Glare (Haze 25%), Hard coating (3H)
Input Signal	Video Sync	TMDS digital (100 Ω) HDMI (v. 1.4): fh:30-90 kHz, fv:48-75 Hz DisplayPort (v. 1.2): fh:30-90 kHz, fv:48-75 Hz
Compatibility	PC	up to 2560 x 1440
	Macintosh	up to 2560 x 1440
	Recommended	2560 x 1440 @ 60Hz
Resolution	Supported	2560 x 1440 @ 60Hz 2048 x 1152 @ 60Hz 1920 x 1440 @ 60Hz 1920 x 1200 @ 60Hz 1920 x 1080 @ 50, 60Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60, 75Hz 1440 x 576 @ 50Hz 1400 x 1050 @ 60Hz 1366 x 768 @ 60Hz 1360 x 768 @ 60Hz 1280 x 1024 @ 60, 75Hz 1280 x 960 @ 60, 75Hz 1280 x 800 @ 60, 75Hz 1280 x 768 @ 60, 75Hz 1280 x 720 @ 60Hz 1152 x 900 @ 66Hz 1152 x 870 @ 75Hz 1152 x 864 @ 60, 75Hz 1024 x 768 @ 50, 60, 70, 72, 75Hz 832 x 624 @ 75Hz 800 x 600 @ 56, 60, 72, 75Hz 720 x 480 @ 60Hz 720 x 400 @ 70Hz 640 x 480 @ 60, 67, 72, 75Hz 640 x 400 @ 60, 70Hz 640 x 350 @ 70Hz
Power Adapter	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	698.112 x 392.688 mm (27.48” x 15.46”)
Operating Conditons	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	20% to 90% (non-condensing)
	Altitude	16,404 feet (5 km)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	5% to 90% (non-condensing)
	Altitude	40, 000 feet (12.1 km)
Dimensions	Physical (W x H x D)	613.38 x 402.45~533.75 x 202.2 mm (24.15” x 15.84~21.01” x 7.97”)
Wall Mount	Dimensions	100 x 100 mm
Weight	Physical	6.9 kg (15.21 lbs)
Power Saving Modes	On	26.54W (Typical)
	Off	≤ 0.3W
