VG3209-4K Adjusting the Viewing Angle

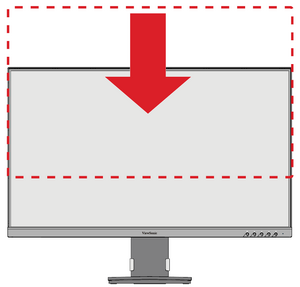

Height Adjustment

Lower or raise the monitor to the desired height (0 to 90 mm).

NOTE: When adjusting, press down firmly along the adjustment track.

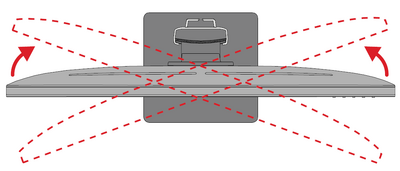

Swivel Angle Adjustment

Swivel the monitor to the left or right for the desired viewing angle (360°).

Tilt Angle Adjustment

Tilt the monitor forwards or backwards to the desired viewing angle (-4° to 20°).

NOTE: When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand.
