VG2709-2K-MHDU Adjusting the Viewing Angle

    From ViewSonic User Guide Database
    VG2709-2K-MHD Adjust Height.PNG
    VG2709-2K-MHD Adjust Swivel.PNG
    VG2709-2K-MHD Adjust Tilt.PNG
    Height Adjustment Swivel Adjustment Tilt Angle Adjustment

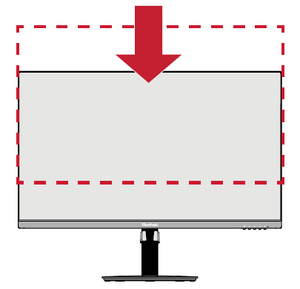

    Height Adjustment

    Lower or raise the monitor to the desired height (0 to 130 mm).

    NOTE: When adjusting, press down firmly along the adjustment track holding the monitor with both hands on the side.

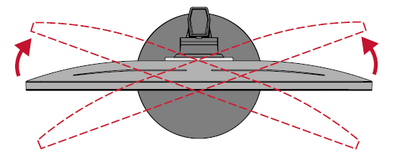

    Swivel Adjustment

    Swivel the monitor to the left or right for the desired viewing angle (360˚).

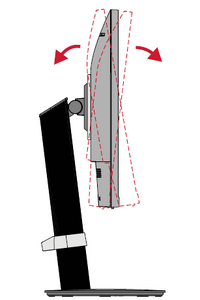

    Tilt Angle Adjustment

    Tilt the monitor forwards or backwards to the desired viewing angle. (-3.5˚ to 28˚)

    NOTE: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.

    Screen Orientation Adjustment (Monitor Pivot)

    VG2709-2K-MHD Adjust Pivot 1.PNG
    VG2709-2K-MHD Adjust Pivot 2.PNG
    VG2709-2K-MHD Adjust Pivot 3.PNG
    Screen Orientation Adjustment

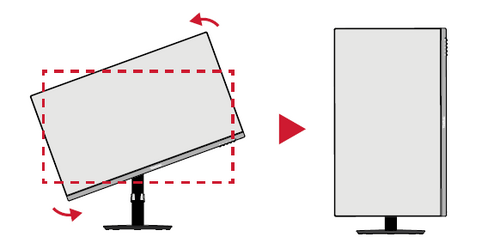

    1. Adjust the monitor height to the highest position. Then tilt the monitor backwards to the full tilt position.
    2. Rotate the monitor 90° clockwise or counter clockwise from landscape to portrait orientation.

    NOTE:
    • When adjusting, make sure to hold both sides of your monitor firmly with both hands.
    • To rotate the screen image, manually change the system’s display orientation settings.
