    Using the Control Panel Keys

    Use the control panel keys to adjust the volume, mute the speaker, mute the microphone, and navigate the On-Screen Display (OSD) Menu.

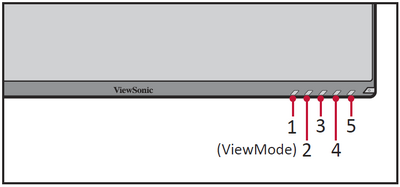

    Control Keys

    Quick Menu

    Press the 2/3/4/5 key to activate the Quick menu. Follow the key guide that appears on the screen to select options or make adjustments.

    Quick Menu


    • ViewMode

      ViewMode

    • Contrast / Brightness

      Contrast / Brightness

    • Input Select

      Input Select

    • Main Menu

      Main Menu

    Icon Name Description
    ViewMode ViewMode Select one of the preset color settings.
    Contrast/Brightness Contrast / Brightness Adjust the contrast or brightness.
    Input Select Input Select Select the input source.
    Main Menu Main Menu Enter the On-Screen Display (OSD) Menu.
    Exit Exit Exit the Quick Menu.
