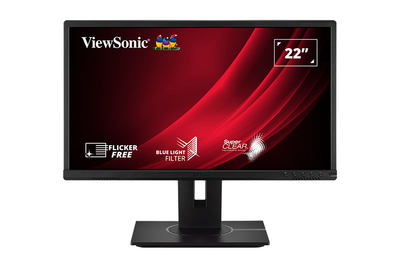

VG2240 Specifications

Technical Specifications

Model No.	P/N
VS19142	VG2240

Item	Category	Specifications
LCD	Type	VA, a-Si TFT LCD Module, 1920 x 1080 LCD 0.0831 (H) mm x 0.241 (V) mm pixel pitch
	Display Size	55 cm (21.5" viewable)
	Color Filter	RGB vertical stripe
	Glass Surface	Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal	Video Sync	Separate Sync VGA: fh:24-82 kHz, fv:50-75 Hz TMDS digital (100 Ω) HDMI(v 1.4): fh:24-110 kHz, fv:50-100 Hz PCI-E DisplayPort(v 1.2): fh:24-110 kHz, fv:50-100 Hz
Audio	Speaker	2W x 2
Compatibility	PC	up to 1920 x 1080
	Macintosh	up to 1920 x 1080
	Recommended	1920 x 1080 @ 60Hz
Resolution^[1]	Supported	1920 x 1080 @ 50, 60, 100Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60, 75Hz 1440 x 576 @ 50Hz 1400 x 1050 @ 60, 75Hz 1366 x 768 @ 60Hz 1360 x 768 @ 60Hz 1280 x 1024 @ 50, 60, 75Hz 1280 x 960 @ 50, 60, 75Hz 1280 x 800 @ 60, 75Hz 1280 x 768 @ 50, 60, 75Hz 1280 x 720 @ 50, 60, 100Hz 1152 x 900 @ 66Hz 1152 x 870 @ 75Hz 1152 x 864 @ 60, 75Hz 1024 x 768 @ 50, 60, 70, 72, 75Hz 1024 x 600 @ 60Hz 848 x 480 @ 60Hz 832 x 624 @ 75Hz 800 x 600 @ 56, 60, 72, 75Hz 720 x 576 @ 50Hz 720 x 480 @ 60Hz 720 x 400 @ 70Hz 640 x 480 @ 50, 60, 66, 72, 75Hz 640 x 400 @ 60, 70Hz 640 x 350 @ 70Hz
Power Adapter^[2]	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	478.66 x 260.28 mm (18 ²⁷/₃₂” x 10 ¹/₄”)
Operating Conditons	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	20% to 90% (non-condensing)
	Altitude	16,404 feet (4.9 km)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	5% to 90% (non-condensing)
	Altitude	40, 000 feet (12.1 km)
Dimensions	Physical (W x H x D)	501.46 x 496.96 x 205.53 mm (19 ³/₄” x 19 ⁹/₁₆” x 8 ³/₃₂”)
Wall Mount	Dimensions	100 x 100 mm
Weight	Physical	5.2 kg (11.5 lbs)
Power Saving Modes	On	17.18W (Typical) (Blue LED) 18.89W (Max^[3]) (Blue LED)
Power Saving Modes	Off	< 0.3W (Max)

↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
↑ Please use the power adapter from ViewSonic® or an authorized source only.
↑ Maximum power consumption without Audio or USB.

Product Upgradeability and Repairability

The following is a list of hardware features available for at least 5 years after the sale of the product.	Upgradable	Repairable	Replaceable
Main Processor(s) or SOC	No	No	Yes
Memory	N/A	N/A	N/A
HDD	N/A	N/A	N/A
Wireless Network Capability	N/A	N/A	N/A
Graphics Card	N/A	N/A	N/A
Rechargeable Battery	N/A	N/A	N/A
Fan Assembly	N/A	N/A	N/A
Camera	N/A	N/A	N/A
Fingerprint Reader	N/A	N/A	N/A
Display Assembly	No	No	Yes
Keyboard	N/A	N/A	N/A
Internal Power Supply	No	No	Yes

NOTE: N/A = Not applicable for the product.

[1] Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.

[2] Please use the power adapter from ViewSonic® or an authorized source only.

[3] Maximum power consumption without Audio or USB.
