Stand Installation

  1. Remove the display, the stand’s neck and base, and the four (4) included screws from the box. Also, prepare one (1) Phillips-head screwdriver.
  2. Place the display on a flat, stable surface with the screen facing down.
  3. Align the monitor stand’s neck with the stand mounting slots on the rear of the display. Use the four (4) included screws to attach the monitor stand’s neck to the display.
  4. VA3456 Stand Installation 1.png
  5. Align and connect the points on the monitor stand’s base with the monitor stand’s neck. Use the captured screw in the stand’s base and secure it to the stand’s neck.
  6. VA3456 Stand Installation 2.png
  7. Carefully lift the monitor into its upright position on a flat, stable surface after completion.
  8. VA3456 Stand Installation 3.png
  9. Adjust the monitor to a comfortable height and angle. If the monitor is visually tilting left or right, carefully adjust the monitor clockwise/counterclockwise.
  10. VA3456 Stand Installation 4.png
Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

Wall Mounting

Refer to the table below for the standard dimensions for wall mount kits.

For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
Maximum Loading Hole Pattern (W x H) Interface Pad (W x H x D) Pad Hole Screw Specification & Quantity
14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm - 4 pieces
  1. Turn off the device and disconnect all cables.
  2. Place the device on a flat, stable surface with the screen facing down.
  3. Remove the stand.
  4. VA3456-mhdj Wall Mounting.png
  5. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).

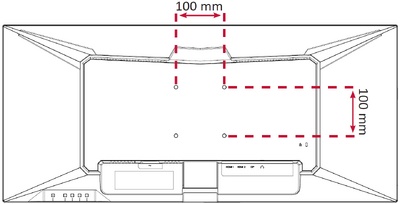

  6. VA3456-mhdj Wall Mounting VESA.png
  7. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.
