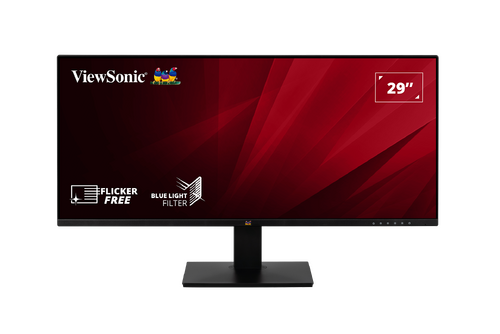

VA2932-mhd Specifications

From ViewSonic User Guide Database
Jump to navigation Jump to search

Technical Specifications

Model No. P/N
VS18274 VA2932-mhd
Item Category Specifications
LCD Type IPS type, Color a-Si TFT,

Active Matrix 2560 x 1080 LCD;
0.2628 mm x 0.2628 mm pixel pitch

Display Size 73.7 cm, (29" viewable)
Color Filter RGB vertical stripe
Glass Surface Hard coating (3H), Anti-Glare (Haze 25%)
Input Signal Video Sync TMDS digital (100 Ω)
HDMI (v. 1.4): fh:24-86 kHz, fv:48-75 Hz
DisplayPort (v. 1.2): fh:24-86 kHz, fv:48-75 Hz
Compatibility PC up to 2560 x 1080
Macintosh up to 2560 x 1080
Recommended 2560 x 1080 @ 60Hz
Resolution[1] Supported
  • 2560 x 1080 @ 60, 75Hz
  • 1920 x 1080 @ 50, 60Hz
  • 1680 x 1050 @ 60Hz
  • 1600 x 1200 @ 60Hz
  • 1600 x 900 @ 60Hz
  • 1440 x 900 @ 60, 75Hz
  • 1440 x 576 @ 50Hz
  • 1400 x 1050 @ 60, 75Hz
  • 1366 x 768 @ 60Hz
  • 1360 x 768 @ 60Hz
  • 1280 x 1024 @ 50, 60, 75Hz
  • 1280 x 960 @ 50, 60, 75Hz
  • 1280 x 800 @ 60, 75Hz
  • 1280 x 768 @ 50, 60, 75Hz
  • 1280 x 720 @ 50, 60Hz
  • 1152 x 900 @ 66Hz
  • 1152 x 870 @ 75Hz
  • 1152 x 864 @ 60, 75Hz
  • 1024 x 768 @ 50, 60, 70, 72, 75Hz
  • 1024 x 600 @ 60Hz
  • 848 x 480 @ 60Hz
  • 832 x 624 @ 75Hz
  • 800 x 600 @ 56, 60, 72, 75Hz
  • 720 x 576 @ 50Hz
  • 720 x 480 @ 60Hz
  • 720 x 400 @ 70Hz
  • 640 x 480 @ 50, 60, 66, 72, 75Hz
  • 640 x 400 @ 60, 70Hz
  • 640 x 350 @ 70Hz
Power Adapter[2] Input Voltage AC 100-240V, 50/60Hz (auto switch)
Display Area Full Scan

(H x V)

672.768 x 283.824 mm

(26.49” x 11.17”)

Audio Speaker 2W x 2
Operating Conditons Temperature 0° C to 40° C (32° F to 104° F)
Humidity 10% to 90% (non-condensing)
Altitude 16,000 feet (5 km)
Storage Conditions Temperature -20° C to 60° C (-4° F to 140° F)
Humidity 5% to 90% (non-condensing)
Altitude 40, 000 feet (12.1 km)
Dimensions Physical

(W x H x D)

689.3 x 407.9 x 185 mm

(27.1” x 16.1” x 7.3”)

Wall Mount Dimensions 100 x 100 mm
Weight Physical 4.31 kg (9.5 lbs)
Power Saving Modes On[3] 27W (Typical) without audio

28W (Typical) witth audio

Off ≤ 0.3W
  1. Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
  2. Please use the power adapter from ViewSonic® or an authorized source only.
  3. The test condition follows EEI standards.
