VA2932-mhd Initial Setup

    From ViewSonic Online User Guide Database

    Stand Installation

    VA2932-mhd Stand Installation.png


    Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

    Wall Mounting

    Refer to the table below for the standard dimensions for wall mount kits.

    For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
    Maximum Loading Hole Pattern (W x H) Interface Pad (W x H x D) Pad Hole Screw Specification & Quantity
    14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm - 4 pieces
    1. Turn off the device and disconnect all cables.
    2. Place the device on a flat, stable surface with the scree facing down.

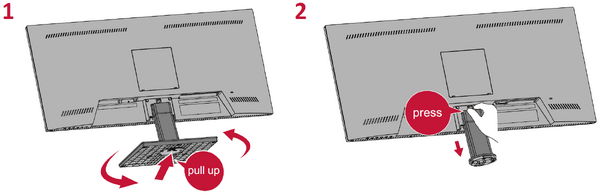

    3. Remove the stand.
    4. VA2932-mhd Wall Mounting.png

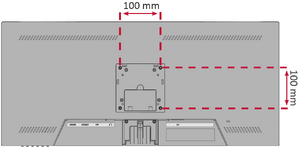

    5. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).
    6. VA2932-mhd Wall Mounting VESA.png
    7. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.
