Package Contents


Pen Display	USB 2.0, 2 in 1 Y-cable (Micro USB to Type A x 2)	Pen	Replacement Pen nib x 3

Pen Tether	Nib removal tool	Screwdriver	AC/DC Power Adapter 5V/2A

Quick Start Guide

Front View / Rear View

Number	Item
1	Micro USB Port
2	Pen Tether Anchor Point
3	Pen Holder
4	Wall Mounting Points
5	Display Screen / Touch Screen (PD1213T only)
6	Security Lock Slot
7	Adjustable Stand Leg
8	Pen
9	Pen Holder Attachment Point
10	Repositionable Leg

Installing Drivers and Software

System Requirements:
Operating system: Windows 7, 10, 11, or later; Linux Ubuntu; Chrome OS by request.
PC I/O: USB 2.0/above

Before connecting and using the pen display, it is necessary to install the below software. The software can be downloaded at:
PD1213 – Driver and Software Download

DisplayLink Driver

Open the DisplayLink installation file and install the driver.

NOTE: DisplayLink Driver can be installed through Windows Update when connected to the Internet.

Pen Display Driver

ViewSonic Pen Manager can be used to map the active area and adjust the feel of the pen.

Open the ViewSign Console installation file and install the driver (ViewSonic Pen Manager).
Restart the computer after the installation completes.

NOTE: For further ViewSign Console information, please visit: Pen Display Software - ViewSonic Pen Display Software

Connecting the Pen Display

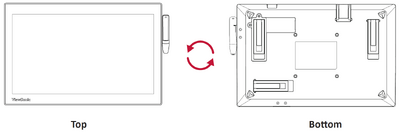

Turn the device over so the bottom side is facing up.

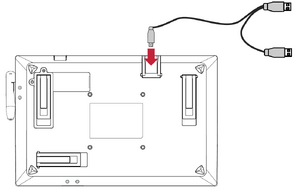

Plug the Micro USB end of the USB cable into the Micro USB Port on the device.

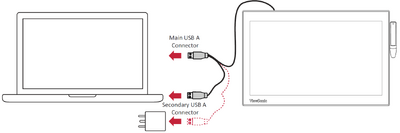

Connect the Main USB A cable to the computer. The Secondary USB A cable can be connected to a fully powered USB port on the computer, or to an AC outlet using the supplied power adapter.

NOTE: When connecting the USB cable directly to the computer, the screen of the tablet may flicker if the computer power is insufficient. In this case, please connect the secondary USB A cable (shown in red) to the power adapter and plug the adapter into an AC outlet to ensure that there is enough power for the pen display.

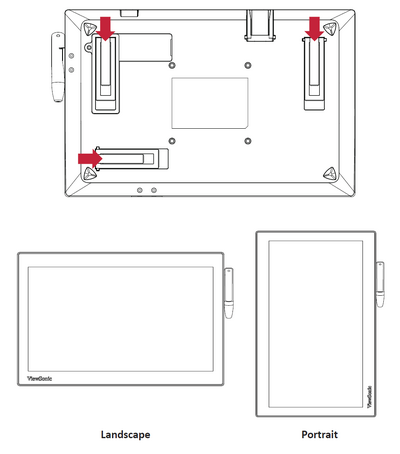

Adjustable Stand Legs

There are three (3) adjustable stand legs on the pen display. This allows for a viewing angle of 0°, 15°, or 20° in portrait orientation; and 0°, 9°, 13° in landscape orientation.

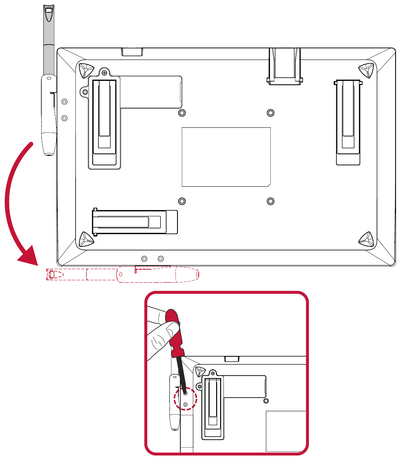

Changing to Portrait Orientation

In order to use the adjustable stand in portrait orientation, one adjustable stand leg must be unscrewed, rotated, and screwed back into place.

Additionally, it is recommended that the pen holder is also rotated.

NOTE: A small cover plate hides the screws, please remove first.

Using the Pen Tether

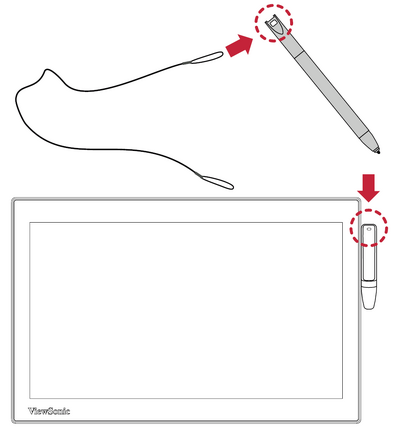

The Pen Tether can be attached to the Pen and to the available anchor point.

Using the Touch Function (PD1213T only)

The PD1213T can detect up to 10 fingers simultaneously depending on the application.

When using the touch function, please note:

The touch function may need about five (5) seconds to resume if the USB cable is removed and plugged in again, or the computer resumes from Sleep Mode.
The touchscreen can only detect up to ten (10) fingers simultaneously.
If the Windows’ cursor does not accurately follow your finger when you touch the screen, do the following:

Open: Control Panel > Hardware and Sound > Tablet PC Settings.
Select Calibration.
Follow the instructions to recalibrate your screen.

Setting the Display Area

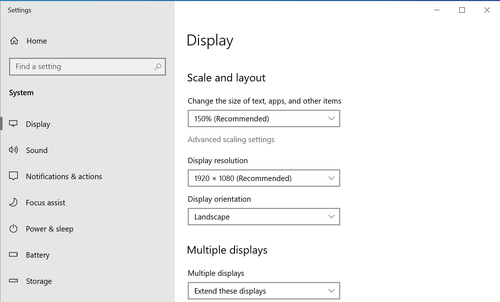

After the pen display is connected to the computer, the Display settings will need to be adjusted. To access your computer’s Display settings:

Go to: Start > Settings > System > Display, or
Right Click on the Desktop and select Display settings.

Once inside the Display settings, ensure the pen display is selected and:

Display orientation is set to Landscape or Portrait (depending on your preference), and
Multiple displays is set to Extend these displays.

Pen Input Area Mapping

To set the proper pen input area:

Open ViewSonic Pen Manager either from the Start menu, by going to: Start > ViewSonic Pen Manager, or by selecting the ViewSonic Pen Manager icon from the System Tray.
Select the Mapping tab.

Select the correct Orientation (Landscape), and Monitor.

Further adjustments can be made by selecting the Pen tab.

Technical Specifications

Model No.	P/N
VS18285	PD1213 / PD1213T

Display

Item	Category	Specifications
LCD	Type	1920 x 1080 LCD, 0.1335 mm x 0.1335 mm pixel pitch
LCD	Surface Treatment	Anti-Glare, Hard-Coating (8H)
Resolution	Supported	1920 x 1080
Touch (PD1213T only)	Type Supported	Capacitive touch, 10 point
Power	USB	USB 2.0: 5V/2A Max
Display Area	Full Scan (H x V)	256.32 x 144.18 mm (10 ³/₃₂” x 5 ⁴³/₆₄”)
Operating Conditions	Temperature	0° C to 50° C (32° F to 122° F)
Operating Conditions	Humidity	20% to 80% (non-condensing)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
Storage Conditions	Humidity	10% to 90% (non-condensing)
Dimensions	Physical (W x D x H)	287 x 185.6 x 14.3 mm (11 ¹⁹/₆₄" x 7 ⁵/₁₆" x ⁹/₁₆")
Wall Mount	Dimensions	75 x 75 mm
Weight	Physical	0.72 kg (1.58 lbs)
Power Consumption	On	6.35W (Typical)
Power Consumption	Standby	< 1W

Pen

Item	Specifications
Model	EMP-001
Type	Electromagnetic resonance
Power Supply	Battery-less
Resolution	5080 LPI (lines per inch)
Pressure Levels	2048
Report Rate	Average 250 PPS (points per second)
Pen Tilt Angle	+/- 45°
OS Supported	Windows 10, 11, or later. (Win 7, Linux Ubuntu, Chrome OS by request)

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Industry Canada Statement

CAN ICES-003(B) / NMB-003(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

Short length (500 mm): maximum 3.5 mg per lamp.
Medium length (> 500 mm and 1,500 mm): maximum 5 mg per lamp.
Long length (> 1,500 mm): maximum 13 mg per lamp.

Lead in glass of cathode ray tubes.
Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
Lead as an alloying element in aluminum containing up to 0.4% lead by weight.
Copper alloy containing up to 4% lead by weight.
Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada
https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program

Europe
https://www.viewsoniceurope.com/eu/support/call-desk/

Taiwan
https://recycle.epa.gov.tw/

Copyright Information

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

PD1213_PD1213T_UG_ENG_Rev. 1A_2021-10-29
