MA1014H
Package Contents
|
 |
Product Overview

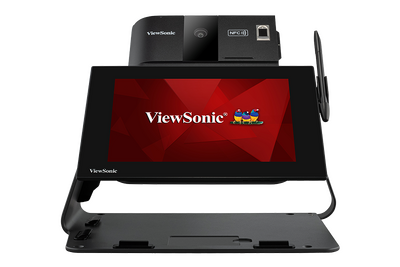

H Series - MA1014H
| Number | Item |
|---|---|
| 1 | Front Camera |
| 2 | NFC Reader |
| 3 | Fingerprint Reader |
| 4 | Pen Display |
| 5 | Document Tray |
| 6 | Card Tray |
| 7 | 2-in-1 USB Cable |
| 8 | Pen Holder |
| 9 | Pen |
| 10 | Smart Card Reader |
| 11 | Magnetic Stripe Reader |
| 12 | Document Camera |
| 13 | Auxiliary Light Source |
- NOTE:
- Customized units may have an additional USB cable for the document camera.
- Functions and modules may vary with unit.
Installing Drivers and Software
System Requirements:
Operating system: Windows 10, 11, or later.
PC I/O: USB 2.0/above
Before connecting and using the pen display, it is necessary to install the below software. The software can be downloaded at:
MA1014H/MA1214H Series – Driver and Software Download
DisplayLink Driver
Open the DisplayLink installation file and install the driver.
- NOTE: DisplayLink Driver can be installed through Windows Update when connected to the Internet.
Pen Display Driver
ViewSonic Pen Manager can be used to map the active area and adjust the feel of the pen.
- Open the ViewSign Console installation file and install the driver (ViewSonic Pen Manager).
- Restart the computer after the installation completes.
- NOTE: For further ViewSign Console information, please visit: Pen Display Software - ViewSonic Pen Display Software
Connecting Device
- Connect the Main USB A cable to the computer.
- The Secondary USB A cable can be connected to an AC outlet using the suppliedpower adapter.
- NOTE:
- Power through the secondary USB cable from the AC/DC Adapter willensure a sufficient power supply to avoid screen flicker in case the powerfrom the computer is not stable.
- Customized units may have an additional USB cable for the DocumentCamera. Please also connect this USB cable to the computer.
- NOTE:
Setting the Display Area

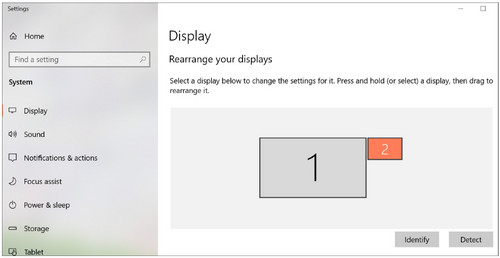

After the pen display is connected to the computer, the Display settings will need to be adjusted. To access the computer’s Display settings:
- Go to: Start > Settings > System > Display, or
- Right Click on the Desktop and select Display settings.

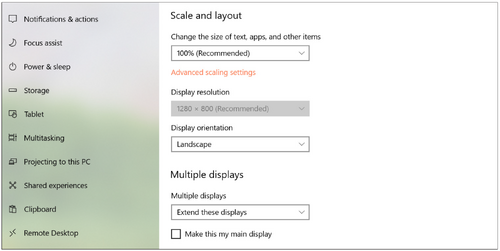

Once inside the Display settings, ensure the pen display is selected and:
- Display orientation is set to Landscape or Portrait (depending on your preference), and
- Multiple displays is set to Extend these displays.
Pen Input Area Mapping
To set the proper pen input area:
- Open ViewSonic Pen Manager either from the Start menu, by going to: Start > ViewSonic Pen Manager, or by selecting the ViewSonic Pen Manager icon from the System Tray.
- Select the Mapping tab.
- Select the correct Orientation (Landscape), and Monitor.
- Further adjustments can be made by selecting the Pen tab.
Device Features

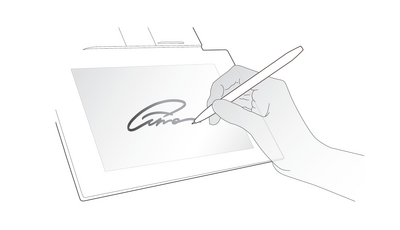

Pen Display
- NOTE: Place the Pen in the side pen holder when not in use.
| Item | Specifications |
|---|---|
| Type | Electromagnetic Resonance |
| Resolution | 5080 LPI |
| Pressure Levels | 2048 |
| Pen Tilt Angle | +/- 45° |

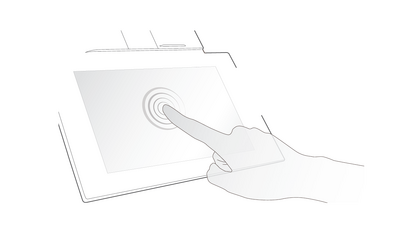

Touch Screen
- NOTE: Moisture and dust can affect the touch sensitivity.
| Item | Specifications |
|---|---|
| Type | Capacitive Touch |
| Supports | 10 points |
Smart Card Reader
- NOTE: Make sure the metal contact is facing upward for accurate reading.
| Item | Specifications |
|---|---|
| Type | CCID (CCID 1.0) or HID |
| Supports | ISO 7816 Class A, B, C card (5V/ 3V/ 1.8V), EMV Card |

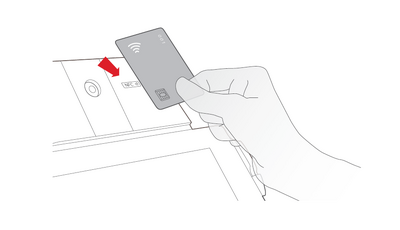

NFC
- NOTE: The NFC sensor proximity is around 1 cm (0.4 in).
| Item | Specifications |
|---|---|
| Type | CCID |
| Supports | ISO/IEC 14443 A, B card, MIFARE Classic, ISO/IEC 18092 FeliCa, NFC tag 1/2/3/4 |
| Frequency | 13.56MHz |
| Mode | Card Reader/Writer mode, Peer-to-Peer mode, Card Emulation mode |
Magnetic Stripe Reader
| Item | Specifications |
|---|---|
| Supports | ISO/IEC 7811, AAMVA, CA DMV |

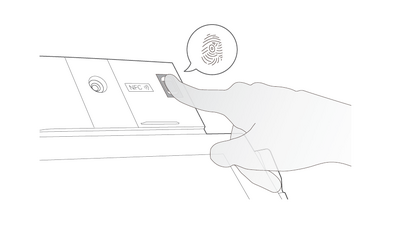

Fingerprint Reader
- NOTE:
- Moisture and dust can affect the reader’s accuracy.
- Do not wear gloves when using the reader.
| Item | Specifications |
|---|---|
| Supports | ANSI 378, ISO/IEC 19794-2 |
| Mode | Identification (1:N Comparison), Verification (1:1 Comparison) |
| Pixel Matrix | 256 x 288 |
| Resolution | 500 dpi |

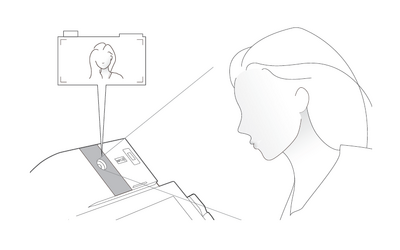

Front Camera
- NOTE: Insufficient ambient light or backlight may affect the image quality.
| Item | Specifications | |
|---|---|---|
| Sensor Pixels | Preview | 200 Million Pixels (1920 x 1080) |
| Snapshot | 500 Million Pixels (2592 x 1936) | |
| Lens Visual Angle | 118° wide angle | |
| f Number | 2.2 | |

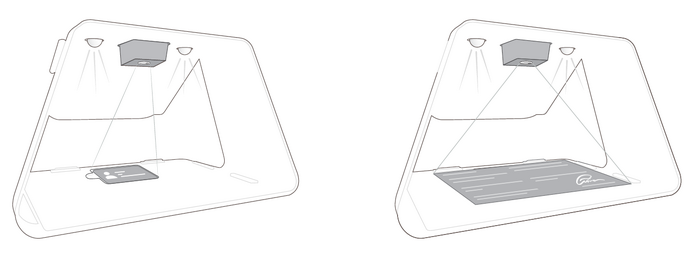

Document Camera
| Item | Specifications | |
|---|---|---|
| Sensor Pixels | Preview | 200 Million Pixels (1920 x 1080) |
| Snapshot | 1600 Million Pixels (4608 x 3456) | |
| Lens Visual Angle | 106° wide angle | |
| f Number | 4.0 | |
| Support | OCR | |
For ID Cards
- Align the ID card with the card tray.
- When scanning or taking pictures using the Document Camera, the photo lights will automatically turn on.
For A4 Documents
- Paper larger than A4 cannot be captured fully.
- Align the paper with the document tray.
- When scanning or taking pictures using the Document Camera, the photo lights will automatically turn on.
Technical Specifications
| Model No. | P/N |
|---|---|
| VS19285 | MA1014H |
Display
| Item | MA1014H | MA1214H |
|---|---|---|
| Type | Color Actve Matrix TFT LCD | |
| Surface Treatment | Anti-Glare type, Hard Coating (8H) | |
| Size | 10.1" | 11.6" |
| Resolution | 1280 x 800 @ 60 Hz | 1920 x 1080 @ 60 Hz |
| Display Area | 216.96 x 135.6 mm (8.54" x 5.34") |
256.32 x 144.18 mm (10.09" x 5.68") |
Pen
| Item | Specifications |
|---|---|
| Type | Electromagnetic resonance |
| Power Supply | Battery-less |
| Resolution | 5080 LPI (Lines Per Inch) |
| Pressure Levels | 2048 |
| Report Rate | Average 250 PPS (Points Per Second) |
| Pen Tilt Angle | +/- 45° |
| OS Supported | Windows 10, 11, or later.
(Win 7, Linux Ubuntu, Chrome OS by request) |
System
| Item | MA1014H | MA1214H |
|---|---|---|
| Power | USB Adapter 5V/2A | |
| Standby Power | < 1W | |
| Operating Conditions | 0° C to 50° C (32° F to 122° F) 20% to 80% (non-condensing) | |
| Storage Conditions | -20° C to 60° C (-4° F to 140° F) 10% to 90% (non-condensing) | |
| Power Consumption | 10.47W | 11.37W |
| Physical Dimensions | 377 x 303 x 292 mm (14.8" x 11.9" x 11.5" in.) |
377 x 303 x 292 mm ( 14.8" x 11.9" x 11.5" in.) |
| Physical Weight | 3.7 kg (8.2 lbs.) |
3.76 kg (8.3 lbs.) |
Compliance Information
This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Statement
CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
 |
The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. |
The following information is only for EU-member states:
| The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law. |  |
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below.
| Substance | Proposed Maximum Concentration | Actual Concentration |
|---|---|---|
| Lead (Pb) | 0.1% | < 0.1% |
| Mercury (Hg) | 0.1% | < 0.1% |
| Cadmium (Cd) | 0.01% | < 0.01% |
| Hexavalent Chromium (Cr6⁺) | 0.1% | < 0.1% |
| Polybrominated biphenyls (PBB) | 0.1% | < 0.1% |
| Polybrominated diphenyl ethers (PBDE) | 0.1% | < 0.1% |
| Bis (2-ethylhexyl) phthalate (DEHP) | 0.1% | < 0.1% |
| Butyl benzyl phthalate (BBP) | 0.1% | < 0.1% |
| Dibutyl phthalate (DBP) | 0.1% | < 0.1% |
| Diisobutyl phthalate (DIBP) | 0.1% | < 0.1% |
Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:
- Copper alloy containing up to 4% lead by weight.
- Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
- Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
- Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.
Indian Restriction of Hazardous Substances
Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Indian Restriction of Hazardous Substances
Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Product Disposal at End of Product Life
ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.
USA & Canada:
https://www.viewsonic.com/us/go-green-with-viewsonic
Europe:
https://www.viewsonic.com/eu/environmental-social-governance/recycle
Taiwan:
https://recycle.moenv.gov.tw/
For EU users, please contact us for any safety/accident issue experienced with this product:
 |
ViewSonic Europe Limited Haaksbergweg 75 1101 BR Amsterdam Netherlands |
 |
+31 (0) 650608655 |
 |
EPREL@viewsoniceurope.com |
 |
https://www.viewsonic.com/eu/ |
Copyright Information
Copyright© ViewSonic® Corporation, 2022. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.
ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.
ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).
As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.
MA1014H_MA1214H_UG_ENG_1c_20240502
