M1+ Gen 2

From ViewSonic User Guide Database
M1+ G2 Full Guide
Jump to navigation Jump to search
Backtotop.svg

Print Icon.svg

Package Contents

Projector Overview

M1+ G2 Overview.svg
Number Item
1 Speaker
2 IR Receiver
3 Tripod mount
4 Focus Ring
5 Micro SD slot
6 DC IN
7 USB Type C
8 HDMI
9 Audio Out
10 USB Type A
11 Enter[1] / Power Button [2]
12 Volume Down[3]
13 Volume Up[4]
14 Return[5]
15 Speaker
16 IR Receiver
17 Battery Indicator
18 Smart Stand
19 Lens
  1. Enacts the selected On-Screen Display (OSD) menu item.
  2. Press and hold for three (3) seconds to Power On/Off the projector.
  3. Decrease the volume level when the OSD menu doesn’t enable; Down.
  4. Increase the volume level when the OSD menu doesn’t enable; Up.
  5. Press and hold for three (3) seconds to view the source list.

Overview

Remote Control
Number Button Description
1 Power Turns the projector On or Off
2 Source Displays the input source selection menu
3 Focus Automatically focus the image[1]
4 Bluetooth Mode Enable Bluetooth
5 Up/Down/Left/Right Navigate and select menu items; Keystone adjustment
6 OK Confirms the selection
7 Setting Displays the Setting menu
8 Return Returns to the previous screen
9 Home Access the Home screen
10 Volume Control Increase or decrease the volume level
11 Mute Mute the volume
12 Next/Previous Move to next/previous
13 Play/Pause Play or pause media
  1. This model does not support this feature.

Effective Range

To ensure proper function of the remote control follow the steps below:

  1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
  2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.).

Replacing the Batteries

  1. To open the battery cover, turn the remote control over to view its back, open the cover in the direction of the arrow.
  2. Remove any existing batteries (if necessary) and install two AAA batteries observing the battery polarities as indicated in the base of the battery compartment. Positive (+) goes to positive and negative (-) goes to negative.
  3. Replace the battery tray by aligning it with the base and pushing it back into position.
NOTE:
  • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
  • Replace only with the same or equivalent type recommended by the battery manufacturer.
  • If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
  • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.

Choosing a Location - Projector Orientation

Personal preference and room layout will decide the installation location. Consider the following:

  • Size and position of your screen.
  • Location of a suitable power outlet.
  • Location and distance between the projector and other equipment.
Location Description
Front Table The projector is placed near the floor in front of the screen.
Front Ceiling The projector is suspended upside-down from the ceiling in front of the screen.
Rear Table[1] The projector is placed near the floor behind the screen.
Rear Ceiling[1] The projector is suspended upside-down from the ceiling behind the screen.
  1. 1.0 1.1 A rear projection screen is required.

Projection Dimensions

Projection Dimensions.png

NOTE: (e) = Screen | (f) = Center of Lens

16:9 Image on a 16:9 Screen

(a) Screen Size (b) Projection Distance (c) Image Height Image Width
Minimum Maximum
in. cm in. m in. m in. cm in. mm
30 76.2 32.16 0.82 32.16 0.82 14.7 37.36 26.15 664
40 101.6 42.88 1.09 42.88 1.09 19.6 49.81 34.86 886
50 127 53.6 1.36 53.6 1.36 24.5 62.26 43.58 1107
60 152.4 64.32 1.63 64.32 1.63 29.4 74.72 52.29 1328
70 177.8 75.04 1.91 75.04 1.91 34.3 87.17 61.01 1550
80 203.2 85.76 2.18 85.76 2.18 39.2 99.62 69.73 1771
90 228.6 96.48 2.45 96.48 2.45 44.1 112.07 78.44 1992
100 254 107.2 2.72 107.2 2.72 49 124.53 87.16 2214
There is a 3% tolerance among these numbers due to optical component variations. It is recommended to physically test the projection size and distance before permanently installing the projector.

Connecting to Power

M1+ G2 Connect Power.svg

DC Power (Power Outlet)

  1. Connect the power cord to the power adapter.
  2. Connect the power adapter to the DC IN jack at the side of the projector.
  3. Connect the power cord plug to a power outlet. When connected, the status LED will turn red.
NOTE: Charge the projector for 4.5 hours via the power adapter before using it in battery mode for the first time.

Power on by Power Bank Function

The projector can also be powered by a power bank.

M1+ G2 Connect Power Bank.svg

To power your projector:

  1. Connect one end of the USB Type-C cable to the USB-C port of the projector.
  2. Connect the other end of the USB Type-C cable to the power bank.
NOTE:
  • The power bank should be 45W (15V/3A) at least, and support Power Delivery (PD) protocol output. Additionally, at 15V/3A the projector can be powered on and charge simultaneously.
  • Due to the IC protection mechanism, the USB-C charging function may stop briefly then continue later on.

Using the Battery

The battery level icon will show at the top right of the Home Screen. As the battery’s power level runs low, the screen will show a “low battery message”.

Battery Usage Time Information

Charging About 4.5 hours
Usage Hours up to 6 hours (Battery Saving)/up to 4 hours (Extended Eco)/up to 3 hours (ECO) /up to 2.5 hours (Full)
Battery Level Indicator (Charging) During Charging: Flashing White LED light

Full Charge: Solid White LED light

Connecting to External Devices

M1+ G2 Plus External Devices.svg

HDMI Connection

Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI port (supports HDCP 1.4/HDMI 1.4) of your projector.

USB Connection

USB Type A Connection
To enjoy photos, music, and movies, simply plug in a USB flash drive to the USB Type A port.

USB-C Connection
Connect one end of a USB Type C cable to the USB-C port of your device. Then connect the other end of the cable to the USB-C port of your projector.

NOTE:
  • Ensure your USB Type C device can support video transmission.
  • The connected device can also be charged (5V/2A).

microSD

To enjoy photos, music, and movies, simply plug in a microSD to the Micro SD slot.

NOTE: Only supports FAT32 format and up to 64 GB.

Connecting to Bluetooth

Bluetooth Speaker

The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback.

To connect and pair your device:

  1. Go to: Home > Bluetooth.
  2. Use the Left and Right directional buttons on the remote control to select Bluetooth Speaker or Bluetooth Pairing. Then press OK on the remote control.
  3. When the dialogue box appears, select Yes and press OK on the remote control to enter Bluetooth mode.
  4. A sound effect will be audible upon entering pairing mode.
  5. Upon successful connection, another sound effect will be audible.
NOTE:
  • Once paired, if both the projector and your device are powered On they will automatically connect via Bluetooth.
  • The projector’s name will be labeled as “M1+”.

Bluetooth Out

Connect the projector to external headphones or speakers that support Bluetooth.

To connect and pair your device:

  1. Go to: Home > Bluetooth.
  2. Use the Left and Right directional buttons on the remote control to select the Bluetooth Out option.
  3. The projector will search for nearby Bluetooth devices. Select your device from the list and press OK on the remote control.
NOTE: Select the refresh icon and press OK to search for Bluetooth devices again.

Connecting to Networks

Wi-Fi Connection

To connect to a Wi-Fi network:

  1. Go to: Home > Setting > Network Settings > Wi-Fi.
  2. Press Left or Right on the remote control to select On.
  3. Available Wi-Fi networks will then be displayed. Select one of the available Wi-Fi networks.
  4. If you connect to a secure Wi-Fi network, you must enter the password when prompted.

Custom SSID

  1. Go to: Home > Setting > Network Settings > Wi-Fi.
  2. Press Left or Right on the remote control to select On.
  3. From the available Wi-Fi networks list select Others and press OK on the remote control.
  4. Enter the SSID and select the security level.
  5. Enter the password when prompted.

Wireless Screen Mirroring

Screen Mirroring provides a 5GHz Wi-Fi connection for users to mirror the screen on their personal device.

NOTE: Ensure your device is connected to the same network as the projector.
Wireless Screen Mirroring Update.png

For iOS:

  1. Access the drop down control menu.
  2. Select the “Screen Mirroring” icon.
  3. Choose “ViewSonic PJ-XXXX”.

For Android:

  1. Download and install the “Google Home” application and open it.
  2. Pull-to-refresh the app and wait for 30 seconds.
  3. “ViewSonic PJ-XXXX” will now be visible, select it.
NOTE: Some Android devices support direct “Casting”. If your device does, go to the Casting feature and choose “ViewSonic PJ-XXX” from the list of available devices. You can also scan the FAQ QR code and follow the steps to directly cast your Android device.

Starting the Projector

M1+ G2 Startup.png

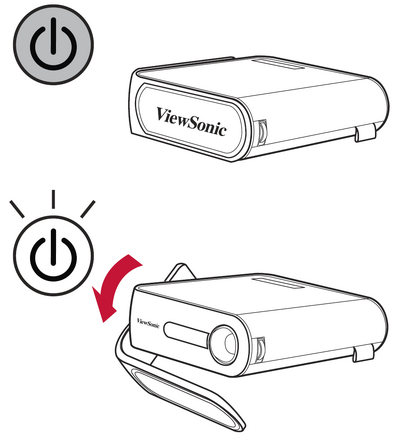

  1. Ensure the projector is connected to a power source or that the battery has sufficient charge.
  2. Open the Smart Stand by moving its lens cover down.
  3. Move the Smart Stand to your desired viewing angle.

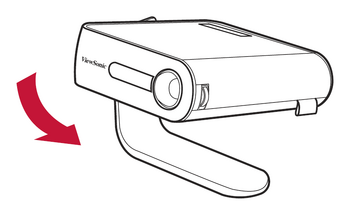

M1+ G2 Smartstand.png
NOTE: Do not place any heavy objects or press down forcefully on the projector’s I/O side when opening the Smart Stand as it may cause damage to the device.
M1+ G2 Pressdown Warning.png

First Time Activation

If the projector is activated for the first time, you will need to select your Preferred Language, Projection Orientation, and Network Settings. Follow the on-screen instructions using the OK and Up/Down/Left/Right buttons on the remote control. When the "Finish screen" appears, this indicates the projector is ready to use.

Preferred Language

Select the desired language and press OK to confirm the selection.

M2 Preferred Language.jpg

Projection Orientation

Select the preferred projection orientation and press OK to confirm the selection.

M2 Projection Orientation.png

Network Settings

Select one of the available Wi-Fi options.

M2 WiFi Connection 2.jpg

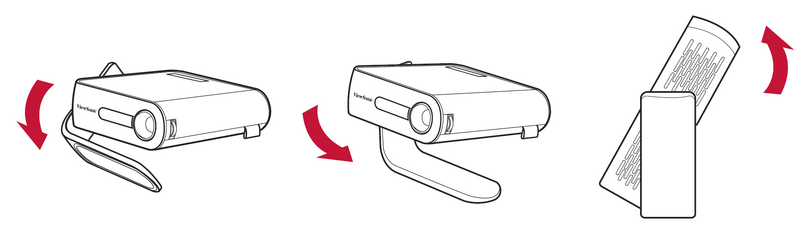

Adjusting the Projector's Height and Projection Angle

The projector is equipped with one (1) Smart Stand. Adjusting the stand will change the projector’s height and the vertical projection angle. Carefully adjust the stand to fine tune the projected image’s position.

M1+ G2 Height Adjust.png
NOTE: If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image can become trapezoidal. However, the “Auto Vertical Keystone” function will correct the issue automatically.

Adjusting the Focus

To adjust the image focus of the on-screen image, slowly move the focus ring upwards or downwards.

M1+ G2 Focus.png

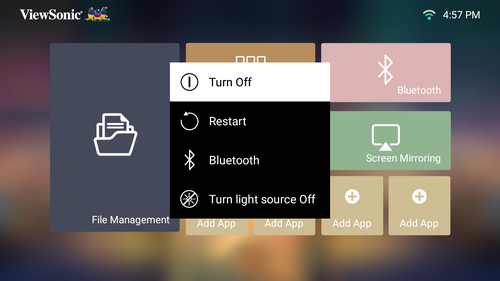

Shutting Down the Projector

  1. Press and hold the Power button for three (3) seconds on the projector, or press the Power button on the remote control.
  2. Pressing the Power button on the remote control will result in the following message:
  3. M1+ G2 Shut Down.png
  4. Press the Up/Down buttons on the remote control to select Turn Off and press OK on the remote control.
NOTE: When not in use, please press the Power button to power off and close the Smart Stand. If only using the Power button to power off, the projector will enter standby mode and the embedded battery will still consume some power.

Home Screen

The Home Screen is displayed every time you start the projector. To navigate the Home Screen, simply use the directional buttons on the remote control. You can return to the main Home Screen at any time by pressing the Home button on the remote control, regardless of what page you are on.

M1+ G2 Home Screen.png

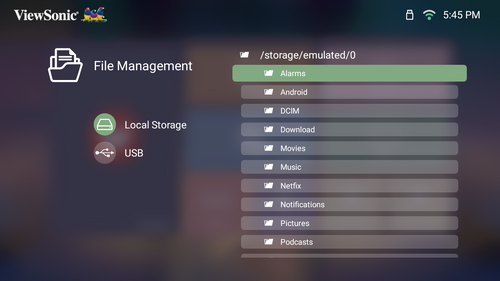

File Management

Easily manage files and folders.

  1. Select: Home > File Management.
  2. Select a device on the source list. Use the direction buttons to select the desired file. Then press OK on the remote control to open the selected file.
  3. Press the Return button to go to a previous a level.
NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

How to Edit a File

M1+ G2 File Management Edit.png
  1. While in File Management, press and hold the OK button for three (3) seconds.
  2. A check box will appear at the front of each file. Use the directional buttons and press OK to select one or more files.
  3. By pressing the Right button, Copy, Paste, Cut, Delete, Select All, and Return boxes will be available for use.
  4. Select your desired action and press OK to execute.
  5. If you are Copying or Cutting, select your destination folder to complete the process.

How to Use Control Bar Buttons

The Control Bar buttons will appear on screen if a video, music, or photo file are selected to be opened.

X10 Control Bar.png

Tips for using USB
When using USB for reading and/or storage please keep in mind the following:

  1. Some USB storage devices may not be compatible.
  2. If you use an USB extension cable, the USB device may not recognize the USB.
  3. Only use USB storage devices formatted with Windows FAT32 file system.
  4. Larger files will need extra time to load.
  5. Data on USB storage devices may be damaged or lost. Back up important files.

Supported File Formats

  • Supported Office formats:
M1 mini Plus Office Formats.png
  • Supported Multimedia formats:
M1 mini Plus Media Formats.png

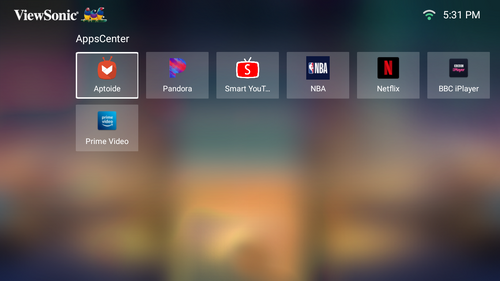

Apps Center

View, launch, and uninstall Apps.

  1. To view your Apps, select: Home > Apps Center.
  2. Use the directional buttons to select the desired App. Then press OK on the remote control to launch the App.
NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

Aptoide

The projector is pre-loaded with the Aptoide store, which allows users to download and install different Apps.

  1. Select: Home > Apps Center > Aptoide.
  2. Use the directional buttons to navigate the menu options. When you find your preferred App, press the OK button to install it.
NOTE:
  • Users can install third-party Apps by .apk file in File Management. However, some third-party Apps may have compatibility issues.
  • Apps not pre-loaded by ViewSonic may not be compatible or work properly.
  • Some Apps may require a keyboard or mouse.
  • Some Apps may be Region-Specific.

To Uninstall Apps

  1. Open the Apps Center by selecting: Home > Apps Center.
  2. Use the directional buttons to select the desired App.
  3. Press and hold OK on the remote control for three (3) seconds.
  4. Select OK to uninstall the App.
NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

Bluetooth

The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback. For more information, see Connecting to Bluetooth

Setting

Under Setting you can adjust Network, Basic, and Advanced Settings, Date & Time, Firmware Update, and view Information.

Network Settings

  1. Select: Home > Setting > Network Settings.
  2. View and adjust your Wi-Fi and network settings.

Basic Settings

  1. Select: Home > Setting > Basic Settings.
  2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
  3. To return to a previous menu press the Return button.

Date & Time

Adjust Date, Time, Time Zone, and Time Format.

NOTE: The time is displayed in the top-right corner after connecting to the Internet.
  1. Select: Home > Setting > Date & Time.
  2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.

Firmware Update

Users can update the firmware Online, or by USB, and check the version number.

NOTE: Do not unplug the power cord, USB, or disconnect from the Internet during the updating process.
  1. Before entering the Firmware Update menu, ensure the projector is connected to the Internet.
  2. To enter the menu, select: Home > Setting > Firmware Update.

Firmware Update Online

  1. Go to: Home > Setting > Firmware Upgrade > Software Update Online.
  2. Select Enter by pressing OK on the remote control.
  3. The system will check the ViewSonic website (OTA) and display the below dialog message if there is new Firmware.
  4. After selecting Yes, a progress bar will appear as the update process begins.
  5. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
  6. After updating the Firmware, it will take a few minutes to restart the projector.

Firmware Update by USB

  1. Download the latest version from the ViewSonic website and copy the file to a USB device.
  2. Plug the USB into the projector, then go to: Home > Setting > Firmware Upgrade > Software Update By USB.
  3. Select Enter by pressing OK on the remote control.
  4. The system will detect the Firmware version and display a dialog message.
  5. After selecting Yes, a progress bar will appear as the update process begins.
  6. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
  7. After updating the Firmware, it will take a few minutes to restart the projector.
NOTE: Only the USB A port can support Firmware updating (USB format: FAT32).

Advanced Settings

  1. Select: Home > Setting > Advanced Settings.
  2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
  3. To return to a previous menu press the Return button.

Information

NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.
  1. Select: Home > Setting > Information.
  2. View system status and information.

Adding Apps

Add your favorite Apps to the Home Screen.

  1. From the Home Screen, select Add App and then press OK on the remote control.
  2. Use the directional buttons to select the desired App and press OK.
  3. Now your favorite App will appear on the Home Screen.

Delete Apps from the Home Screen

  1. From the Home Screen, select the App you want to delete and press and hold OK for three (3) seconds.
  2. The message, “Do you want to Delete this application from My Favorites?” will appear.
  3. Select Yes, and press OK to delete the App.

Input Source Selected - On-Screen Display (OSD) Menu Tree

Image Setting

Sub-menu Menu Option
Color Mode Brightest
TV
Movie
Gaming
User 1
User 2
Brightness (-/+, 0~100)
Contrast (-/+, 0~50)
Color Temp 6500K
7500K
9300K
User
Red Gain (-/+, 0~199)
Green Gain (-/+, 0~199)
Blue Gain (-/+, 0~199)
Red Offset (-/+, 0~199)
Green Offset (-/+, 0~199)
Blue Offset (-/+, 0~199)
Tint (-/+, 0~100)
Saturation (-/+, 0~100)
Sharpness (-/+, 0~100)
Gamma 1.8
2.0
2.2
2.35
2.5
sRGB
Cubic
Reset Current Color Settings Yes
Cancel

Advanced

Sub-menu Menu Option
Aspect Ratio Auto
4:3
16:9
HDMI Setting Range Auto
Full
Limited
3D Settings 3D Sync Auto
Off
Frame Sequential
Frame Packing
Top-Bottom
Side-by-Side
3D Sync Invert Disable
Invert
harman/kardon Audio Mode Movie
Music
User
100Hz
500Hz
1500Hz
5000Hz
10000Hz
Audio Volume (-/+, 0~20)
Mute Off
On

Home Screen - On-Screen Display (OSD) Menu Tree

File Management

Apps Center

Bluetooth

Setting

Sub-menu Menu Option
Network Settings Wi-Fi Off
On SSID
Configure IP
IP Address
Subnet Mask
Default Gateway
DNS Server
Others
Basic Settings Language English
French
German
Italian
Spanish
Russian
繁體中文
簡體中文
日本語
韓語
Swedish
Dutch
Turkish
Czech
Portuguese
Thai
Polish
Finnish
Arabic
Indonesian
Hindi
Vietnam
Greek
Projector Position Front Table
Front Ceiling
Rear Table
Rear Ceiling
Keystone Manual (-/+, -40~40)
Auto V Keystone Disable
Enable
Date & Time Automatic Date & Time Off
On
Date
Time
Time Zone
Time Format 12 hours
24 hours
Firmware Upgrade Software Update Online
Software Update by USB
OTA Reminder Enable
Diable
Software Version
Advanced Settings Power On Source Home
HDMI
USB-C
Power On/Off Ring Tone Off
On
Smart Energy Auto Power Off Disable
10 minutes
20 minutes
30 minutes
Sleep Timer Disable
30 minutes
1 hour
2 hours
3 hours
4 hours
8 hours
12 hours
Power Saving Enable
Disable
harmon/kardon Audio Mode Movie
Music
User
Audio Volume (-/+, 0~20)
Mute Off
On
Light Source Level Full
Eco
Extended Eco
Battery Saving
High Altitude Mode Off
On
Reset Settings Yes
Cancel
Reset to Factory Default Yes
Cancel
Information Light Source Hours
System Version
Memory Information XX GB of XX GB Used
Wi-Fi Mac Address
Serial Number

Screen Mirroring

Add App

Input Source Selected - On-Screen Display (OSD) Menu Options

Image Setting Menu

Menu Option Description
Color Mode The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal.

Brightest
Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, i.e. well-lit rooms.

TV
Optimized for viewing sports in well-lit environments.

Movie
Appropriate for colorful movies, video clips from digital cameras, or DVs through the PC input. Best for low-light environments.

Gaming
Designed for playing video games.

User 1/User 2
Recalls the customized user settings.

NOTE: Only supports HDMI/USB-C signal input.
Brightness The higher the value, the brighter the image. Lower values will result in a darker image.
Projector Brightness.png
Contrast Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
Projector Contrast.png
Color Temp Select the color temperature setting.
  • 6500K: Maintains normal white coloring.
  • 7500K: A higher, cooler color temperature than 6500K.
  • 9300K: The highest color temperature; makes the image appear the most bluish-white.
  • User Color: Adjust red, green, and blue values as desired.
Tint The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.
Saturation Refers to the amount of that color in a video picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
Sharpness A high value results in a sharper picture; a low value softens the picture.
Gamma Reflects the relationship between input source and picture brightness.
Reset Current Color Settings Return current color settings to their default values.

Advanced Settings Menu

Menu Option Description
Aspect Ratio The Aspect Ratio is the ratio of the image width to the image height. With the advent of digital signal processing, digital display devices, like this projector, can dynamically stretch and scale the image output to a different aspect than that of the image input signal.
NOTE: Only supports HDMI/USB-C signal input.

Auto
Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither 4:3 nor 16:9 and you want to make the most use of the screen without altering the image’s aspect ratio.

4:3
Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration.

16:9
Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV.

HDMI Settings Range

Select a suitable color range according to the color range setting of the connected output device.

  • Full: Sets the color range from 0~255.
  • Limited: Sets the color range from 15~235.
  • Auto: Sets the projector to detect the range of the input signal automatically.
3D Settings Enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images while wearing 3D glasses.

3D Format
Adjust and choose from: Automatic, Off, Frame Sequential, Frame Packing, Top-Bottom, Side-by-Side.

3D Sync Invert
Allows for correction if the 3D image depth is inversed.

harman/kardon Adjust the audio settings.
Light Source Level Full

100% power consumption

Eco
70% power consumption

Extended Eco
55% power consumption

Battery Saving
30% power consumption

Information Shows Input Source, Resolution, and 3D Format.

Home Screen - On-Screen Display (OSD) Menu Options

File Management

Provides a user interface to manage files and folders.

M1+ G2 File Management 2.png

Apps Center

Access and view all the applications you have installed.

M1+ G2 Apps Center.png

Bluetooth

Select the appropriate Bluetooth mode.

M1 mini Plus BT 1.png

Setting

Manage various categories such as: Network settings, Basic and Advanced settings, Date & Time, Firmware update, and system Information.

M1+ G2 Settings.svg

Basic Settings

Menu Option Description
Language Select your desired language.
Projector Position Select the preferred projection position.
Keystone Adjust trapezoidal screen image distortion.

Manual
Keystone can be adjusted manually from -40 to 40.

Auto V Keystone
Provides a rectangular screen image by automatically adjusting the keystone number when there is a trapezoidal screen image caused by the tilting of the projector.

  • Enable: Automatically adjust the keystone number.
  • Disable: Manually adjust the keystone number.
NOTE: If Manual is selected, Auto V Keystone will change to Disable automatically.

Date & Time

Menu Option Description
Automatic Date & Time Users can synchronize the date and time automatically after connecting to the Internet.

On
Turn on synchronization.

Off
Turn off synchronization.

Time Zone Select your desired location.
Time Format Select a different display time format.

12 Hours
12-hour clock.

24 Hours
24-hour clock.

Advanced Settings

Menu Option Description
Power On Source Allows the user to enter the desired source directly after turning on the projector.
Power On/Off Ring Tone Enable or disable the power on/off ring tone.
Auto Power On Direct Power On

Turn on the projector automatically once plugged into an outlet.

Smart Energy Auto Power Off

The projector can turn off automatically after a set period of time once no input source is detected.

Sleep Timer
Turn off automatically after a set period of time.

Power Saving
Lower power consumption if no input source is detected after five (5) minutes.

NOTE: The power consumption of the LED will be changed to 30% after no signal is detected for five (5) minutes.
harman/kardon Audio Mode
  • Movie: Default audio mode.
  • Music: Optimized for music playback.
  • User: Allows the user to customize the audio equalizer.
NOTE: In Custom mode, 100Hz, 500Hz, 1500Hz, 5000Hz, and 10000Hz can be selected.
M1 mini Plus Audio Mode.jpg

Audio Volume
Adjust the volume from 0 to 20.

Mute
Mute or unmute the volume.

Light Source Level Select the suitable power consumption of the LED.

Full
100% power consumption

Eco
70% power consumption

Extended Eco
55% power consumption

Battery Saving
30% power consumption

High Altitude Mode It is recommended that you use High Altitude Mode when your environment is between 1,500-3,000 m above sea level, and a temperature between 5°C-25°C.
M1 mini Plus High Altitude.png
NOTE: If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.
Reset Settings Reset the Settings to default.
NOTE: Language, High Altitude Mode, Projector Position, Network Settings, All installed Apps in the Apps Center, Add App, and Light Source Hours will remain unchanged.
Reset to Factory Default Factory reset.
NOTE: Light Source Hours will remain unchanged.

Screen Mirroring

Mirror your personal device’s screen through the projector.

Wireless Screen Mirroring Update.png

Add App

Select your favorite Apps and add them to the Home Screen.

M1+ G2 Add App.png

Technical Specifications

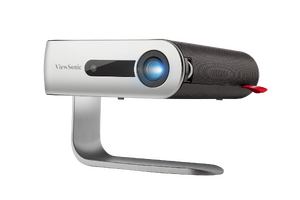

M1+ G2.png
Model No. P/N
VS18242 M1+
Item Category Specifications
Projector Type 0.2” WVGA, LED
Display Size 24”~100”
Throw Distance 0.64-2.66 m (38” @ 1m)
Lens F=1.7, f=5.5 mm
Optical Zoom Fixed
Lamp Type RGB LED
Light Source Life

(Normal)

up to 30,000 hours
Display Color 1.07 Billion Colors
Keystone -/+ 40 (Vertical)
Battery Capacity 12,000 mAh, 3.7Vx3
Input Signal HDMI fh: 15K~102KHz, fv:23~120Hz
Resolution Native 854 x 480
Support VGA (640 x 480) to Full HD (1920 x 1080)
Input HDMI 1 (HDMI 1.4, HDCP 1.4)
Audio In Bluetooth 4.2
USB Type-C 1 (Power input - 5V/2A)
USB Type-A 1 (USB 2.0 Reader)
Wi-Fi 1 (5G)
Output Audio Out Bluetooth 4.2
Speaker 3W Cube x 2
USB Type-A (Power) 1 (USB 2.0, 5V/1A; share with USB reader)
Audio Out (3.5mm) 1
Power Adapter[1] Input Voltage AC 100-240V, 50/60 Hz (auto switch)
Operating Conditions Temperature 0°C to 40°C (32°F to 104°F)
Humidity 0% to 90% (non-condensing)
Dimensions Physical

(W x H x D)

151 x 126 x 40 mm

(5.94” x 4.96” x 1.57”)

Local Storage Total: 16 GB Available: 12 GB
Weight Physical 0.7 kg (1.54 lbs)
Power Consumption On 35W (Typical)
Off < 0.5W (Standby)
  1. Please use the power adapter from ViewSonic® or an authorized source only.

Timing Charts

HDMI/USB C Video Timing

Timing Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Dot Clock Frequency (MHz)
480i 720(1440) x 480 15.73 59.94 27
480p 720 x 480 31.47 59.94 27
576i 720(1440) x 576 15.63 50 27
576p 720 x 576 31.25 50 27
720/50p 1280 x 720 37.5 50 74.25
720/60p 1280 x 720 45 60 74.25
1080/50i 1920 x 1080 28.13 50 74.25
1080/60i 1920 x 1080 33.75 60 74.25
1080/24p 1920 x 1080 27 24 74.25
1080/25p 1920 x 1080 28.13 25 74.25
1080/30p 1920 x 1080 33.75 30 74.25
1080/50p 1920 x 1080 56.25 50 148.5
1080/60p 1920 x 1080 67.5 60 148.5

HDMI/USB C Support PC Timing

Resolution Refresh Rate (Hz) Horizontal Frequency (kHz) Dot Clock Frequency (MHz)
640 x 480 59.94 31.469 25.175
72.809 37.861 31.5
75 37.5 31.5
720 x 400 70.087 31.469 28.3221
800 x 600 56.250 35.156 36
60.317 37.879 40
72.188 48.077 50
75 46.875 49.5
1024 x 768 60.004 48.363 65
70.069 56.476 75
75.029 60.023 78.75
1152 x 864 75 67.5 108
1280 x 768 59.87 47.776 79.5
74.893 60.289 102.25
1280 x 800 59.81 49.702 83.5
74.934 62.795 106.5
1280 x 960 60 60 108
1280 x 1024 60.02 63.981 108
75.025 79.976 135
1360 x 768 60.015 47.712 85.5
1400 x 1050 59.978 65.317 121.75
1440 x 900 59.887 55.935 106.5
60 55.469 88.75
74.984 70.635 136.75
1600 x 1200 60 75 162
1680 x 1050 59.883 64.674 119
59.954 65.29 146.25

3D Support Timing

HDMI 3D (BlueRay 3D with info frame)
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz) Support
Frame Packing
1080p 1920 x 1080 16:9 23.98/24 Yes
720p 1280 x 720 16:9 50/59.94/60 Yes
Side by Side
1080i 1920 x 1080 16:9 50/59.94/60 Yes
Top and Bottom
1080p 1920 x 1080 16:9 23.98/24 Yes
720p 1280 x 720 16:9 50/59.94/60 Yes
3D (HDMI) Manual Setting
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz) Support
SVGA 800 x 600 4:3 60*/120** Yes
XGA 1024 x 768 4:3 60*/120** Yes
HD 1280 x 720 16:9 60*/120** Yes
WXGA 1280 x 800 16:9 60*/120** Yes
HDTV(1080p) 1920 x 1080 16:9 60 Yes
NOTE:
  • [ * ] 60Hz signals are supported for side by side, top and bottom, and frame sequential.
  • [ ** ] 120Hz signals are supported for frame sequential only.

LED Indicators

Light Description
Green Power On
Red Stand-by Mode
Flashing White Projector Charging
Solid White Battery is Fully Charged

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliant Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter.

The device was tested and complies to measurement standards and procedures specified in FCC CFR Tile 47 Part 15 Subpart C.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

IC Warning Statement

This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : ( 1 ) l’appareil ne doit pas produire de brouillage, et ( 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’en compromettre le fonctionnement.

Country Code Statement

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.

Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible.

IC Radiation Exposure Statement

This equipment complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The device for the band 5150-5825 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlê. Cet équipement doit être installé et utilize avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. les dispositifs fonctionnant dans la bande 5150-5825 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.

CE Conformity for European Countries


The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

WEEE Logo.gif

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance Proposed Maximum Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Bis (2-Ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
Benzyl butyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

  • Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
  • Short length (500 mm): maximum 3.5 mg per lamp.
  • Medium length (>500 mm and 1,500m): maximum 5 mg per lamp.
  • Long length (> 1,500 mm): maximum 13 mg per lamp.
  • Lead in glass of cathode ray tubes.
  • Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
  • Lead as an alloying element in aluminum containing up to 0.4% lead by weight.
  • Copper alloy containing up to 4% lead by weight.
  • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
  • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
  • Battery:
  • High or low extreme temperatures that a battery can be subjected to during use, storage or transportation; and low air pressure at high altitude.
  • Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types);
  • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
  • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;
  • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada
http://www.viewsonic.com/company/green/recycle-program/

Europe
http://www.viewsoniceurope.com/eu/support/call-desk/

Taiwan
https://recycle.epa.gov.tw/

Copyright Information

Copyright© ViewSonic® Corporation, 2020. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

M1+_UG_ENG Rev. 1A 2020-07-08

Customer Service Contact Information

For technical support or product service, see the table below or contact your reseller.

You will need the product's serial number

Asia Pacific & Africa

Country / Region Website
Australia https://viewsonic.com/au/
Bangladesh https://www.viewsonic.com/bd/
中囯(China) https://www.viewsonic.com.cn
香港 (繁體中文) https://www.viewsonic.com/hk/
Hong Kong (English) https://www.viewsonic.com/hk-en/
India https://www.viewsonic.com/in/
Indonesia https://www.viewsonic.com/id/
Israel https://www.viewsonic.com/il/
日本 (Japan) https://www.viewsonic.com/jp/
Korea https://www.viewsonic.com/kr/
Malaysia https://www.viewsonic.com/my/
Middle East https://www.viewsonic.com/me/
Myanmar https://www.viewsonic.com/mm/
Nepal https://www.viewsonic.com/np/
New Zealand https://www.viewsonic.com/nz/
Pakistan https://www.viewsonic.com/pk/
Philippines https://www.viewsonic.com/ph/
Singapore https://www.viewsonic.com/sg/
臺灣 (Taiwan) https://www.viewsonic.com/tw/
ประเทศไทย (Thailand) https://www.viewsonic.com/th/
Việt Nam https://www.viewsonic.com/vn/
South Africa & Mauritius https://www.viewsonic.com/za/

Americas

Country / Region Website
United States https://www.viewsonic.com/us/
Canada https://www.viewsonic.com/us/
Latin America https://www.viewsonic.com/la/

Europe

Country / Region Website
Europe https://www.viewsonic.com/eu/
France https://www.viewsonic.com/fr/
Deutschland https://www.viewsonic.com/de/
Қазақстан https://www.viewsonic.com/kz/
Россия https://www.viewsonic.com/ru/
España https://www.viewsonic.com/es/
Türkiye https://www.viewsonic.com/tr/
Україна https://www.viewsonic.com/ua/
United Kingdom https://www.viewsonic.com/uk/


Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

Limited Three (3) year General Warranty:

Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information.

Limited One (1) year Heavy Usage Warranty:

Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

  • Any product on which the serial number has been defaced, modified, or removed.
  • Damage, deterioration, or malfunction resulting from:
    • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
    • Operation outside of product specifications.
    • Operation of the product for other than the normal intended use or not under normal conditions.
    • Repair or attempted repair by anyone not authorized by ViewSonic®.
    • Any damage of the product due to shipment.
    • Removal or installation of the product.
    • Causes external to the product, such as electric power fluctuations or failure.
    • Use of supplies or parts not meeting ViewSonic’s specifications.
    • Normal wear and tear.
    • Any other cause which does not relate to a product defect.
  • Removal, installation, and set-up service charges.

How to get service:

  1. For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Support” page). You will need to provide your product’s serial number.
  2. To obtain warranted service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
  3. Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®.
  4. For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

  1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
  2. Any other damages, whether incidental, consequential or otherwise.
  3. Any claim against the customer by any other party.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from local authority. Some local governments do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic® products sold outside of the U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer. The warranty period for this product in mainland China (Hong Kong, Macao, and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found at: ViewSonic EU under “Support/Warranty Information”.

Mexico Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

How long the warranty is effective:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase.

Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only.

All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty excludes and does not cover:

  • Any product on which the serial number has been defaced, modified or removed.
  • Damage, deterioration, or malfunction resulting from:
    • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
    • Any damage of the product due to shipment.
    • Causes external to the product, such as electrical power fluctuations or failure.
    • Use of supplies or parts not meeting ViewSonic®’s specifications.
    • Normal wear and tear.
    • Any other cause which does not relate to a product defect.
  • Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.
  • Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the attached “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

  • For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.
  • To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
  • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center.
  • Round trip transportation costs for in-warranty products will be paid by ViewSonic®.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

  • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
  • Any other damages, whether incidental, consequential or otherwise.
  • Any claim against the customer by any other party.
  • Repair or attempted repair by anyone not authorized by ViewSonic®.
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

Name, address, of manufacturer and importers:
México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
Col. San Fernando Huixquilucan, Estado de México
Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

Hermosillo:
Distribuciones y Servicios Computacionales SA de CV.
Calle Juarez 284 local 2
Col. Bugambilias C.P: 83140
Tel: 01-66-22-14-9005
E-Mail: disc2@hmo.megared.net.mx

Villahermosa:
Compumantenimietnos Garantizados, S.A. de C.V.
AV. GREGORIO MENDEZ #1504
COL, FLORIDA C.P. 86040
Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09
E-Mail: compumantenimientos@prodigy.net.mx

Puebla, Pue. (Matriz):
RENTA Y DATOS, S.A. DE C.V. Domicilio:
29 SUR 721 COL. LA PAZ
72160 PUEBLA, PUE.
Tel: 01(52).222.891.55.77 CON 10 LINEAS
E-Mail: datos@puebla.megared.net.mx

Veracruz, Ver.:
CONEXION Y DESARROLLO, S.A DE C.V. Av.
Americas # 419
ENTRE PINZÓN Y ALVARADO
Fracc. Reforma C.P. 91919
Tel: 01-22-91-00-31-67
E-Mail: gacosta@qplus.com.mx

Chihuahua:
Soluciones Globales en Computación
C. Magisterio # 3321 Col. Magisterial
Chihuahua, Chih.
Tel: 4136954
E-Mail: Cefeo@soluglobales.com

Cuernavaca:
Compusupport de Cuernavaca SA de CV
Francisco Leyva # 178 Col. Miguel Hidalgo
C.P. 62040, Cuernavaca Morelos
Tel: 01 777 3180579 / 01 777 3124014
E-Mail: aquevedo@compusupportcva.com

Distrito Federal:
QPLUS, S.A. de C.V.
Av. Coyoacán 931
Col. Del Valle 03100, México, D.F.
Tel: 01(52)55-50-00-27-35
E-Mail : gacosta@qplus.com.mx

Guadalajara, Jal.:
SERVICRECE, S.A. de C.V.
Av. Niños Héroes # 2281
Col. Arcos Sur, Sector Juárez
44170, Guadalajara, Jalisco
Tel: 01(52)33-36-15-15-43
E-Mail: mmiranda@servicrece.com

Guerrero Acapulco:
GS Computación (Grupo Sesicomp)
Progreso #6-A, Colo Centro
39300 Acapulco, Guerrero
Tel: 744-48-32627

Monterrey:
Global Product Services
Mar Caribe # 1987, Esquina con Golfo Pérsico
Fracc. Bernardo Reyes, CP 64280
Monterrey N.L. México
Tel: 8129-5103
E-Mail: aydeem@gps1.com.mx

MERIDA:
ELECTROSER
Av Reforma No. 403Gx39 y 41
Mérida, Yucatán, México CP97000
Tel: (52) 999-925-1916
E-Mail: rrrb@sureste.com

Oaxaca, Oax.:
CENTRO DE DISTRIBUCION Y
SERVICIO, S.A. de C.V.
Murguía # 708 P.A., Col. Centro, 68000, Oaxaca
Tel: 01(52)95-15-15-22-22
Fax: 01(52)95-15-13-67-00
E-Mail. gpotai2001@hotmail.com

Tijuana:
STD
Av Ferrocarril Sonora #3780 L-C
Col 20 de Noviembr
Tijuana, Mexico

FOR USA SUPPORT:
ViewSonic® Corporation
381 Brea Canyon Road, Walnut, CA. 91789 USA
Tel: 800-688-6688
http://www.viewsonic.com

Using the Projector Safely

Please read the following Safety Precautions before you start using the projector.

  • Keep this user guide in a safe place for later reference.
  • Read all warnings and follow all instructions.
  • Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.
  • Place the projector in a well-ventilated area. Do not place anything on the projector that prevents heat dissipation.
  • Do not place the projector on an uneven or unstable surface. The projector may fall over, causing personal injury or projector malfunction.
  • Do not use if the projector is tilted at an angle of more than 10° degrees left or right, nor at an angle of more than 15° degrees forwards or backwards.
  • Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.
  • Always open the lens shutter or remove the lens cap when the projector lamp is on.
  • Do not block the projection lens with any objects when the projector is under operation as this could cause objects to become heated and deformed or even cause a fire.
  • The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.
  • Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the rated life could cause them to break on rare occasions.
  • Never replace the lamp assembly or any electronic component unless the projector is unplugged.
  • Do not attempt to disassemble the projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.
  • When moving the projector, be careful not to drop or bump the projector on anything.
  • Do not place any heavy objects on the projector or connection cables.
  • Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing personal injury or projector malfunction.
  • Avoid exposing the projector to direct sunlight or other sources of sustained heat. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the projector to dangerous levels.
  • Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply and call your local service center to have the projector serviced.
  • When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal operation and not a defect.
  • Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide and third blade are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet.
  • When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.
  • Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the projector.
  • In some countries, the voltage is NOT stable. This projector is designed to operate safely within a voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector, or uninterruptable power supply (UPS).
  • If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector.
  • Use only attachments/accessories specified by the manufacturer.
  • Disconnect the power cord from the AC outlet if the projector is not being used for a long period of time.
  • Refer all servicing to qualified service personnel.

RG2 Warning.png

CAUTION: Possibly hazardous optical radiation is emitted from this product. As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015

Glossary of Terms

NOTE: Some terms may not be applicable to your device.

A

Aspect Ratio

Refers to the ratio of the image width to the image height.

B

Brightest Mode

Maximizes the brightness of the projected image. This mode is ideal for environments where extra-high brightness is required, such as using the projector in well lit rooms.

Brightness

Adjusts background black levels of the screen image.

C

CEC (Consumer Electronics Control)

Synchronizes power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the projector’s power will be turned on automatically.

Color

Adjusts the color saturation.

Color Temperature

Allows users to select specific color temperature settings to further customize their viewing experience.

Contrast

Adjusts the difference between the image background (black level) and the foreground (white level).

F

Focus

Manually improve the clarity of the projected image.

G

Gamma

Allows the user to manually select the greyscale curve of the projector.

H

HDMI

Audio/Video interface used to transmit video and audio via a single cable.

HDMI Range

Allows the user to select HDMI greyscale range between 0~255 (full range) , 16~240 (limited range) or Auto by the signal type detected.

HDR (High-Dynamic Range)

Keeps the brightness level and enhances details on the dark level.

High Altitude Mode

Optional mode for users who live in an environment between 1,500 m and 3,000 m above sea level, and the temperature is between 5° C and 25° C. Activating it will improve projector cooling and performance.

I

Information

Displays the timing mode (video signal input), the projector model number, the serial number, and the ViewSonic® website URL.

Input Select

Toggles between the various input options that are available for the projector.

K

Keystone

The distortion of an image caused by projecting it onto an angled surface.

L

Light Source Level

Use Normal or Eco mode to adjust the brightness level and power consumption.

M

Movie Mode

A Picture Mode appropriate for playing colorful movies, video clips from digital cameras, or DVs through the PC input. Best for a low light environment.

S

Sharpness

Adjusts the picture quality of the monitor.

Troubleshooting Common Problems

Problem or Issue Possible Solutions
The projector does not turn on
  • Ensure the power cord is properly attached to the projector and to the power outlet.
  • If the cooling process has not completed, please wait until it has finished then try to turn on the projector again.
  • If the above does not work, try another power outlet or another electrical device with the same power outlet.
  • Check that the battery has remaining power, or needs external power.
There is no picture
  • Ensure the video source cable is connected properly, and that the video source is turned on.
  • If the input source is not selected automatically, select the correct source with the Source key on either the projector or the remote control.
The image is blurry
  • Adjusting the Focus Ring will help correctly focus the projection lens.
  • Ensure the projector and screen are aligned properly. If necessary, adjust the height of the projector as well as the projection angle and direction.
The remote control does not work
  • Ensure there are no obstacles between the remote control and projector; and that they are within 8 m (26 ft) of each other.
  • The batteries may be out of power, please check and replace if necessary.
The projector/system is frozen and will not respond
  • Using a paper clip, carefully insert it into the Reset button at the rear of the projector to reset the device.

Maintaining the Projector

General Precautions

  • Make sure the projector is turned off and the power cable is unplugged from the power outlet.
  • Never remove any parts from the projector. Contact ViewSonic® or a reseller when any part of the projector needs replacing.
  • Never spray or pour any liquid directly onto the case.
  • Handle the projector with care, as a darker-colored projector, if scuffed, may show marks more clearly than a lighter-colored projector.

Cleaning the Lens

  • Use a canister of compressed air to remove dust.
  • If the lens is still not clean, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the surface.
CAUTION: Never rub the lens with abrasive materials.

Cleaning the Case

  • Use a soft, lint-free, dry cloth to remove dirt or dust.
  • If the case is still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.
CAUTION: Never use wax, alcohol, benzene, thinner, or other chemical detergents.

Storing the Projector

If you intend to store the projector for an extended period of time:

  • Ensure the temperature and humidity of the storage area are within the recommend range.
  • Retract the adjuster foot completely.
  • Remove the batteries from the remote control.
  • Pack the projector in its original packaging or equivalent.

Disclaimer

  • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector.
  • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
