    On-Screen Display (OSD) Menu Operation

    Use the On-Screen Display (OSD) Menu to adjust various settings.

    NOTE: The OSD Menu is only available when there is an input source (e.g., HDMI).
    LDP135-151 OSD Menu.png

    To open and operate the OSD Menu:

    1. Press the MENU button on the remote control.
    2. Press ▼/▲/◄/► on the remote control to select menu items or adjust values.
    3. Press OK to confirm your selection.
    4. Press the RETURN button to go back to the previous menu level.
    5. Press the MENU button to exit the OSD Menu.

    On-Screen Display (OSD) Menu Tree

    Sub-menu
    User
    TV
    Movie
    Presentation

    Sub-menu Menu Option
    Aspect Ratio Auto
    4:3
    16:9
    Native
    Brightness (-/+, 0~100)
    Contrast (-/+, 0~100)
    Tint (-/+, -50~50)
    Saturation (-/+, 0~100)
    Sharpness (-/+, 0~20)
    Gamma Dark
    Middle
    Bright
    Color Temp User
    Standard
    Cool
    Warm
    Reset

    Sub-menu Menu Option
    HDR Auto
    SDR
    EOTF Dark
    Middle
    Bright
    HDMI Setting Auto
    Full
    Limited

    Sub-menu Menu Option
    Audio Mode User
    Standard
    Vivid
    Sports
    Movie
    Music
    News
    Auto
    EQ_120Hz (-/+, 0~100)
    EQ_500Hz (-/+, 0~100)
    EQ_1.5KHz (-/+, 0~100)
    EQ_10KHz (-/+, 0~100)
    Reset
    Audio Volume (-/+, -50~50)
    Mute On
    Off

    Sub-menu Menu Option
    Off
    PIP Sub Picture on Top Left
    Sub Picture on Top Right
    Sub Picture on Bottom Left
    Sub Picture on Bottom Right
    PBP Windows x 2
    Windows x 3
    Windows x 4

    Sub-menu
    Source
    Resolution
    HDR

    On-Screen Display (OSD) Menu Options

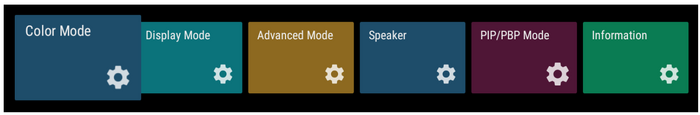

    Color Mode

    LDP135-151 Color Mode Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Color Mode menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Color Mode
    LDP135-151 Color Mode.png

    Standard
    For normal indoor ambient light intensity.

    User
    Custom user setting.

    TV
    Set the color temperature to 9300K.

    Movie
    Set the color temperature to 6500K.

    Presentation
    Set the color temperature to 7500K.

    Display Mode

    LDP135-151 Display Mode Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Display Mode menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Aspect Ratio The Aspect Ratio is the ratio of the image width to the image height.
    LDP135-151 Aspect Ratio 1.png

    LDP135-151 Aspect Ratio 2.png

    Auto
    Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither 4:3 nor 16:9 and you want to make the most use of the screen without altering the image’s aspect ratio.

    4:3
    Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration.

    16:9
    Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV.

    Native
    Default aspect ratio.

    Brightness The higher the value, the brighter the image. Lower values will result in a darker image.
    Contrast Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
    Tint The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.
    Saturation Refers to the amount of that color in a video picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
    Sharpness A high value results in a sharper picture; a low value softens the picture.
    Gamma Manually adjust the brightness level of the monitor’s grayscale levels.
    LDP135-151 Gamma 1.png

    LDP135-151 Gamma 2.png

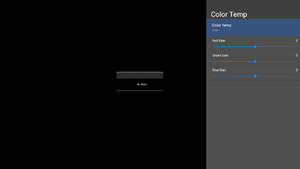

    Color Temp Manually adjust the red, green, and blue values.
    LDP135-151 Color Temp 1.png

    LDP135-151 Color Temp 2.png
    Reset Return the Display Mode settings to their default values.
    LDP135-151 Reset 1.png

    LDP135-151 Color Reset 2.png

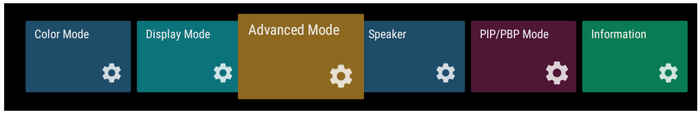

    Advanced Mode

    LDP135-151 Advanced Mode Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Advanced Mode menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description

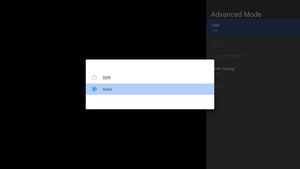

    HDR
    LDP135-151 Advanced HDR 1.png

    LDP135-151 Advanced HDR 2.png

    SDR
    Enable Standard Dynamic Range.

    Auto
    Automatically adjust to the input source.

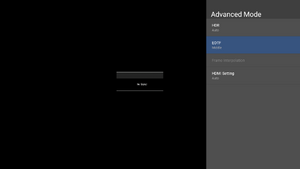

    EOTF Automatically adjusts the brightness levels of your image according to the input source. You can also manually select a brightness level to display better picture quality.
    LDP135-151 Advanced EOTF.png
    HDMI Setting

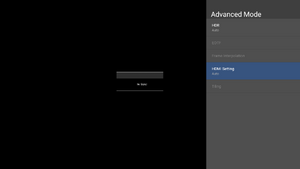

    LDP135-151 Advanced HDMI Setting.png

    Auto
    Sets the display to detect the range of the input signal automatically.

    Full
    Sets the color range from 0~255.

    Limited
    Sets the color range from 15~255.

    Speaker

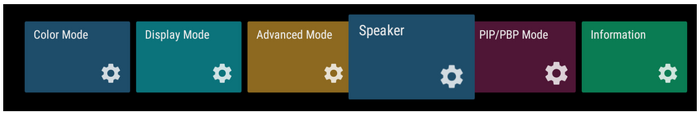

    LDP135-151 Speaker Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Speaker menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Audio Mode
    LDP135-151 Speaker Audio Mode.png

    Music
    Vibrant treble and stronger bass.

    Movie
    Enhance the sense of space.

    User
    Customize the audio equalizer.

    Reset Return the Speaker settings to their default values.
    LDP135-151 Speaker Reset.png
    Audio Volume Adjust the volume level.
    Mute Toggle ON to turn off the speaker.
    LDP135-151 Speaker Mute.png

    PIP/PBP Mode

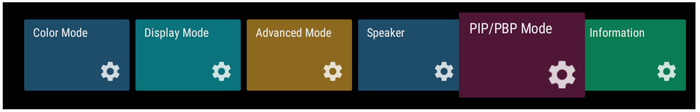

    LDP135-151 PIP PBP Mode Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the PIP/PBP Mode menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-men.
    Menu Option Description
    PIP/PBP Setup

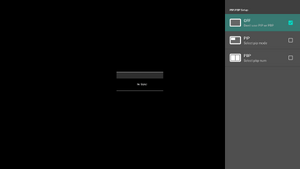

    LDP135-151 PIP PBP Setup 1.png

    Off
    Disable the PIP/PBP feature.

    PIP

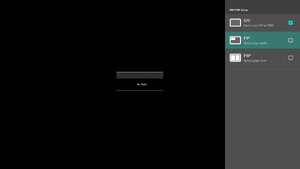

    Split the screen into two parts, a main window and an inset window. User can specify the input source for each screen.

    LDP135-151 PIP PBP Setup 2.png

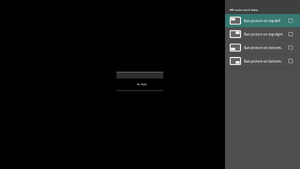

    LDP135-151 PIP PBP Setup 3.png

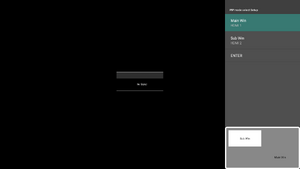

    LDP135-151 PIP PBP Setup 4.png

    PBP
    Display up to four (4) windows on screen at the same time.

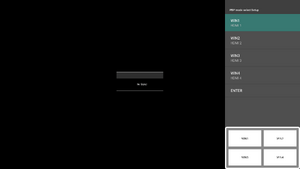

    LDP135-151 PIP PBP Setup 5.png

    LDP135-151 PIP PBP Setup 6.png

    Information

    LDP135-151 Information Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Information menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    Menu Option Description
    Information View Input Source, Resolution, and HDR information.
    LDP135-151 Information.png
