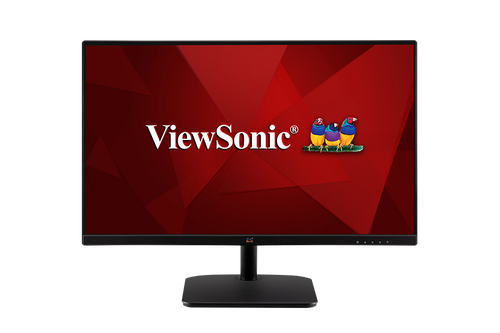

VA2432-h Specifications

Technical Specifications

Model No.	P/N
VS17789	VA2432-H

Item	Category	Specifications
LCD	Type	IPS, Color a-Si TFT, Active Matrix 1920 x 1080 LCD; 0.2715 mm x 0.2715 mm pixel pitch
	Display Size	59.94 cm (23.6" viewable)
	Color Filter	RGB vertical stripe
	Glass Surface	Anti-Glare (Haze 25%), Hard coating (3H)
Input Signal	Video Sync	Analog: D-SUB: fh:24-86 kHz, fv:50-75 Hz TMDS digital (100 Ω) HDMI (v. 1.4): fh:24-86 kHz, fv:50-75 Hz
Compatibility	PC	up to 1920 x 1080
	Macintosh	up to 1920 x 1080
	Recommended	1920 x 1080 @ 60Hz
Resolution^[1]	Supported	1920 x 1080 @ 50, 60, 75Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60, 75Hz 1440 x 576 @ 50Hz 1400 x 1050 @ 60, 75Hz 1366 x 768 @ 60Hz 1360 x 768 @ 60Hz 1280 x 1024 @ 50, 60, 75Hz 1280 x 960 @ 50, 60, 75Hz 1280 x 800 @ 60, 75Hz 1280 x 768 @ 50, 60, 75Hz 1280 x 720 @ 50, 60Hz 1152 x 900 @ 66Hz 1152 x 870 @ 75Hz 1152 x 864 @ 60, 75Hz 1024 x 768 @ 50, 60, 70, 72, 75Hz 1024 x 600 @ 60Hz 848 x 480 @ 60Hz 832 x 624 @ 75Hz 800 x 600 @ 56, 60, 72, 75Hz 720 x 576 @ 50Hz 720 x 480 @ 60Hz 720 x 400 @ 70Hz 640 x 480 @ 50, 60, 66, 72, 75Hz 640 x 400 @ 60, 70Hz 640 x 350 @ 70Hz
Power Adapter^[2]	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	521.28 x 293.22 mm (20.54” x 11.54”)
Operating Conditons	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	20% to 90% (non-condensing)
	Altitude	16,404 feet (4.9 km)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	5% to 90% (non-condensing)
	Altitude	40, 000 feet (12.1 km)
Dimensions	Physical (W x H x D)	534.4 x 419.1 x 188.9 mm (21” x 16.5” x 7.4”)
Wall Mount	Dimensions	100 x 100 mm
Weight	Physical	2.54 kg (5.6 lbs)
Power Saving Modes	On^[3]	19W (Typical)
Power Saving Modes	Off	≤ 0.3W

↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
↑ Please use the power adapter from ViewSonic® or an authorized source only.
↑ The test condition follows EEI standards.

[1] Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.

[2] Please use the power adapter from ViewSonic® or an authorized source only.

[3] The test condition follows EEI standards.
