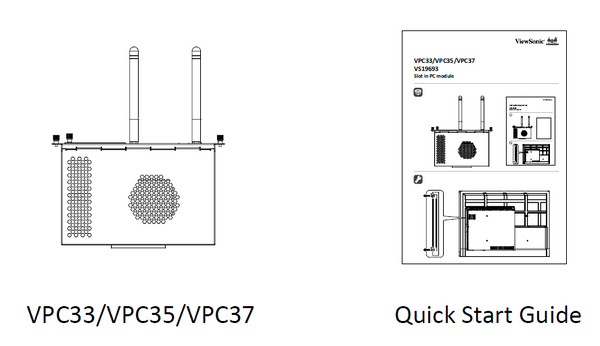

Package Contents

Please take a moment to check if all the necessary items are included in the package. If anything is missing or damaged, please contact your dealer immediately.

Product Overview

Number Item Description
1 Antenna Wi-Fi antenna interface
2 RJ45 Standard RJ45 (10M/100M/1G) internet connection port
NOTE: This network port is only used for PC.
3 USB 1 USB 3.0 port
4 USB 2 USB 3.0 port
5 USB 3 USB 3.0 port
6
Handle
7
Security Lock
8 Antenna 2.4G antenna interface
9 Antenna Wi-Fi antenna interface
10
Power button
11 Status LED Status indicator light (Green)
12 Power LED Power indicator light (Red)
