VG2408 Adjusting the Viewing Angle

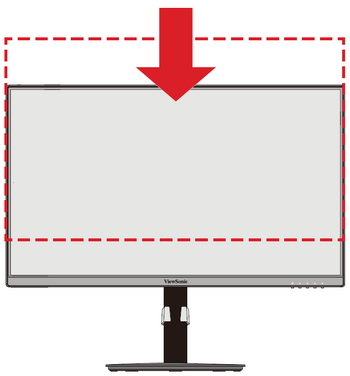

Height Adjustment

Lower or raise the monitor to the desired height (0 to 130 mm).

Note: When adjusting, press down firmly along the adjustment track.

Adjust the monitor height to the highest position. Then tilt the monitor backwards to the full tilt position.

Rotate the monitor 90° clockwise or counterclockwise from landscape to portrait orientation.

Note:

To rotate the screen image, manually change the system’s display orientation settings.
When adjusting, make sure to hold both sides of your monitor firmly with both hands.

Swivel the monitor to the left or right for the desired viewing angle (360˚).

Tilt the monitor forwards or backwards to the desired viewing angle (-3.5° to 28°).

Note: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.

@@ Line 33: / Line 33: @@
 =Tilt Angle Adjustment=
 Tilt the monitor forwards or backwards to the desired viewing angle (-3.5° to 28°).
-<div class="res-img">[[File:VG2408_Angle_Adjust_Tilt.png|300px|Tilt Angle Adjustment]]</div>
+<div class="res-img">[[File:VG2408_Angle_Adjust_Tilt.png|250px|Tilt Angle Adjustment]]</div>
 {{Note|When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.}}
