VX4381-4K

Package Contents

• Monitor
• Power cord
• Video cable
• Quick start guide

Front View / Rear View / Side View

Front and Side View	Rear View

Letter	Item
A	Display Screen
B	Security Slot
C	Joy Key
D	Control Panel Keys

I/O Ports

Rear I/O

Number	Item
1	AC IN
2	Audio Out
3	HDMI
4	Mini DP
5	DisplayPort In
6	DisplayPort Out

Side I/O

Number	Item
1	USB Downstream
2	USB Upstream

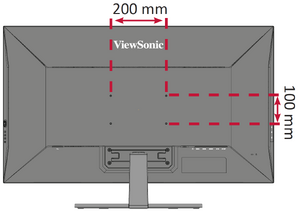

Wall Mounting

Refer to the table below for the standard dimensions for wall mount kits.

For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.

Maximum Loading	Hole Pattern (W x H)	Interface Pad (W x H x D)	Pad Hole	Screw Specification & Quantity
14 kg	200 x 100 mm	115 x 115 x 2.6 mm	Ø 5 mm	M4 x 10 mm - 4 pieces

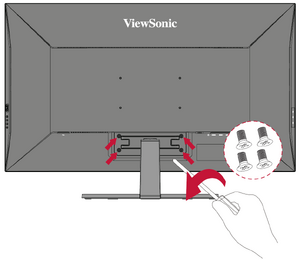

1. Turn off the device and disconnect all cables.
2. Place the device on a flat, stable surface with the screen facing down.
3. Remove the stand.



4. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).



5. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.

Using the Security Slot

To help prevent the device from being stolen, use a security slot locking device to secure the device to a fixed object.

Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

Below is an example of setting up a security slot locking device on a table.

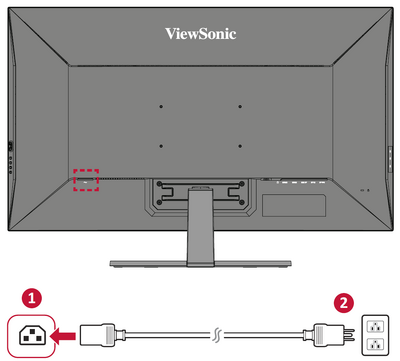

Connecting to Power

1. Connect the power cord to the AC IN jack at the rear of the device.
2. Connect the power cord plug to a power outlet.

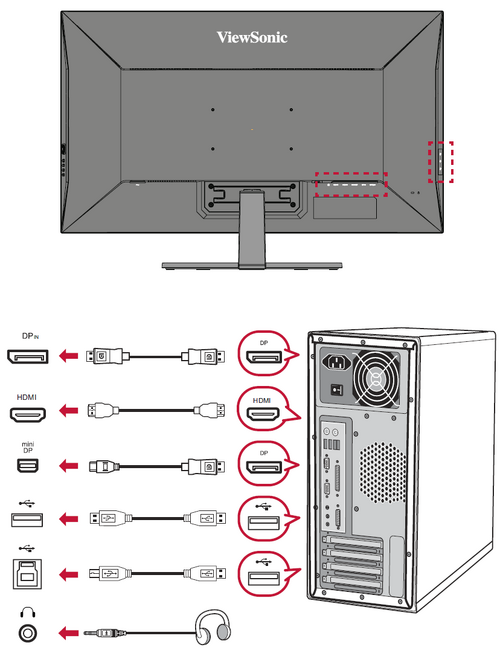

Connecting External Devices

Note: To connect the monitor to an external device (PC, laptop…etc.), please use one of the included video cables for your application and connect it to both terminals.

DisplayPort MST Daisy Chain Connection

With DisplayPort Multi-Stream Transport (MST) support, you can daisy chain connect up to four (4) monitors.

1. Connect one end of a DisplayPort cable to the DisplayPort Out port of your computer. Then connect the other end of the cable to the DisplayPort In port of the monitor.
2. Use another DisplayPort cable to connect to the DisplayPort Out port of the first monitor. Then connect the other end of the cable to the DisplayPort In port of the second monitor.
3. Repeat Step 2 as needed with up to four (4) monitors.

NOTE: Your graphics card compatibility and monitor resolution will determine the number of monitors.

NOTE:

• DisplayPort 1.2 MST must be turned on in the Setup Menu in the OSD Menu to enable daisy chaining.
• If the input source changes to HDMI, DisplayPort 1.2 MST will turn off automatically.

Tilt Angle Adjustment

Angle Adjustment

Tilt the monitor backwards to the desired viewing angle via the attached stand (-5˚ to 23˚).

NOTE: When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand.

Using the Control Panel Keys

Use the control panel keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

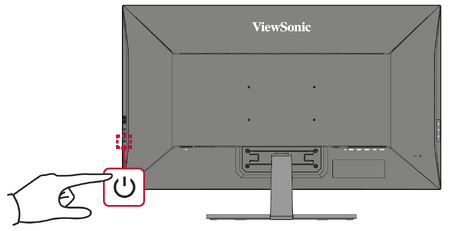

Turning the Device On/Off

1. Plug the power cord into a power outlet.
2. Press the Power button to turn on the monitor.
3. To turn the monitor off, press and hold the Power button.

Quick Menu

Press the Joy Key to activate the Quick Menu.

NOTE: Follow the key guide that appears on the screen to select the option or make adjustments.

Icon	Menu	Description
	Game Mode	Select one of the preset color settings.
	Contrast/Brightness	Adjust the contrast or brightness level.
	Audio Adjust	Adjust the volume level.
	Main Menu	Enter the On-Screen Display Menu.
	Exit	Exit the Quick Menu.

Shortcut Menu

Press any of the three shortcut keys to access their menu.

Icon	Menu	Description
	Input Select	Select the input source.
	ViewMode	Select one of the preset color settings.
	Multi-Picture	Select from PBP, PIP, or Quad Windows.

Hot Keys

When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the control panel keys.

Key	Description
[◄]	Press and hold the key for 5 seconds to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding the key for 10 seconds to lock/unlock the OSD Menu.
[►]	Press and hold the key for 5 seconds to lock/unlock the Power button. When the menu appears on the screen, continue holding the key for 10 seconds to lock/unlock the Power button.
[▲]	Press and hold the key for 5 seconds to display/hide the boot up screen when the device is turned on.

General Operation

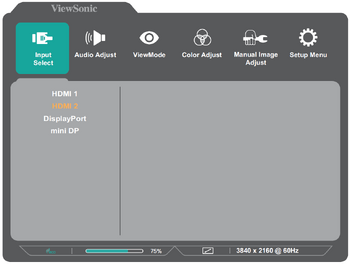

1. Press/move the Joy Key to activate the Quick Menu, then press the Joy Key to display the On-Screen Display (OSD) Menu.

2. Move the joy key [◄] or [►] to select the main menu. Then move the joy key [▼] to enter the selected menu.

3. Move the joy key [▲] or [▼] to select the desired menu option. Then move the joy key [►] to enter the sub-menu.

4. Move the joy key [▲] or [▼] to adjust/select the setting. Then press the Joy Key to confirm.

NOTE: Follow the key guide to select the option or make adjustments.

OSD Tree

Input Select

Sub-menu	Menu Option
HDMI 1
HDMI 2
DisplayPort
mini DP

Audio Adjust

Sub-menu	Menu Option
Volume	(-/+, 0~100)
Mute	On
	Off
Audio Output	HDMI 1
	HDMI 2
	DisplayPort
	mini DP

ViewMode

Sub-menu	Menu Option
Standard	Black Stabilization	(-/+, 0/10/20/30/40/50/60/70/80/90/100)
	Advanced DCR	(-/+, 0/25/50/75/100)
	Blue Light Filter	(-/+, 0~100)
	Response Time	Standard
		Advanced
		Ultra Fast
	Hue	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
		Cyan	(-/+, 0~100)
		Magenta	(-/+, 0~100)
		Yellow	(-/+, 0~100)
	Saturation	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
		Cyan	(-/+, 0~100)
		Magenta	(-/+, 0~100)
		Yellow	(-/+, 0~100)
	Recall
Game	Custom 1/2/3	Black Stabilization	(-/+, 0/10/20/30/40/50/60/70/80/90/100)
		Advanced DCR	(-/+, 0/25/50/75/100)
		Blue Light Filter	(-/+, 0~100)
		Response Time	Standard
			Advanced
			Ultra Fast
		Hue	Red	(-/+, 0~100)
			Green	(-/+, 0~100)
			Blue	(-/+, 0~100)
			Cyan	(-/+, 0~100)
			Magenta	(-/+, 0~100)
			Yellow	(-/+, 0~100)
		Saturation	Red	(-/+, 0~100)
			Green	(-/+, 0~100)
			Blue	(-/+, 0~100)
			Cyan	(-/+, 0~100)
			Magenta	(-/+, 0~100)
			Yellow	(-/+, 0~100)
		Rename
		Recall
	FPS 1
	FPS 2
	RTS
	MOBA
Movie
Web
Text
MAC
Mono

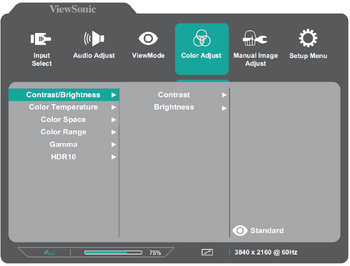

Color Adjust

Sub-menu	Menu Option
Contrast/Brightness	Contrast	(-/+, 0~100)
	Brightness	(-/+, 0~100)
Color Temperature	sRGB
	Bluish
	Cool
	Native
	Warm
	User Color	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
Color Space	Auto
	RGB
	YUV
Color Range	Auto
	Full Range
	Limited Range
Gamma	1.8
	2.2
	2.6
HDR10	On
	Off

Manual Image Adjust

Sub-menu	Menu Option
Sharpness	(-/+, 0/25/50/75/100)
Aspect Ratio	1:1
	4:3
	Fill Aspect Ratio
	Full Screen
Overscan	On
	Off

Setup Menu

Sub-menu	Menu Option
Language Select	English
	Français
	Deutsch
	Español
	Italiano
	Suomi
	Svenska
	Русский
	Türkçe
	Česká
	日本語
	한국어
	繁體中文
	简体中文
Resolution Notice	On
	Off
Information
OSD Timeout	(-/+, 5/15/30/60)
OSD Background	On
	Off
Power Indicator	On
	Off
Auto Power Off	On
	Off
Sleep	30 minutes
	45 minutes
	60 minutes
	120 minutes
	Off
ECO Mode	Standard
	Optimize
	Conserve
DisplayPort 1.1	On
	Off
Auto Detect	On
	Off
DDC/CI	On
	Off
Multi-Picture	PBP Top-Bottom	Top Source Select	HDMI 1
			HDMI 2
			DisplayPort
			mini DP
		Bottom Source Select	HDMI 1
			HDMI 2
			DisplayPort
			mini DP
		Swap
	PBP Left-Right	Left Source Select	HDMI 1
			HDMI 2
			DisplayPort
			mini DP
		Right Source Select	HDMI 1
			HDMI 2
			DisplayPort
			mini DP
		Swap
	PIP	PIP Source Select	HDMI 1
			HDMI 2
			DisplayPort
			mini DP
		PIP Postion	PIP H. Position
			PIP V. Position
		PIP Size	(-/+, 0~100)
		PIP Swap
	Quad Windows	Top-Left	HDMI 1
			HDMI 2
			DisplayPort
			mini DP
		Top-Right	HDMI 1
			HDMI 2
			DisplayPort
			mini DP
		Bottom-Left	HDMI 1
			HDMI 2
			DisplayPort
			mini DP
		Bottom-Right	HDMI 1
			HDMI 2
			DisplayPort
			mini DP
	Standby Charger	Off
		On
	Auto Detect	Off
		On
	Memory Recall

Technical Specifications

Model No.	P/N
VS18552	VX4381-4K

Item	Category	Specifications
LCD	Type	Color a-Si TFT Active Matrix 3840 x 2160 LCD; 0.2451 (H)mm x 0.2451 (V)mm pixel pitch
	Display Size	109.2 cm, 43"
	Color Filter	RGB vertical stripe
	Glass Surface	Anti-Glare (Haze 2%), Hard coating (3H)
Input Signal	Video Sync	TMDS digital (100 Ω) HDMI (v. 2.0): fh:24-160 kHz, fv:50-75 Hz DisplayPort (v. 1.4): fh:24-160 kHz, fv:50-75 Hz
Compatibility	PC	up to 3840 x 2160
	Macintosh	up to 3840 x 2160
	Recommended	3840 x 2160 @ 60Hz
Resolution	Supported	4096 x 2160 @ 50, 60Hz 3840 x 2160 @ 60Hz 3840 x 1080 @ 60Hz 2880 x 576 @ 50Hz 2880 x 576i @ 50Hz 2880 x 480 @ 60Hz 2880 x 480i @ 60Hz 2880 x 288 @ 50Hz 2880 x 240 @ 60Hz 2560 x 1600 @ 60, 75Hz 2560 x 1440 @ 60Hz 1920 x 2160 @ 60Hz 1920 x 1440 @ 60, 75Hz 1920 x 1200 @ 60Hz 1920 x 1080 @ 50, 60Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60, 75Hz 1400 x 1050 @ 60Hz 1366 x 768 @ 60Hz 1360 x 768 @ 60Hz 1280 x 1024 @ 60, 75Hz 1280 x 960 @ 60, 75Hz 1280 x 800 @ 60, 75Hz 1280 x 768 @ 60, 75Hz 1280 x 720 @ 50, 60Hz 1152 x 900 @ 66Hz 1152 x 870 @ 75Hz 1152 x 864 @ 75Hz 1024 x 768 @ 60, 70, 72, 75Hz 832 x 624 @ 75Hz 800 x 600 @ 56, 60, 72, 75Hz 720 x 576 @ 50Hz 720 x 400 @ 60, 70Hz 640 x 480 @ 50, 60, 67, 72, 75Hz 640 x 400 @ 60, 70Hz
Power Adapter	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	941.18 x 529.42 mm (37” x 20.8”)
Operating Conditons	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	20% to 90% (non-condensing)
	Altitude	16,404 feet (5 km)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	5% to 90% (non-condensing)
	Altitude	40, 000 feet (12.1 km)
Dimensions	Physical (W x H x D)	977.3 x 659.51 x 345.48 mm (38.48” x 25.96” x 13.6”)
Wall Mount	Dimensions	200 x 100 mm
Weight	Physical	16.99 kg (37.46 lbs)
Power Saving Modes	On	91W w/o audio (Typical) 102W w/ audio (Typical)
	Off	≤ 0.3W

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES-003 (B)/NMB-003(B)

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

• Copper alloy containing up to 4% lead by weight.
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
• Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada
https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program

Europe
http://www.viewsoniceurope.com/eu/support/call-desk/

Taiwan
https://recycle.epa.gov.tw/

Copyright Information

Copyright© ViewSonic® Corporation, 2021. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

VX4381-4K_UG_ENG_1a_2021-04-14

---
