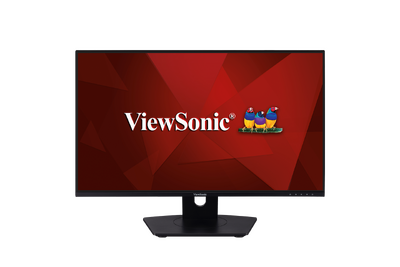

VX2480-2K-shd Specifications

From ViewSonic User Guide Database
Jump to navigation Jump to search
Backtotop.svg


Technical Specifications

Model No. P/N
VS18597 VX2480-2K-SHD
Item Category Specifications
LCD Type IPS, Color a-Si TFT Active Matrix 2560 x 1440 LCD;

0.2058 (H)mm x 0.2058 (V)mm pixel pitch

Display Size 60.4 cm, 23.8" real diagonal
Color Filter RGB vertical stripe
Glass Surface Anti-Glare (Haze 25%), Hard coating (3H)
Input Signal Video Sync TMDS digital (100 Ω)
HDMI (v. 1.4): fh:24-113 kHz, fv:50-75 Hz
DisplayPort (v. 1.2): fh:24-113 kHz, fv:50-75 Hz
Compatibility PC up to 2560 x 1440
Macintosh up to 2560 x 1440
Recommended 2560 x 1440 @ 75Hz
Resolution[1] Supported
  • 2560 x 1440 @ 60, 75Hz
  • 2560 x 1080 @ 60Hz
  • 2048 x 1152 @ 60Hz
  • 1920 x 1440 @ 50, 60, 75Hz
  • 1920 x 1200 @ 60, 75Hz
  • 1920 x 1080 @ 24, 30, 50, 60, 75Hz
  • 1680 x 1050 @ 60Hz
  • 1600 x 1200 @ 60Hz
  • 1600 x 900 @ 60Hz
  • 1440 x 900 @ 60, 75Hz
  • 1400 x 1050 @ 60Hz
  • 1360 x 768 @ 60Hz
  • 1280 x 1024 @ 60, 75Hz
  • 1280 x 960 @ 60, 75Hz
  • 1280 x 800 @ 60, 75Hz
  • 1280 x 768 @ 60, 75Hz
  • 1280 x 720 @ 60Hz
  • 1152 x 900 @ 66Hz
  • 1152 x 870 @ 75Hz
  • 1152 x 864 @ 60, 75Hz
  • 1024 x 768 @ 50, 60, 70, 72, 75Hz
  • 832 x 624 @ 75Hz
  • 800 x 600 @ 56, 60, 72, 75Hz
  • 720 x 480 @ 60Hz
  • 720 x 400 @ 70Hz
  • 640 x 480 @ 60, 67, 72, 75Hz
  • 640 x 400 @ 60, 70Hz
  • 640 x 350 @ 70Hz
Power Adapter[2] Input Voltage AC 100-240V, 50/60Hz (auto switch)
Display Area Full Scan (H x V) 526.848 x 296.352 mm

(20.74” x 11.67”)

Operating Conditons Temperature 0° C to 40° C (32° F to 104° F)
Humidity 20% to 90% (non-condensing)
Altitude 16,404 feet (5 km)
Storage Conditions Temperature -20° C to 60° C (-4° F to 140° F)
Humidity 5% to 90% (non-condensing)
Altitude 40, 000 feet (12.1 km)
Dimensions Physical

(W x H x D)

539.2 x 400.6 x 175 mm

(21.2” x 15.8” x 6.9”)

Wall Mount Dimensions 100 x 100 mm
Weight Physical 4.03 kg (8.88 lbs)
Power Saving Modes On 24W (Typical)
Off ≤ 0.3W
  1. Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
  2. Please use the power adapter from ViewSonic® or an authorized source only.
