Introduction

Package Contents

  • Portable display
  • USB Type C to USB Type C cable
  • USB Type C to USB Type A cable
  • Mini HDMI to HDMI cable
  • Quick start guide
Note: The cables included in your package may vary depending on your country or region. Please contact your local reseller for more information.

Product Overview

Front and Left Side View

Front of the monitor, with its left side shown in profile.

  1. I/O Ports

Rear and Right Side View

Rear of the monitor with the stand folded flat, and its right side in profile, with callouts for the Power LED, Joy Key, and stand.

  1. Power Indicator
  2. Joy Key
  3. Stand

I/O Ports

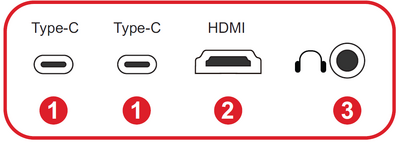

I/O ports numbered 1 to 3: two USB Type C ports, Mini HDMI, and Audio Out.
The I/O ports of the monitor.
# Description
1 USB Type C
2 Mini HDMI
3 Audio Out

Initial Setup

Using the Stand

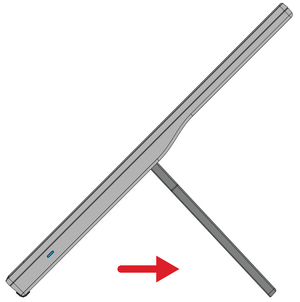

Side view of the monitor with its kickstand pulled out, standing on a flat surface.
Note: Always place the monitor on a flat, stable surface. Failure to do so may cause the monitor to fall and damage it, or result in personal injury.

Making Connections

Connecting to Power

The monitor can be powered in any of the following configurations:

USB Type C

A laptop connected to the monitor with a USB Type C cable (the power output must be greater than 15W).

USB Type A

A laptop connected to the monitor with a USB Type A to USB Type C cable (the power output must be greater than 15W).

Power Adapter

A power adapter plugged into a power outlet and connected to the monitor with a USB Type C cable.
Note: For more information, please see Power Delivery.

Connecting to External Devices

Your external device(s) can be connected in any of the following configurations:

USB Type C Connection

Connect a USB Type C cable from your external device to a Type C port on the monitor.

A laptop, phone, or tablet connected to the monitor with a USB Type C cable (the power output must be greater than 15W).

Mini HDMI Connection

  1. Connect an HDMI cable from your external device to the mini HDMI port on the monitor.
  2. Connect the USB Type A to USB Type C cable from your external device to the monitor.
A laptop connected to the monitor with an HDMI to mini HDMI cable, and a USB Type A to USB Type C cable for power (the power output must be greater than 15W).
Note: The USB Type A to USB Type C connection will also supply power to the monitor from the notebook. The power output must be greater than 15W.

Audio Connection

Plug the audio jack of an audio device into the Audio Out port of the monitor.

Headphones or speakers connected to the Audio Out port of the monitor with an audio cable.

Power Delivery

Powering a Laptop or Mobile Phone

If a power adapter is connected to the monitor, then the monitor can charge a connected laptop or mobile phone.

Note:
  • Power Delivery Output: DC 5V/9V/12V/15V/20V/Max 3A.
  • A power adapter is not included with the VX1754, and is only required for charging a connected laptop or mobile phone.
  • When charging a laptop or mobile phone, please use a power adapter with a minimum output of 45W.
A power adapter connected to one Type C port of the monitor, and a laptop, phone, or tablet connected to the other Type C port with a USB Type C or USB Type A cable to be charged.

Power Supply Detection

This product will detect if the power supply device is an adapter, laptop or mobile phone.

  • If the power source is an adapter or laptop, the default brightness value will be 100.
  • If the power source is a mobile phone, the default brightness value will be 15.
  • When using a mobile phone to power the monitor, the default brightness level will be 15.
    Note: Due to the limited power output of the mobile phone, do not adjust the brightness level higher as this may cause the display to flash or shut down.

Power Delivery - Further Information

Due to the VX1754’s design please note:

  • The first connected device will be the main input signal.
  • When a Type C port recognizes an external device as a power adapter, it will only distribute the power. It will NOT display the input signal.
  • Only when one of the Type C ports is recognized as a power adapter can the other one deliver two-way power.

If a laptop is connected first to the VX1754, then a mobile phone is connected second, the mobile phone’s battery will not be charged as neither Type C port recognizes the connection as being connected to a power adapter.

Note: If you want to display the mobile phone’s screen, you must unplug the Type C cable connected to the laptop.

If a mobile phone is connected first to the VX1754, then a laptop is connected second, the mobile phone’s battery will be charged as one of the Type C ports is recognized as being connected to a power adapter.

Note: If you want to display the laptop screen, you must unplug the Type C cable connected to the mobile phone.

Due to the VX1754’s design, do not connect two laptops or one laptop and a desktop computer at the same time. This can cause power distribution conflicts, resulting in flashing screens or the forced shutdown of the laptop(s).

Note:
  • If the laptop has a USB Type C port, please connect via USB Type C to the VX1754.
  • Do not connect the other Type C port of the VX1754 to another laptop or desktop computer via USB Type A and HDMI at the same time.
  • If the laptop only has HDMI and USB Type A ports, please connect via HDMI and USB Type A to USB Type C to the VX1754.
  • If the power output of the USB Type A port of the laptop is not greater than 15W, please use our power adapter to connect to the VX1754.
  • Do not connect the other Type C port of the VX1754 to another laptop or desktop computer at the same time.

Using the Monitor

Adjusting the Viewing Angle

Tilt Angle Adjustment

Tilt the monitor backwards to the desired viewing angle via the attached stand (20° to 60°).

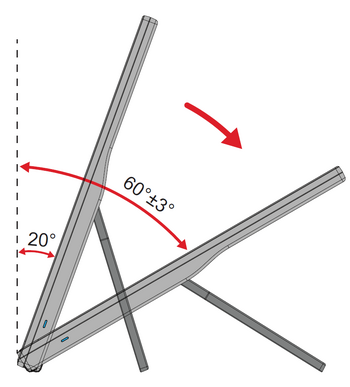

Side view of the monitor on its kickstand, tilting back from 20 degrees to 60 degrees (±3 degrees).
Note: When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand.

Turning the Monitor On/Off

  1. Connect to a power source in one of the available configurations. For more information, see Connecting to Power.
  2. Press the Joy Key to turn on the monitor.
  3. To turn the monitor off, press and hold the Joy Key for three seconds.
Rear of the monitor with the Joy Key highlighted, and a finger pressing the power symbol.
Note: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect from the power outlet.

Using the Joy Key

Use the Joy Key to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change settings.

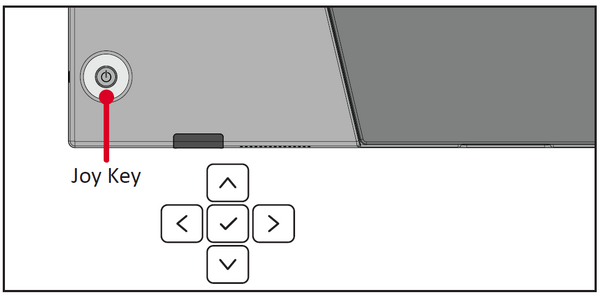

Close-up of the Joy Key on the rear of the monitor, with its up, down, left, right, and press directions.

Quick Menu

Move the Joy Key up, down, left, or right to activate the Quick Menu.

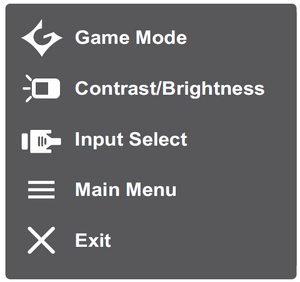

The Quick Menu listing Game Mode, Contrast/Brightness, Input Select, Main Menu, and Exit, with the on-screen key guide.
Note: Follow the key guide that appears on the screen to select the option or make adjustments.
Quick Menu options.
Menu Description
Game Mode Select one of the preset color settings.
Contrast/Brightness Adjust the contrast or brightness level.
Input Select Select the input source.
Main Menu Enter the On-Screen Display (OSD) Menu.
Exit Exit the Quick Menu.

Configuring the Settings

General Operations

On-Screen Display Menu open, showing the main menu list.

Move the Joy Key up, down, left, or right to display the Quick Menu. Then press the Joy Key to display the On-Screen Display (OSD) Menu.

On-Screen Display Menu with a main menu selected and its options shown.

Move the Joy Key left or right to select the main menu. Then press the Joy Key to enter the selected menu.

On-Screen Display Menu with a menu option selected and its sub-menu open.

Move the Joy Key up or down to select the desired menu option. Then press the Joy Key to enter the sub-menu.

On-Screen Display Menu with a setting being adjusted in the sub-menu.

Move the Joy Key up or down to adjust/select the setting. Then press the Joy Key to confirm. Or move the Joy Key left or right to make adjustments.
Note:
  • Certain menu option adjustments do not require the user to press the Joy Key to confirm the selection. Follow the key guide to select the option or make adjustments.
  • Follow the key guide to return to the previous screen.

On-Screen Display (OSD) Menu Tree

Input Select

Input Select menu options.
Menu Option
HDMI · Type C

Audio Adjust

Audio Adjust menu options.
Sub-menu Menu Option
Volume 0–100/1
Mute On · Off

ViewMode

ViewMode menu options.
Sub-menu Menu Option
Standard —
Game FPS · RTS · MOBA
Custom Black Stabilization 0–100/1
Advanced DCR 0–100/25
Response Time Standard · Advanced · Ultra Fast
Recall —
Movie —
Web —
Text —
Mac —
Mono —

Color Adjust

Color Adjust menu options.
Sub-menu Menu Option
Contrast/Brightness Contrast 0–100/1
Brightness 0–100/1
Color Temperature sRGB · Bluish · Cool · Native · Warm
User Color Red 0–100/1
Green 0–100/1
Blue 0–100/1
Color Space Auto · RGB · YUV
Color Range Auto · Full Range · Limited Range
Gamma 1.8 · 2.2 · 2.6

Manual Image Adjust

Manual Image Adjust menu options.
Sub-menu Menu Option
Sharpness 0–100/25
Aspect Ratio 1:1 · 4:3 · Fill Aspect Ratio · Full Screen
Overscan On · Off
Black Stabilization 0–100/1
Advanced DCR 0–100/25
Response Time Standard · Advanced · Ultra Fast

Setup Menu

Setup Menu options.
Sub-menu Menu Option
Language English · Français · Deutsch · Español · Italiano · Suomi · Русский · Türkçe · 日本語 · 한국어 · 繁體中文 · 简体中文 · Česká · Svenska · Tiếng Việt
AMD FreeSync On · Off
Resolution Notice On · Off
Information —
OSD Timeout 5 · 15 · 30 · 60
OSD Background On · Off
Power Indicator On · Off
Auto Power Off On · Off
Sleep 30 minutes · 45 minutes · 60 minutes · 120 minutes · Off
ECO Mode Standard · Optimize · Conserve
Auto Detect On · Off
DDC/CI On · Off
Memory Recall —
Note: Memory Recall is the default display configuration and settings, and it’s the setting required for ENERGY STAR® qualification. Modifying these default settings can increase energy consumption beyond the ENERGY STAR® limits. ENERGY STAR® is a program jointly administered by the U.S. Environmental Protection Agency (EPA) and the U.S. Department of Energy, which promotes energy-efficient products and practices to help save money and protect the environment.
ENERGY STAR logo.

Appendix

Specifications

The monitor's technical specifications.
Category Specification Value
Display Type ADS type, Color a-Si TFT, Active Matrix 1920 × 1080 LCD; 0.1989 (H) mm × 0.1989 (V) mm pixel pitch
Display Size 44 cm / 17.3 in. (viewable)
Color Filter RGB Vertical Stripe
Glass Surface Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal Frequency Mini HDMI fh: 24–165 kHz;
fv: 48–144 Hz
USB Type C fh: 165–165 kHz;
fv: 48–144 Hz
Version Mini HDMI 1.4
USB Type C DP 1.2
Compatibility PC up to 1920 × 1080
Macintosh up to 1920 × 1080
Resolution and Timings[1] Preset 1920 × 1080 @ 144 Hz
Supported
  • 1920 × 1080 @ 24, 25, 30, 50, 60, 100, 120, 144 Hz
  • 1680 × 1050 @ 60 Hz
  • 1600 × 1200 @ 60 Hz
  • 1600 × 900 @ 60 Hz
  • 1440 × 900 @ 60, 75 Hz
  • 1400 × 1050 @ 60, 75 Hz
  • 1366 × 768 @ 60 Hz
  • 1360 × 768 @ 60 Hz
  • 1280 × 1024 @ 50, 60, 75 Hz
  • 1280 × 960 @ 50, 60, 75 Hz
  • 1280 × 800 @ 60, 75 Hz
  • 1280 × 768 @ 50, 60, 75 Hz
  • 1280 × 720 @ 60 Hz
  • 1152 × 900 @ 66 Hz
  • 1152 × 870 @ 75 Hz
  • 1152 × 864 @ 60, 75 Hz
  • 1024 × 768 @ 50, 60, 70, 72, 75 Hz
  • 1024 × 600 @ 60 Hz
  • 848 × 480 @ 60 Hz
  • 832 × 624 @ 75 Hz
  • 800 × 600 @ 56, 60, 72, 75 Hz
  • 720 × 576 @ 50 Hz
  • 720 × 480 @ 60 Hz
  • 720 × 400 @ 70 Hz
  • 640 × 480 @ 50, 60, 66, 72, 75 Hz
  • 640 × 400 @ 60, 70 Hz
  • 640 × 350 @ 70 Hz
Power[2] Input Voltage AC 100–240V, 50/60 Hz (auto switch)
Display Area Active Size (H × V) 381.89 × 214.81 mm
15.04 × 8.46 in.
Operating Conditions Altitude 5 km (16,404.2 ft)
Relative Humidity 20% to 90% (non-condensing)
Temperature 0° C to 40° C
32° F to 104° F
Storage Conditions Altitude 12 km (39,370.1 ft)
Relative Humidity 5% to 90% (non-condensing)
Temperature -20° C to 60° C
-4° F to 140° F
Dimensions (with stand) Physical (W × H × D) 398.5 × 248 × 16.8 mm
15.69 × 9.76 × 0.66 in.
Weight (with stand) Physical 1.0 kg (2.2 lb)
Power Consumption On[3] 12W (Typical) without audio
13W (Typical) with 50% audio
Off ≤ 0.3 W (Maximum)
  1. ↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
  2. ↑ Please use the power adapter/power cord from ViewSonic® or an authorized source only.
  3. ↑ The test condition follows EEI standards.

Hot Keys

When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the Joy Key.

Joy Key hot keys and their function.
Key Description
Joy Key moved left. Press and hold the key to lock/unlock the OSD Menu.
When the menu appears on the screen, continue holding the key for 5 seconds to lock/unlock the OSD Menu.
OSD Lock/Unlock message: Locking OSD, with a countdown bar and the prompt Press and hold for 10s to lock OSD.

If the OSD Menu is locked, the below message will appear on the screen:

OSD Lock/Unlock message: OSD Locked.
Joy Key moved right. Press and hold the key to lock/unlock the Power button.
When the menu appears on the screen, continue holding the key for 5 seconds to lock/unlock the Power button.
Power Lock/Unlock message: Locking Power Button, with a countdown bar and the prompt Press and hold for 10s to lock power.

If the Power button is locked, the below message will appear on the screen:

Power Lock/Unlock message: Power Button Locked.
Joy Key moved up. Press and hold the key for 5 seconds to display/hide the boot up screen when the device is turned on.
Boot Up Screen On/Off message showing Off, with the prompt Press to turn on.

Regulatory and Service Information

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES (B) / NMB (B)

CE Conformity for European Countries

CE logo

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

WEEE logo

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below.

RoHS2 restricted substances and concentration limits.
Substance Proposed Maximum Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
Butyl benzyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

  • Copper alloy containing up to 4% lead by weight.
  • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
  • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
  • Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

For EU users, please contact us for any safety/accident issue experienced with this product:

Address.
ViewSonic Europe Limited
Flevolaan 38, 1382JZ, Weesp,
the Netherlands
Phone.
+31 0800023299

Copyright Information

Copyright © 2024 ViewSonic® Corporation. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Noto Sans Font. Copyright 2018 The Noto Project Authors. This Font Software is licensed under the SIL Open Font License, Version 1.1.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

This Copyright Information may be translated into multiple languages. All translated versions are provided for reference only. In the event of any discrepancy or inconsistency among different language versions, the English version shall prevail.

Version
VX1754_UG_ENG_1c_20250313


See Also

Customer Service

Limited Warranty

Safety Precautions

Troubleshooting

Maintenance
