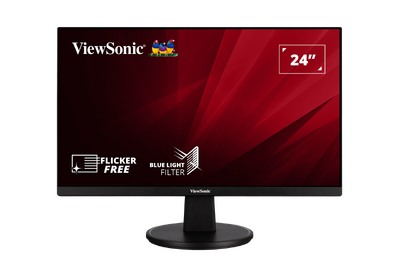

VS2447-mh Specifications

    From ViewSonic User Guide Database

    Technical Specifications

    Model No. P/N
    VS18522 VS2447-mh
    Item Category Specifications
    LCD Type Color a-Si, TFT Active Matrix 1920 x 1080 LCD;

    0.2745 mm (H) x 0.2745 mm (V) pixel pitch

    Display Size 60.5 cm, 24" (23.8" viewable)
    Color Filter RGB vertical stripe
    Glass Surface Anti-Glare (Haze 25%), Hard Coating (3H)
    Input Signal Video Sync Analog
    D-Sub: fh:24~86 kHz, fv:48~75 Hz

    TMDS digital (100 Ω)

    HDMI(1.4): fh:24~86 kHz, fv:48~75 Hz
    Compatibility PC up to 1920 x 1080
    Macintosh up to 1920 x 1080
    Recommended 1920 x 1080 @ 60Hz
    Resolution[1] Supported
    • 1920 x 1080 @ 50, 60, 75Hz
    • 1680 x 1050 @ 60Hz
    • 1600 x 1200 @ 60Hz
    • 1600 x 900 @ 60Hz
    • 1440 x 900 @ 60, 75Hz
    • 1440 x 576 @ 50Hz
    • 1400 x 1050 @ 60, 75Hz
    • 1366 x 768 @ 60Hz
    • 1360 x 768 @ 60Hz
    • 1280 x 1024 @ 50, 60, 75Hz
    • 1280 x 960 @ 50, 60, 75Hz
    • 1280 x 800 @ 60, 75Hz
    • 1280 x 768 @ 50, 60, 75Hz
    • 1280 x 720 @ 50, 60Hz
    • 1152 x 900 @ 66Hz
    • 1152 x 870 @ 75Hz
    • 1152 x 864 @ 60, 75Hz
    • 1024 x 768 @ 50, 60, 70, 72, 75Hz
    • 1024 x 600 @ 60Hz
    • 848 x 480 @ 60Hz
    • 832 x 624 @ 75Hz
    • 800 x 600 @ 56, 60, 72, 75Hz
    • 720 x 576 @ 50Hz
    • 720 x 480 @ 60Hz
    • 720 x 400 @ 70Hz
    • 640 x 480 @ 50, 60, 66, 72, 75Hz
    • 640 x 400 @ 60, 70Hz
    • 640 x 350 @ 70Hz
    Power Adapter[2] Input Voltage AC 100-240V, 50/60Hz (auto switch)
    Display Area Full Scan

    (H x V)

    527.04 x 296.46 mm

    (20.75” x 11.67”)

    Operating Conditons Temperature 0° C to 40° C (32° F to 104° F)
    Humidity 20% to 90% (non-condensing)
    Altitude 16,404 feet (4.9 km)
    Storage Conditions Temperature -20° C to 60° C (-4° F to 140° F)
    Humidity 5% to 90% (non-condensing)
    Altitude 40, 000 feet (12.1 km)
    Physical Dimensions (W x H x D) 539.5 x 402.7 x 205.5 mm
    (21.2” x 15.9” x 8.1”)
    Wall Mount Dimensions 100 x 100 mm
    Weight Physical 3.3 kg (7.3 lbs)
    Power Saving Modes On[3] 24W (Typical)
    Off < 0.3W (Max)
    1. Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
    2. Please use the power adapter from ViewSonic® or an authorized source only.
    3. The test condition follows EEI standards.
