Stand Installation

  1. Place the monitor on a flat, stable surface with the screen facing down.
  2. Align and slide the upper hooks of the stand into the stand mounting slots.
  3. Lift the device into its upright position on a flat stable surface.
Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

Wall Mounting

Refer to the table below for the standard dimensions for wall mount kits.

For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
Maximum Loading Hole Pattern (W x H) Interface Pad (W x H x D) Pad Hole Screw Specification & Quantity
14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm - 4 pieces
  1. Turn off the device and disconnect all cables.
  2. Place the device on a flat, stable surface with the screen facing down.

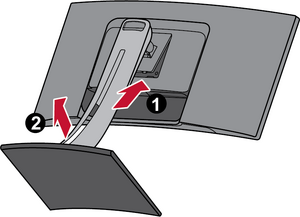

  3. Pull down slightly to disengage the hooks. Then remove the stand.

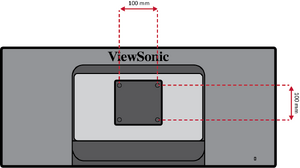

  4. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).
  5. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.
