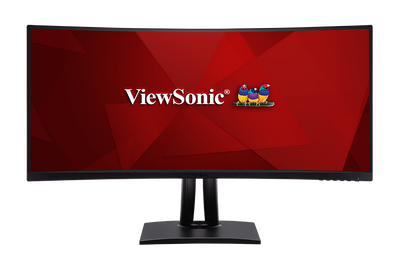

VP3456A

From ViewSonic Documentation
Jump to: navigation, search

Package Contents

  1. Monitor
  2. Power Cord
  3. HDMI Cable
  4. USB 3.2 Gen 1 Type C Cable
  5. USB 3.2 Gen 1 Upstream Cable (Type B to Type A)
  6. Quick Start Guide

Front View / Rear View

  • Front View
    Front View
  • Rear View
    Rear View
Letter Item
A Display Screen
B Control Panel Keys
C Power Button
D Security Slot

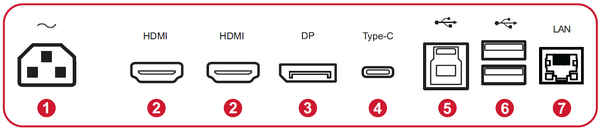

I/O Ports

I/O Ports
Number Item
1 AC IN
2 HDMI
3 DisplayPort
4 USB Type C
5 USB Type B (Upstream)
6 USB Type A (Downstream)
7 LAN

Stand Installation

  1. Place the monitor on a flat, stable surface with the screen facing down.
  2. Align and slide the upper hooks of the stand into the stand mounting slots.
  3. Lift the device into its upright position on a flat, stable surface.

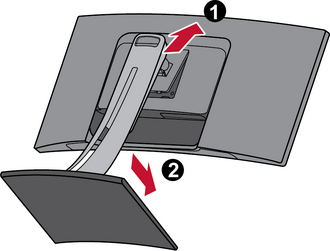

  • Align the points
  • Secure the Base and Neck


Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

Wall Mounting

Refer to the table below for the standard dimensions for wall mount kits.

For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
Maximum Loading Hole Pattern (W x H) Interface Pad (W x H x D) Pad Hole Screw Specification Quantity
14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm 4 screws
  1. Turn off the device and disconnect all cables.
  2. Place the device on a flat, stable surface with the screen facing down.
  3. Push and hold the quick release tab and carefully lift the stand.
  4. Pull down slightly to disengage the hooks and remove the stand.
  5. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).
  6. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.

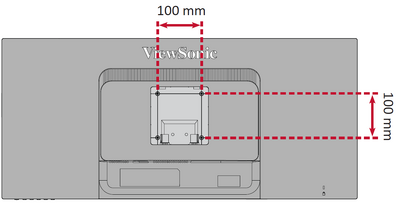

VESA mounting points

Using the Security Slot

To help prevent the device from being stolen, use a security slot locking device to secure the device to a fixed object.

Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

Below is an example of setting up a security slot locking device on a table.

Using the Security Slot

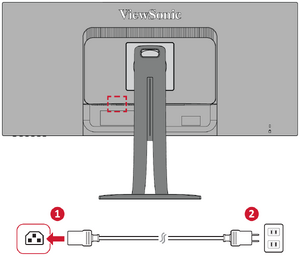

Connecting to Power

  1. Connect the power cord to the AC IN jack at the rear of the device.
  2. Connect the power cord plug to a power outlet.
Connecting to Power

Connecting External Devices

Note: To connect the monitor to an external device (PC, laptop…etc.), please use one of the included video cables for your application and connect it to both terminals.
  • HDMI Connection
    HDMI Connection
  • DisplayPort Connection
    DisplayPort Connection
  • USB Connection
    USB Connection
  • Ethernet Connection
    Ethernet Connection

HDMI

Connect one end of an HDMI cable to the HDMI port of your monitor. Then connect the other end of the cable to the HDMI port of your computer.

NOTE: The monitor is equipped with two HDMI ports.

DisplayPort

Connect one end of a DisplayPort cable to the DisplayPort port. Then connect the other end of the cable to the DisplayPort or mini DP port of your computer.

NOTE: To connect the monitor to the Thunderbolt port (v. 1&2) on your Mac, connect the mini DP end of the “mini DP to DisplayPort cable” to the Thunderbolt output of your Mac. Then connect the other end of the cable to the DisplayPort port of the monitor.

USB

Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer.

USB Number Description
Type A Two (2) Connection for your Type A peripheral device(s) (e.g., storage device, keyboard, mouse).
NOTE: To use some peripherals, please ensure your computer is also connected to the monitor’s USB Type B port.
Type B One (1) Connect the USB Type B male cable (square with 2 cut corners) to this port, and then connect the other end of the cable to the USB downstream port of your computer.
Type C One (1) Make sure your Type C output device and cable support video signal transmission for video output use.

Ethernet

Connect one end of your LAN (RJ45) cable to the LAN (RJ45) port of the monitor. Then connect the other end to your network.

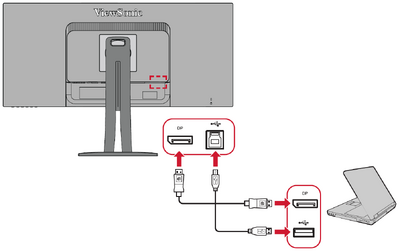

Next, you must connect your computer to the monitor by either:

  • USB Type C

Or,

  • HDMI and USB Upstream

Or,

  • DisplayPort and USB Upstream
Height Adjustment Swivel Adjustment Tilt Adjustment


Height Adjustment

Lower or raise the monitor to the desired height (0 to 130 mm).

NOTE: When adjusting, press down firmly along the adjustment track holding the monitor with both hands on the side.

Swivel Adjustment

Swivel the monitor to the left or right for the desired viewing angle (60˚).

Tilt Angle Adjustment

Tilt the monitor forwards or backwards to the desired viewing angle (-6˚ to 21˚).

NOTE: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.

Using the Control Panel Keys

Use the control panel keys to access the Quick Access Menu, navigate the On-Screen Display (OSD) Menu, and change the settings.

Control Keys

Quick Menu

Touch the 1/2/3/4 key to activate the Quick menu. Follow the key guide that appears on the screen to select options or make adjustments.

Quick Menu



  • Standard Color
    Standard Color
  • Contrast / Brightness
    Contrast / Brightness
  • Input Select
    Input Select
  • Main Menu
    Main Menu
Icon Name Description
Standard Color Standard Color Select one of the preset standard color settings.
Contrast/Brightness Contrast / Brightness Adjust the contrast or brightness.
Input Select Input Select Select the input source.
Main Menu Main Menu Enter the On-Screen Display (OSD) Menu.
Exit Exit Exit the Quick Menu.

Hot Keys

When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the control panel keys.

Key Description
1 Press and hold the key for 5 seconds to select User mode. Then select the desired User mode to activate.
2+3 Press and hold the keys to lock/unlock the OSD Menu.

When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu.

2+4 Press and hold the keys to lock/unlock the Power button.

When the menu appears on the screen, continue holding the key for 10 seconds to lock/unlock the Power button.

3+5 Press the keys to display/hide the boot up screen when the device is turned on.

General Operation

  1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.

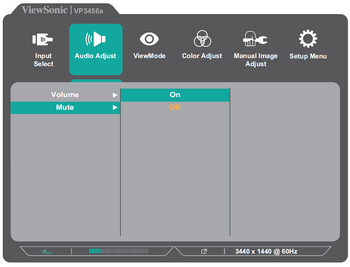

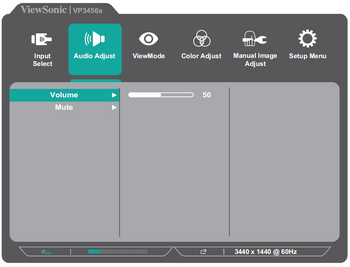

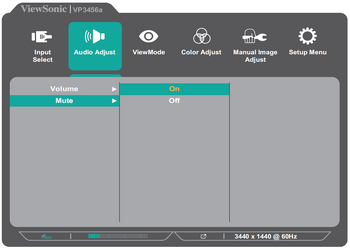

Display the OSD Menu
  1. Press the 1 or 2 key to select the main menu. Then press the 3 key to enter the selected menu.
Display the OSD Menu
  1. Press the 1 or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.
Display the OSD Menu

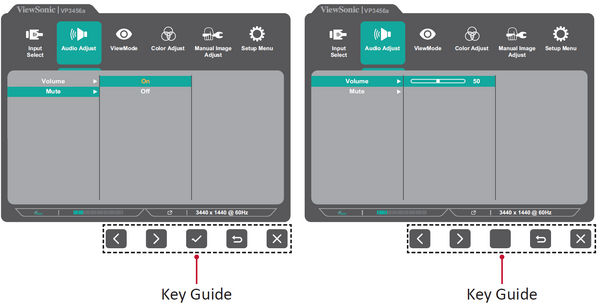

  1. Press the 1 or 2 key to adjust/select the setting. Then press the 3 key to confirm.
Display the OSD Menu

NOTE: Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the bottom of the screen to select the option or make adjustments.

Display the OSD Menu
  1. Press the 4 key to return to the previous menu.

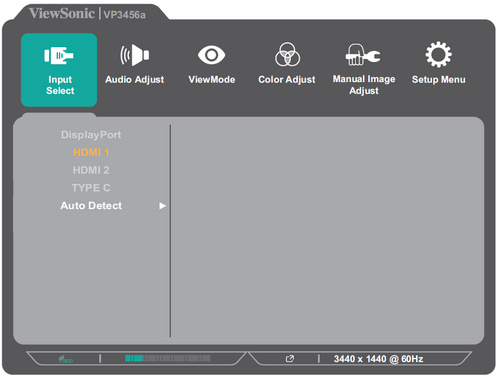

OSD Tree

Sub-menu Menu Option
DisplayPort
HDMI 1
HDMI 2
Type C
Auto Detect On
Off

Sub-menu Menu Option
Volume (-/+, 0~100)
Mute On
Off

Sub-menu Menu Option
Off
Game FPS 1
FPS 2
RTS
MOBA
Movie
Web
Text
MAC Ultra Clear (-/+, 0~10)
Designer CAD/CAM Ultra Clear (-/+, 0~10)
Advanced-Sharpness (-/+, 0/25/50/75/100)
Advanced-Gamma (-/+, 1/8/2.0/2.2/2.4/2.6)
Animation Ultra Clear (-/+, 0~10)
Advanced-Sharpness (-/+, 0/25/50/75/100)
Black Stabilization (-/+, 0~10)
Video Edit Ultra Clear (-/+, 0~10)
Advanced-Sharpness (-/+, 0/25/50/75/100)
Advanced-Gamma (-/+, 1/8/2.0/2.2/2.4/2.6)
Photographer Retro Ultra Clear (-/+, 0~10)
Advanced-Sharpness (-/+, 0/25/50/75/100)
Advanced-Gamma (-/+, 1/8/2.0/2.2/2.4/2.6)
Photo Ultra Clear (-/+, 0~10)
Advanced-Sharpness (-/+, 0/25/50/75/100)
Advanced-Gamma (-/+, 1/8/2.0/2.2/2.4/2.6)
TruTone (-/+, 0~100)
Landscape Ultra Clear (-/+, 0~10)
Advanced-Sharpness (-/+, 0/25/50/75/100)
Advanced-Gamma (-/+, 1/8/2.0/2.2/2.4/2.6)
TruTone (-/+, 0~100)
Portrait Ultra Clear (-/+, 0~10)
Advanced-Sharpness (-/+, 0/25/50/75/100)
Advanced-Gamma (-/+, 1/8/2.0/2.2/2.4/2.6)
TruTone (-/+, 0~100)
Skin Tone (-/+, 0~10)
Black Stabilization (-/+, 0~10)
Monochrome Advanced-Sharpness (-/+, 0/25/50/75/100)
TruTone (-/+, 0~100)

Sub-menu Menu Option
Contrast/Brightness Contrast (-/+, 0~100)
Brightness (-/+, 0~100)
Color Format Auto
RGB (Full Range)
RGB (Limited Range)
YUV (Full Range)
YUV (Limited Range)
Standard Color sRGB
Custom Color Temperature Panel Default
Bluish
Cool
Native
Warm
User
Gamma Off
1.8
2.0
2.2
2.4
2.6
Black Stabilization (-/+, 0~10)
Advanced DCR (-/+, 0/25/50/75/100)
Gain Red (-/+, 0~100)
Green (-/+, 0~100)
Blue (-/+, 0~100)
Offset Red (-/+, 0~100)
Green (-/+, 0~100)
Blue (-/+, 0~100)
Hue Red (-/+, 0~100)
Green (-/+, 0~100)
Blue (-/+, 0~100)
Cyan (-/+, 0~100)
Magenta (-/+, 0~100)
Yellow (-/+, 0~100)
Saturation Red (-/+, 0~100)
Green (-/+, 0~100)
Blue (-/+, 0~100)
Cyan (-/+, 0~100)
Magenta (-/+, 0~100)
Yellow (-/+, 0~100)
Recall
Color Calibration CAL 1
CAL 2
CAL 3
Color Calibration Notice Remind Schedule Hour (-/+, 0/1/10/100/2
00/500/1000/2000
/3000)
Counter [####] Hour
Recall

Sub-menu Menu Option
Sharpness (-/+, 0/25/50/75/100)
Aspect Ratio 1:1
4:3
16:9
OAR
Full Screen
Overscan On
Off
Low Input Lag On
Off
Response Time Standard
Advanced
Ultra Fast
Blue Light Filter (-/+, 0~100)
FreeSync On
Off

Sub-menu Menu Option
Language Select English
Français
Deutsch
Español
Italiano
Suomi
Русский
Türkçe
日本語
한국어
繁體中文
简体中文
Česká
Svenska
Resolution Notice On
Off
Information
OSD Timeout (-/+, 5/15/30/60)
OSD Background On
Off
Power Indicator On
Off
Auto Power Off On
Off
Sleep 30 minutes
45 minutes
60 minutes
120 minutes
Off
ECO Mode Standard
Optimize
Conserve
Energy Saving Mode On
Off
USB Charging On
Off
DisplayPort DisplayPort 1.1
DisplayPort 1.2
HDMI 2.0 On
Off
DDC/CI On
Off
Save As User 1
User 2
User 3
Recall
All Recall

Input Select

  1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
  2. Press the 1 or 2 key to select Input Select. Then press the 3 key to enter the Input Select menu.
  3. Press the 1 or 2 key to select the desired input source. Then press the 3 key to confirm the selection.

Audio Adjust

Menu Option Description
Volume Adjust the volume level.
Mute Enable this option to temporarily turn off the sound.
  1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
  2. Press the 1 or 2 key to select Audio Adjust. Then press the 3 key to enter the Audio Adjust menu.
  3. Press the 1 or 2 key to select the desired option. Then press the 3 key to enter its sub-menu.
  4. Press the 1 or 2 key to adjust/select the setting, and press the 3 key to confirm the selection (if applicable).

ViewMode

Menu Option Description
Off Disable the function.
Game Select this option for playing games.
Movie Select this option for watching movies.
Web Select this option for surfing the web.
Text Select this option for text-based tasks.
MAC Select this option when connecting to Mac computers.
Designer Select this option for viewing graphic design files.
Photographer Select this option for viewing photo files.
  1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
  2. Press the 1 or 2 key to select ViewMode. Then press the 3 key to enter the ViewMode menu.
  3. Press the 1 or 2 key to select the setting. Then press the 3 key to confirm the selection.

Color Adjust

Menu Option Description
Contrast/Brightness Contrast

Adjust the degree of difference between the lightest and darkest parts of the picture and change the amount of black and white in the image.

Brightness

Adjust the background black levels of the screen image.

Color Format The monitor can detect the input signal color format automatically. You can manually change the color format options to fit the correct color format range if the colors are not displayed correctly.
  • Auto: Automatically recognizes the color format and the black and white levels.
  • RGB (Full Range): The input signal color format is RGB and the black and white levels are full.
  • RGB (Limited Range): The input signal color format is RGB and the black and white levels are limited.
  • YUV (Full Range): The input signal color format is YUV and the black and white levels are full.
  • YUV (Limited Range): The input signal color format is YUV and the black and white levels are limited.
Standard Color The monitor comes with several display industry color standards. Each color mode can be selected for various applications of the monitor.
  • sRGB: Precise color gamut and gamma of sRGB standard.
Custom Color Temperature

Select the color temperature setting.

  • Panel Default: Use the panel default mode.
  • Bluish: Set the color temperature to 9300K.
  • Cool: Set the color temperature to 7500K.
  • Native: A default color temperature. Recommended for general graphic design and regular use.
  • Warm: Set the color temperature to 5000K.
  • User: Custom user settings.
Gamma

Manually adjust the brightness level of the monitor’s grayscale levels.

Black Stabilization

Provide heightened visibility and detail by brightening dark scenes.

Advanced DCR

Automatically detects the image signal and intelligently controls the backlight brightness and color, to improve on the ability to make the black blacker in a dark scene, and make the white whiter in a bright environment.

Gain

Adjust white temperature to customize your User Color (can be saved in User Mode) or a specific color temperature and gain value (red, green, blue).

Offset

Adjust black levels for red, green, and blue. The gain and offset functions allow users to control the white balance for the upmost control when manipulating contrast and dark scenes.

Hue

Adjust the tint of each color (red, green, blue, cyan, magenta, and yellow).

Saturation

Adjust the color depth of each color (red, green, blue, cyan, magenta, and yellow).

Recall

Restore the Custom related settings to default.

Color Calibration Calibrate the monitor using the ViewSonic® Colorbration application with specific color sensors.
  • CAL 1: Display with the 1st user calibration mode.
  • CAL 2: Display with the 2nd user calibration mode.
  • CAL 3: Display with the 3rd user calibration mode.
  • Color Calibration Notice: Configure the calibration notice settings.
  • Remind Schedule Hour: Set the schedule for calibration reminder message.
  • Counter [#####] Hour: Display the accumulated time from the last calibration.
  • Recall: Reset the Color Calibration related settings to default.
NOTE: Some sub-menus may not be adjustable depending on the user’s custom settings.
  1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
  2. Press the 1 or 2 key to select Color Adjust. Then press the 3 key to enter the Color Adjust menu.
  3. Press the 1 or 2 key to select the menu option. Then press the 3 key to enter its sub-menu.
  4. Press the 1 or 2 key to select the setting. Then press the 3 key to confirm the selection.
NOTE: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press the 3 key. Follow the key guide that appears on the bottom of the screen to select the option or make adjustments.

Manual Image Adjust

Menu Option Description
Sharpness Adjust the picture quality.
Aspect Ratio Select the aspect ratio of the monitor.
Overscan Automatically enlarge the original picture horizontally and vertically to an equal aspect ratio that fills the screen.
Low Input Lag Select the appropriate speed to decrease input to output latency.
Response Time Adjusts the response time, creating smooth images without streaking, blurring, or ghosting.
Blue Light Filter Adjusts the filter that blocks high-energy blue light for a more comfortable viewing experience.
FreeSync Eliminates stuttering and tearing during gameplay.
  1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
  2. Press the 1 or 2 key to select Manual Image Adjust. Then press the 3 key to enter the Manual Image Adjust menu.
  3. Press the 1 or 2 key to select the menu option. Then press the 3 key to enter its sub-menu.
  4. Press the 1 or 2 key to adjust/select the setting. Then press the 3 key to confirm (if applicable).

Setup Menu

Menu Option Description
Language Select Select an available language for the OSD Menu.
Resolution Notice Enable this option to allow the system to inform users that the current viewing resolution is not the correct native resolution.
Information Display the monitor information.
OSD Timeout Set the length of time the OSD Menu remains on screen.
OSD Background Show/Hide the OSD background when the OSD Menu appears on the screen.
Power Indicator Set the Power Indicator On or Off. If the setting is set to On, the power indicator lights blue when the device is turned on.
Auto Power Off Enable this option to allow the monitor to automatically turn off after a certain amount of time.
Sleep Set the amount of idle time before the monitor enters Sleep mode.
ECO Mode Choose between various modes, based on power consumption.
DisplayPort Enable DisplayPort 1.1 or 1.2 support.
HDMI 2.0 Enable/Disable HDMI 2.0 support.
DDC/CI Enable this option to allow the monitor control via the graphics card.
Save As Set the personalized OSD configurations for User 1/User 2/User 3.
All Recall Resets all settings to their default values.
  1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
  2. Press the 1 or 2 key to select Setup Menu. Then press the 3 key to enter the Setup Menu menu.
  3. Press the 1 or 2 key to select the menu option. Then press the 3 key to enter its sub-menu.
  4. Press the 1 or 2 key to adjust/select the setting. Then press the 3 key to confirm (if applicable).
NOTE: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press the 3 key. Follow the key guide that appears on the bottom of the screen to select the option or make adjustments.

Technical Specifications

Item Category Specifications
Model P/N. VP3456a
No. VS19271
LCD Type VA Type, a-si TFT LCD,

Active Matrix WQHD+ 3440 x 1440 0.23175 mm x 0.23175 mm pixel pitch

Display Size 86.4 cm, 34"
Color Filter RGB vertical stripe
Glass Surface Anti-Glare type (Haze 25%), Hard Coating (3H)
Input Signal Video Sync TMDS digital (100 Ω)
HDMI: fh:15-135 kHz, fv:24-75 Hz
DisplayPort: fh:15-135 kHz, fv:24-75 Hz
Type C: fh:15-135 kHz, fv:24-75 Hz
Compatibility PC up to 3440 x 1440
Macintosh up to 3440 x 1440
Recommended 3440 x 1440 @ 75Hz
Resolution[1] Supported
  • 3440 x 1440 @ 24, 25, 30, 50, 60, 75Hz
  • 2560 x 1440 @ 60Hz
  • 2560 x 1080 @ 24, 25, 30, 50, 60Hz
  • 2048 x 1152 @ 60Hz
  • 1920 x 1600 @ 60Hz
  • 1920 x 1440 @ 60Hz
  • 1920 x 1200 @ 60Hz
  • 1920 x 1080 @ 24, 25, 30, 50, 60Hz
  • 1680 x 1050 @ 60Hz
  • 1600 x 1200 @ 60Hz
  • 1600 x 900 @ 60Hz
  • 1400 x 1050 @ 60, 75Hz
  • 1400 x 900 @ 60, 75Hz
  • 1366 x 768 @ 60Hz
  • 1360 x 768 @ 60Hz
  • 1280 x 1024 @ 50, 60, 75Hz
  • 1280 x 960 @ 50, 60, 75Hz
  • 1280 x 800 @ 60Hz
  • 1280 x 768 @ 50, 60Hz
  • 1280 x 720 @ 24, 25, 30, 50, 60Hz
  • 1152 x 900 @ 67Hz
  • 1152 x 864 @ 75Hz
  • 1024 x 768 @ 50, 60, 70, 72Hz
  • 848 x 480 @ 60Hz
  • 800 x 600 @ 56, 60, 72Hz
  • 720 x 576 @ 50Hz
  • 720 x 480 @ 60Hz
  • 720 x 400 @ 70Hz
  • 640 x 480 @ 50, 60, 67, 72Hz
  • 640 x 400 @ 60, 70Hz
  • 640 x 350 @ 70Hz
Power Adapter[2] Input Voltage AC 100-240V, 50/60Hz (auto switch)
Display Area Full Scan

(H x V)

797.22 x 333.72 mm

(31.39” x 13.14”)

Operating Conditons Temperature 0° C to 40° C (32° F to 104° F)
Humidity 20% to 90% (non-condensing)
Altitude 16,404 feet (4.9 km)
Storage Conditions Temperature -20° C to 60° C (-4° F to 140° F)
Humidity 5% to 90% (non-condensing)
Altitude 40, 000 feet (12.1 km)
Dimensions Physical

(W x H x D)

809.20 x 539.23 x 243.35 mm

(31.86” x 21.23” x 9.58”)

Wall Mount Dimensions 100 x 100 mm
Weight Physical 11.22 kg (24.7 lbs)
Power Saving Modes On[3] 47.6W (Typical) without USB cable
69.6W (Typical) with USB cable
Off < 0.3W (Max)
  1. ↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
  2. ↑ Please use the power adapter from ViewSonic® or an authorized source only.
  3. ↑ The test condition follows EEI standards.

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Industry Canada Statement

CAN ICES-003(B)/NMB-003(B)

CE Conformity for European Countries

 The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below.

Substance Proposed Maximum Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
Butyl benzyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

  • Copper alloy containing up to 4% lead by weight.
  • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
  • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
  • Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada:
https://www.viewsonic.com/us/go-green-with-viewsonic

Europe:
https://www.viewsonic.com/eu/environmental-social-governance/recycle

Taiwan:
https://recycle.moenv.gov.tw/

For EU users, please contact us for any safety/accident issue experienced with this product:

ViewSonic Europe Limited
Haaksbergweg 75
1101 BR Amsterdam
Netherlands
+31 (0) 650608655
EPREL@viewsoniceurope.com
https://www.viewsonic.com/eu/

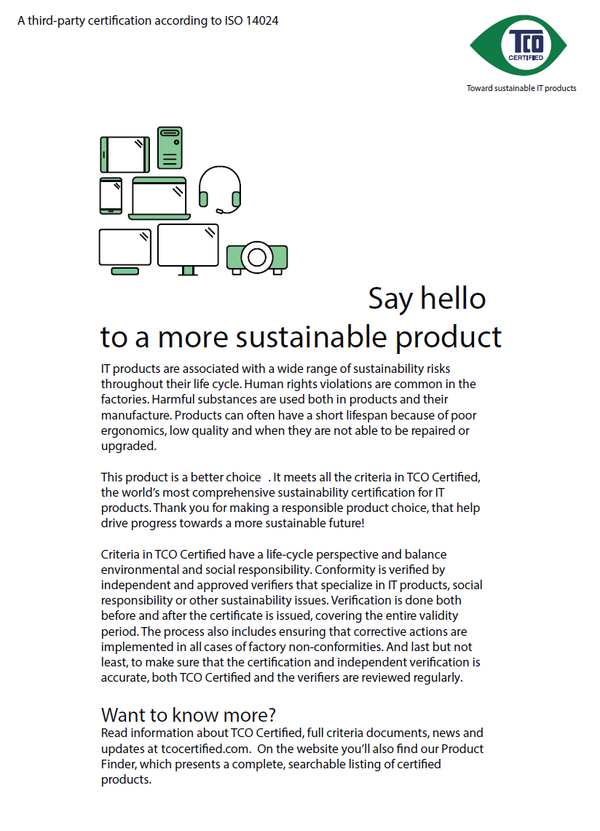

TCO Certified

A Pantone® Validated Monitor

Pantone means color and provides a universal language of color that enables color-critical decisions through every stage of the workflow for designers, producers, brands. The ViewSonic ColorPro VP56a Series is PANTONE Validated. It’s out of box color accuracy has been verified and factory tuned with a series of ViewSonic color tests. In addition, a sample of this model series has been evaluated by Pantone and meets the requirements of PANTONE Validated as tested in the simulation of the full range of 2,161 colors of the PANTONE Formula Guide Coated.

The ViewSonic ColorPro VP56 Series lets you design with confidence.

NOTE: PANTONE® Colors generated may not match PANTONE-identified standards. Consult current PANTONE Publications for accurate color. PANTONE® and other Pantone trademarks are the property of Pantone LLC. © Pantone LLC, 2020.

Variables
There are many variables in the reproduction process of colors generated by the VP3456a display, any one of which may affect the quality of the PANTONE Color simulation, including:

  • Display devices
  • Hardware device settings
  • Graphics card used
  • Backlight panel settings
  • Selected resolution
  • Operating system
  • Selected refresh rate
  • Calibration method
  • Other display settings

For optimal results, we recommend that the following setting be used:

  • sRGB mode

Copyright Information

Copyright© ViewSonic® Corporation, 2022. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

VP3456a_UG_ENG_1a_20220804

Customer Service

Limited Warranty

Safety Precautions

Troubleshooting

Maintenance

Retrieved from "https://manuals.viewsonic.com/index.php?title=VP3456A&oldid=57381"
