Package Contents

Monitor
Power Cord
Video Cable
Quick Start Guide

Note: The cables included in your package may vary depending on your country. Please contact your local reseller for more information.

Front View / Rear View


Front View	Rear View

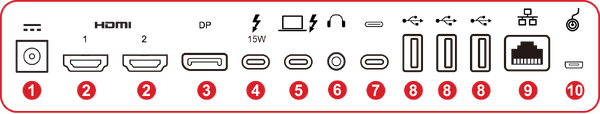

I/O Ports

Number	Item
1	DC IN
2	HDMI
3	DisplayPort
4	Thunderbolt Out
5	Thunderbolt In
6	Audio Out
7	USB Upstream
8	USB Downstream
9	LAN
10	Micro USB

Note: For more information about the

/

key and its functions, refer to Hot Keys.

Product Overview - ColorPro™ Wheel

Note: The ColorPro™ Wheel is an optional accessory.

Number	Item
1	Confirm Button
2	Dial
3	Grip
4	Back Button
5	Lens Cap
6	Lens
7	Adjustable Weight

Stand Installation

Place the monitor on a flat, stable surface with the screen facing down.

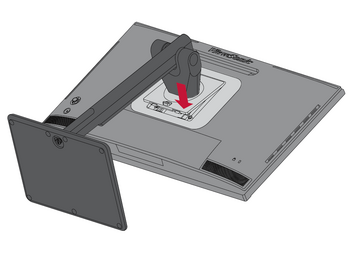

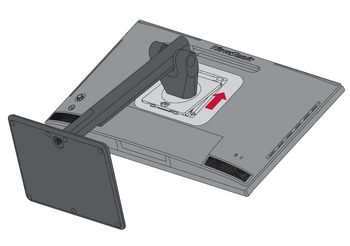

Align and slide the upper hooks of the monitor stand into the stand mounting slots.

Lift the monitor into its upright position on a flat, stable surface.

Note: Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

Wall Mounting

Refer to the table below for the standard dimensions for wall mount kits.

Note: For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.

Maximum Loading	Hole Pattern (W x H)	Interface Pad (W x H x D)	Pad Hole	Screw Specification	Screw Quantity
14 kg	100 x 100 mm	N/A	N/A	M4 x 10 mm	4

Turn off the device and disconnect all cables.
Place the device on a flat, stable surface with the screen facing down.
Pull and hold the quick release tab and carefully lift the stand.

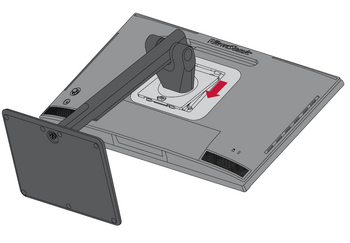

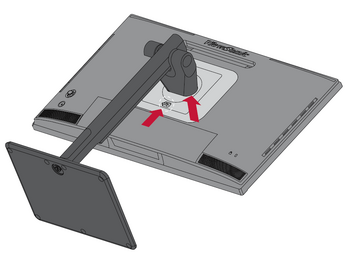

Pull down slightly to disengage the hooks and remove the stand.
Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four screws (M4 x 10 mm).
Follow the instructions that come with the mounting kit to mount the monitor.

Installing the Shade Hood

Note: The Shade Hood is an optional accessory.

Place the monitor upright on a flat, stable surface. Make sure the monitor is rotated to the landscape mode.

Prepare the shade hood by folding the side panels down.

Attach the shade hood to the top of the monitor by aligning the shape bar inside the hood with the one on top of the monitor. Repeat for the left and right sides.

Press down on the shade hood to fix it firmly in place.

Using the Security Slot

To help prevent the device from being stolen, use a security slot locking device to secure the device to a fixed object.

Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

Below is an example of setting up a security slot locking device on a table.

Connecting to Power

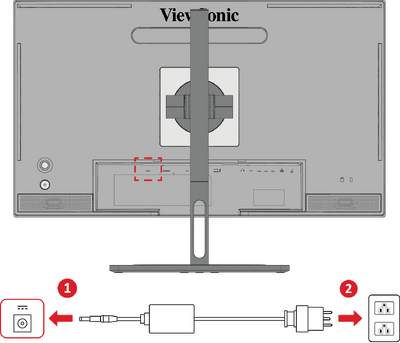

Connect the power adapter to the DC IN jack at the rear of the monitor.
Plug the power adapter plug into a power outlet.

Connecting to Video

HDMI

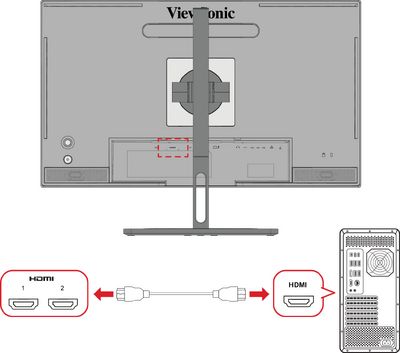

Connect one end of an HDMI cable to an HDMI port of your monitor.
Then connect the other end of the cable to the HDMI port of your computer.

DisplayPort

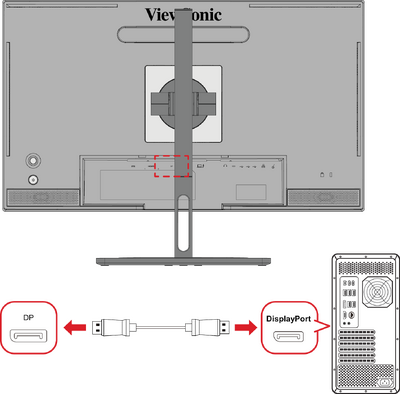

Connect one end of a DisplayPort cable to the DisplayPort port of the monitor.
Plug the other end of the cable to the DisplayPort or mini DP port of your computer.

Note: To connect the monitor to the Thunderbolt port (v. 1 & 2) on your Mac, connect the Mini DisplayPort end of a “Mini DisplayPort to DisplayPort cable” to the Thunderbolt output port of your Mac. Then connect the other end of the cable to the DisplayPort port of the monitor.

Thunderbolt

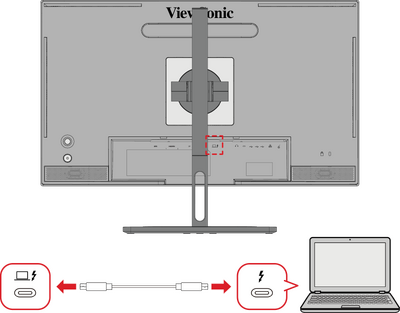

Connect one end of a Thunderbolt cable to the Thunderbolt port of the monitor.
Plug the other end of the cable into the Thunderbolt port of your computer.

Note: For video output use, make sure your Thunderbolt output device (e.g., laptop) and cable support video signal transmission.

USB Connection

The monitor supports two types of USB ports, upstream and downstream. When making connection(s), observe the following guideline.

	Connection Type	Description
Upstream	Thunderbolt	Transfers data between the computer and the USB devices connected to the monitor.

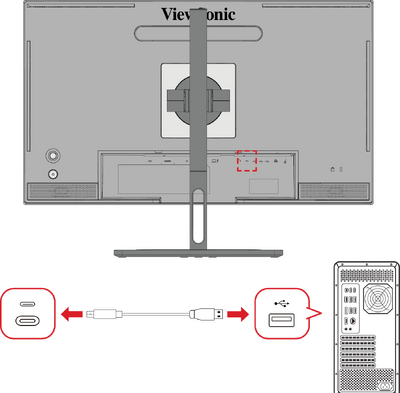

	Type C	For KVM function and Firmware updates.
	Type C	Supports 5V/3A charging.
Downstream	Thunderbolt	For peripheral device(s) (e.g., storage device, keyboard, mouse, etc.).
Downstream	Type A	Supports 5V/2A charging. NOTE: 5V/2A cannot be sustained if all three USB Type A ports are used at the same time.

Note: To use peripheral devices with the USB Type A ports, please also connect your computer to the monitor’s Thunderbolt In

port.

Using the USB Ports

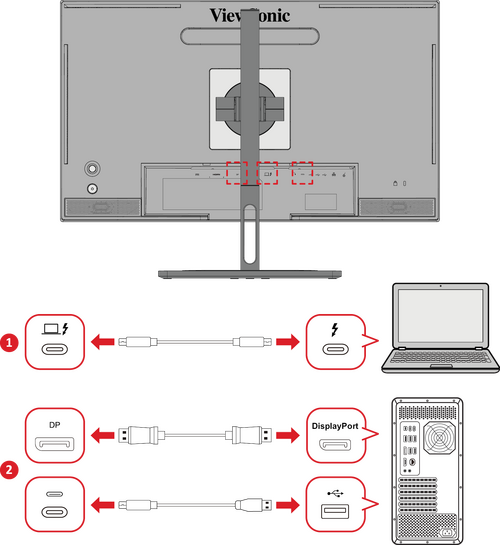

To use the downstream USB ports, connect one end of a Thunderbolt cable to the upstream Thunderbolt In port of the monitor. Plug the other end of the cable into a Thunderbolt port of your computer.
Connect your peripheral device(s) to a downstream USB Type A port of the monitor.

Audio Connection

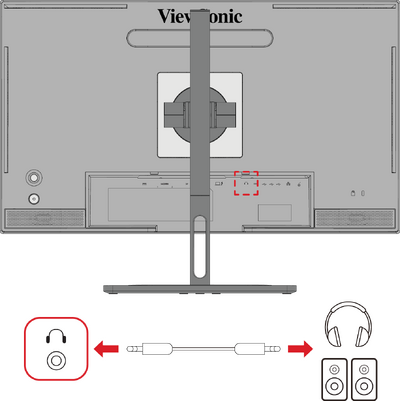

Plug the audio jack of the audio device into the Audio Out port of the monitor.

Note: The monitor is also equipped with dual speakers.

Connecting the ColorPro™ Wheel

NOTE: The ColorPro™ Wheel is an optional accessory.

Connect the USB Type A and Micro USB cable of the ColorPro™ Wheel to the USB Type A and Micro USB port of the monitor.

Adjusting the Viewing Angle

For optimal viewing, you can adjust the viewing angle using any of the following methods:

Height Adjustment

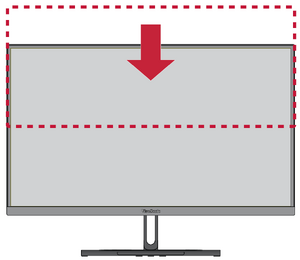

Lower or raise the monitor to the desired height (0 to 130 mm).

Note: When adjusting, press down firmly along the adjustment track holding the monitor with both hands on the side.

Screen Orientation Adjustment (Monitor Pivot)

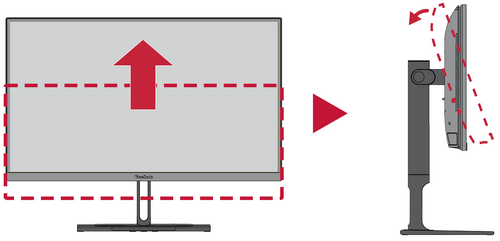

Adjust the monitor height to the highest position. Then tilt the monitor backwards to the full tilt position.

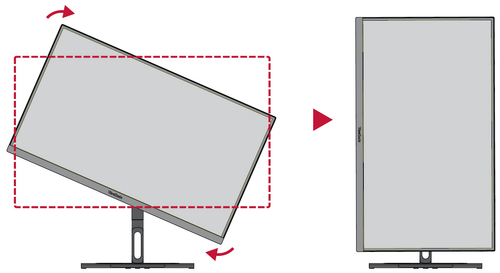

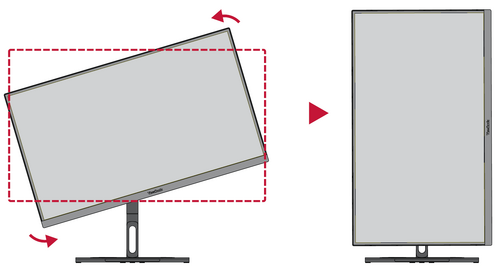

Rotate the monitor 90° clockwise or counterclockwise from landscape to portrait orientation.
Note:
When adjusting, make sure to hold both sides of your monitor firmly with both hands.

If using the Auto Pivot function, the system can detect the screen orientation automatically.

Swivel Angle Adjustment

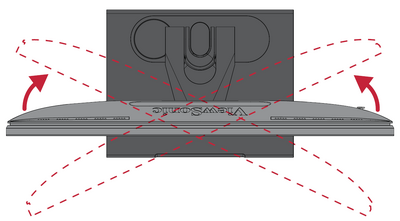

Swivel the monitor to the left or right for the desired viewing angle (60 ̊).

Tilt Angle Adjustment

Tilt the monitor forwards or backwards to the desired viewing angle (-5˚ to 21˚).

Note: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.

Turning the Device On/Off

Plug the connected power adapter into a power outlet.

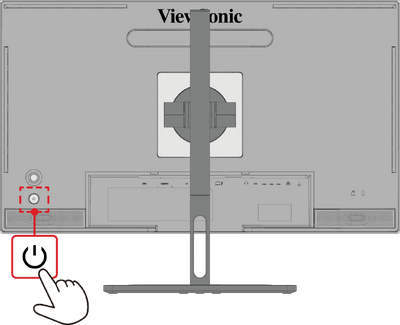

Press the Power button to turn on the monitor.
To turn the monitor off, press the Power button again.

NOTE:

If the OSD Menu is still on screen, press and hold the Power button for three seconds to power off.
The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

Using the Joy Key

Use the Joy Key to activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change settings.

Startup Menu

Move the Joy Key to activate the Startup Menu.

Note: Follow the key guide that appears on the screen to select the option or make adjustments.

Main Menu

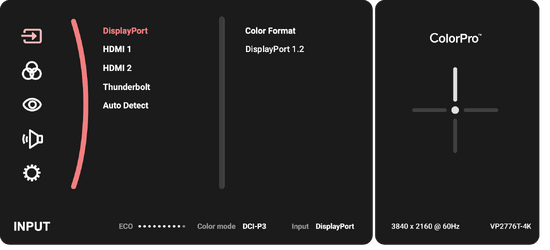

Enter the On-Screen Display (OSD) Menu.

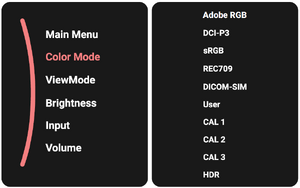

Color Mode

Select one of the preset standard color settings.

ViewMode

Select one of the preset display settings.

Brightness

Adjust the brightness level.

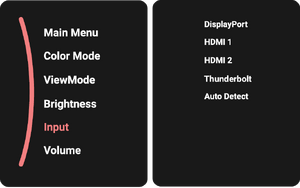

Input

Select the input source.

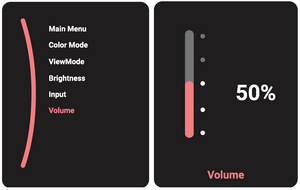

Volume

Adjust the volume settings.

Note: Move the Joy Key

to return to the previous menu.

Hot Keys

When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the Joy Key.

Key	Description
	Press and hold the key for five seconds to activate/deactivate LED lighting.
	Press and hold the key to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding the key for 10 seconds to lock/unlock the OSD Menu. If the OSD Menu is locked, the below message will appear on the screen:
	Press and hold the key to lock/unlock the Power button. When the menu appears on the screen, continue holding the key for 10 seconds to lock/unlock the Power button. If the Power button is locked, the below message will appear on the screen.
	Press and hold the key for 10 seconds to display/hide the boot up screen when the device is turned on.
	Press and hold the key for 10 seconds to activate/deactivate Ultra Fast.

ColorPro™ Wheel for OSD Control

Note: The ColorPro™ Wheel is an optional accessory.

In addition to the Joy Key, the ColorPro™ Wheel also provides a quick way to control and access the On-Screen Display (OSD) Menu.

Using the ColorPro™ Wheel

Entering the OSD Menu

Enter the OSD Menu by pressing the Confirm Button.

Select an Option and Confirm

Rotate the Dial to select an option, and press the Confirm Button to confirm.

Adjust the Value

Rotate the Dial left or right to adjust the value of the selected option.

Back

Press Back Button the at any time to return to the previous option.

ColorPro™ Wheel Hot Keys

In addition to the Joy Key, the ColorPro™ Wheel also provides a quick way to access special functions when the On-Screen Display (OSD) Menu is off.

Key	Description
	Press and hold the key for 2 seconds to activate/deactivate LED lighting.
	Press the key to activate the KVM feature when in PBP Mode.

General Operations

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select the main menu. Then press the Joy Key to enter the selected menu.
Move the Joy Key or to select the desired menu option. Then press the Joy Key to enter the sub-menu.
Move the Joy Key or to adjust/select the setting. Then press the Joy Key to confirm.
Move the Joy Key to return to the previous menu.

OSD Tree

Sub-menu	Menu Option
DisplayPort	Color Format	Auto
		RGB (Full Range)
		RGB (Limited Range)
		YUV (Full Range)
		YUV (Limited Range)
	DisplayPort 1.4	On
	DisplayPort 1.4	Off
HDMI 1	Color Format	Auto
		RGB (Full Range)
		RGB (Limited Range)
		YUV (Full Range)
		YUV (Limited Range)
	HDMI 2.0	On
	HDMI 2.0	Off
HDMI 2	Color Format	Auto
		RGB (Full Range)
		RGB (Limited Range)
		YUV (Full Range)
		YUV (Limited Range)
	HDMI 2.0	On
	HDMI 2.0	Off
Thunderbolt	Color Format	Auto
		RGB (Full Range)
		RGB (Limited Range)
		YUV (Full Range)
		YUV (Limited Range)
	USB 3.2	On
	USB 3.2	Off
	DisplayPort 1.4	On
	DisplayPort 1.4	Off
Auto Detect	On
Auto Detect	Off

Sub-menu	Menu Option
DCI-P3	Brightness	(-/+, 0~100)/1
	Color Temperature	9300K
		7500K
		6500K
		6300K
		5000K
	Gamma	1
		1.4
		1.8
		2.2
		2.4
		2.6
	Sharpness	(-/+, 0~100)/1
	Aspect Ratio	1:1
		4:3
		Full Screen
	Uniformity	On
	Uniformity	Off
	Recall
sRGB	Brightness	(-/+, 0~100)/1
	Color Temperature	9300K
		7500K
		6500K
		6300K
		5000K
	Gamma	1
		1.4
		1.8
		2.2
		2.4
		2.6
	Sharpness	(-/+, 0~100)/1
	Aspect Ratio	1:1
		4:3
		Full Screen
	Uniformity	On
	Uniformity	Off
	Recall
REC709	Brightness	(-/+, 0~100)/1
	Color Temperature	9300K
		7500K
		6500K
		6300K
		5000K
	Gamma	1
		1.4
		1.8
		2.2
		2.4
		2.6
	Sharpness	(-/+, 0~100)/1
	Aspect Ratio	1:1
		4:3
		Full Screen
	Uniformity	On
	Uniformity	Off
	Recall
DICOM-SIM	Sharpness	(-/+, 0~100)/1
	Aspect Ratio	1:1
		4:3
		Full Screen
	Recall
User	Contrast	(-/+, 0~100)/1
	Brightness	(-/+, 0~100)/1
	Color Temperature	9300K
		7500K
		6500K
		6300K
		5000K
	Gamma	1
		1.4
		1.8
		2.2
		2.4
		2.6
	Advanced DCR	(-/+, 0~100)/25
	Gain	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
	Offset	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
	Hue	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
		Cyan	(-/+, 0~100)
		Magenta	(-/+, 0~100)
		Yellow	(-/+, 0~100)
	Sharpness	(-/+, 0~100)/1
	Aspect Ratio	1:1
		4:3
		Full Screen
	Blue Light Filter	(-/+, 0~5)
	Uniformity	On
	Uniformity	Off
	Recall
CAL1/CAL2/CAL3	Brightness	(-/+, 0~100)/1
	Color Calibration Notice	Result
		Remind Schedule Hour
		Counter Hour
		Recall
	Sharpness	(-/+, 0~100)/1
	Aspect Ratio	1:1
		4:3
		Full Screen
	Uniformity	On
	Uniformity	Off
	Recall
HDR	Standard
	HDR_M
	HDR_H
	Smooth
	Off

Sub-menu	Menu Option
CAD/CAM	Ultra Clear	(-/+, 0~4)
	Advanced-Sharpness	(-/+, 0~100)
	Advanced-Gamma	(-/+, 1.8~2.6)
Video Edit	Ultra Clear	(-/+, 0~4)
	Advanced-Sharpness	(-/+, 0~100)
	Advanced-Gamma	(-/+, 1.8~2.6)
Animation	Ultra Clear	(-/+, 0~4)
	Advanced-Sharpness	(-/+, 0~100)
	Black Stabilization	(-/+, 0~10)
Photographer	Ultra Clear	(-/+, 0~4)
	Advaned-Sharpness	(-/+, 0~100)
	Advanced-Gamma	(-/+, 1.8~2.6)
FPS 1
FPS 2
RTS
MOBA

Sub-menu	Menu Option
Volume	(-/+, 0~100)/1
Mute	On
Mute	Off

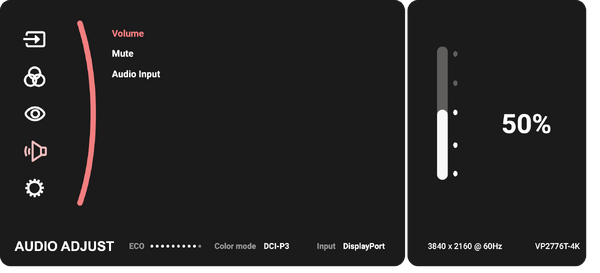

Audio Input	DisplayPort
	HDMI 1
	HDMI 2
	Thunderbolt

Sub-menu	Menu Option

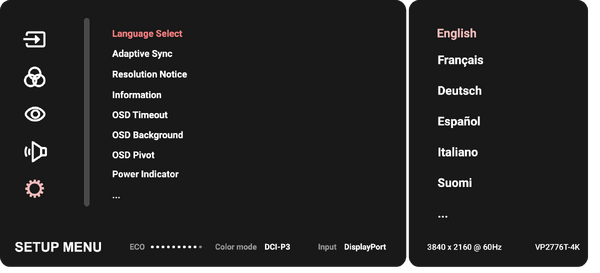

Language Select	English
	Français
	Deutsch
	Español
	Italiano
	Suomi
	Русский
	Türkçe
	日本語
	한국어
	繁體中文
	简体中文
Resolution Notice	On
Resolution Notice	Off
Information
OSD Timeout	(-/+, 5/15/30/60)
OSD Background	On
OSD Background	Off
OSD Pivot	Auto
	0°
	+90°
	-90°
	180°
Power Indicator	On
Power Indicator	Off
Auto Power Off	On
Auto Power Off	Off
Sleep	30 minutes
	45 minutes
	60 minutes
	120 minutes
	Off

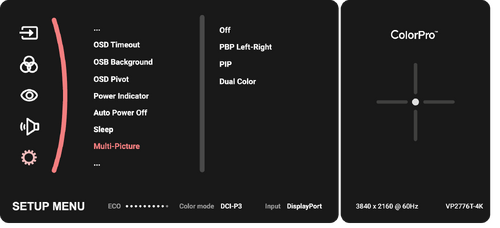

Multi-Picture	Off
	PBP Left-Right	Left Source Select	DisplayPort
			HDMI 1
			HDMI 2
			Thunderbolt
		Right Source Select	DisplayPort
			HDMI 1
			HDMI 2
			Thunderbolt
		Swap
	PIP	PIP Source Select	DisplayPort
			HDMI 1
			HDMI 2
			Thunderbolt
		PIP Position	PIP H. Position
		PIP Position	PIP V. Position
		PIP Size	(-/+, 0~100)
		Swap
	Dual Color	DCI-P3
		sRGB
		REC709
		DICOM-SIM
		User
		CAL 1
		CAL 2
		CAL 3
		CAD/CAM
		Video Edit
		Animation
		Photographer
		FPS 1
		FPS 2
		RTS
		MOBA
ECO Mode	Standard
	Optimize
	Conserve
	Energy Saving	On
	Energy Saving	Off
Overscan	On
Overscan	Off
Response Time	Standard
	Advanced
	Ultra Fast
USB Charging	On
USB Charging	Off
Backstage Lighting	Level 1
	Level 2
	Level 3
	Off
Burn-in Eraser	On
Burn-in Eraser	Off
DDC/CI	On
DDC/CI	Off
Rename
All Recall

Input

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select Input. Then press the Joy Key to enter the Input menu.
Move the Joy Key or to select the desired input source. Then press the Joy Key to confirm the selection.

Color Mode

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select Color Mode. Then press the Joy Key to enter the Color Mode menu.
Move the Joy Key or to select the desired option. Then press the Joy Key to enter its sub-menu.

Move the Joy Key or to adjust/select the setting, and press the Joy Key to confirm the selection (if applicable).

Menu Option	Description
DCI-P3	Precise color gamut and gamma of DCI-P3 standard.
sRGB	Precise color gamut and gamma of sRGB standard.
REC709	Precise color gamut and gamma of ITU-R Rec. 709 standard.
DICOM-SIM	Gamma curves are set to a DICOM simulation.
User	Custom, user-defined settings.
CAL1/CAL2/CAL3	Display with the 1st/2nd/3rd user calibration mode.
HDR	Reduce the overall contrast of a given scene so that detail in the highlights and shadows can be seen.

ViewMode

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select ViewMode. Then press the Joy Key to enter the ViewMode menu.

Move the Joy Key or to select the desired option. Then press the Joy Key to enter its sub-menu.

Menu Option	Description
CAD/CAM	Select this option for viewing graphic design files.
Video Edit	Select this option for video editing.
Animation	Select this option for animation.
Photographer	Select this option for viewing photo files.
FPS 1	Ideal for First-Person Shooter games.
FPS 2	Ideal for First-Person Shooter games.
RTS	Ideal for Real-Time Strategy games.
MOBA	Select this option for Multiplayer Online Battle Arena games.

Audio Adjust

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select Audio Adjust. Then press the Joy Key to enter the Audio Adjust menu.
Move the Joy Key or to select the desired option. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to adjust/select the setting, and press the Joy Key to confirm the selection (if applicable).

Menu Option Description

Volume Adjust the volume level.

Mute Enable this option to temporarily turn off the sound.

Audio Input Select the audio input source.

Setup Menu

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select Setup Menu. Then press the Joy Key to enter the Setup Menu menu.
Move the Joy Key or to select the desired option. Then press the Joy Key to enter its sub-menu.

Move the Joy Key or to adjust/select the setting, and press the Joy Key to confirm the selection (if applicable).

Menu Option	Description
Language Select	Select an available language for the OSD Menu.
Resolution Notice	Enable this option to allow the system to inform users that the current viewing resolution is not the correct native resolution.
Information	Display the monitor information.
OSD Timeout	Set the length of time the OSD Menu remains on screen.
OSD Background	Show/Hide the OSD background when the OSD Menu appears on the screen.
OSD Pivot	Set the OSD Menu orientation. Auto: With the built-in G sensor, the OSD Menu can automatically pivot when the monitor is positioned vertically. 0°: Sets the OSD Menu without a pivot. +90°: Sets the OSD Menu with a +90° pivot. 90°: Sets the OSD Menu with a -90° pivot. 180°: Sets the OSD Menu with a 180° pivot.
Power Indicator	Set the Power Indicator On or Off. If the setting is set to On, the power indicator lights blue when the device is turned on.
Auto Power Off	Enable this option to allow the monitor to automatically turn off after a certain amount of time.
Sleep	Set the amount of idle time before the monitor enters Sleep mode.
Multi-Picture	Off Disable this function. PBP Left-Right Display two windows, a 1x1 split screen, side-by-side on the left and right of the screen. User can specify the input source for each screen. PIP Split the screen into two parts, a main window and an inset window. User can specify the input source for each screen. Dual Color Display two different color settings in PIP or PBP mode.
ECO Mode	Choose between various modes, based on power consumption.
Overscan	Enable this option to automatically enlarge the original picture horizontally and vertically to an equal aspect ratio that fills the screen.
Response Time	Adjust the response time, creating smooth images without streaking, blurring or ghosting. A low response time is perfect for the most graphic-intense gaming, and provides amazing visual quality while watching sports or action movies.
USB Charging	Enable/disable usb charging.
Backstage Lighting	Adjust the LED lighting.
Burn-in Eraser	Reduce image burn-in.
DDC/CI	Enable this option to allow the monitor control via the graphics card.
Rename	Rename the personalized custom profile.
All Recall	Resets all settings to their default values.

HDR (High-Dynamic-Range)

Reduces the overall contrast of a given scene so that detail in the highlights and shadows can be seen.

NOTE: Ensure the HDR setting is turned on on your device first before enabling the HDR10 on the monitor.
For example, the HDR setting on Xbox One S or PS4 Pro needs to be turned on first before enjoying your HDR10 video content.


Xbox One S		PS4 Pro

To enable the HDR function:

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select Color Mode. Then press the Joy Key to enter the Color Mode menu.
Move the Joy Key or to select HDR. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to select one of the options . Then press the Joy Key to confirm.

KVM

The KVM function allows the user to control two computers connected to the same monitor from a single keyboard and mouse.

Note: Only applicable in PBP (Picture-by-Picture) mode.

To connect the two computers to the monitor:

Connect one end of a Thunderbolt cable to the Thunderbolt In port of the monitor. Then connect the other end of the cable to the Thunderbolt port of the laptop.
Connect one end of a DisplayPort cable to the DisplayPort of the monitor. Then connect the other end of the cable to the DisplayPort or Mini DisplayPort port of the computer.
Connect one end of a USB Type C cable to the USB Type C port of the monitor. Then connect the other end of the cable to the USB port of the computer.

To enable PBP mode:

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select the Setup Menu menu. Then press the Joy Key to enter the menu.
Move the Joy Key or to select Multi-Picture. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to select PBP Left-Right. Then press the Joy Key to enable PBP mode.

To activate the KVM function:

Press and hold the Joy Key for two seconds to activate the KVM function.
Then you will be able to switch the cursor between the two screens (left/right window).

Auto Pivot

With the Auto Pivot function, the monitor can detect the image display and adjust the image’s orientation on the screen automatically when pivoting the screen vertically or horizontally.

Note: The Auto Pivot function uses DDC/CI to communicate with the monitor. Before applying the Auto Pivot function, please make sure the DDC/CI setting is set to On.

To enable the DDC/CI setting:

Open the OSD Menu and select the Setup Menu menu. Then press the Joy Key to enter the menu.
Move the Joy Key or to select DDC/CI. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to select On. Then press the Joy Key to confirm.

After ensuring DDC/CI is On, proceed to set OSD Pivot to Auto:

Open the OSD Menu and select the Setup Menu menu. Then press the Joy Key to enter the menu.
Move the Joy Key or to select OSD Pivot. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to select Auto. Then press the Joy Key to confirm.

Colorbration+

To ensure long-term color accuracy, some specific models support the hardware color calibration function. The Colorbration+ application installation file can be found at our website.

Standard monitor packing does not include the color sensor, which the Colorbration+ application needs for the calibration process.

Compatible color sensors include:

X-Rite i1 Display Pro
X-Rite i1 Pro 2
X-Rite i1 Studio
Xrite Colormunki Photo
Xrite Colormunki Design
Datacolor SpyderX series

Dual Color

The monitor comes with a dual color engine to display two different color settings in PIP (Picture-in-Picture) or PBP mode. You can set different color presets in both windows (Main Window and Secondary Window).

Note: To enable PIP or PBP mode, refer to the Multi-Picture section.

To configure Dual Color:

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select the Setup Menu menu. Then press the Joy Key to enter the menu.
Move the Joy Key or to select Multi-Picture. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to select Dual Color. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to select the desired color setting. Then press the Joy Key to confirm.

Multi-Picture

Multi-Picture allows users to further customize their work space by allowing up to four split windows from different inputs, displaying high resolution content with different aspect ratios, without distortion from the original input sources.

To enable Multi-Picture mode:

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select Color Mode. Then press the Joy Key to enter the Color Mode menu.
Move the Joy Key or to select Multi-Picture. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to select PBP Left-Right or PIP. Then press the Joy Key to enter the selected mode.

PBP (Picture-by-Picture)

NOTE: To display full-sized images in the windows, please adjust the screen resolution to 1920 x 1080 (PBP Left-Right).

To configure PBP:

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select Setup Menu. Then press the Joy Key to enter the Setup Menu menu.
Move the Joy Key or to select Multi-Picture. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to select PBP Left-Right. Then press the Joy Key to enter its sub-menu.
To change the input source, select the source location (Left Source Select/Right Source Select) and press the Joy Key .
Move the Joy Key or to select the desired input source and press the Joy Key to confirm.
To swap the two windows, select Swap and press the Joy Key to confirm.

PIP (Picture-in-Picture)

To configure PIP:

Move the Joy Key to display the Startup Menu. Then navigate to Main Menu and press the Joy Key to display the OSD Menu.
Move the Joy Key or to select Setup Menu. Then press the Joy Key to enter the Setup Menu menu.
Move the Joy Key or to select Multi-Picture. Then press the Joy Key to enter its sub-menu.
Move the Joy Key or to select PIP. Then press the Joy Key to enter its sub-menu.
To change the input source for the Inset Window, select PIP Source Select and press the Joy Key . Then move the Joy Key or to select the desired input source and press the Joy Key to confirm.
To adjust the Inset Window position, select PIP Position and press the Joy Key .

Press the Joy Key to select PIP H.Position or PIP V.Position.
Move the Joy Key or to adjust the setting and press the Joy Key to confirm.

To adjust the Inset Window size, select PIP Size and press the Joy Key . Then move the Joy Key or to adjust the setting.
To swap the two windows, select Swap and press the Joy Key to confirm.

Backstage Lighting

With the Backstage Lighting function, the monitor can adjust the LED brightness to the optimal settings.

To configure the Backstage Lighting settings:

Open the OSD Menu and select the Setup Menu menu. Then touch the Joy Key to enter the menu.
Move the Joy Key or to select Backstage Lighting. Then touch the Joy Key to enter its sub-menu.
Move the Joy Key or to select Level 1, Level 2, or Level 3 to enable the function. Then touch the Joy Key to confirm.

Firmware Update

For the best display performance and to resolve any known issues, it is best to keep your monitor updated with the latest firmware version. With the supplied USB cable and the vDisplayManager application, you can easily update your monitor’s firmware.

To update the firmware:

Download and install the vDisplayManager application from our website.
Connect the USB Type B male cable (square with 2 cut corners) to the USB Type B port of your monitor. Then connect the other end of the cable to the USB port of the computer.
Launch vDisplayManager. Select the Advanced tab in the side menu.
Click Update to check for any updates to your monitor’s firmware.
Wait until the update process is complete (if applicable).

Note: Any interruptions during the firmware update process may permanently damage your monitor. Do not disconnect the USB cable or turn off your PC and monitor.

Technical Specifications

Item	Category	Specifications
LCD	Type	IPS type, a-si TFT Active Matrix 3840 x 2160 LCD, 0.1554 (H) mm x 0.1554 (V) mm pixel pitch
	Display Size	68.47 cm (27" viewable)
	Color Filter	RGB vertical stripe
	Glass Surface	Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal	Video Sync	TMDS digital (100 Ω) HDMI (v. 2.0): f_h:15-240 kHz, f_v:24-75 Hz DisplayPort (v. 1.4a): f_h:15-240 kHz, f_v:24-75 Hz Type C: f_h:15-240 kHz, f_v:24-75 Hz
Compatibility	PC	up to 3840 x 2160
Compatibility	Macintosh	up to 3840 x 2160
Resolution^[1]	Recommended	3840 x 2160 @ 60Hz
Resolution^[1]	Supported	4096 x 2160 @ 24, 25, 30, 50, 60Hz 3840 x 2160 @ 24, 25, 30, 60Hz 3840 x 1080 @ 60Hz 2560 x 1440 @ 60Hz 2048 x 1152 @ 60Hz 1920 x 1440 @ 60Hz 1920 x 1200 @ 60Hz 1920 x 1080 @ 50, 60Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60, 75Hz 1400 x 1050 @ 60, 75Hz 1366 x 768 @ 60Hz 1360 x 768 @ 60Hz 1280 x 1024 @ 50, 60, 75Hz 1280 x 960 @ 50, 60, 75Hz 1280 x 800 @ 60Hz 1280 x 768 @ 50, 60Hz 1280 x 720 @ 50, 60Hz 1152 x 900 @ 67Hz 1152 x 864 @ 75Hz 1024 x 768 @ 50, 60, 70, 72, 75Hz 848 x 480 @ 60Hz 800 x 600 @ 56, 60, 72Hz 720 x 576 @ 50Hz 720 x 480 @ 60Hz 720 x 400 @ 70Hz 640 x 480 @ 50, 60, 67, 72Hz 640 x 400 @ 60, 70Hz 640 x 350 @ 70Hz
Power^[2]	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	596.74 x 335.66 mm (23.49” x 13.21”)
Operating Conditons	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	20% to 90% (non-condensing)
	Altitude	3.048 km (10,000 ft)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	5% to 90% (non-condensing)
	Altitude	12 km (9,370.1 ft)
Dimensions	Physical (W x H x D)	613.10 x 569.11~449.11 x 232.4 mm (24.14” x 22.41~17.68” x 9.15”)
Wall Mount	Dimensions	100 x 100 mm
Weight	Physical	8.23 kg (18.15 lbs)
Power Saving Modes	On^[3]	45W (Typical) without Audio 74W (Max) with Audio
Power Saving Modes	Off	< 0.3W (Max)

↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
↑ Please use the power adapter from ViewSonic® or an authorized source only.
↑ The test condition follows EEI standards.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES(B) / NMB(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below.


Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

Copper alloy containing up to 4% lead by weight.
Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada:
https://www.viewsonic.com/us/go-green-with-viewsonic

Europe:
https://www.viewsonic.com/eu/environmental-social-governance/recycle

Taiwan:
https://recycle.moenv.gov.tw/

For EU users, please contact us for any safety/accident issue experienced with this product:

	ViewSonic Europe Limited Haaksbergweg 75 1101 BR Amsterdam Netherlands
	+31 (0) 650608655
	EPREL@viewsoniceurope.com
	https://www.viewsonic.com/eu/

Copyright Information

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

VP2776T-4K_UG_ENG_1a_20240430
