Introduction

Package Contents

Monitor
Power adapter
Video cable
Quick start guide

Note: The cables included in your package may vary depending on your country or region. Please contact your local reseller for more information.

Product Overview

Front View

Control Panel Keys
Power Button

Rear View

I/O Ports
Security Slot

I/O Ports

The I/O ports of the monitor.
#	Description
1	DC IN
2	HDMI
3	USB Upstream
4	Audio Out
5	USB Downstream

Initial Setup

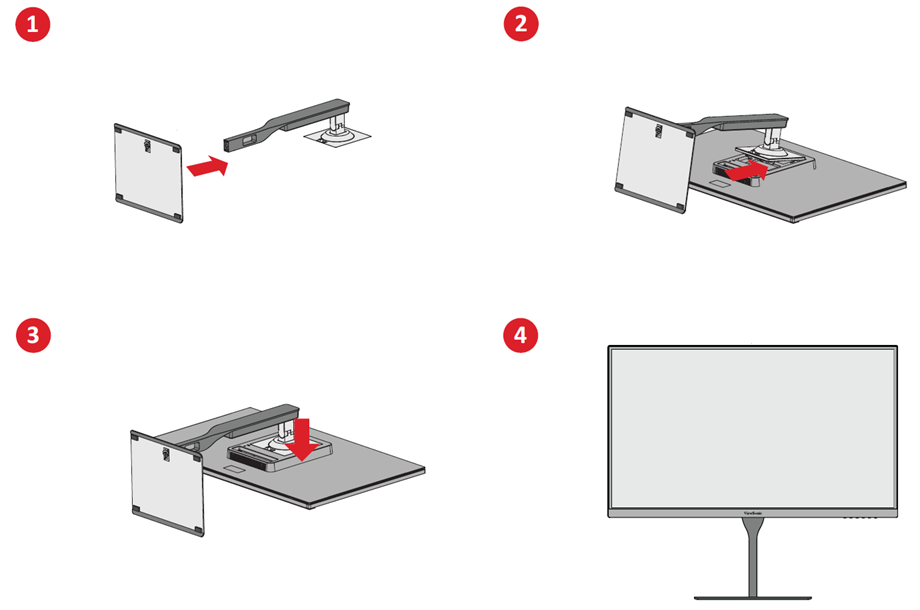

Installing the Stand

1

2

3

Important: Place the monitor on a flat, stable surface to ensure safety and optimal performance.

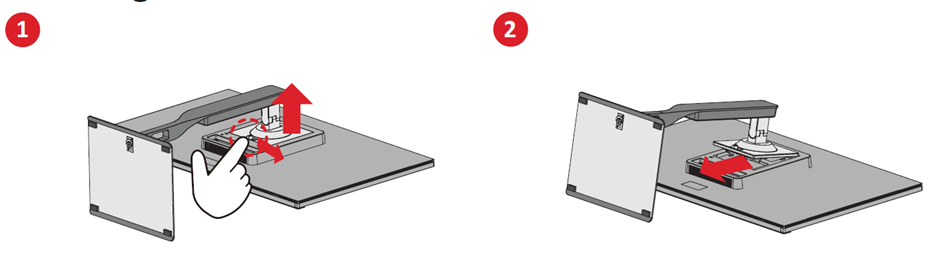

Removing the Stand

1

2

Important: Before removing the stand, turn off the monitor, disconnect all cables, and place the monitor on a flat, stable surface with the screen facing down.

Mounting the Monitor

After removing the stand, the monitor can be mounted using an optional mounting kit.

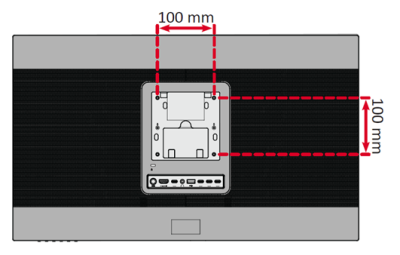

VESA mounting locations on the rear of the monitor.

The standard dimensions and loading of mounting kits.
Maximum Loading	Hole Pattern (W × H)	Screw Specification	Screw Quantity
14 kg	100 × 100 mm	M4 × 10 mm	4

Attach the mounting bracket to the VESA mounting holes at the rear of the monitor, securing it with four screws.
Follow the mounting kit instructions to mount the monitor.

Using the Security Slot

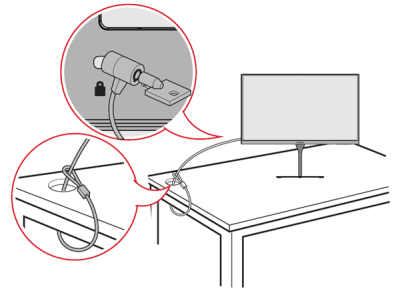

Securing the monitor to a desk using a security cable.

To prevent theft and minimize damage, use a security slot locking device to secure the monitor to a fixed object. Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

Making Connections

Connecting to Power

Diagram illustrating how a monitor plugs into a power outlet using a cable.

Connecting to Video

Diagram showing an HDMI cable connecting a monitor to a computer.

Connecting to USB

The monitor supports two types of USB ports, upstream and downstream. When making connections, observe the following guidelines.

The USB ports of the monitor.
#	USB Type	Connection Type	Description
1	Upstream	Type C	Transfers data between the computer and the USB devices connected to the monitor. Supports 20V/4.5A, 15V/3A, 12V/3A, 9V/3A, 5V/3A charging.
2	Downstream	Type A	For peripheral device(s) (e.g., storage device, keyboard, mouse, etc.). Supports 5V/2A charging.
3	Downstream	Type C	For peripheral device(s) (e.g., storage device, keyboard, mouse, etc.). Supports 5V/3A charging.

Note: To use peripheral devices with the downstream ports, connect your computer to the monitor's USB upstream port.

Using the USB Ports

Diagram showing a USB cable connecting a laptop and peripheral device to a monitor.

To use the downstream USB ports, connect one end of a USB Type C cable to the USB upstream port of the monitor. Plug the other end of the cable into a USB downstream port of your computer.
Connect your peripheral device(s) to a downstream USB Type A port of the monitor.

Connecting to Audio

Diagram showing an audio cable connecting headphones or speakers to a monitor.

Connect one end of an audio cable to the Audio Out port of the monitor.
Plug the other end of the cable into your audio device.

Using the Monitor

Adjusting the Viewing Angle

Height Adjustment

Lower or raise the monitor to the desired height (0 to 130 mm).

Diagram of a monitor on a stand, with arrows indicating adjustable height.

Note: When adjusting, press down firmly along the adjustment track holding the monitor with both hands on the side.

Screen Orientation Adjustment (Monitor Pivot)

Diagram of a monitor being adjusted to its highest position then being tilted fully back.

Adjust the monitor height to the highest position. Then tilt the monitor backwards to the full tilt position.
Rotate the monitor 90 degrees clockwise or counterclockwise from landscape to portrait orientation.

Swivel Angle Adjustment

Swivel the monitor to the left or right for the desired viewing angle (± 45°).

Diagram of a monitor, viewed from the top, showing the swivel angles.

Tilt Angle Adjustment

Tilt the monitor forwards or backwards to the desired viewing angle (−5° to 20°).

Diagram of a monitor, viewed from the side, showing the tilt angles.

Note: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.

Turning the Monitor On/Off

Note: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

Plug the connected power adapter into a power outlet.
Press the Power button to turn on the monitor.
To turn the monitor off, press the Power button again.

Using the Control Panel Keys

Use the Control Panel Keys to access the Startup Menu, activate Hot Keys, navigate the On-Screen Display Menu, and change settings.

Startup Menu

Press the 1/2/3/4/5 key to open the Startup Menu.

Note: Follow the key guide that appears on the screen to select the option or make adjustments.

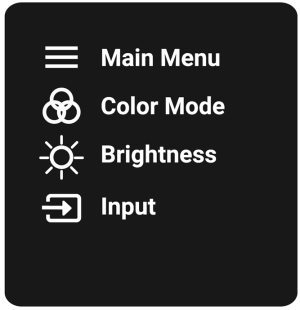

The Startup Menu options.
Menu	Description
Main Menu	Open the On-Screen Display Menu.
Color Mode	Select one of the preset standard color settings.
Brightness	Adjust the brightness level.
Input	Select the input source.

On-Screen Display Menu

Menu Navigation

Press the 1/2/3/4/5 key to display the Startup Menu. Then navigate to Main Menu and press the 4 key to display the On-Screen Display Menu.

Press the 1 or 2 key to select the main menu. Then press the 4 key to enter the selected menu.

Press the 1 or 2 key to select the menu option. Then press the 4 key to enter the sub-menu.

Press the 1 or 2 key to adjust/select the setting. Then press the 4 key to confirm.

Note: Press the 3 key to return to the previous menu.

Menu Options

Input

Color Mode

Color Mode menu options.
Menu	Description
sRGB	Precise color gamut and gamma of the sRGB standard.
REC709	Precise color gamut and gamma of the ITU-R Rec. 709 standard.
DICOM-SIM	Gamma curves are set to a DICOM simulation.
User	Custom, user-defined settings.
CAL1/CAL2/CAL3	Display with the 1st/2nd/3rd user calibration mode.
HDR10	Reduce the overall contrast of a given scene so that detail in the highlights and shadows can be seen.

ViewMode

ViewMode menu options.
Menu	Description
CAD/CAM	Select this option for viewing graphic design files.
Video Edit	Select this option for video editing.
Animation	Select this option for animation.
Photographer	Select this option for viewing photo files.
DICOM-SIM	Gamma curves are set to a DICOM simulation.
FPS 1/FPS 2	Ideal for First-Person Shooter games.
RTS	Ideal for Real-Time Strategy games.
MOBA	Select this option for Multiplayer Online Battle Arena games.

Audio Adjust

Audio Adjust menu options.
Menu	Description
Volume	Adjust the monitor's sound level.
Mute	Turn off the monitor's sound.

Setup Menu

Setup Menu menu options.
Menu	Description
Language Select	Select an available language for the OSD Menu.
Variable Refresh Rate	Eliminates stuttering and tearing during gameplay.
Resolution Notice	Enable this option to allow the system to inform users that the current viewing resolution is not the correct native resolution.
Information	Display the monitor information.
OSD Timeout	Set the length of time the OSD Menu remains on screen.
OSD Background	Show or hide the OSD background when the OSD Menu appears on the screen.
OSD Pivot	Set the OSD Menu orientation. Auto — Automatically pivots via the built-in G sensor when the monitor is vertical. 0° — No pivot. +90° — 90° clockwise pivot. −90° — 90° counter-clockwise pivot. 180° — 180° pivot.
Power Indicator	Set the Power Indicator On or Off. When On, the power indicator lights blue when the monitor is turned on.
Auto Power Off	Enable this option to allow the monitor to automatically turn off after a certain amount of time.
Sleep	Set the amount of idle time before the monitor enters Sleep mode.
ECO Mode	Choose between various modes based on power consumption.
Overscan	Enable this option to automatically enlarge the original picture to fill the screen at an equal aspect ratio.
Response Time	Adjust the response time to create smooth images without streaking, blurring, or ghosting.
USB Charging	Enable or disable USB charging.
Backstage Lighting	Adjust the LED lighting.
Burn-in Eraser	Reduce image burn-in.
DDC/CI	Enable this option to allow the monitor to be controlled via the graphics card.
Rename	Rename the personalized custom profile.
All Recall	Resets all settings to their default values.

Advanced Features and Settings

Auto Pivot

The Auto Pivot function can detect the displayed image and adjust the image’s orientation on the screen automatically when pivoting the screen.

Note: To use Auto Pivot, enable DDC/CI in the On-Screen Display Menu and download and install the ColorPro Display Manager application from our ColorPro Software Download site. ColorPro Display Manager is necessary for Auto Pivot functionality.

Open the On-Screen Display Menu and select the Setup Menu menu.
Set DDC/CI to On.
Download and install the Display Portal application from our ColorPro Software Download site. After installation, launch Display Portal and open the ColorPro Display Manager application.
In the ColorPro Display Manager application, set Screen Pivot to Auto.

Colorbration+

Important: The Colorbration+ application requires a color calibrator, which must be purchased separately.

To ensure accurate color reproduction, download and install the Display Portal application from our ColorPro Software Download site. After installation, launch Display Portal and open the Colorbration+ application to calibrate the monitor.

Tip: For a detailed list of supported measurement devices, please refer to our ColorPro Software Download site.

Firmware Upgrade

To maintain optimal display performance and address potential issues, regularly upgrade your monitor's firmware. Use the Firmware Update Tool and the supplied USB cable to install the updates.

Caution: Do not interrupt the firmware upgrade process, as this may damage your monitor. Keep the USB cable connected and make sure both the computer and monitor remain turned on until the upgrade is complete.

Download and install the Display Portal application from our ColorPro Software Download site.
Connect one end of the USB cable to the USB upstream port of the monitor. Then connect the other end of the cable to the USB port of the computer.
Launch Display Portal and open the Firmware Update Tool application.
Select Check for Update.

HDR (High-Dynamic-Range)

HDR enhances visuals with vibrant colors, deep blacks, and bright whites for an optimized high-contrast viewing experience.

Note: To use HDR on the monitor, make sure HDR is enabled on your device first.

Open the On-Screen Display Menu and select the Color Mode menu.
Select HDR.
Choose one of the options.

Appendix

Specifications

The monitor's technical specifications.
Category	Specification	Value
Display	Type	IPS type, a-si TFT Active Matrix 3840 x 2160 LCD; 0.1554 (H) mm x 0.1554 (V) mm pixel pitch
	Display Size	68.47 cm / 27 in. (viewable)
	Color Filter	RGB Vertical Stripe
	Glass Surface	Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal	Frequency	DisplayPort	f_h: 15–240 kHz; f_v: 24–75 Hz
		HDMI	f_h: 15–240 kHz; f_v: 24–75 Hz
		Type C	f_h: 15–240 kHz; f_v: 24–75 Hz
	Version	DisplayPort	1.4a
		HDMI	2.0
		Type C	1.4a
Compatibility	PC	up to 3840 x 2160
	Macintosh	up to 3840 x 2160
Resolution and Timings^[1]	Preset	3840 x 2160 @ 60 Hz
	Supported	4096 x 2160 @ 24, 25, 30, 50, 60 Hz 3840 x 2160 @ 24, 25, 30, 60 Hz 3840 x 1080 @ 60 Hz 2560 x 1440 @ 60 Hz 2048 x 1152 @ 60 Hz 1920 x 1440 @ 60 Hz 1920 x 1200 @ 60 Hz 1920 x 1080 @ 50, 60 Hz 1680 x 1050 @ 60 Hz 1600 x 1200 @ 60 Hz 1600 x 900 @ 60 Hz 1440 x 900 @ 60, 75 Hz 1400 x 1050 @ 60, 75 Hz 1366 x 768 @ 60 Hz 1360 x 768 @ 60 Hz 1280 x 1024 @ 50, 60, 75 Hz 1280 x 960 @ 50, 60, 75 Hz 1280 x 800 @ 60 Hz 1280 x 768 @ 50, 60 Hz 1280 x 720 @ 50, 60 Hz 1152 x 900 @ 67 Hz 1152 x 864 @ 75 Hz 1024 x 768 @ 50, 60, 70, 72 Hz 848 x 480 @ 60 Hz 800 x 600 @ 56, 60, 72 Hz 720 x 576 @ 50 Hz 720 x 480 @ 60 Hz 720 x 400 @ 70 Hz 640 x 480 @ 50, 60, 67, 72 Hz 640 x 400 @ 60, 70 Hz 640 x 350 @ 70 Hz
Power^[2]	Input Voltage	AC 100–240V, 50/60 Hz (auto switch)
Audio	Internal Speaker	2 × 3W
Display Area	Active Size (H × V)	596.74 × 335.66 mm 23.49 × 13.21 in.
Operating Conditions	Altitude	3.048 km (10,000 ft)
	Relative Humidity	20% to 90% (non-condensing)
	Temperature	0° C to 40° C 32° F to 104° F
Storage Conditions	Altitude	12 km (39,370.1 ft)
	Relative Humidity	5% to 90% (non-condensing)
	Temperature	-20° C to 60° C -4° F to 140° F
Dimensions (with stand)	Physical (W × H × D)	613.10 × 569.11–449.11 × 232.4 mm 24.14 × 22.41–17.68 × 9.15 in.
Weight (with stand)	Physical	8.23 kg (18.16 lb)
Dimensions (without stand)	Physical (W × H × D)	613.10 × 358 × 55 mm 24.14 × 14.1 × 2.2 in.
Weight (without stand)	Physical	4.9 kg (10.8 lb)
Wall Mount	Dimensions	100 × 100 mm
Power Consumption	On^[3]	45W (Typical) without audio 74W (Maximum) with 50% audio
	Standby	≤ 0.5 W (Maximum)
	Off	≤ 0.3 W (Maximum)

↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
↑ Please use the power adapter/power cord from ViewSonic® or an authorized source only.
↑ The test condition follows EEI standards.
