VP2756-4K Initial Setup

    From ViewSonic User Guide Database

    Stand Installation

    1. Place the monitor on a flat, stable surface with the screen facing down.
    2. Align and connect the two (2) points on the monitor stand’s base with the monitor stand’s neck.
    3. Use the captured screw in the monitor stand’s base and secure it to the monitor stand’s neck.
    4. Lift the device into its upright position on a flat, stable surface.
    • Align the points
    • Secure the Base and Neck
    • Lift into an upright position


    Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

    Wall Mounting

    Refer to the table below for the standard dimensions for wall mount kits.

    For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
    Maximum Loading Hole Pattern (W x H) Interface Pad (W x H x D) Pad Hole Screw Specification & Quantity
    14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm - 4 pieces
    1. Turn off the device and disconnect all cables.
    2. Place the device on a flat, stable surface with the screen facing down.
    3. Remove the four (4) screws.
    4. Pull down slightly to disengage the hooks and remove the stand.
      • Remove the four (4) screw
      • Disengage the hooks
    5. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).
    6. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.

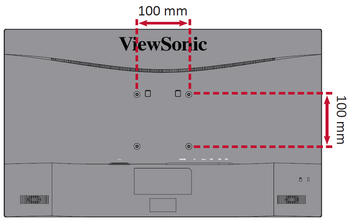

    VESA mounting points
