Package Contents

Monitor
Power Adapter
USB Type C to Type A cable (1.5 m)
Micro HDMI to HDMI cable (1.1 m)
USB Type C to Type C cable (1.1 m)
Quick Start Guide
Monitor Hood

Front View / Rear View

Front View
Rear View

Letter	Item
A	Display Screen
B	Control Panel
C	Power Button
D	Stand
E	Tripod Mount

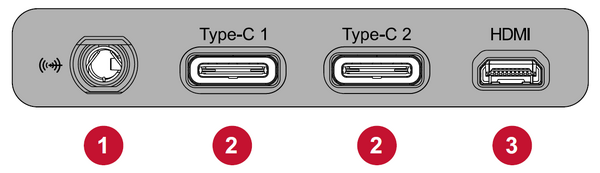

I/O Ports

Number	Item
1	Audio Out
2	USB Type C
3	Micro HDMI

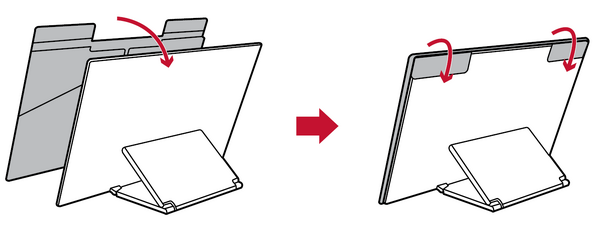

Installing the Cover

Using the Cover and Shade Hood

NOTE: Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

Connecting to Power

The monitor can be powered in any of the following configurations:

Type C Connection

Type A Connection

Power Adapter

Connecting External Devices

Your external device(s) can be connected in any of the following configurations:

Type C Connection

Connect a Type C cable from your external device to a Type C port on the monitor.

Micro HDMI Connection

Connect the micro HDMI cable from your external device to the micro HDMI port on the monitor.
Connect the USB Type A to Type C cable from your external device.

NOTE: The USB Type A to Type C connection will also supply power to the monitor from the notebook. The power output must be greater than 10W.

Audio Connection

Plug the audio jack of the ear-/headphones into the Audio Out port of the monitor. Additionally, you can connect the monitor to a sound bar using an audio cable.

Power Delivery

Powering a Notebook or Mobile Phone

If the included power adapter is connected to the monitor, then the monitor can charge a connected notebook or mobile phone.

NOTE: Power Delivery Output: DC 9V/1.33A, 12V/1.75A, 15V/2A, 20V/2.0A.

Power Supply Detection

This product will detect if the power supply device is an adapter, laptop or mobile phone.

If the power source is an adapter or notebook, the default brightness value will be 100.
If the power source is a mobile phone, the default brightness value will be 15.
When using a mobile phone to power the monitor, the default brightness level will be 15.

NOTE: Due to the limited power output of the mobile phone, do not adjust the brightness level higher as this may cause the display to flash or shut down.

Power Delivery - Further Information

Due to the design please note:

The first connected device will be the main input signal.
When a Type C port recognizes an external device as a power adapter, it will only distribute the power. It will NOT display the input signal.
Only when one of the Type C ports is recognized as a power adapter can the other one deliver two-way power.

If a notebook is connected first to the monitor, then a mobile phone is connected second, the mobile phone’s battery will not be charged as neither Type C port recognizes the connection as being connected to a power adapter.

NOTE: If you want to display the mobile phone’s screen, you must unplug the Type C cable connected to the notebook.

If a mobile phone is connected first to the monitor, then a notebook is connected second, the mobile phone’s battery will be charged as one of the Type C ports is recognized as being connected to a power adapter.

NOTE: If you want to display the notebook screen, you must unplug the Type C cable connected to the mobile phone.

Due to the monitor’s design, do not connect two notebooks or one notebook and a desktop computer at the same time. This can cause power distribution conflicts, resulting in flashing screens or the forced shutdown of the notebook(s).

NOTE:

If the notebook has a Type C port, please connect via Type C to the monitor.
Do not connect the other Type C port of the monitor to another notebook or desktop computer via Type A and HDMI at the same time.
If the notebook only has HDMI and Type A ports, please connect via HDMI and Type A to Type C to the monitor.
If the power output of the Type A port of the notebook is not greater than 10W, please use our power adapter to connect to the monitor.
Do not connect the other Type C port of the monitor to another notebook or desktop computer at the same time.

Screen Orientation Adjustment (Monitor Pivot)

Extend the monitor’s stand to the longest position.

Rotate the monitor 90° clockwise or counter clockwise from landscape to portrait orientation.

NOTE:

To rotate the screen image, manually change the system’s display orientation settings.
When adjusting, make sure to hold both sides of your monitor firmly with both hands.

Tilt Angle Adjustment

The monitor has a double-hinged stand that allows for several viewing angles (20˚ to 60˚).

Tilt Option 1

Tilt Option 2

Tilt Option 3

NOTE: When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand.

Turning the Device On/Off

Connect to a power source in one of the available configurations.
Press the Power Button to turn on the monitor.
To turn the monitor off, press the Power Button again.

Note: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect from the power outlet.

Using the Control Panel Keys

Use the control panel keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

Startup Menu

Press the ▲/▼/► key to activate the Startup Menu.

NOTE: Follow the key guide that appears on the screen to select the option or make adjustments.

Main Menu

Enter the On-Screen Display (OSD) Menu.

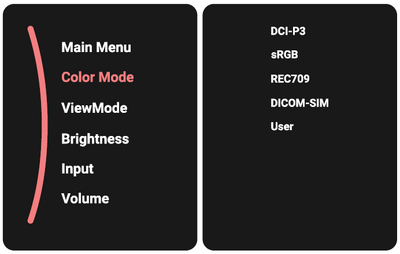

Color Mode

Select one of the preset standard color settings.

ViewMode

Select one of the preset display settings.

Brightness

Adjust the brightness level.

Input

Select the input source.

Volume

Adjust the volume settings.

NOTE: Press the ◄ Key to return to the previous menu.

Hot Keys

When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the control panel keys.

Key	Description
▲+◄	Press and hold the keys to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding the keys for 10 seconds to lock/unlock the OSD Menu.
▼+◄	Press and hold the keys to lock/unlock the Power button. When the menu appears on the screen, continue holding the keys for 10 seconds to lock/unlock the Power button.
▼+►	Press to display/hide the boot up screen when the device is turned on.

General Operation

Press the ▲/▼/► key to display the Startup Menu. Then navigate to Main Menu and press the ► key to display the OSD Menu.

Press the ▲ or ▼ key to select the main menu. Then press the ► key to enter the selected menu.

Press the ▲ or ▼ key to select the desired menu option. Then press the ► key to enter the sub-menu.

Press the ▲ or ▼ key to adjust/select the setting. Then press the ► key to confirm.

Press the ◄ key to return to the previous menu.

OSD Tree

Sub-menu	Menu Option
Type C 1	Color Format	Auto
		RGB (Full Range)
		RGB (Limited Range)
		YUV (Full Range)
		YUV (Limited Range)
Type C 2	Color Format	Auto
		RGB (Full Range)
		RGB (Limited Range)
		YUV (Full Range)
		YUV (Limited Range)
Micro HDMI	Color Format	Auto
		RGB (Full Range)
		RGB (Limited Range)
		YUV (Full Range)
		YUV (Limited Range)
Auto Detect	On
Auto Detect	Off

Sub-menu	Menu Option
DCI-P3	Brightness	(-/+, 0~100)
	Color Temperature	Panel Default
		D93
		D75
		D65
		D63
		D50
	Gamma	DCI-P3
		1
		1.4
		1.8
		2.0
		2.2
		2.4
		2.6
	Sharpness	(-/+, 0/25/50/70/100)
	Aspect Ratio	1:1
		4:3
		Full Screen
	Recall
sRGB	Brightness	(-/+, 0~100)
	Color Temperature	Panel Default
		D93
		D75
		D65
		D63
		D50
	Gamma	sRGB
		1
		1.4
		1.8
		2.0
		2.2
		2.4
		2.6
	Sharpness	(-/+, 0/25/50/70/100)
	Aspect Ratio	1:1
		4:3
		Full Screen
	Recall
REC709	Brightness	(-/+, 0~100)
	Color Temperature	Panel Default
		D93
		D75
		D65
		D63
		D50
	Gamma	REC709
		1
		1.4
		1.8
		2.0
		2.2
		2.4
		2.6
	Sharpness	(-/+, 0/25/50/70/100)
	Aspect Ratio	1:1
		4:3
		Full Screen
	Recall
DICOM-SIM	Sharpness	(-/+, 0/25/50/70/100)
	Aspect Ratio	1:1
		4:3
		Full Screen
	Recall
User	Contrast	(-/+, 0~100)
	Brightness	(-/+, 0~100)
	Color Temperature	Panel Default
		D93
		D75
		D65
		D63
		D50
	Gamma	Panel Default
		1
		1.4
		1.8
		2.0
		2.2
		2.4
		2.6
	Advanced DCR	(-/+, 0/25/50/75/100)
	Gain	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
	Offset	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
	Hue	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
		Cyan	(-/+, 0~100)
		Magenta	(-/+, 0~100)
		Yellow	(-/+, 0~100)
	Saturation	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
		Cyan	(-/+, 0~100)
		Magenta	(-/+, 0~100)
		Yellow	(-/+, 0~100)
	Sharpness	(-/+, 0/25/50/75/100)
	Aspect Ratio	1:1
		4:3
		Full Screen
	Blue Light Filter	(-/+, 0~5)
	Recall

Sub-menu	Menu Option
CAD/CAM	Ultra Clear	(-/+, 0~100)
	Advanced-Sharpness	(-/+, 0/25/50/75/100)
	Advanced-Gamma	Panel Default
	Advanced-Gamma	(-/+, 1~2.6)
Video Edit	Ultra Clear	(-/+, 0~100)
	Advanced-Sharpness	(-/+, 0/25/50/75/100)
	Advanced-Gamma	Panel Default
	Advanced-Gamma	(-/+, 1~2.6)
Animation	Ultra Clear	(-/+, 0~100)
	Advanced-Sharpness	(-/+, 0/25/50/75/100)
	Black Stabilization	(-/+, 0~100)
Photographer	Ultra Clear	(-/+, 0~100)
	Advanced-Sharpness	(-/+, 0/25/50/75/100)
	Advanced-Gamma	Panel Default
	Advanced-Gamma	(-/+, 1~2.6)
FPS 1
FPS 2
RTS
MOBA

Sub-menu	Menu Option
Volume	(-/+, 0~100)
Mute	On
Mute	Off

Sub-menu	Menu Option
Language Select	English
	Français
	Deutsch
	Español
	Italiano
	Suomi
	Русский
	Türkçe
	日本語
	한국어
	繁體中文
	简体中文
	Česká
	Svenska
Resolution Notice	On
Resolution Notice	Off
Information
OSD Timeout	(-/+, 5/15/30/60)
OSD Background	On
OSD Background	Off
OSD Pivot	Auto
	0°
	+90°
	-90°
	180°
Power Indicator	On
Power Indicator	Off
Auto Power Off	On
Auto Power Off	Off
Sleep	30 minutes
	45 minutes
	60 minutes
	120 minutes
	Off
ECO Mode	Standard
	Optimize
	Conserve
	Energy Saving	On
	Energy Saving	Off
Overscan	On
Overscan	Off
Burn-in Eraser	On
Burn-in Eraser	Off
DDC/CI	On
DDC/CI	Off
Rename
All Recall

Input

Press the ▲/▼/► key to display the Startup Menu. Then navigate to Main Menu and press the ► key to display the OSD Menu.
Press the ▲ or ▼ key to select Input. Then press the ► key to enter the Input menu.
Press the ▲ or ▼ key to select the desired input source. Then press the ► key to confirm the selection.

Color Mode

Menu Option	Description
DCI-P3	Precise color gamut and gamma of DCI-P3 standard.
sRGB	Precise color gamut and gamma of sRGB standard.
REC709	Precise color gamut and gamma of ITU-R Rec. 709 standard.
DICOM-SIM	Gamma curves are set to a DICOM simulation.
User	Custom, user-defined settings.

Press the ▲/▼/► key to display the Startup Menu. Then navigate to Main Menu and press the ► key to display the OSD Menu.
Press the ▲ or ▼ key to select Color Mode. Then press the ► key to enter the Color Mode menu.
Press the ▲ or ▼ key to select the desired option. Then press the ► key to enter its sub-menu.
Press the ▲ or ▼ key to adjust/select the setting, and press the ► key to confirm the selection (if applicable).

ViewMode

Menu Option	Description
CAD/CAM	Select this option for viewing graphic design files.
Video Edit	Select this option for video editing.
Animation	Select this option for animation.
Photographer	Select this option for viewing photo files.
FPS 1	Ideal for First-Person Shooter games.
FPS 2	Ideal for First-Person Shooter games.
RTS	Ideal for Real-Time Strategy games.
MOBA	Select this option for Multiplayer Online Battle Arena games.

Press the ▲/▼/► key to display the Startup Menu. Then navigate to Main Menu and press the ► key to display the OSD Menu.
Press the ▲ or ▼ key to select ViewMode. Then press the ► key to enter the ViewMode menu.
Press the ▲ or ▼ key to select the desired option. Then press the ► key to enter its sub-menu.

Audio Adjust

Menu Option	Description
Volume	Adjust the volume level.
Mute	Enable this option to temporarily turn off the sound.

Press the ▲/▼/► key to display the Startup Menu. Then navigate to Main Menu and press the ► key to display the OSD Menu.
Press the ▲ or ▼ key to select Audio Adjust. Then press the ► key to enter the Audio Adjust menu.
Press the ▲ or ▼ key to select the desired option. Then press the ► key to enter its sub-menu.
Press the ▲ or ▼ key to adjust/select the setting, and press the ► key to confirm the selection (if applicable).

Setup Menu

Menu Option	Description
Language Select	Select an available language for the OSD Menu.
Resolution Notice	Enable this option to allow the system to inform users that the current viewing resolution is not the correct native resolution.
Information	Display the monitor information.
OSD Timeout	Set the length of time the OSD Menu remains on screen.
OSD Background	Show/Hide the OSD background when the OSD Menu appears on the screen.
OSD Pivot	Set the OSD Menu orientation. Auto: With the built-in G sensor, the OSD Menu can automatically pivot when the monitor is positioned vertically. 0°: Sets the OSD Menu without a pivot. +90°: Sets the OSD Menu with a +90° pivot. 90°: Sets the OSD Menu with a -90° pivot. 180°: Sets the OSD Menu with a 180° pivot.
Power Indicator	Set the Power Indicator On or Off. If the setting is set to On, the power indicator lights blue when the device is turned on.
Auto Power Off	Enable this option to allow the monitor to automatically turn off after a certain amount of time.
Sleep	Set the amount of idle time before the monitor enters Sleep mode.
ECO Mode	Choose between various modes, based on power consumption.
Overscan	Enable this option to automatically enlarge the original picture horizontally and vertically to an equal aspect ratio that fills the screen.
Burn-in Eraser	Reduce image burn-in.
Rename	Rename the personalized custom profile.
All Recall	Resets all settings to their default values.

Press the ▲/▼/► key to display the Startup Menu. Then navigate to Main Menu and press the ► key to display the OSD Menu.
Press the ▲ or ▼ key to select Setup Menu. Then press the ► key to enter the Setup Menu menu.
Press the ▲ or ▼ key to select the desired option. Then press the ► key to enter its sub-menu.
Press the ▲ or ▼ key to adjust/select the setting, and press the ► key to confirm the selection (if applicable).

Technical Specifications

Item	Category	Specifications
Model	P/N.	VP16-OLED
Model	No.	VS19179
LCD	Type	LTPS TFT Active Matrix Full HD 1920 x 1080, 0.17928 mm x 0.17928 mm pixel pitch, Sub-Pixel: 59.76 x 179.28 (um)
	Display Size	39.6 cm, 15.6" diagonal
	Color Filter	RGB Stripe Type
	Glass Surface	Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal	Video Sync	TMDS digital (100 Ω) HDMI (v. 1.4): fh:24-83 kHz, fv:50-61 Hz Micro-Packet Type C: fh:24-83 kHz, fv:50-61 Hz
Compatibility	PC	up to 1920 x 1080
	Macintosh	up to 1920 x 1080
	Recommended	1920 x 1080 @ 60Hz
Resolution^[1]	Supported	1920 x 1080 @ 50, 60Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60Hz 1400 x 1050 @ 60Hz 1360 x 768 @ 60Hz 1280 x 1024 @ 50, 60Hz 1280 x 960 @ 50, 60Hz 1280 x 800 @ 50, 60Hz 1280 x 768 @ 50, 60Hz 1280 x 720 @ 50, 60Hz 1152 x 864 @ 60Hz 1024 x 768 @ 50, 60Hz 800 x 600 @ 56, 60Hz 720 x 576 @ 50Hz 720 x 480 @ 60Hz 640 x 480 @ 50, 60Hz 640 x 400 @ 60Hz
Power Adapter^[2]	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	344.21 x 193.62 mm (13.55” x 7.62”)
Operating Conditons	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	20% to 90% (non-condensing)
	Altitude	3.048 km (10,000 ft)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	5% to 90% (non-condensing)
	Altitude	12.1 km (40,000 ft)
Dimensions	Physical (W x H x D)	358.918 x 226.682~314.48 x 19 mm (14.13” x 8.92”~12.38” x 0.8”)
Weight	Physical	0.98 kg (2.18 lbs)
Power Saving Modes	On^[3]	7W (Typical) without Audio 7.6W (Typical) with Audio
Power Saving Modes	Off	≤ 0.3W (Max)

↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
↑ Please use the power adapter from ViewSonic® or an authorized source only.
↑ The test condition follows EEI standards.

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES-003(B) / NMB-003(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below.


Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

Copper alloy containing up to 4% lead by weight.
Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada:
https://www.viewsonic.com/us/go-green-with-viewsonic

Europe:
https://www.viewsonic.com/eu/environmental-social-governance/recycle

Taiwan:
https://recycle.moenv.gov.tw/

For EU users, please contact us for any safety/accident issue experienced with this product:

	ViewSonic Europe Limited Haaksbergweg 75 1101 BR Amsterdam Netherlands
	+31 (0) 650608655
	EPREL@viewsoniceurope.com
	https://www.viewsonic.com/eu/

Copyright Information

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

VP16-OLED_UG_ENG_1a_20220927

Customer Service

Limited Warranty

Safety Precautions

Troubleshooting

Maintenance

[1] Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.

[2] Please use the power adapter from ViewSonic® or an authorized source only.

[3] The test condition follows EEI standards.

[1]

[2]

[3]
